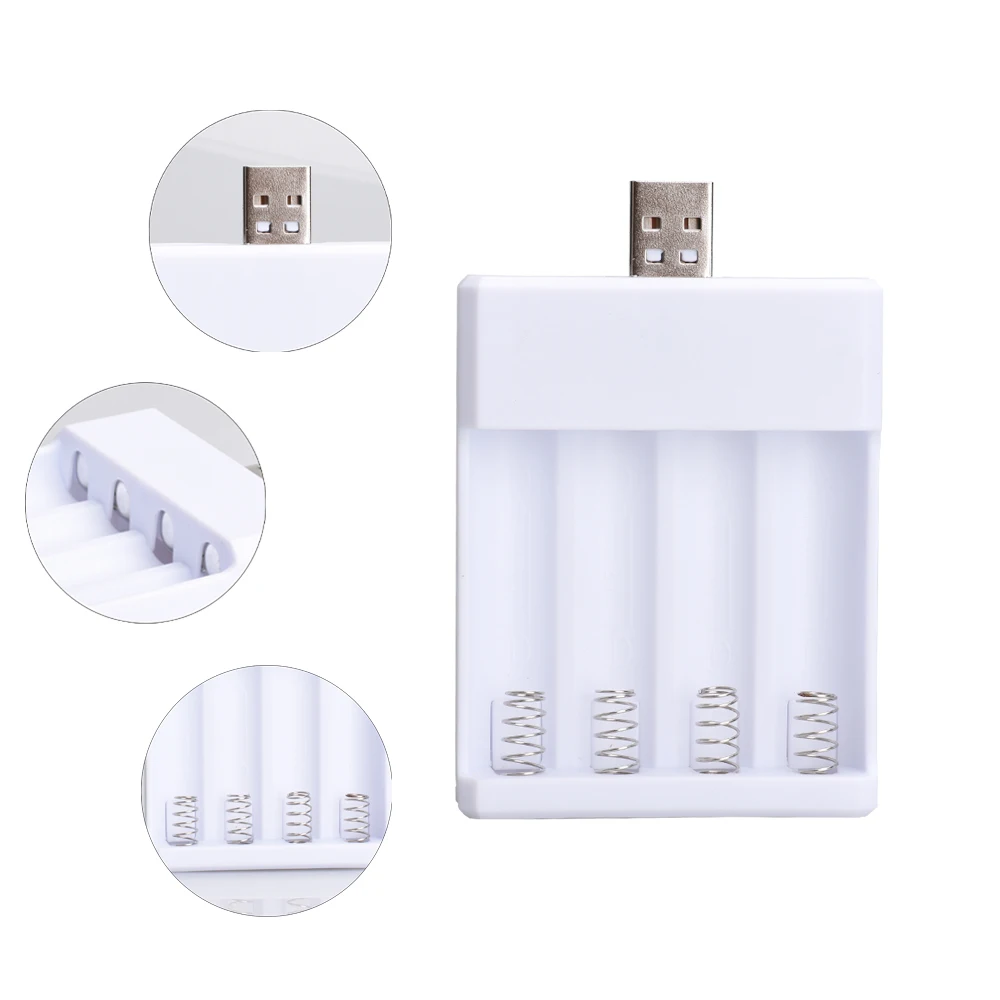

Зарядное устройство и блоки питания YONGLI Y с 4 слотами для аккумуляторных батарей AA AAA Ni-MH/Ni-cd
20,22 ₽ - 23,59 ₽

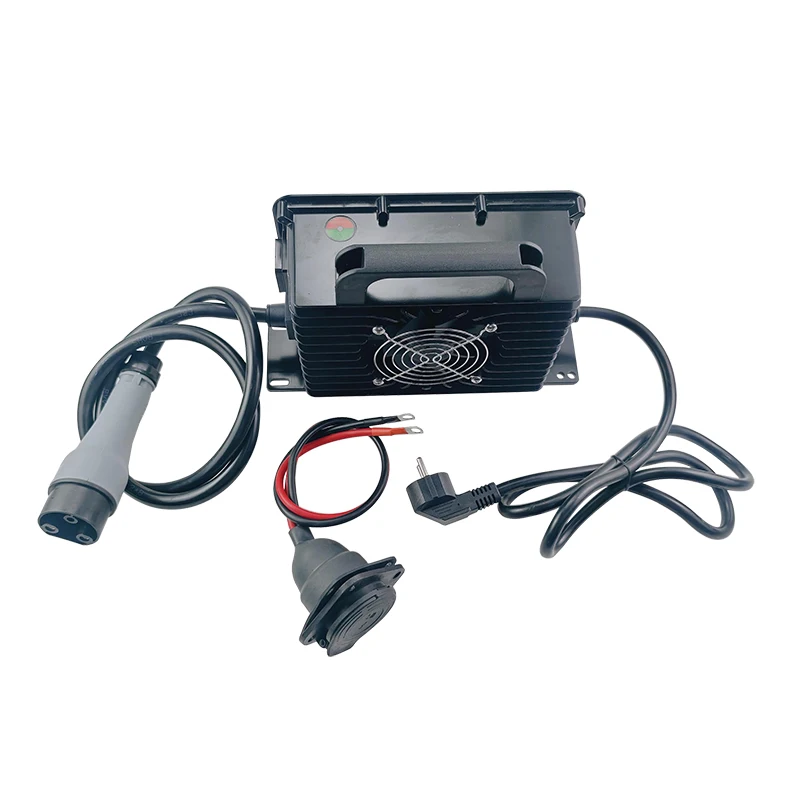

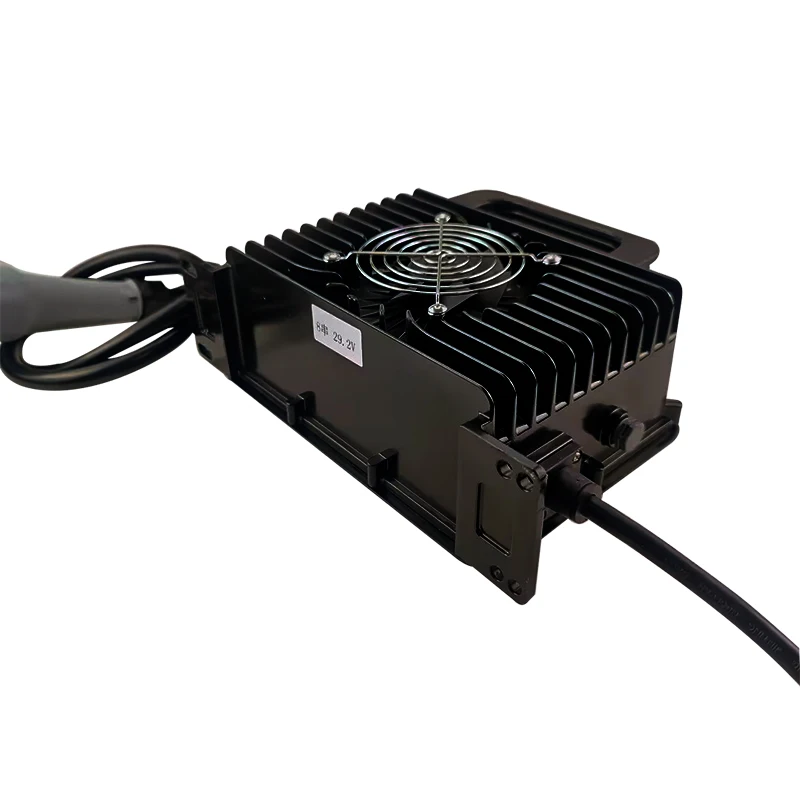

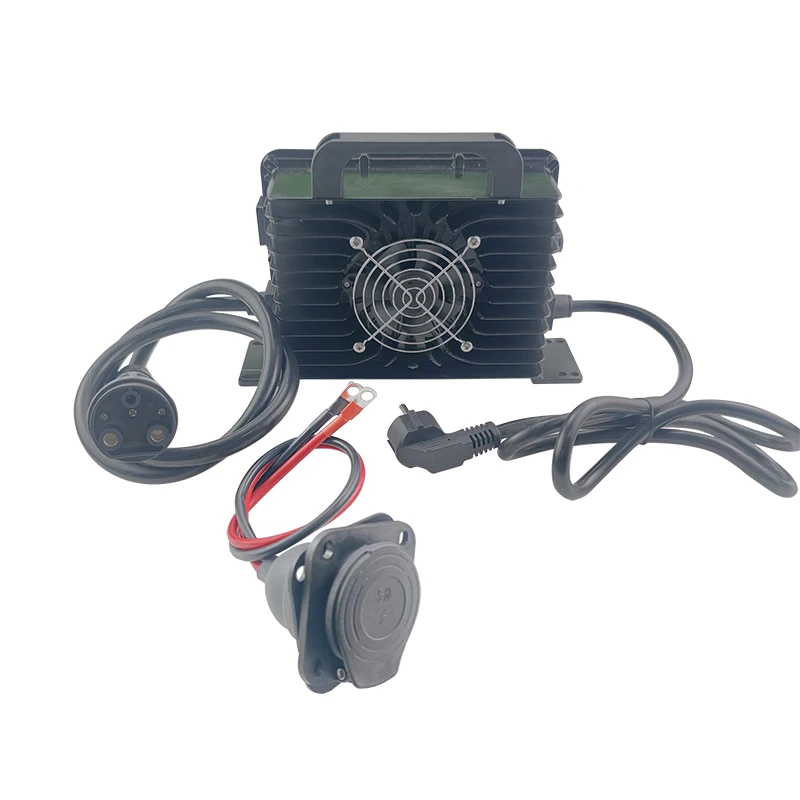

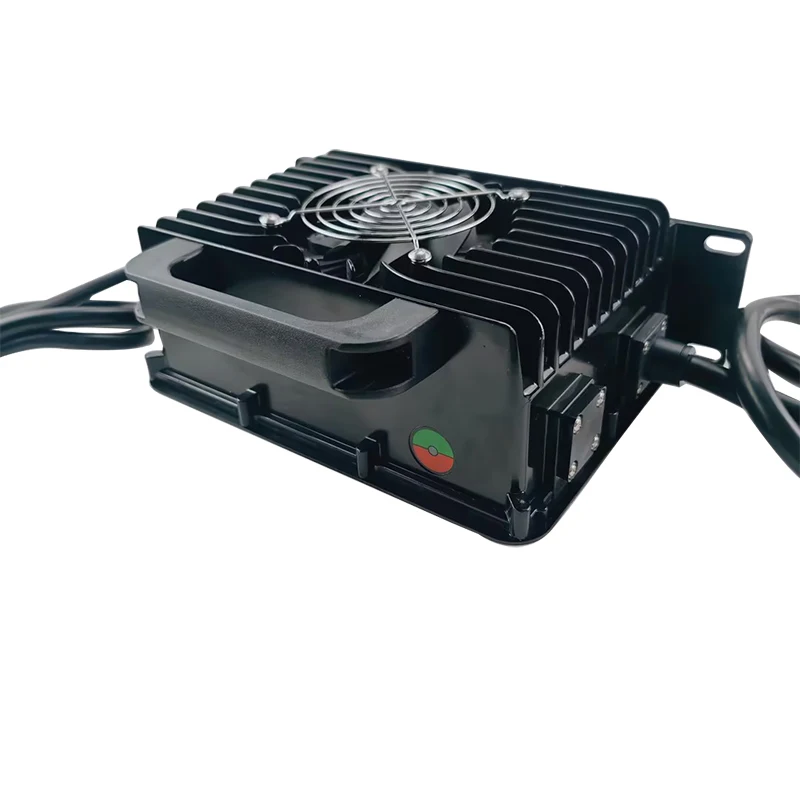

IP67 водонепроницаемое зарядное устройство 1500 Вт 12 В 24 36 48 60 72 80 84 96 102 120 144 312 литиевое LIPO AGM Lifepo4
- Категория: >>>
- Поставщик: Hunan Xiaolithium Technology Limited
Сохранить в закладки 1601115250271:
Описание и отзывы
Характеристики
IP67 waterproof 1500W charger 12V 24V 36V 48V 60V 72V 80V 84V 96V 102V 120V 144V 312V lithium LIPO AGM Lifepo4 battery Charger | ||||||||
Products Description
They are suitable for lithium batteries, lead-acid batteries, nickel hydrogen batteries, etc., and can be used for electricity
Vehicles. Motorcycles, sightseeing vehicles, forklifts, logistics vehicles, sanitation vehicles, golf carts, patrolsVehicles, all
terrain vehicles, ships,
communication
Input wide voltage design, ranging from AC90V to AC264V, suitable for any voltage level in any region of the world. AC input with active power factor correction (APFC) has low heat output and no pollution to the power grid.
Fully sealed thermal conductive silicone technology, protection level IP67, good seismic performance, and good heat dissipation Long performance and service life.
Wide temperature range: -40+60 degrees, 100% full load aging test, soft switching technology; Low switching loss of power devices, high efficiency (>93%), energy-saving and energy-saving Waterproof, shockproof, acid resistant, mist resistant, dustproof, and enhanced isolation design ensure safe operation under harsh conditions.
A charger with a computer interface can adjust the charging mode on site. Suitable for lead-acid, lithium batteries, and other batteries. Realizing optimal matching with CAN communication interface for real-time implementation
Communication with BMS. Intelligent temperature compensation during charging process to avoid overcharging or Insufficient charging maximizes battery life.
When the internal temperature of the charger exceeds 80 ℃, the current of the charger will automatically decrease; When the temperature exceeds 85 ℃, the charger will be turned off for protection; When the temperature drops, the charging machine automatically recovers.
When the output is short circuited, the charger automatically turns off the output. After troubleshooting, the battery can be
reconnected to restore charging
When the battery is reversed, the internal circuit of the charger will automatically disconnect from the battery, not charging,
and will not damage the charger.
When the input voltage is below 90V or above 264V, the charger will shut down and automatically resume operation after the voltage is normal.Automatically turn off when fully charged.
Application
♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper
♦ Solar Systems, Home Application,UPS
♦ LED Torch, headlight, Portable power bank,etc.
Vehicles. Motorcycles, sightseeing vehicles, forklifts, logistics vehicles, sanitation vehicles, golf carts, patrolsVehicles, all
terrain vehicles, ships,
communication
Input wide voltage design, ranging from AC90V to AC264V, suitable for any voltage level in any region of the world. AC input with active power factor correction (APFC) has low heat output and no pollution to the power grid.
Fully sealed thermal conductive silicone technology, protection level IP67, good seismic performance, and good heat dissipation Long performance and service life.
Wide temperature range: -40+60 degrees, 100% full load aging test, soft switching technology; Low switching loss of power devices, high efficiency (>93%), energy-saving and energy-saving Waterproof, shockproof, acid resistant, mist resistant, dustproof, and enhanced isolation design ensure safe operation under harsh conditions.
A charger with a computer interface can adjust the charging mode on site. Suitable for lead-acid, lithium batteries, and other batteries. Realizing optimal matching with CAN communication interface for real-time implementation
Communication with BMS. Intelligent temperature compensation during charging process to avoid overcharging or Insufficient charging maximizes battery life.
When the internal temperature of the charger exceeds 80 ℃, the current of the charger will automatically decrease; When the temperature exceeds 85 ℃, the charger will be turned off for protection; When the temperature drops, the charging machine automatically recovers.
When the output is short circuited, the charger automatically turns off the output. After troubleshooting, the battery can be
reconnected to restore charging
When the battery is reversed, the internal circuit of the charger will automatically disconnect from the battery, not charging,
and will not damage the charger.
When the input voltage is below 90V or above 264V, the charger will shut down and automatically resume operation after the voltage is normal.Automatically turn off when fully charged.
Application
♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper
♦ Solar Systems, Home Application,UPS
♦ LED Torch, headlight, Portable power bank,etc.
specifications and models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current | ||
1230A/1230C | AC 90~264V | 12V | 16.5V | 30A/30A | ||
2430A/2430C | AC 90~264V | 24V | 33.0V | 30A/30A | ||
3625A/3625C | AC 90~264V | 36V | 49.5V | 25A/25A | ||
4825A/4820C | AC 90~264V | 48V | 66.0V | 25A/20A | ||
6020A/6015C | AC90~264V | 60V | 82.5V | 20A/15A | ||
7218A/7212C | AC 90~264V | 72V | 99.0V | 18A/12A | ||
8015A/8011C | AC 90~264V | 80V | 110V | 15A/11A | ||
9610A | AC180~264V | 96V | 132V | 10A | ||
Recommend Products
Applications
Why Choose Us
Contact Us
Packing & Shipping
About us
Hunan XiaoLithium Technology Limited was located in Changsha City. We focus on designing, researching and developing, manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!
These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!
FAQ
1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Похожие товары

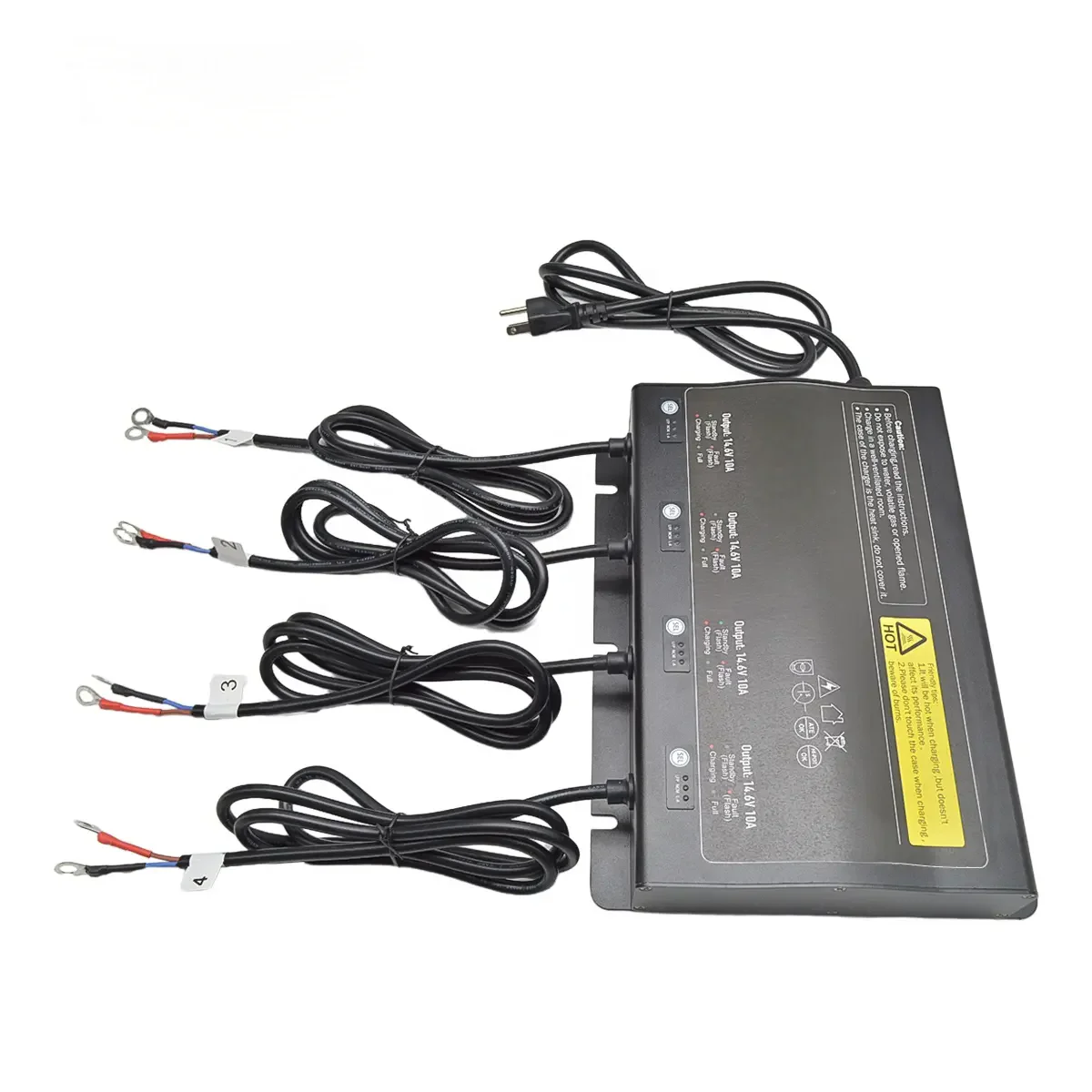

Водонепроницаемый литий-ионный LiFePO4 12 В 14 6 10A многоразовый выход серии 4 банка 4-канальный аккумулятор зарядное устройство
13 815,96 ₽ - 16 062,45 ₽

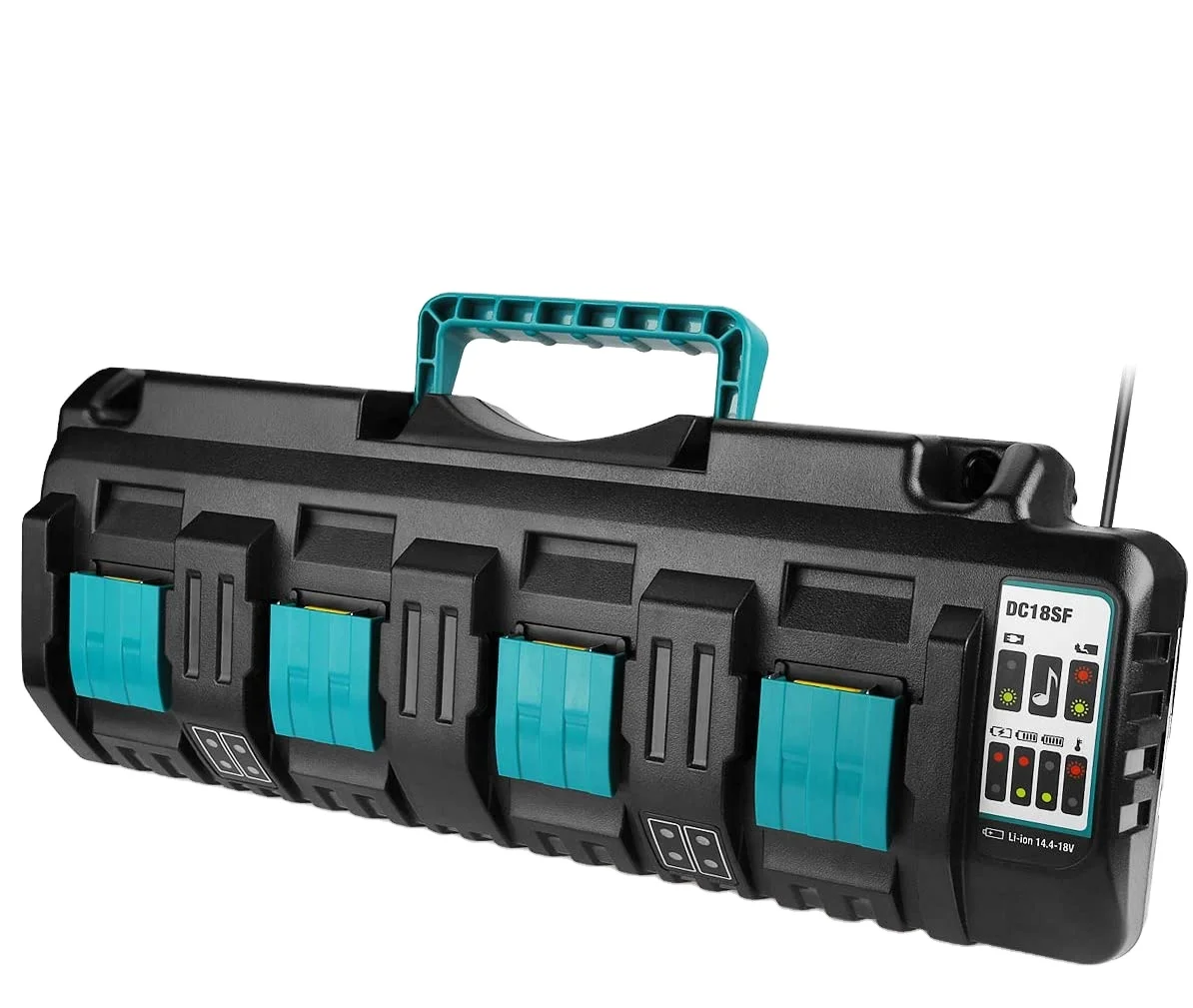

DC18SF четыре порта зарядки для Makitas 14 4 В 18 литиевая батарея BL1860B BL1460B зарядное устройство с USB 12A
3 145,10 ₽ - 3 369,75 ₽

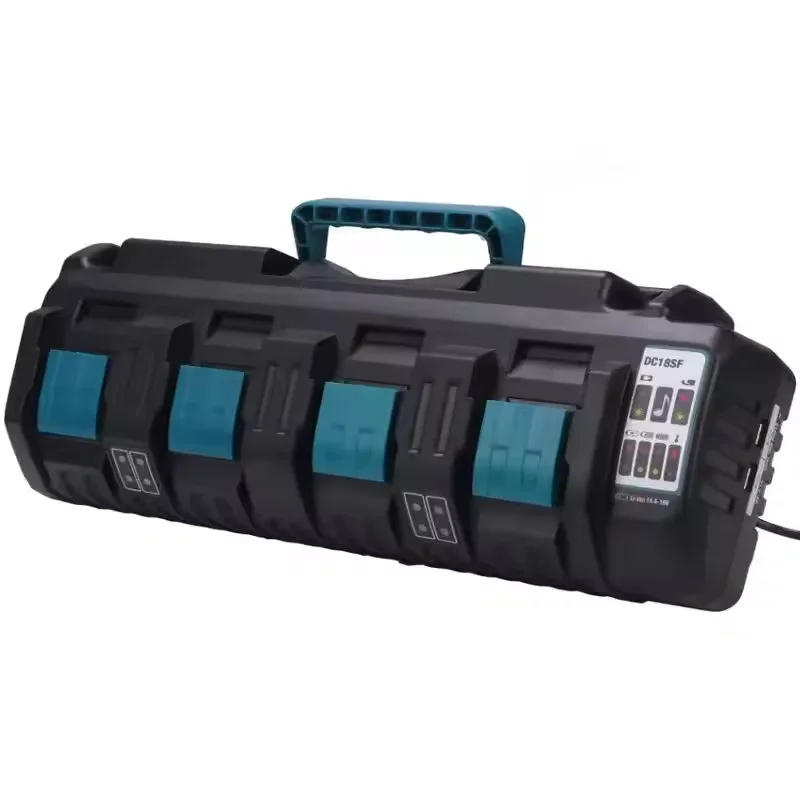

Новейшее зарядное устройство 14 4 V-18V литий-ионное для быстрой зарядки порта 3A Замена зарядного устройства Makitas DC18SF
4 381,80 ₽ - 4 578,36 ₽
Высокое качество 12V 24V 36V 48V 60V 72V 84V 96V 70A 50A 45A 25A 10A 5A 1500W литий-ионное зарядное устройство Lifepo4 LTO
DDP Jiabaida JBD 6s 7s 13s 16S 20s 21s smart BMS 80A 100A 120A 150A 200A для e-bike pcb Аккумулятор bms JBD-AP21S001 AP21S004

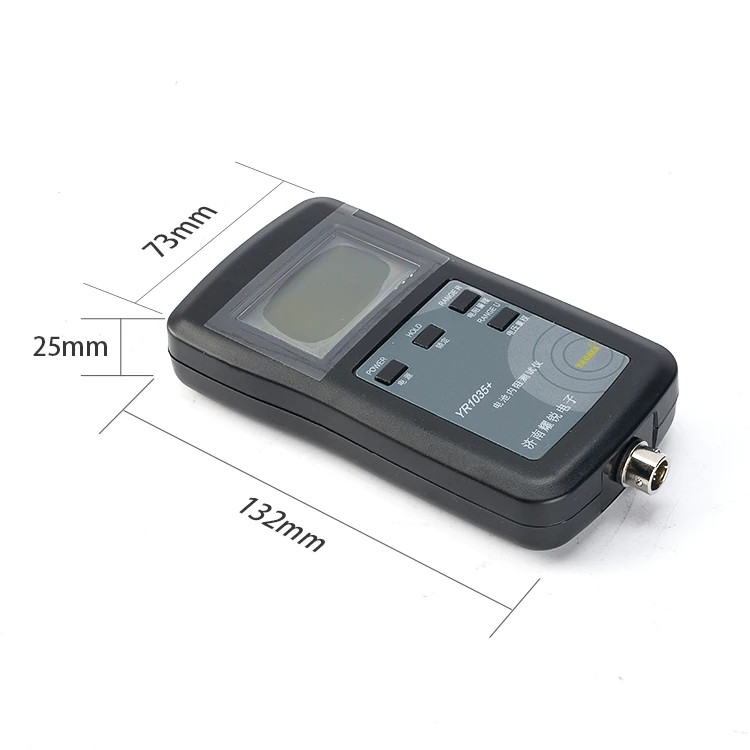

Тестер внутреннего сопротивления батареи YR1035 для измерения одиночной и групповой
2 224,04 ₽ - 5 616,24 ₽

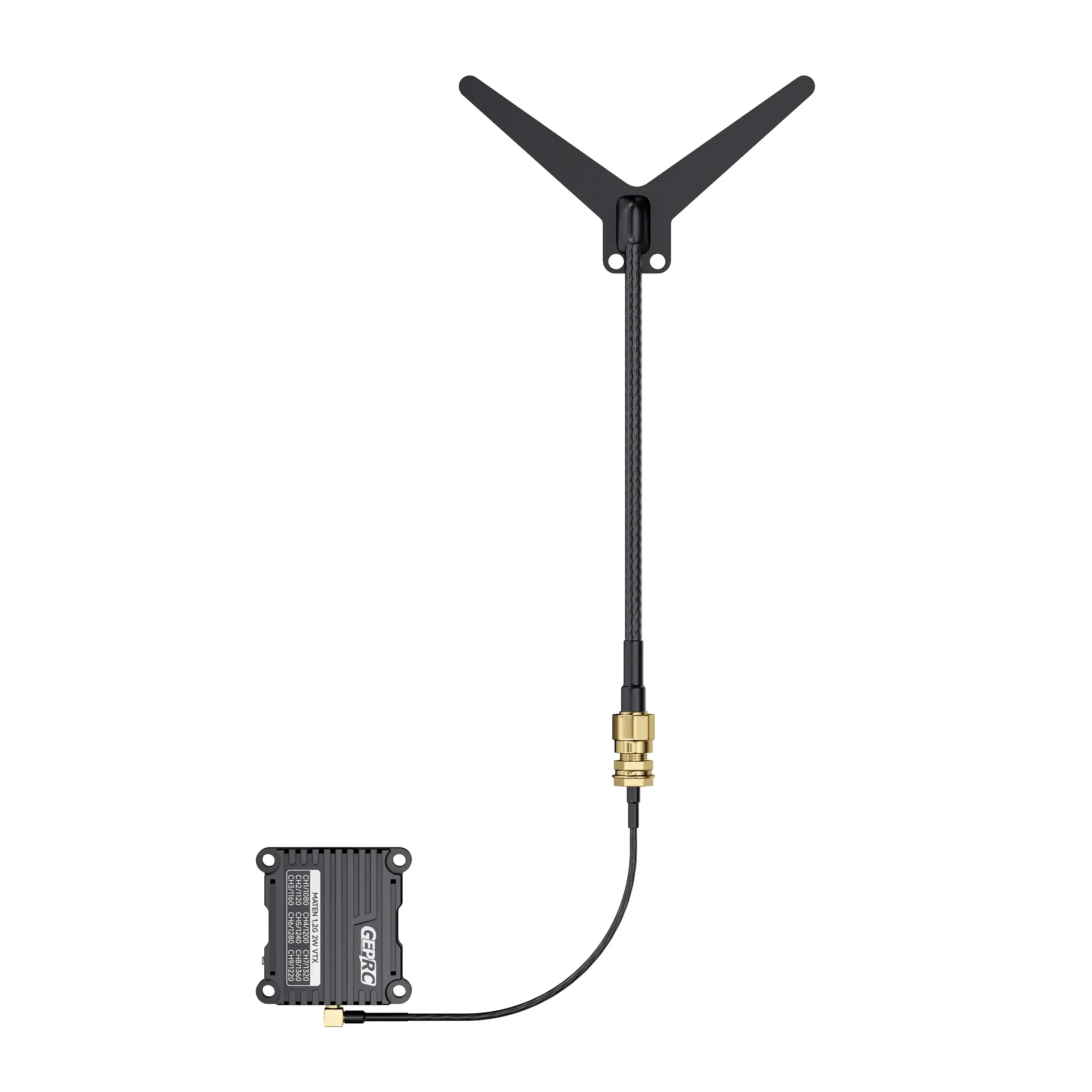

GEPRC MATEN 1 2G 2W VTX высокомощный гоночный Дрон FPV аксессуары с функцией GPS видео передачи изображения камера дистанционного управления
