Products Description

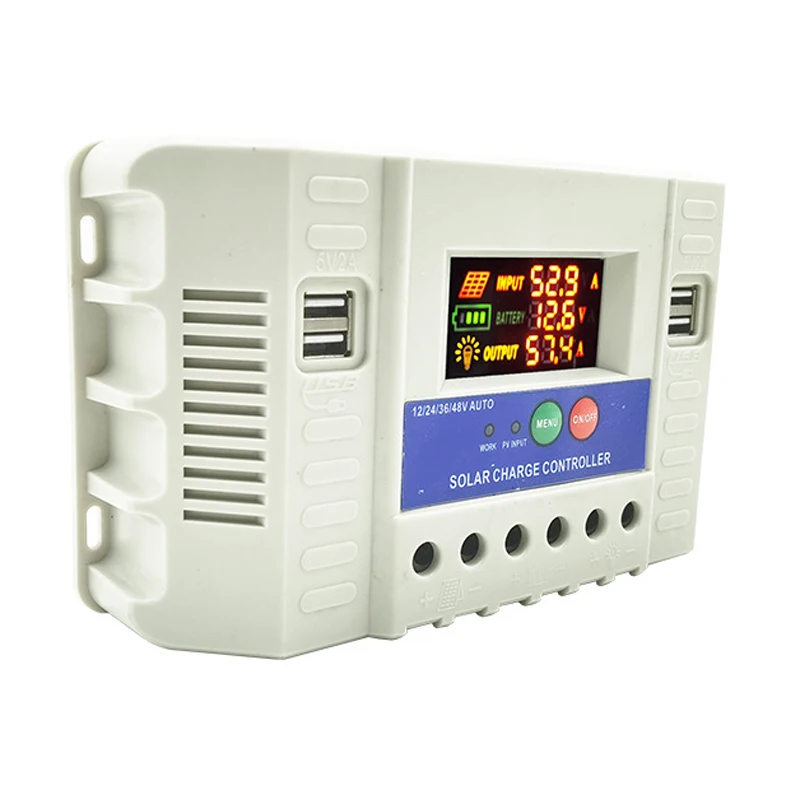

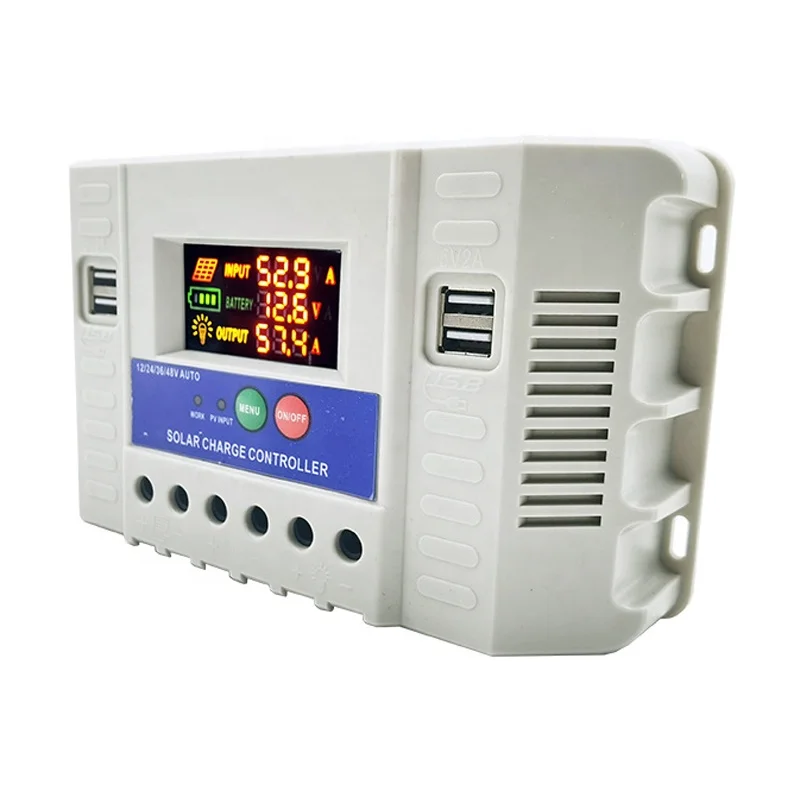

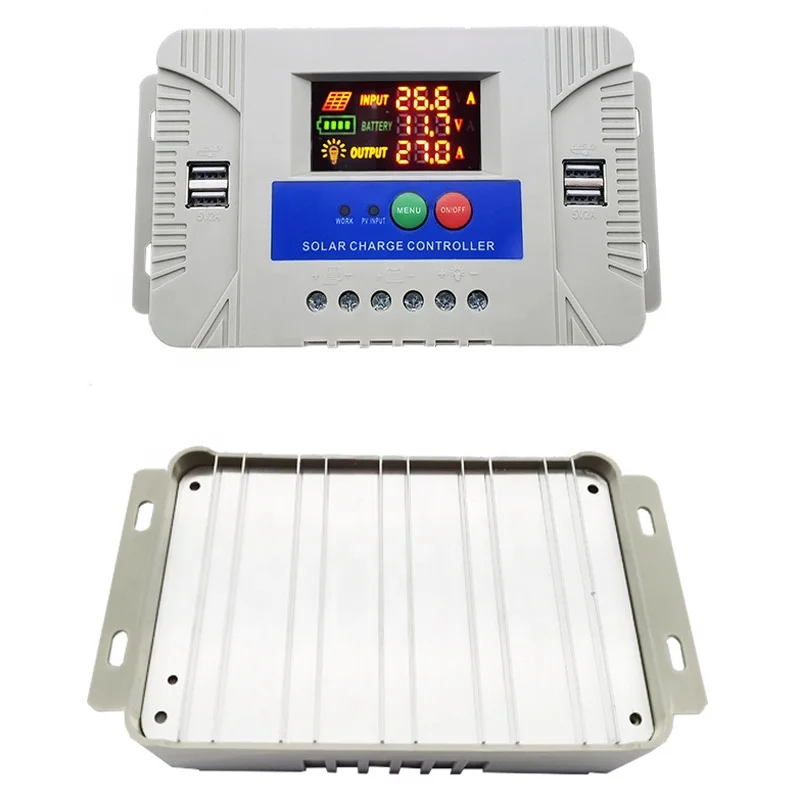

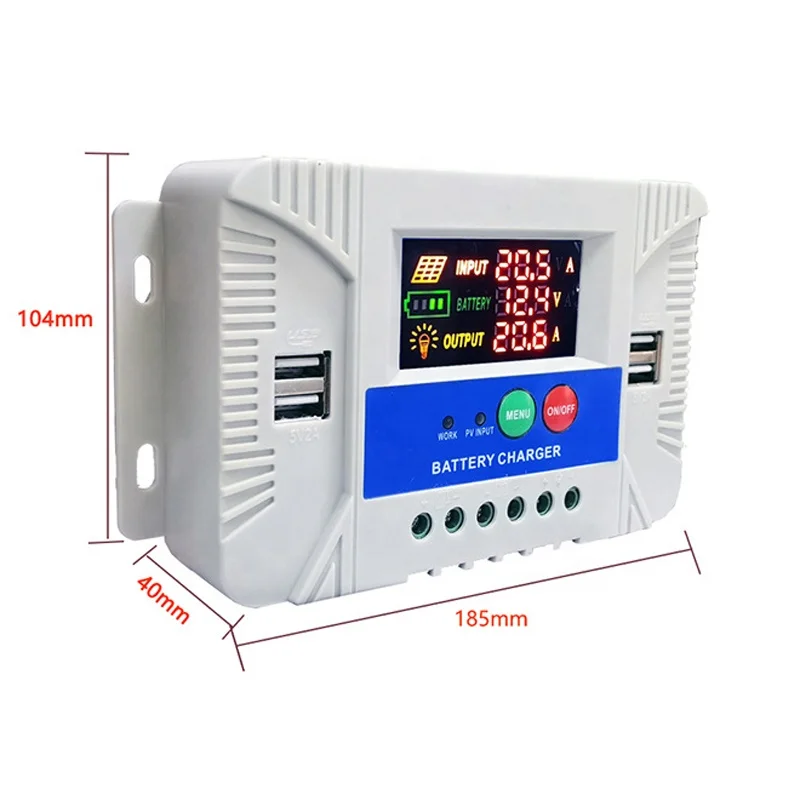

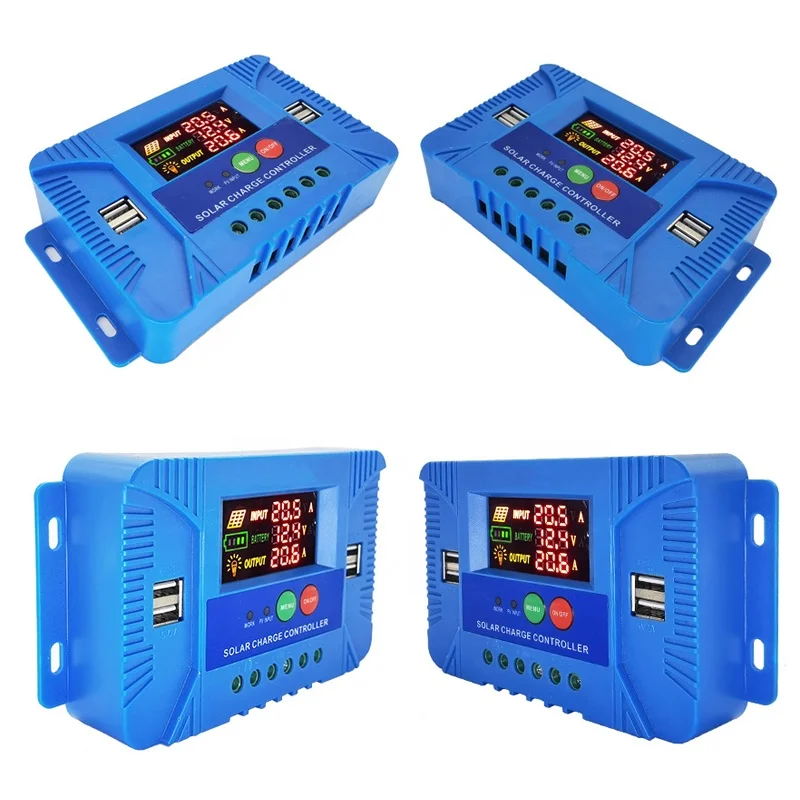

AUTO 12V/24V/36V/48V Solar Charge Controller
Specifications:
1. Clock timing function
2. Built-in four 5V 2.1A USB interfaces
3. Extreme Low Power Consumption
4. Built-in IR self-learning infrared remote control to turn the DC loads on and off
5. Display digital LCD with backlight
6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)
7. Light control mode,Time control mode
8. Reverse protection,short circuit protection
9. Designed for 12V/24V auto solar power system
10.Hanging style design makes it convenient to install
11.Available in 10A-60A
12.Simple options,automatic memory retention of users' settings Working Mode

Working modes of PWM solar controller:
1. Button Mode (Manual switching load)
2. Light Controlled Mode (Load switch is controlled by solar panels photosensitive control and timing control)
3. Light control turn on delay off mode.
4. Circulation model (With Clock Fuction)
5. 0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional

Protection:
All kinds of complete protection,stable and reliable(charging over voltage protection,charging flow protection,over-current protection,load load short circuit protection,under-voltageprotection)

Application:
solar charger controller of light and night away less than 10 ma power flow, ideal for small power solar products, such as solar street lamp light, streetlight, DC Load, illumination, solar power system and so on.
