Product Description

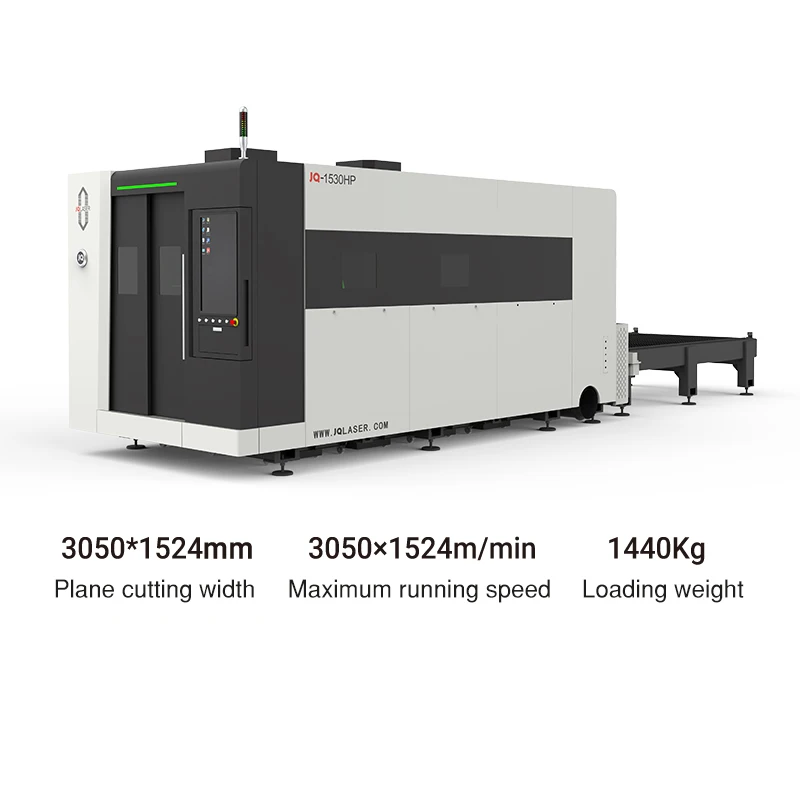

JQ 1530HP Exchange Platform Metal Laser Cutting Machine
Mainly for metal plates,equipped with high power fiber laser,precise linear guide rail and high precision rack and pinion, high performance numerical control system, High precision, high efficiency and high cost performance. It is safety and environmental due to its covering of dust proof.
Product Parameters
NO. | Item | Parameter | Unit |
1 | Plane cutting width (length X width) | 3000×1500 | mm |
2 | X-axis stroke | 1550 | mm |
3 | Y-axis stroke | 3050 | mm |
4 | Z-axis travel | 360 | mm |
5 | X、Y axis positioning accuracy | ±0.05/1000mm | mm |
6 | X, Y axis repeat positioning accuracy | ±0.03/1000mm | mm |
7 | Acceleration speed | 1.5G | m/s² |
8 | Max. running speed | 140 | m/min |
9 | Max. stage load | 1500 | kg |
10 | Machine size (L* W *H ) | 8100×2812×2640 | |
12 | Power supply requirements | 380v/50Hz | |
13 | Laser power | 6000W-20000W |
Details Images

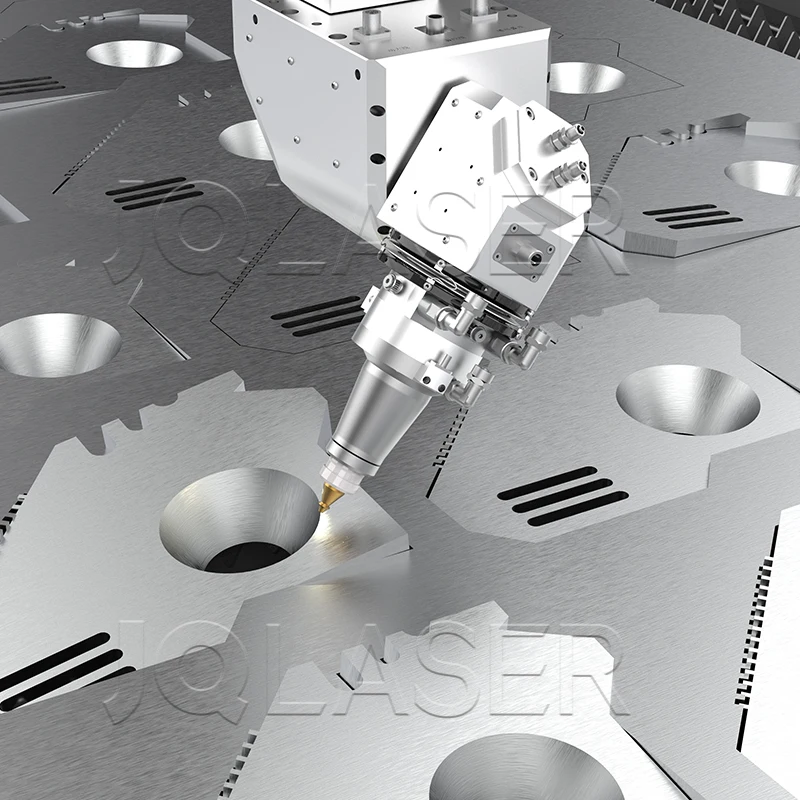

* Laser Head
To solve the problem of laser focus fluctuation caused by uneven plate surface, which affects the cutting quality, the Z axis of this cutting machine has the same display and function as the X and Y axes in addition to the following function.control function.
*One-piece Plate Welded Bed
Adopting integral welding bed, They are annealed to eliminate internal stress and vibration aged after rough machining.providing high rigid stability and shock resistance

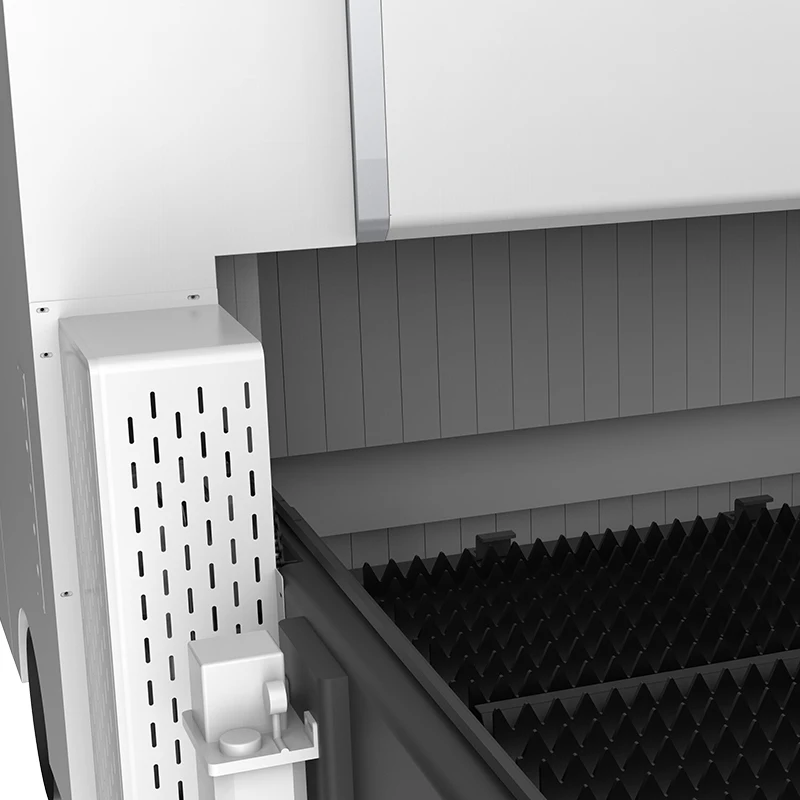

Exchange Platform
Dual exchange working platform enables simultaneous cutting and feeding. High-efficient and time-saving,Improve processing efficiency.
* Machine Processing Accuracy
Because this machine has good electromechanical drive dynamic performance, it has good processing follow-up and high precision.
*Control System
The system is based on windows CNC system. The display operation unit provides a good human-machine interface,32-inch color touch screen
Related Products
Sample Display
Our Service
Company Profile
Certifications & Exhibition
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
