Бурение нефтяных скважин и очистка бурового раствора струйный буровой смеситель
108 006,20 ₽
Смеситель для бурового раствора
- Категория: >>>
- Поставщик: Yantai Sanmon Machinery Equipments Co. Ltd.
Сохранить в закладки 1601150912785:
Описание и отзывы
Характеристики
Product Description

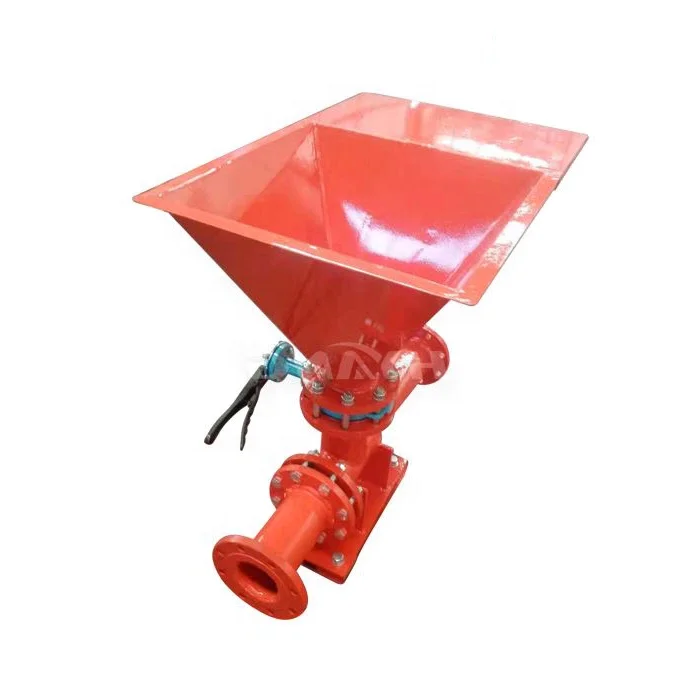

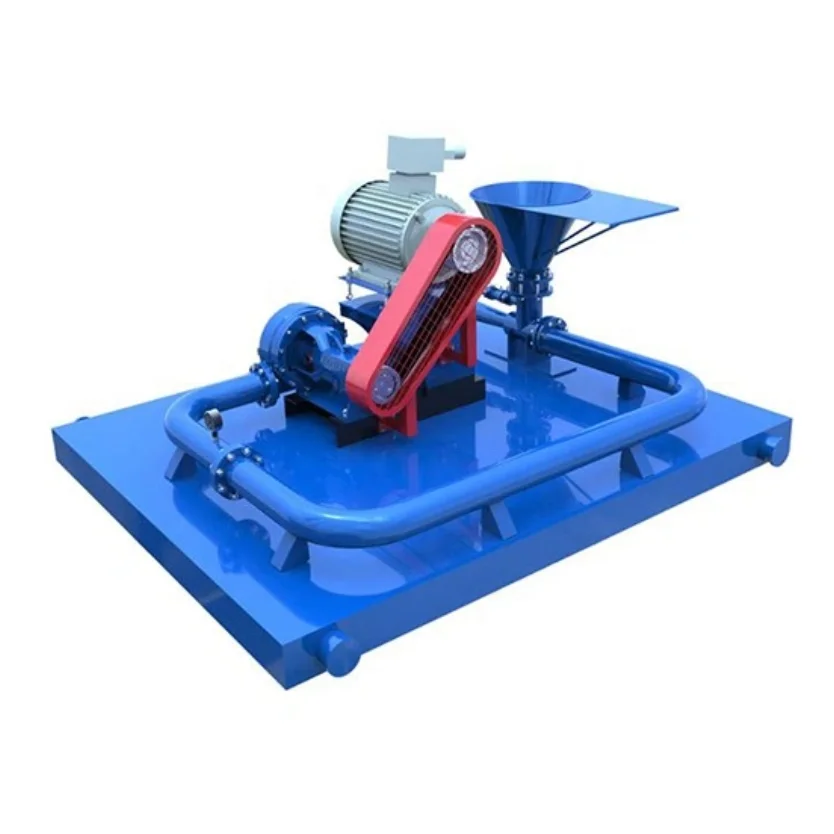

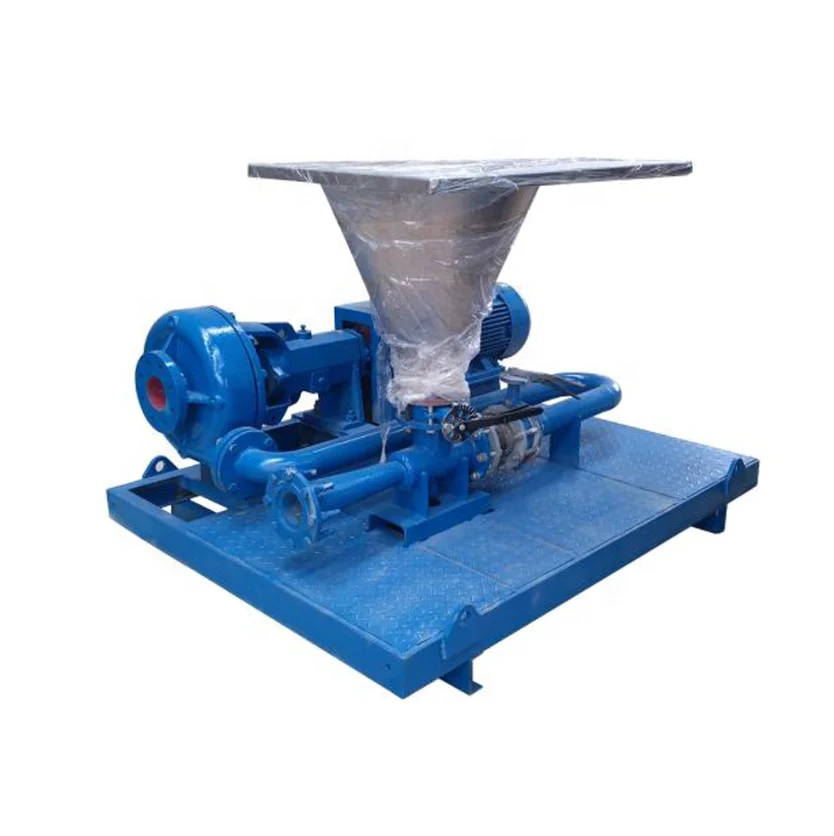

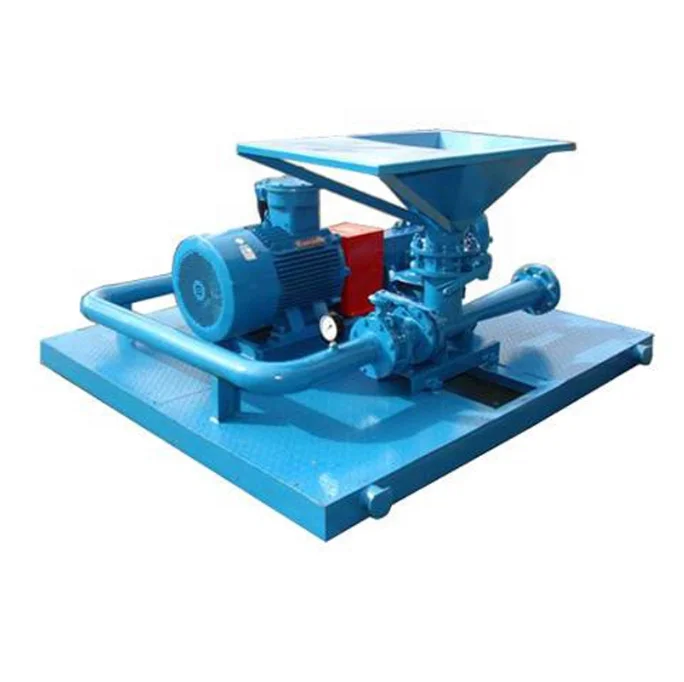

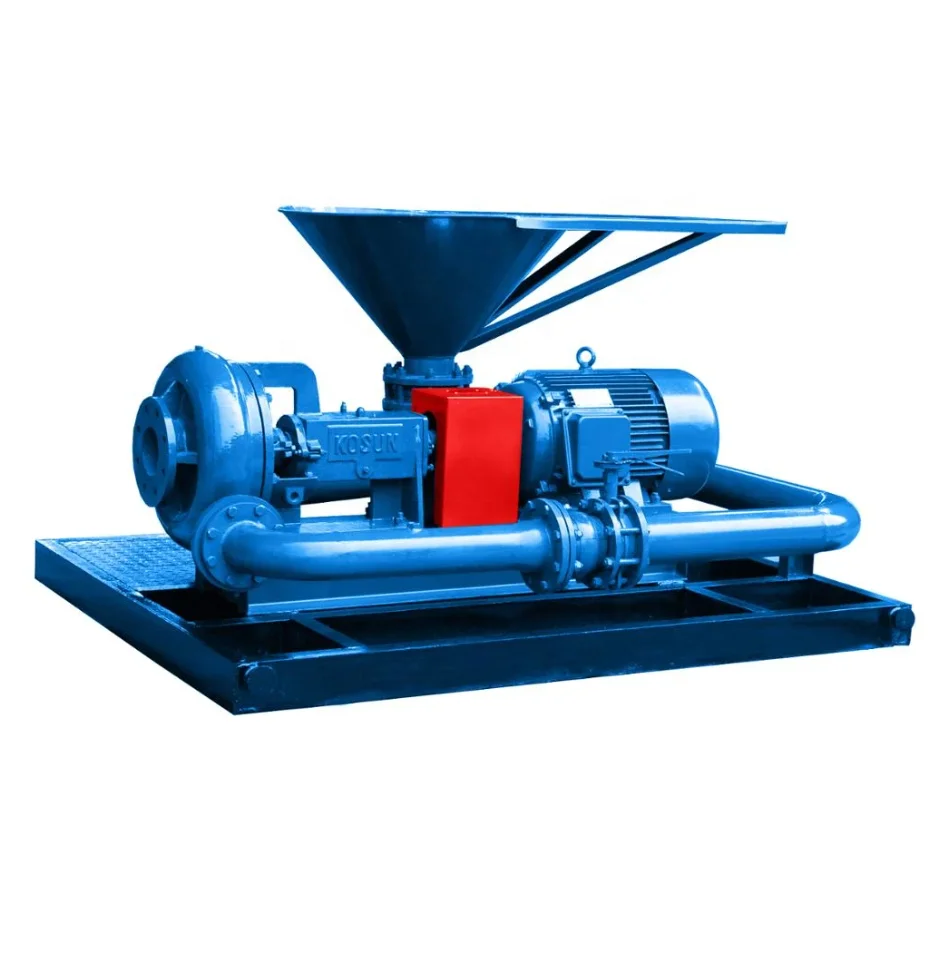

Jet Mud Mixer is the equipment match with drilling solids control equipment, usually used to configurate and increase the proportion of drilling fluid, change density, viscosity, water lose etc. It has a more excellent effect if matched with shear
pump, and also can be designed to double jet mud mixer as requirements.
pump, and also can be designed to double jet mud mixer as requirements.
Features:
1. It is safe and stable and can be moved conveniently.
2. The unit includes one sand pump, one jet mixing hopper
3. The effect is more prominent matching with Shear Pump.
4. It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
5. It can be made Twin Jet Mud Mixers according to the user requirements .
3. The effect is more prominent matching with Shear Pump.
4. It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
5. It can be made Twin Jet Mud Mixers according to the user requirements .
Shale Shaker | Vacuum Degasser | Mud Cleanr | Desander | Desilter Cleaner |
Decanting Centrifuge | Vertical Cutting Dryer | Sand Pump | Submersible Slurry Pump | Screw Pump |
Shear Pump | Mud Agitator | Mud Gun | Jet Mud Mixer | Mud Gas Separator |
Flare Ignition Device | Cutting Bottle Cap | Mud Tank/Water Tank/Oil Tank | Bullet Proof Camp | Steel wood base |
Specification
Model | MSLH150-50 | MSLH150-40 | MSLH150-35 | MSLH100-25 |
Matching Pump | SB8×6-13J(55Kw) | SB6×5-13J(45Kw) | SB5×4-13J(30Kw) | SB4×3-11J(15Kw) |
Capacity | 240m³/h | 180m³/h | 120m³/h | 60m³/h |
Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
Inlet Size | 150mm | 150mm | 150mm | 100mm |
Nozzle Size | 50mm | 40mm | 35mm | 25mm |
Hopper Diameter | 750×750mm | 750×750mm | 600×600mm | 500×500mm |
Burden Speed | ≤100Kg/min | ≤80Kg/min | ≤60Kg/min | ≤40Kg/min |
density | ≤2.8g/cm³ | 2.4g/cm³ | ≤2.0g/cm³ | ≤1.5g/cm³ |
viscosity | ≤120s | ≤120s | ≤80s | ≤60s |
COMPANY PROFILE
Yantai SANMON Machinery Equipments Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, API11B,API 11AX, API 6A, API 16D, API 14A, ISO 9001, ISO14001, ISO18001 etc.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, API11B,API 11AX, API 6A, API 16D, API 14A, ISO 9001, ISO14001, ISO18001 etc.
FAQ
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) sor Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 30 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
* Our sales team will response for your question within 24 hours (Holidays Excluded)
*Technical Support will be available in any time
* Free replacement will provide once the failure confirmed caused by our product quality
1. Methods of Payment:
T/T (Telegraphic Transfer) sor Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 30 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
* Our sales team will response for your question within 24 hours (Holidays Excluded)
*Technical Support will be available in any time
* Free replacement will provide once the failure confirmed caused by our product quality
