Оборудование для динамического уплотнения 32KJ быстрое уплотнение почвы оборудование
- Категория: >>>
- Поставщик: Jining Shengheng Heavy Industry Machinery Co. Ltd.Jining Ltd.
Сохранить в закладки 1601158702940:
Описание и отзывы
Характеристики
Video Description
Product Overview
High Speed Hydraulic Compactor Highway Back Compactor Wheel Loader Compactor Loader
In recent years, high-speed hydraulic compactors have become a new type of compaction equipment widely used in the construction of roadbed and pavement projects. Compared with traditional manual tamping and small tamping equipment, high-speed hydraulic tamping machines have the advantages of convenient transfer, flexibility and efficiency, safety and environmental protection, good operating performance, and high tamping energy, which improves work efficiency, further reduces budget costs, and has a negative impact on adjacent structures. The impact is much less than other compaction methods. In the past 30 years, hydraulic tamping machines have developed rapidly and have become indispensable tamping equipment in roadbed and pavement projects. It is widely used, suitable for various fillers, is not sensitive to filler composition and moisture content indicators, and has obvious compaction effects in various environments.
FEATURES AT A GLANCE
Features of high-speed hydraulic tamping machine
1. Convenient transition, flexible and efficient, and good operating performance. Installed on the equipment excavator or loader, the construction process is very flexible and the operation is very simple, which greatly improves the construction efficiency and reduces the construction cost.
2. Safety and environmental protection, remove noise. The hammer body of the high-speed hydraulic tamping machine is placed inside the skin, which can greatly reduce accidents and play a great role in removing noise, thereby playing a safety role. Low noise and other effects.
3. The impact on adjacent structures is much less than other compaction methods. When the excavator compactor is constructing, the force propagation direction is mostly vertical downward, which has little impact on other adjacent structures. The construction of structures such as bridge abutments and retaining walls is safe and reliable.
4. High speed, high efficiency and cost saving. The ramming frequency of the high-speed hydraulic tamping machine is 30-80 times per minute, which significantly improves work efficiency. The ramming frequency occupies the forefront in the same industry.
5. Widely used and suitable for various fillers. The high-speed hydraulic compactor is insensitive to the cost and moisture content of the filler and has obvious compaction effect..
1. Convenient transition, flexible and efficient, and good operating performance. Installed on the equipment excavator or loader, the construction process is very flexible and the operation is very simple, which greatly improves the construction efficiency and reduces the construction cost.
2. Safety and environmental protection, remove noise. The hammer body of the high-speed hydraulic tamping machine is placed inside the skin, which can greatly reduce accidents and play a great role in removing noise, thereby playing a safety role. Low noise and other effects.
3. The impact on adjacent structures is much less than other compaction methods. When the excavator compactor is constructing, the force propagation direction is mostly vertical downward, which has little impact on other adjacent structures. The construction of structures such as bridge abutments and retaining walls is safe and reliable.
4. High speed, high efficiency and cost saving. The ramming frequency of the high-speed hydraulic tamping machine is 30-80 times per minute, which significantly improves work efficiency. The ramming frequency occupies the forefront in the same industry.
5. Widely used and suitable for various fillers. The high-speed hydraulic compactor is insensitive to the cost and moisture content of the filler and has obvious compaction effect..
High-speed hydraulic tamping machine construction method
High-speed hydraulic capacity, high-speed hydraulic tamping machine is divided into three levels: strong compactor (the lifting height of the compaction hammer is 120cm), (the lifting height of the rammer is 90cm), and weak (the lifting height of the rammer is 60cm). Adjust the rammer Strike 3 hammers at the strongest level, measure the sinking of the tamping point and record it. There is a set of strong gears for every 3 hammers, and the settlement amount of every 3 hammers is accumulated and recorded. Until the 6th, 9th, 12th, 15th, 18th, 21st, 24th, 27th, and 30th hammer of the high-speed hydraulic compactor is completed, the settlement of each 3 hammers is accumulated and recorded. Compare the relative settlement of the last three hammers with the first three hammers. If the difference is less than 10mm, the construction of the next compaction point can be regarded as qualified. If it is greater than 10mm, it will be regarded as unqualified and strong compaction will continue until it is qualified. And conduct elevation measurement and compaction measurement on qualified compaction points, and record the results. Similarly, according to this standard, complete the medium and weak gear test to confirm which gear to choose for construction.
High-speed hydraulic capacity, high-speed hydraulic tamping machine is divided into three levels: strong compactor (the lifting height of the compaction hammer is 120cm), (the lifting height of the rammer is 90cm), and weak (the lifting height of the rammer is 60cm). Adjust the rammer Strike 3 hammers at the strongest level, measure the sinking of the tamping point and record it. There is a set of strong gears for every 3 hammers, and the settlement amount of every 3 hammers is accumulated and recorded. Until the 6th, 9th, 12th, 15th, 18th, 21st, 24th, 27th, and 30th hammer of the high-speed hydraulic compactor is completed, the settlement of each 3 hammers is accumulated and recorded. Compare the relative settlement of the last three hammers with the first three hammers. If the difference is less than 10mm, the construction of the next compaction point can be regarded as qualified. If it is greater than 10mm, it will be regarded as unqualified and strong compaction will continue until it is qualified. And conduct elevation measurement and compaction measurement on qualified compaction points, and record the results. Similarly, according to this standard, complete the medium and weak gear test to confirm which gear to choose for construction.
PRODUCT SPECIFICATIONS
project | unit | LG-36KJ | LG-42KJ | LG-63KJ | |||
Impact potential energy | KJ | 36 | 42 | 62 | |||
Pituitary mass | kg | 3000 | 3500 | 5000 | |||
Pituitary stroke | mm | 200-1200 | |||||
Strike frequency | minute | 30-80 | |||||
Floor diameter | MM | 1000 | 1000 | 1200 | |||
weight | KG | 6000 | 6500 | 8000 | |||
Dimension(L*W*H) | 1540*1040*3720 | 6750ml | |||||
Applicable excavator | / | 5T | 5T | 8T | |||
Installation method of high-speed hydraulic compactor for loader
1. Remove the loader bucket. When installing the high-speed hydraulic tamping machine, attention should be paid to pressing the mounting arm and then mounting the arm.
2. Find the oil return pipe: The oil return pipe contains the one-way valve.
3. Install the oil return pipe: Find the oil pump of the loader, clear the oil inlet pipe on the loader oil pump, and install the high-speed hydraulic compactor pressure return pipe on the oil pump.
4. Install the oil inlet pipe, connect the previously removed loader oil inlet pipe to the loader tamper oil inlet pipe, and tighten the bolts.
5. The power cord is marked with the character 0123, which is installed to the four sensor interfaces from bottom to top of the high-speed hydraulic tamping machine.
1. Remove the loader bucket. When installing the high-speed hydraulic tamping machine, attention should be paid to pressing the mounting arm and then mounting the arm.
2. Find the oil return pipe: The oil return pipe contains the one-way valve.
3. Install the oil return pipe: Find the oil pump of the loader, clear the oil inlet pipe on the loader oil pump, and install the high-speed hydraulic compactor pressure return pipe on the oil pump.
4. Install the oil inlet pipe, connect the previously removed loader oil inlet pipe to the loader tamper oil inlet pipe, and tighten the bolts.
5. The power cord is marked with the character 0123, which is installed to the four sensor interfaces from bottom to top of the high-speed hydraulic tamping machine.
SALES AND SERVICE NETWORK
Contact us
Похожие товары
Новейший изготовленный в Китае вибратор уплотнитель ездить на дорожном катке
92 872,88 ₽
Роликовый уплотнитель 1-10 тонн вибрирующий ручной Вибрационный пешеходный ролик асфальтовый с одним двойным
307 662,93-319 142,89 ₽
Высококачественные асфальтовые дорожные ролики, Вибрационный двухбарабанный дорожный каток, уплотнитель для дорожного строительства
551 038,08-573 998,00 ₽
Китайский Новый гидравлический двойной барабанный Вибрационный ролик LTC212
2 594 470,96-2 869 990,00 ₽

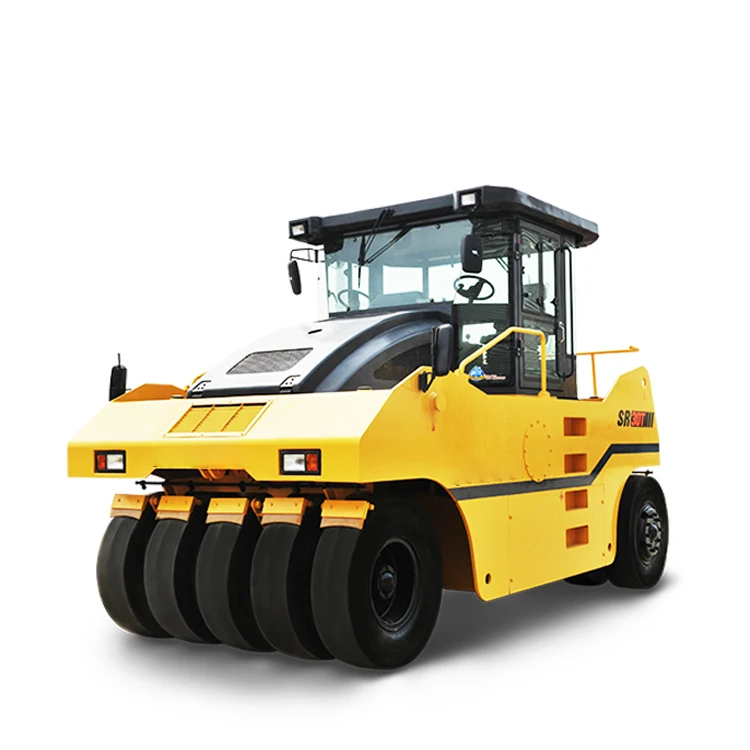

Пневматический ролик цена 16 тонн дорожный каток уплотнитель SR16MT
