JIHPUMP Small24V 220V Peristaltic Pump with 3 or 6 Rotors for Medical Reagent Liquid Dosing Filling
Product Discription
2.Tube: Two diameter hoses are available. 8.Roller: 3 rollers and 6 rollers optional. 10.Motor: DC Geared Motor/Stepper Motor/AC synchronous motor. The 406D peristaltic pumps other main features: Low pulse high precision, Rotary opening and closing handle, Single and dual channel optional. | ||||||||
Product Name | 406D High-end peristaltic pump | ||||
Product Model | 406D/BT | 406D/ZL | 406D/TB | ||
Motor Type | DC Geared motor | Stepper motor | AC synchronous motor | ||
Voltage and Current | DC 24V,2A | DC 12V,4A / 24V,2A | AC 220V,50Hz | ||
Power | ≤12W | ≤15W | ≤7W | ||
Motor Life | 800~1500 hours | 5000~20000 hours | 2000~10000 hours | ||
Weight | 645g | 365g | 490g | ||
Work Environment | Temperature: 0~60℃ Humidity:＜85%RH | ||||
Outlet Pressure | ≤0.17MPa | ||||
Noise | ≤53dB | ≤58dB | ≤48dB | ||
Main Material | Upper support: polyethersulfone, Roller: polyamide, Base: PES | ||||

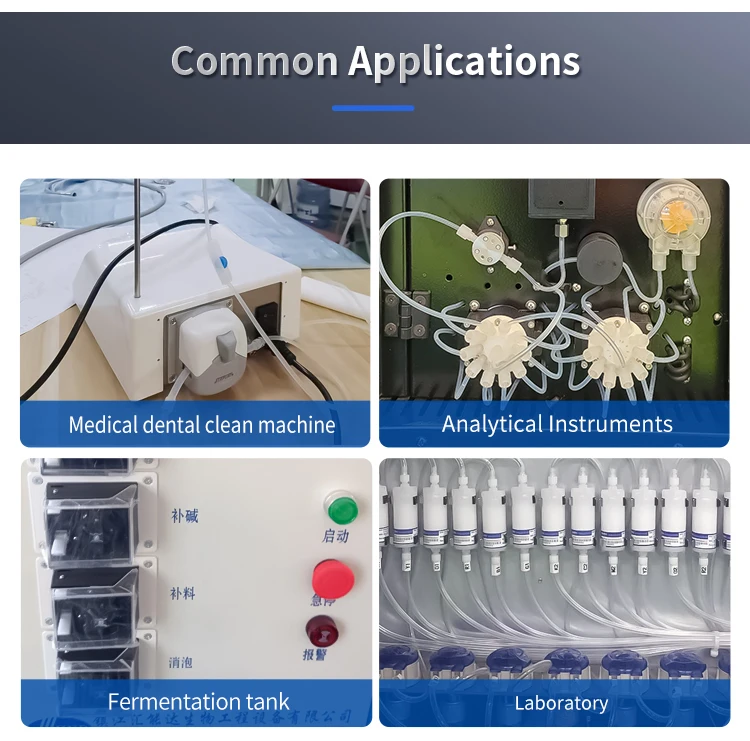

Common Applications: Medical dental clean machine,Analytical Instruments,Fermentation tank,Laboratory ect.
Applications Industry: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.

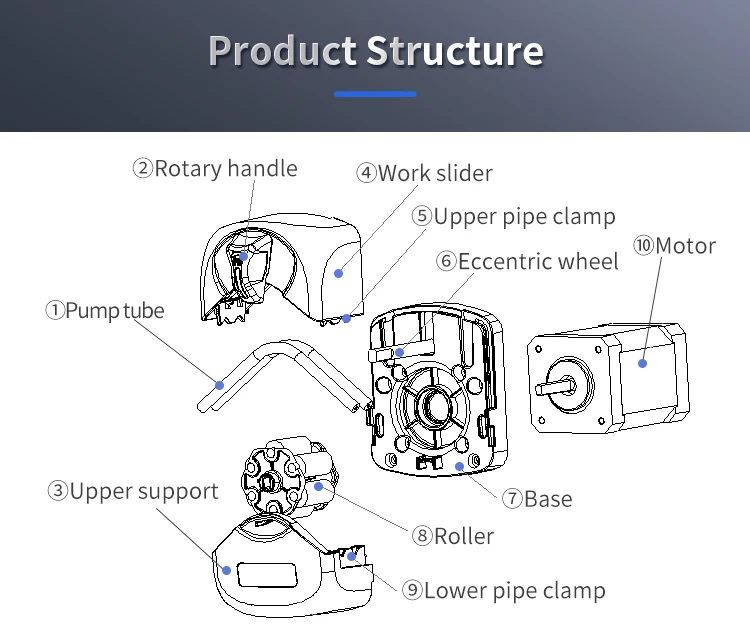

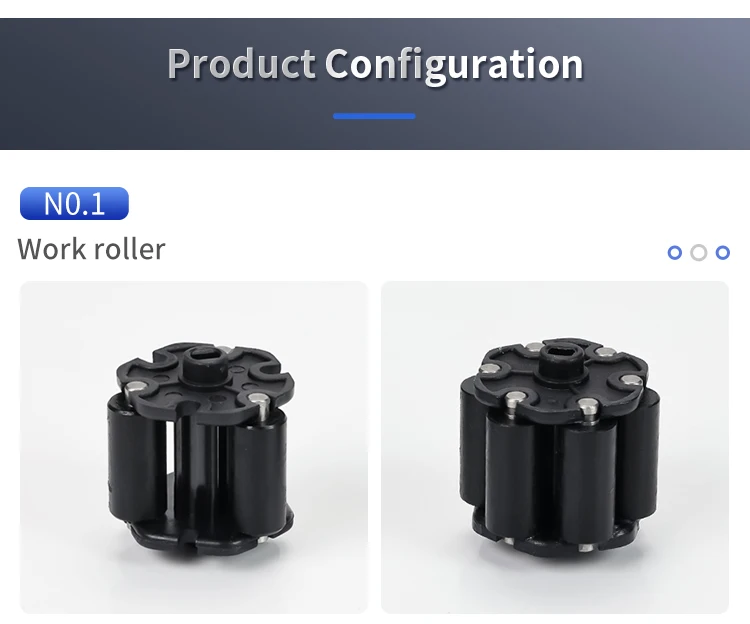

Work Roller: Standard 3 wheels, optional 3+3 wheels, using imported wear-resistant self-lubricating bars, rollers processed by high-precision CNC lathes, more accurate and more wear-resistant.

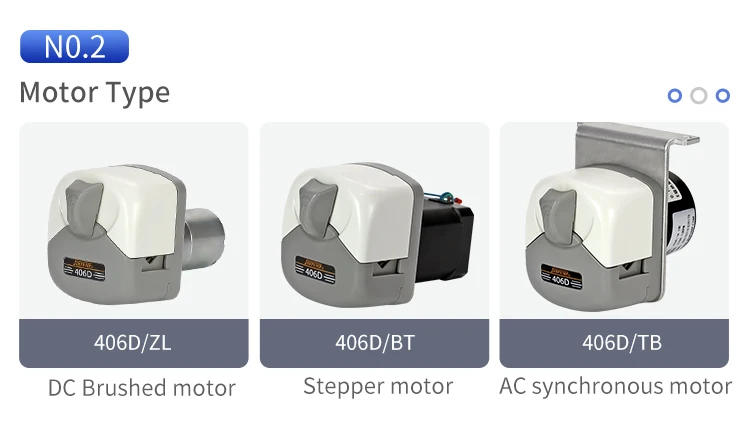

DC Geared motor: The accuracy requirements are not high, and the operation is performed in a short time interval, otherwise the temperature will burn out the motor, and the price is cheap. It can be equipped with a JIHPUMP DC speed control board to fine-tune the speed.
Stepper motor: Stepper motor Accurate flow, long working life, suitable for long-term operation, you can choose any speed control board of JIHPUMP, the price is higher.
AC synchronous motor: The synchronous motor runs at a constant speed, suitable for intermittent low-speed operation, no need to drive, and it can run with electricity and the price is cheap.

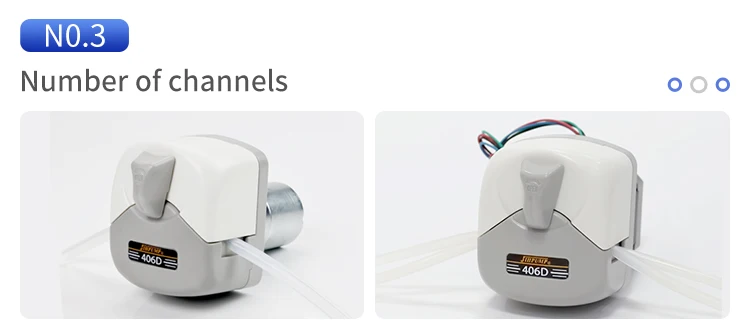

Number of channels: It needs to be pre-selected at the factory and cannot be changed after leaving the factory.
Connection Mode: The hose is directly led out of the pump head, and the pipeline connection is free.

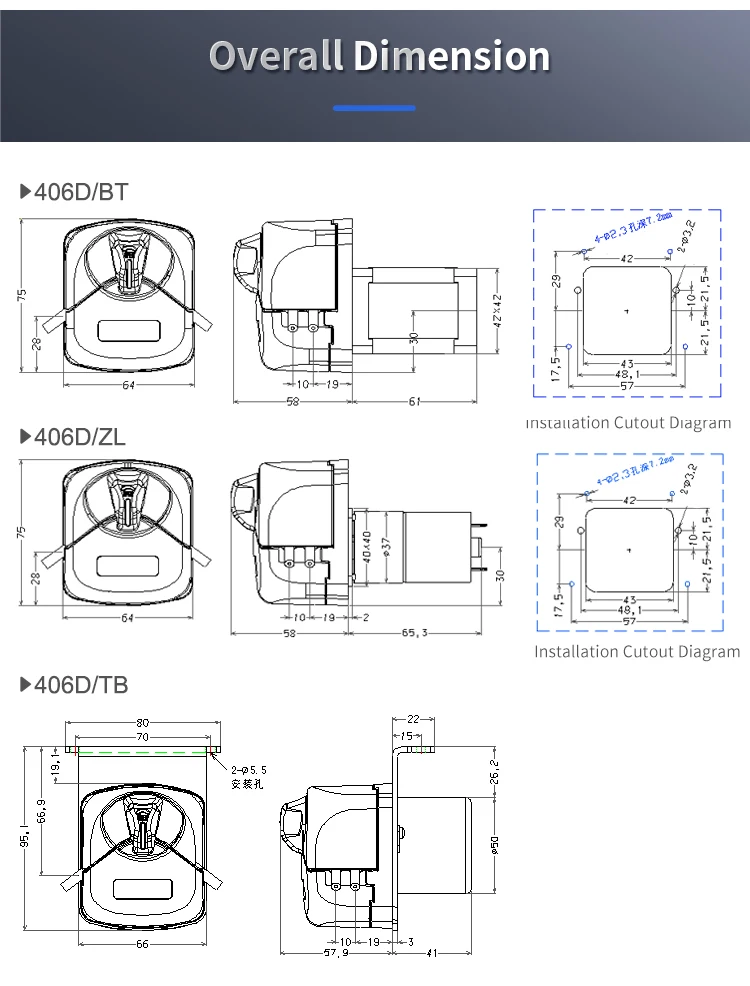

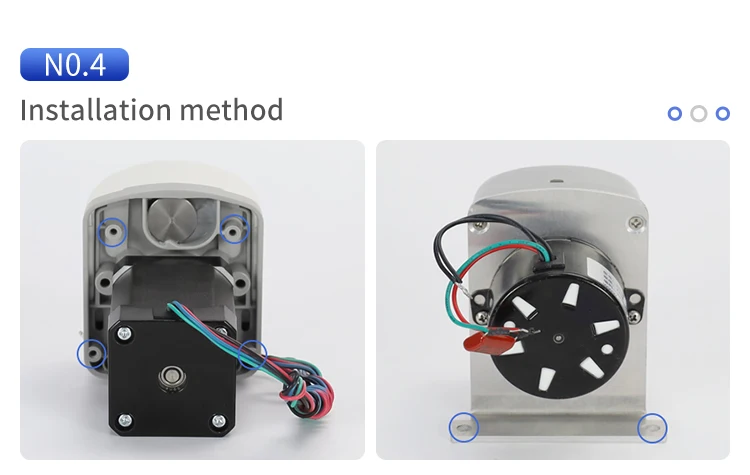

Connection Mode: 406D peristaltic pump base with mounting holes.
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile
Chongqing Jieheng Peristaltic Pump Co., Ltd. is a leading peristaltic pump manufacturer in China and an expert in peristaltic pump fluid technology solutions. Specializing in the R&D, manufacturing and sales of peristaltic pumps, focusing on providing peristaltic pump solutions for OEM customers, with more than 16 years of application experience, more than 1 million pumps have been sold, jihpump has 60+ rich and mature product series, which can meet the needs of various Various industry application needs, and can provide customized development services, we are always ready to find a suitable solution for your needs, please contact us, thank you!
Packaging&Shipping
JIHPUMP Standard export packing for peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
FAQ
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the peristaltic pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V peristaltic pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the peristaltic pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
Похожие товары
Водяной насос серии CDM/CDMF многоступенчатый центробежный насос из нержавеющей стали водяной насос
49 227,03 ₽

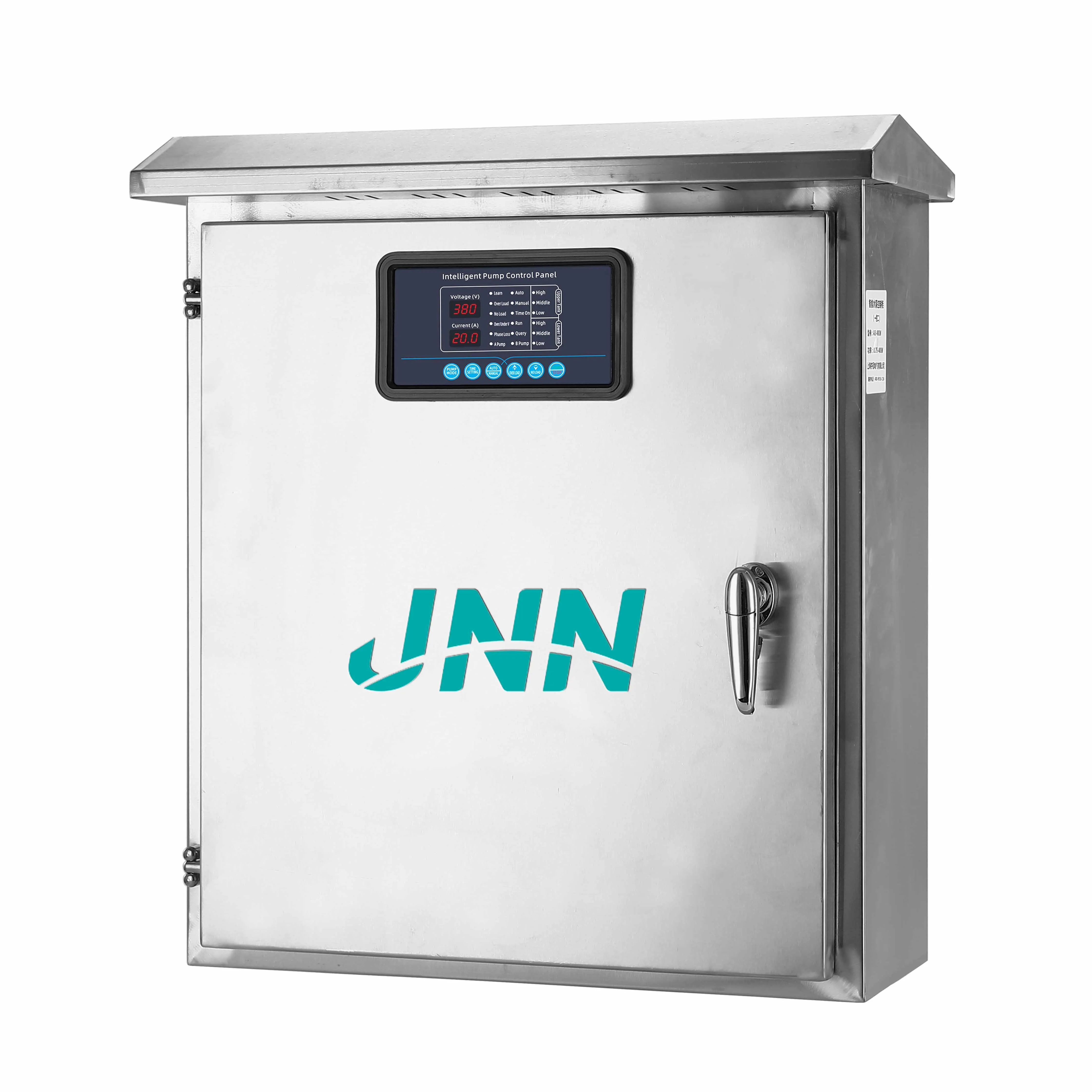

Свободный Поплавковый переключатель 15KW высокопроизводительный автоматический блок управления насосом
9 495,35 ₽ - 10 665,86 ₽

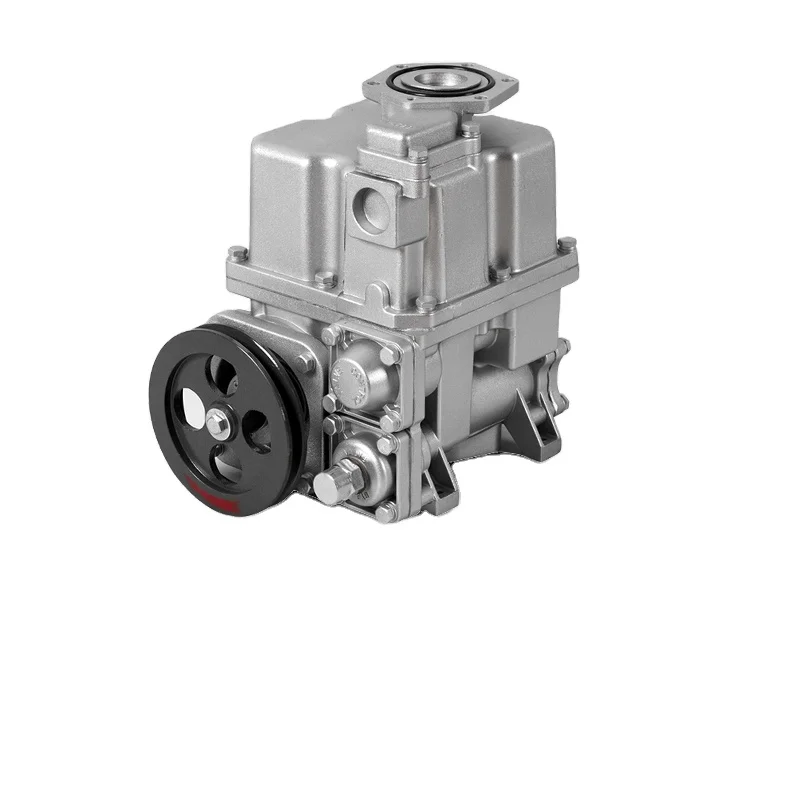

Лидер продаж, комбинированный насос, бензиновый диспенсер, Шестеренчатый насос, скребок, электрическая машина, масляный насос
13 783,57 ₽

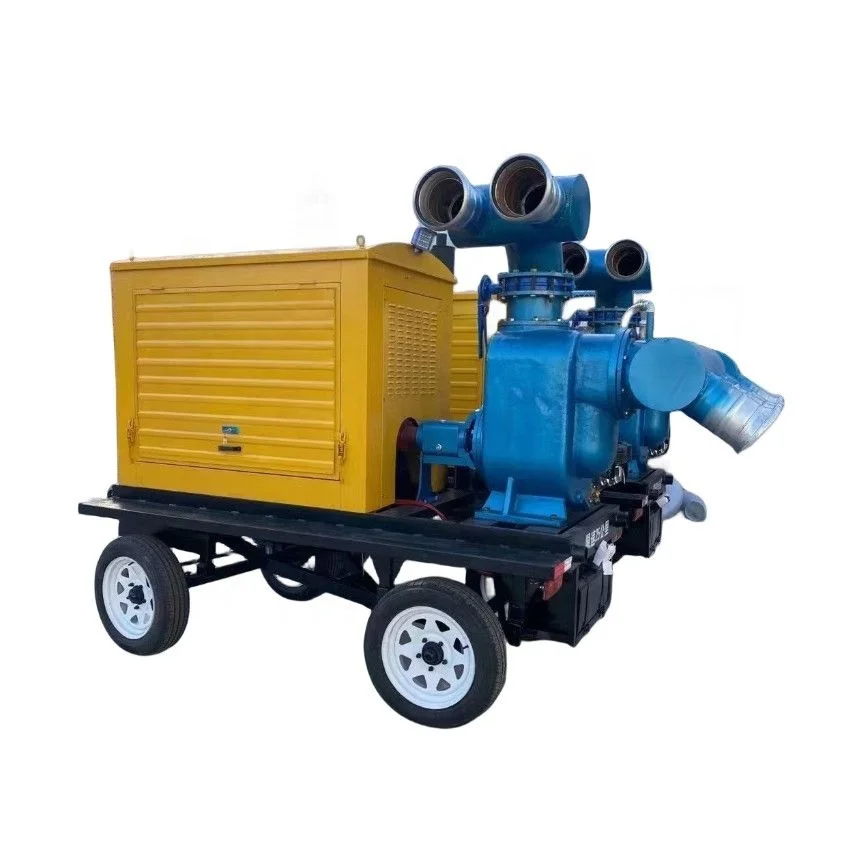

MS дренажный траллер навес не имеет засорения, самовсасывающий 90 кВт, набор сточных вод, мобильный самовсасывающий насос
240 665,48 ₽ - 273 483,50 ₽
Оптовая продажа, несколько отраслей, санитарный насос из нержавеющей стали, санитарный роторный лопастной насос для меда
98 454,06 ₽ - 120 332,74 ₽

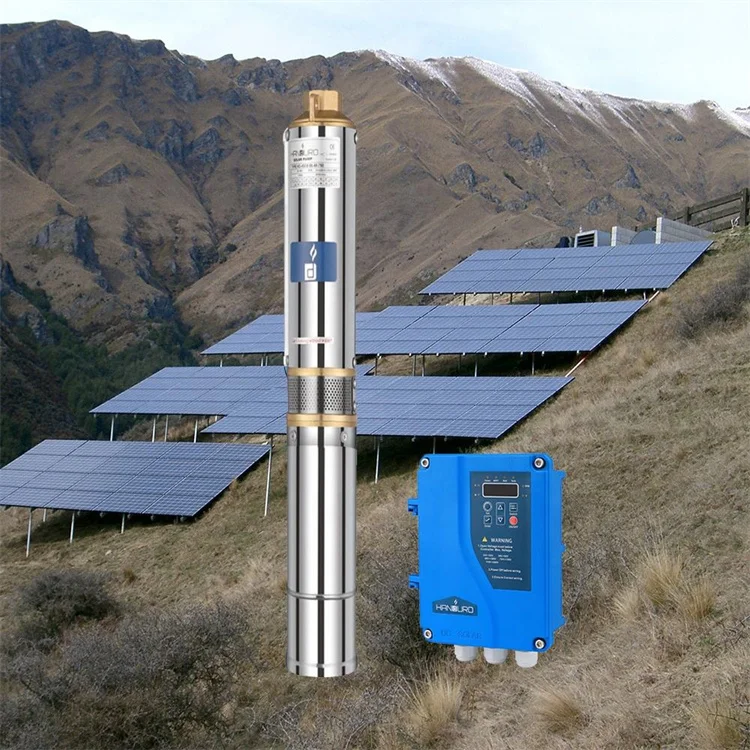

Бомба Sumergible погружной насос, насос Туалетная Solaire 300 400 Вт 500 Вт постоянного тока 48 V 48 V 48 Вольт 500 Вт 1Hp солнечных погружной насос 05 Hp 50 м глубокий колодец водяной насос
