Product Description
Deye High Voltage 3-phase 50kW Hybrid EU-IP65
Higher Income/ Safe & Reliable / Smart / Easy to Use
SUN-50K-SG01HP3-EU-AM2 is a brand new 50kW three-phase hybrid inverter with high battery voltage of 160-700V. With a compact design and high power density, this series supports a DC/AC ratio of 1.3, saving investment in equipment. It supports three-phase unbalanced output, expanding the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1RS232 port for remote control, x1 DRM port, making the system intelligent and flexible.
Model | SUN-30K-SG01HP3-EU-BM3 | SUN-40K-SG01HP3-EU-BM4 | SUN-50K-SG01HP3-EU-BM4 | |||
Battery Input Data | ||||||
Battery Type | Lithium-ion | |||||
Battery Voltage Range(V) | 160~800 | |||||
Max. Charging Current (A) | 50+50 | |||||
Max. Discharging Current (A) | 50+50 | |||||
Number of battery input | 2 | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 39000 | 52000 | 65000 | |||
Max. DC Input Voltage (V) | 1000 | |||||
Start-up Voltage (V) | 180 | |||||
MPPT Range (V) | 150-850 | |||||
Full Load DC Voltage Range (V) | 360-850 | 360-850 | 450-850 | |||
Rated DC Input Voltage (V) | 600 | |||||
PV Input Current (A) | 36+36+36 | 36+36+36 | 36+36+36+36 | |||
Max. PV ISC (A) | 55+55+55 | 50+50+50 | 50+50+50+50 | |||
Number of MPPT / Strings per MPPT | 3/2 | 4/2 | 4/2 | |||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 30000 | 40000 | 50000 | |||
Max. AC Output Power (W) | 33000 | 44000 | 55000 | |||
AC Output Rated Current (A) | 45.5/43.5 | 60.7/58 | 75.8/72.5 | |||
Max. AC Output Rated Current (A) | 50/47.8 | 66.7/63.8 | 83.4/79.7 | |||
Max. Three-phase Unbalanced Output Current | 60 | 70 | 83.3 | |||
Max. Continuous AC Passthrough (A) | 200 | |||||
Peak Power (off grid) | 1.5 time of rated power, 10 S | |||||
Generator input/Smart load | 45.5 / 200 / 45.5 | 60.7 / 200 / 60.7 | 75.8 / 200 / 75.8 | |||
/AC couple current (A) | ||||||
Power Factor | 0.8 leading to 0.8 lagging | |||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||
Grid Type | Three Phase | |||||
Total Harmonic Distortion (THD) | <3% (of nominal power) | |||||
DC current injection | <0.5% In | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge protection | |||||
Output Over Voltage Protection | DC Type II/AC Type III | |||||
Certififications and Standards | ||||||
Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
General Data | ||||||
Operating Temperature Range | -45~60℃ >45℃ derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | ≤5 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 75 | |||||
Size (mm) | 527W*894H*294D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 years | |||||
Request Complete System
We provide Jinko, Trina, JA, Longi and Canadian solar as option.
>High module conversion efficiency>Extended wind and snow load tests
>Withstanding harsh environment
>PID Resistance
>Excellent weak light performance
PV Combiner Box
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional
>Breaker,SPD and swithches
• MPPT Efficiency: 99.90%
• Paralleling: 10 Units On-Grid / Off-Grid
• Generator Compatible
• Mounting: Wall Mount
Sunpal 20kWh-100kWh Battery Pack
＞Lightening
＞Temperature Control function
＞Fire suppression
＞Monitoring System
＞Flexible design,10/20/40FT Container optional
＞Temperature Control function
＞Fire suppression
＞Monitoring System
＞Flexible design,10/20/40FT Container optional
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
The system has three Working Modes:
-Self consume
Photovoltaic gives priority to power the user load, and excess solar energy charges the batteries.When the battery is fully
charged, the excess power can flow to the grid or photovoltaic limited power operation.
Self-use mode is the most popular choice.
-Battery first
Photovoltaic gives priority to charging batteries, and the excess power will supply the user load.When the PV power is
insufficient to supply the load, the grid will supplement it. The batteries are fully used as backup power.
-Mixed mode
The time period of mixed mode (also known as "economic mode") is divided into peak period, normal period and valley period.The
working mode of each time period can be set through the electricity price of different time periods to achieve the most
economical effect.
Photovoltaic gives priority to power the user load, and excess solar energy charges the batteries.When the battery is fully
charged, the excess power can flow to the grid or photovoltaic limited power operation.
Self-use mode is the most popular choice.
-Battery first
Photovoltaic gives priority to charging batteries, and the excess power will supply the user load.When the PV power is
insufficient to supply the load, the grid will supplement it. The batteries are fully used as backup power.
-Mixed mode
The time period of mixed mode (also known as "economic mode") is divided into peak period, normal period and valley period.The
working mode of each time period can be set through the electricity price of different time periods to achieve the most
economical effect.
Packing & Delivery
Fast Delivery
Sunpal has a logistics team of more than 20 people. All goods can arrive at the warehouse within 7 days. System integration can be completed in 15 days. We cooperates directly with msk and msc and can ship goods to all parts of the world within 2 months.
Project Case
More project Details
In the past two years, we have completed more than 500 Deye hybrid systems, providing integrated services to customers in Africa, Europe and Asia.
Deye inverters show off advanced technology, strong build quality, and high efficiency . They come with complete protection features, a user-friendly design, as well as used in numerous applications. Deye inverters offer multiple options, can be connected in parallel, and are easy to install. Additionally, they operate soundlessly, making them suitable for residential use. Overall, Deye Hybrid Inverters are an excellent and effective choice for residential solar power systems. Best of all, they are Town/City and Municipal Approved Inverters!
Why Choose Us
Sunpal has more than 16 years of photovoltaic wholesale and installation history, with two module factories and one battery factory.
Sunpal currently has 2 warehouses in Germany and Rotterdam, which can send solar panels directly to all Europe.
Sunpal has a technical team of more than 20 people and can respond to customer needs within 24 hours and provide system integration solutions and cost lists.
333
FAQ
Are you a factory or a trading company?
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest
you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70%
balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest
you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70%
balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.
Похожие товары
Инвертор от постоянного тока до переменного тока, 30 л.с., 3 фазы, 50 кВт, 18,5 кВт, 380 В, 22 кВт, 90 кВт, 4 кВт, инвертор солнечной энергии для домашней системы
188 389,56 ₽ - 209 321,74 ₽

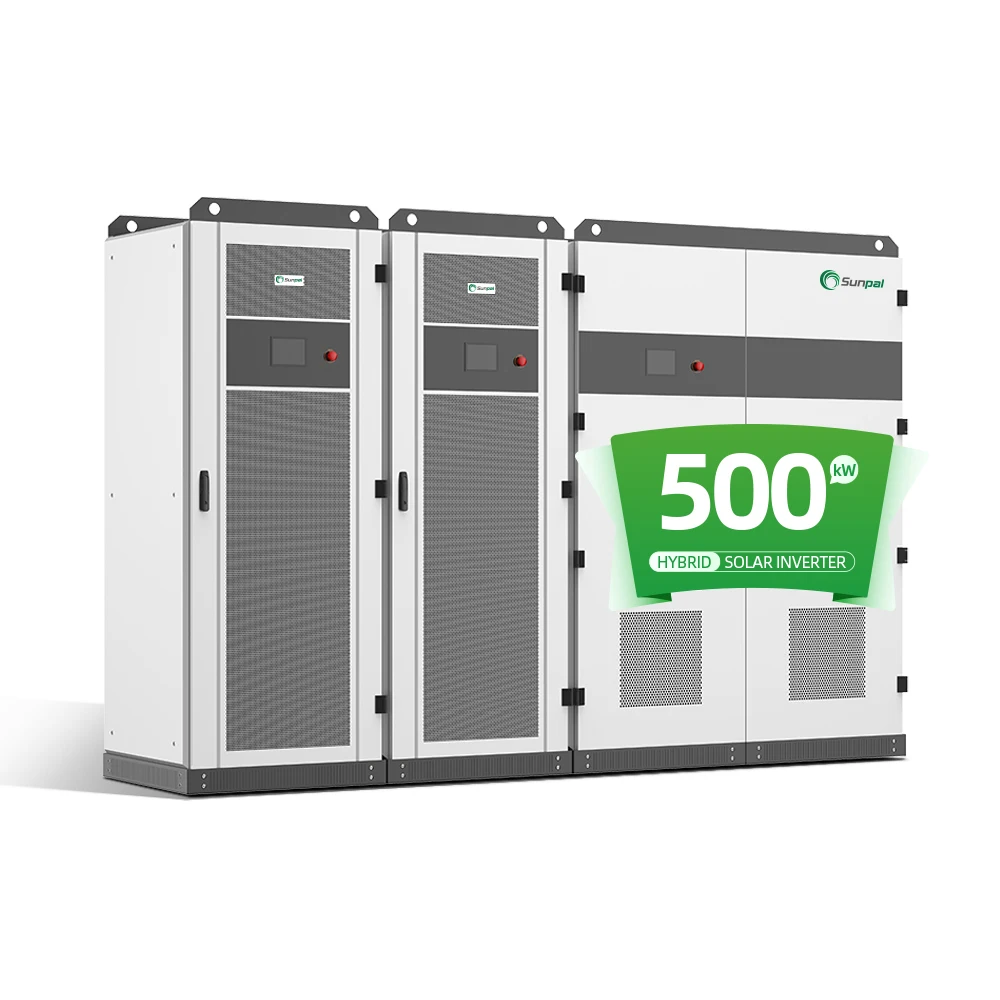

Sunpal фотоэлектрический Гибридный Инвертор 500 кВА 400 В постоянного тока в переменный 3-фазный Инвертор солнечной энергии для полных систем
