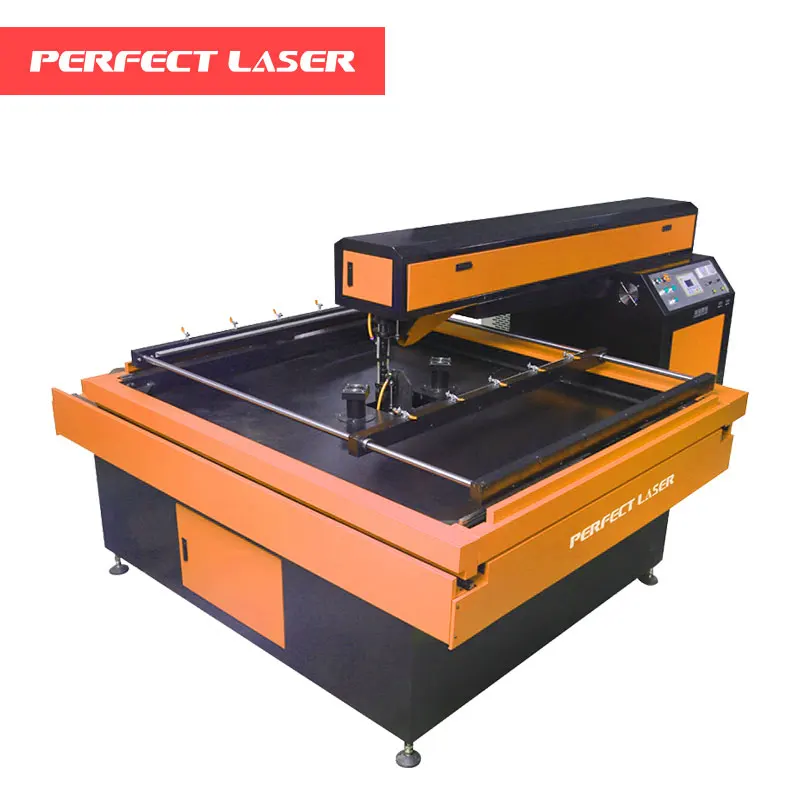

Perfect Laser High Precise Label Wood Cutter 300W 400W 600W CO2 Laser Die Board Cutting Machine For Advertising Industry
(Model:PEC-0909 1208 1212 1512)
Crystal: sales013(@)perfectlaser.net; Whatsapp:+86 136 5989 3728; Skype: perfectlaser013
Product Description
Perfect Laser is the manufacturers for laser die cutting machine.
Perfect laser laser die cutting machine is specialized in cutting die board up to 20mm-25mm, with high efficiency, good quality,low maintenance and low running cost, widely applicable for packaging, advertising Industry. We provide laser die cutting machine and 400w laser cutting machine for you to choose.
Perfect laser laser die cutting machine is specialized in cutting die board up to 20mm-25mm, with high efficiency, good quality,low maintenance and low running cost, widely applicable for packaging, advertising Industry. We provide laser die cutting machine and 400w laser cutting machine for you to choose.
Product Application
The plywood cutting machine is mainly used in 20-15mm die board cutting. It's also can be used to do MDF cutting, wood cutting,bamboo cutting, plywood cutting, acrylic cutting, organic glass cutting, plastic cutting, PVC board cutting, plexiglass cuttingetc. materials cutting.
Application Industry: die cutting machine can be used in packages, advertisement, handicrafts and other industries.
Application Industry: die cutting machine can be used in packages, advertisement, handicrafts and other industries.
Product Features
1. Adopt automatic following and focusing system,and it can automatically senses the distance from cutting head to die board surface and adjust the focus distance to keep a good cutting quality.
2. The die cutting machine also can be called plywood cutting machine.It is for die board install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which makes the plywood cutting machine can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched 2D accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width by the plywood cutting machine, such as 0.45,0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. The wooden die board laser cutting directly with compressed air, and the plywood cutting machine doesn't need to buy any other inactive gas, greatly lowered the users operation cost.
8. Adopt profession software, which is particularly designed for die cutting machine, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
2. The die cutting machine also can be called plywood cutting machine.It is for die board install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which makes the plywood cutting machine can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched 2D accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width by the plywood cutting machine, such as 0.45,0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. The wooden die board laser cutting directly with compressed air, and the plywood cutting machine doesn't need to buy any other inactive gas, greatly lowered the users operation cost.
8. Adopt profession software, which is particularly designed for die cutting machine, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
Machine Details
Service
After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
How to protect my order?
Trade Assurance is a free payment protection service for buyers. The service is offered by participating suppliers, and is designed to protect your payment, if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
How to protect my order?
Trade Assurance is a free payment protection service for buyers. The service is offered by participating suppliers, and is designed to protect your payment, if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
Specification
Model | PEC-0909 | PEC-1208 | PEC-1212 | PEC-1512 | |||
Working area | 900×900mm | 1200×800mm | 1200×1200mm | 1500×1200mm | |||
Laser tube | Chinese Top Quality Laser Tube | ||||||
Laser power | 300w-400w (150w×2, 200w×2) | ||||||
Tube Lifetime | 3000-10000 hours | ||||||
Cutting Mode | Two laser head coaxial cutting | ||||||
Cutting Speed | 10 -6000mm /min | ||||||
Max Cutting Depth | 20-25mm MDF | ||||||
Cutting Width | 0.35mm -0.75mm adjustable, > 0.75mm adjustable | ||||||
Driving system | Japan Panasonic Servo Motor and Driver | ||||||
Transmission System | Germany Ball Screw Rod & Taiwan Linear Guide Rail | ||||||
Machine Power | 2.5 kw | ||||||
Working voltage | 220V(±10%) 50-60Hz | ||||||
Cooling Mode | Water cooling and protection system | ||||||
Support Format | HPGL,PLT,AI,DXF etc. | ||||||
Compatible software | CorelDraw, AutoCAD, Photoshop | ||||||
Controlling Mode | Perfect Laser CNC Professional Control System | ||||||
Related Products
Company Profile
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
