16x60 мм 450 нм 50 МВт 80 100 12 В ~ 24 широкоугольный объектив с фиксированным фокусным расстоянием Однолинейный лазерный модуль стабилизированная трубка для маркера
- Категория: >>>
- Поставщик: Zhongshan Feixian Photoelectric Co. Ltd.
Сохранить в закладки 1601164923659:
Описание и отзывы
Характеристики
Products Description

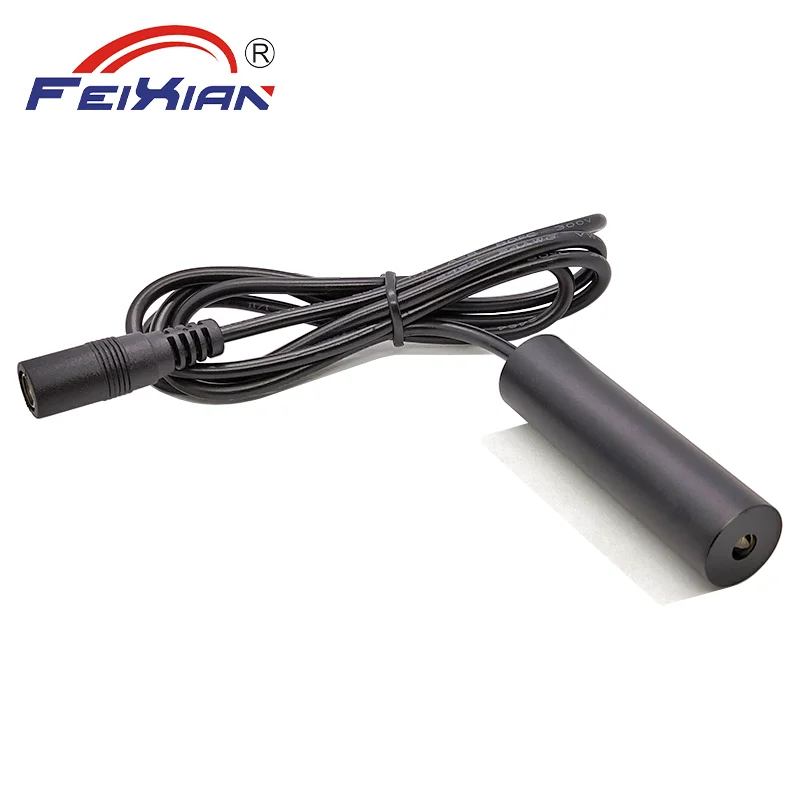

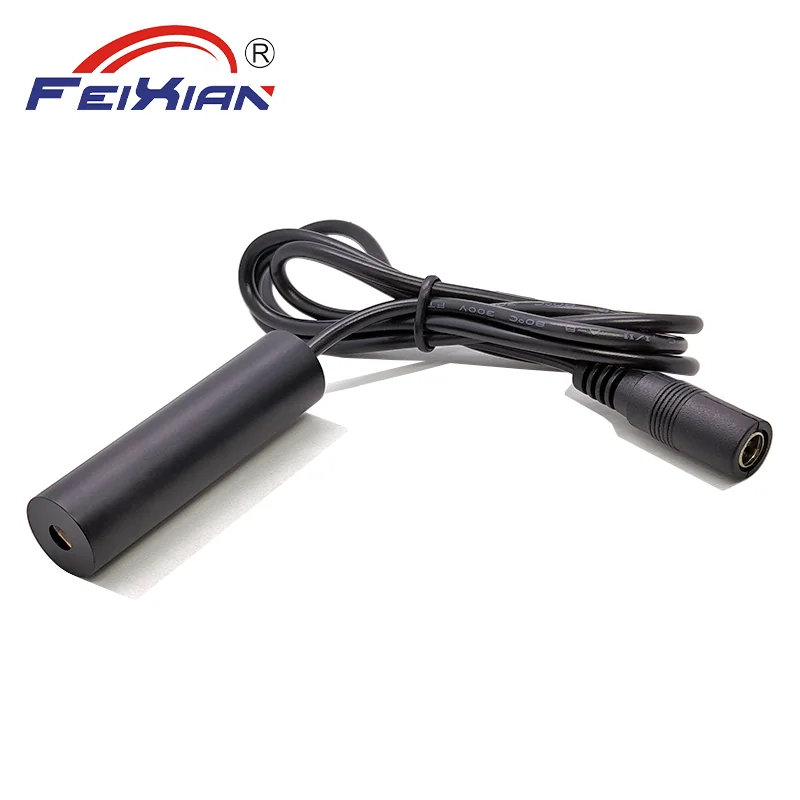

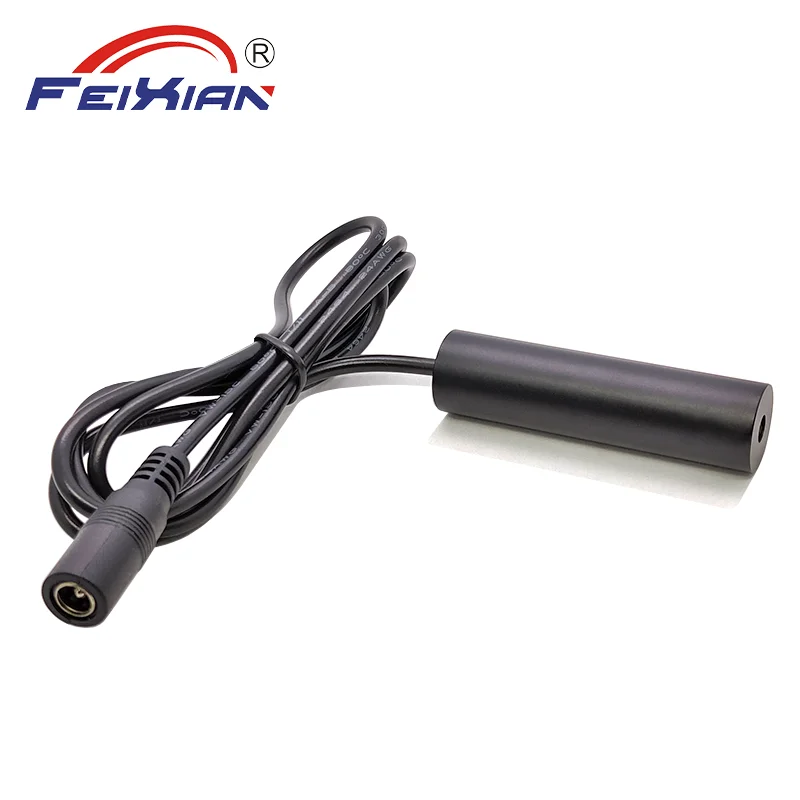

This product is a fixed focus glass lens one line blue laser module, the wavelength is 450nm and the voltage is 2.8~5,2VDC, the module size is Φ16X60mm.Module housings are not labeled by default, but the ones inside the video are temporarily labeled modules just to show them to customers.The module is mainly used for all kinds of linear positioning equipment, laser marking, laser net, clothing cutting machine, electric cutting machine and so on, the application range is very wide. Welcome to order!!!
Details Images
Product Paramenters
Product Code | HC2445050L, HC2445080L, HC24450100L |
External Dimensions | Φ16X60mm(Other sizes customizable) |
Housing Material | Aviation aluminum(All metal shell) |
Surface Treatment/Color | Black shell, with surface insulation treated with oxide mist black |
Peak Wavelength | 450nm±10nm(Other wavelengths customized) |
Output Optical Power | < 50mW, < 80mW, < 100mW,(Other power customized) |
Operating Distance | < 3m (Indoor environment, laser will be affected by ambient light interference, and the distance may vary) |
Beam shape and size | Line shap, (Regular focal length is 3 meters; focal length can be adjusted according to customer requirements for optimal effect) |
Light Diffusion Angle | > 90° |
Focal Mode | Fixed focus |
Circuit Control | ACC(TTL customised) |
Operating Voltage | 9~25VDC |
Operating Current | I < 180mA(50mW), I < 230mA(80mW), I < 280mA(100mW) |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -20℃~+70℃ |
Mean Time To Failure | ≥ 10000 hours |
Tail Wire | Default send DC female wire, wire length of about 1 meter (can be red and black electronic cable, sheath wire or general terminal wire) |
Laser Safety Class | CLASS IIIB(50mW, 80mW, 100mW) |
Packaging Content | One Laser |
Use To | Can be used in industrial laser positioning, aiming devices, laser flashlights, instrument equipment, medical equipment (health equipment), military, anti-counterfeiting and security, stage lighting, tools, USB drives, mobile phones, projection teaching flip pens, temperature (ranging) instruments, leveling instruments, marking instruments, level rulers, electronics enthusiasts, indoor and outdoor decoration and other products. |
Light Effect Display
Product packaging
Note:
All of our products are always packed with anti-static bags, then packed by bubble bags, and finally packed in cardboard boxes.
Scope Of Application
Company Profile
Company Profile
Zhongshan Feixian Photoelectric Co., Ltd. was established in March 2012. It is a high-tech semiconductor laser enterprise that integrates research and development, production and sales.
The company has a group of career oriented talents who have been engaged in the design, research and development, and production management of laser products for more than ten years. With mature technical strength as the driving force for the company's development, it has formed an advanced and mature production process, which can provide high-quality, outstanding performance, and cost-effective products to domestic and foreign customers in a timely and rapid manner with quality and quantity guaranteed. With the business philosophy of "innovation, efficiency, quality, and service" and the aim of winning the market with customers, let technology change the way we live!
The company has independent brands such as FEIXIAN, SEA SPIN, and YSHINE, earning the reputation of being an excellent semiconductor laser supplier in China. It also has multiple patent certifications and a complete and
scientific quality management system.
scientific quality management system.
The main products we provide include laser diodes, laser modules, optical lenses, and laser circuits with wavelengths between 400NM and 1064NM, as well as point laser sources, straight line lasers, cross line laser modules, multi pattern laser heads, and so on.
Our products are widely used in various fields such as medical, beauty, physical therapy, communication cutting, cutting, carving, screen making, printing, stage, lighting, scanning, camera focusing, robotics, radar, security, night vision, interactive projection, geological exploration, indication and positioning, light display, AR light storage, etc.
Recommend Products
FAQ
1.Are you a manufacturer?
The products sold in our store are all independently developed and produced by our company, with absolute quality and price advantages.They can be customized according to customer requirements and specifications, and are sold in bulk retail with preferential treatment for large quantities.
2.What are the wavelengths of your laser products? What is the power achieved?
Answer:At present, our company mainly produces products with laser wavelengths of 400nm-1064nm and power between 0-10W.
3.What are the dimensions of your laser products?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
4.What should I do if there is a problem with the product? Does your product have a warranty?
Our company's products are all made of original imported tube cores and A-grade high-quality lenses, with stable quality. In addition, we support a one-year warranty and lifetime free online technical support. If you have any questions or concerns, please feel free to contact customer service. I We will continue to serve you until you are satisfied.
5.Are the pictures or videos of your online products taken from real objects?
Answer:All product images, renderings, and videos on our store's website are taken by our company's professionals both indoors and outdoors, as well as by customers who have taken and provided them on their own usage site. Due to differences in the performance of the shooting equipment, there may inevitably be color differences or lighting effects. Please refer to the actual product for accuracy. We apologize for any inconvenience caused.
