Oil Maker Machine Industrial Grease Production Machine Kernel Oil Extraction Machine

what animal oil processing machines we supply?

Animal oil production refers to the processing of chicken, duck, pork, bone and other raw materials into animal fats and oils, which can be used as cooking oil or feed oil, and the residue can be used to make feed.

The main products: crusher, flat ice water machine, decompression cooker, steam cooker, water drying pot, horizontal oil slag hydraulic press, vertical oil slag hydraulic press, oil slag conveyor, Blade filter, screw press, etc.

Product Description

Animal oil production line, especially for animal fat and oil, after Drying, degreasing, grinding and other procedures the animal meat will be completely broken down into fat and bone meal. Oil can be made into industrial oils, feeding oils, biodiesel, etc. The meat and bone meal can be used to make high protein feed and organic fertilizer, both of which have high market potential.

Our animal oil production line has automatic and entire closed processing, non-polluting, harmless, recyclable, high utilization, have won the concern and praise from majority of customer, it is suitable for beef tallow, horse oil, chicken oil, sheep oil, and so on.

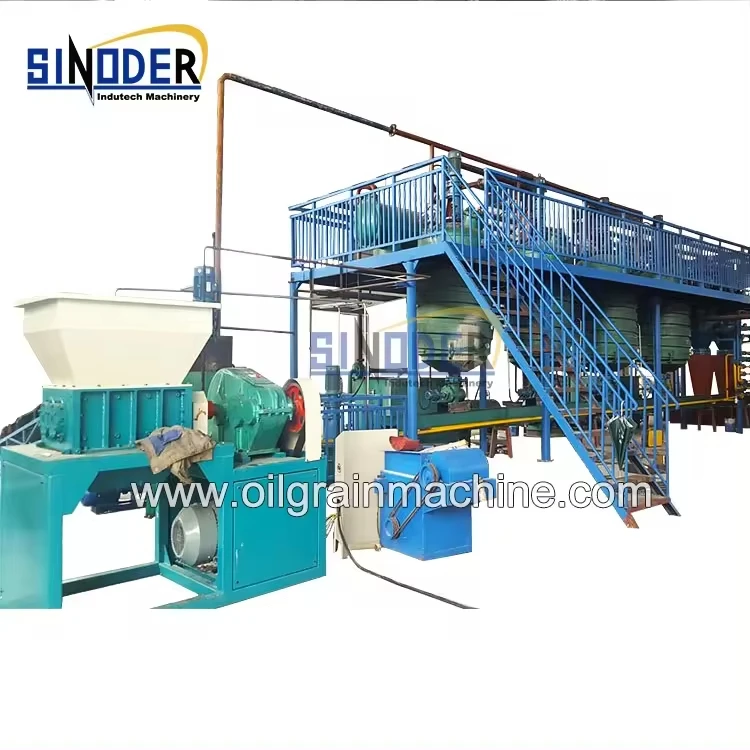

Animal oil negative pressure melting refining equipment production line

♦   Crushing pre-heating process : Raw materials after grinding machine into pellet state,enters into the preheated pot, the purpose of preheating is to heat and mix raw material uses heat conduction oil to achieve a mixed liquid-solid state and suitable mechanical pump conveying,to reduce the resistance of the mechanical pump delivery,to reach the Pipeline transport process requirements. On the other hand, the preheater acts as a material balance for the entire production line.

♦   Negative pressure melting and refining process: The preheated pot preheated raw material into a solid-liquid mixed state,and into the melting pot, open the vacuum pump makes the cooker pot with negative pressure, heat conducting oil starts melting.

♦   Vacuum dehydration recovery process : Adopting water jet type vacuum jet pump to make negative pressure state in melting pot, vacuum tube supporting stainless steel tube condensation heat exchanger, vacuum condensation recovery system, evaporation of water vapor in raw materials, molecular mixture of odor molecules, volatiles under vacuum state from The raw material grease is separated and flows into the tube condenser catcher along with the vacuum pipeline.

♦   Oil residue separation Process: The process adopts a stainless steel sieve type oil residue separator separate crude oil residue from the extract oil residue mixture, and the oil residue with the size larger than 0.5mm is sent to the pressing part through a scraper conveying device, the fine oil residue and the crude oil mixture are pumped into the filter machine process fine filtration.

Raw Material

Chicken, duck, pork, bone and other raw materials into animal fats and oils, and variety of other materials,which can be used as cooking oil or feed oil, and the residue can be used to make feed

Main section of the animal oil refining machine

♦   Degumming :Usded to neutrilizing ,and water washing,to rid off the acid.
♦   Deodorization:Used to rid off the fetid smell/odour of oil by steam understand of high temperature.
♦   Soap feet vessel:Used to refine the oil sediment from oil refiner,to get some oil from oil sediment.
♦   Hot & Alkali water tank:Used to produce hot water heated by the steams,also alkali water from the alkali dis-voling tank,for adding into the oil refiner.
♦   Alkali dis-voling tank :Used to produce the alkali water .
♦   Steam separator:Separating the steam to oil refiner,de-colorer,deodorizer,hot water tank,etc.
♦   Decoloring vessel:Used to rid off the color of the oil
♦   Clay tank:Store the medication decolored for the clay tank.
♦   Transfer hot oil furance:Contact the deodorizer part, producing high temperature (280 degrees) for deodorization.
♦   Gear pump:Pump oil into kinds of vessel and tank.
♦   Water pump:Pump cool water into water tank.
♦   Transfer hot oil pump:Pump hot oil into transfer oil furance.
♦   Cooling water tower:Cool water for cooling oil ,recycling using.
♦   Dewaxing /winterization / fractional

Our Animal Oil Refinery Plant Advantage

1, automatic feeding, oil, slag discharging, running electronic control automation, greatly reduce labor costs;

2, melting and refining under negative pressure has fast speed (1.5-2h / pot 2.5T), effective and high efficiency;

3, the production area has no smell, do not pollute the environment, corresponding to national environmental protection policies;

4, from the feeding to the oil, slag discharging, the material does not fall, all sealed and closed operation;

5, refined oil has good color, rich flavor, peroxide value, acid value, water impurity is relatively low; (many customers think refining under negative pressure will the oil flavor. Explanation: The boiling point of water in vacuum state is 80 ℃,Odor volatile oil at 200 ℃, the melting equipment the highest temperature is 120 ℃, which belongs to low-temperature vacuum refining, don’t reach the oil smell evaporation point, so the refined oil smell is more fragrant.)

6, finished oil residue color is good, low residual oil rate.

Click Now for Catalogs & Factory Price!

Strong manufacturing ability

♦    We have a professional service staff, and timely communication with the user, so that each machine is a "hen"lay eggs to make money.

♦    Nearly one century's history of manufacturing machinery,has a very valuable experience in manufacturing and technology services. Ensure every machine perfect.

♦    SINODER is the leading manufacturer and supplier of small oil press machine. Through years of development, our products has been rated as the best and reliable oil making equipment in the world.

♦    Therefore, we have been awarded various quality authentication from government institutes and alibaba. What's more, our good service is also well received by customers around the world.

Standard Export Package

The normal package is wooden box. If export to european countries,the wooden box will be fumigated.Or as customers required.
