Специальное оборудование для вязкой или перемещаемой глины Золотая шахта скруббер стиральная машина
732 121,50 ₽ - 865 234,50 ₽
Золотой спиральный перерабатывающий завод гравитационный сепаратор минеральный Спиральный для разделения железорудного шлака
- Категория: >>>
- Поставщик: Jiangxi Victor International Mining Equipment Co. Ltd.
Сохранить в закладки 1601168681751:
Описание и отзывы
Характеристики
Product Description
Introduction
Spiral chute, a new gravity separation machine, applicable to processing iron, tin, tungsten, tantalum, niobium, gold, coal and other metal separation from particle size 0.6mm to 0.05mm.
It has been used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.
Technical parameters | ||||||||||||
Model | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |||||||
Outside dia(mm) | 1500 | 1200 | 900 | 600 | 400 | |||||||
Pitch(mm) | 540/720 | 900/720/540 | 675/540/405 | 450/360/270 | 240/180 | |||||||
Pitch Dia Ratio | 0.75/0.6/0.45 | 0.75/0.6/0.45 | 0.75/0.6/0.45 | 0.75/0.6/0.45 | 0.6/0.45 | |||||||
Lateral slope | 9 | 9 | 9 | 9 | 9 | |||||||
Maximum starts per column | 4-2 | 4-2 | 4-2 | 3 | 2 | |||||||
Feeding Size(mm) | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |||||||
Feeding Density(%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 | |||||||
Capacity(T/H) | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |||||||
External size (mm) | Length | 1560 | 1360 | 1060 | 700 | 460 | ||||||
Width | 1560 | 1360 | 1060 | 700 | 460 | |||||||
Height | 5230 | 5230 | 4000 | 2600 | 1500 | |||||||
Weight (Kg) | 800 | 600 | 400 | 150 | 50 | |||||||
Main Features for spiral separator machine
1. Reasonable structure and small occupation area
2. High recovery, high efficiency, and precise separation
3. Non-required power
4. Light in weight, anti corrosion, rust and wear resistant
5. Simple installation and Minimal maintenance requirements
6. Low operating cost and long working life
7. Reliable running with minimal operator attention
8. Strong adaptability to fluctuation of feeding amount, density, size and grade

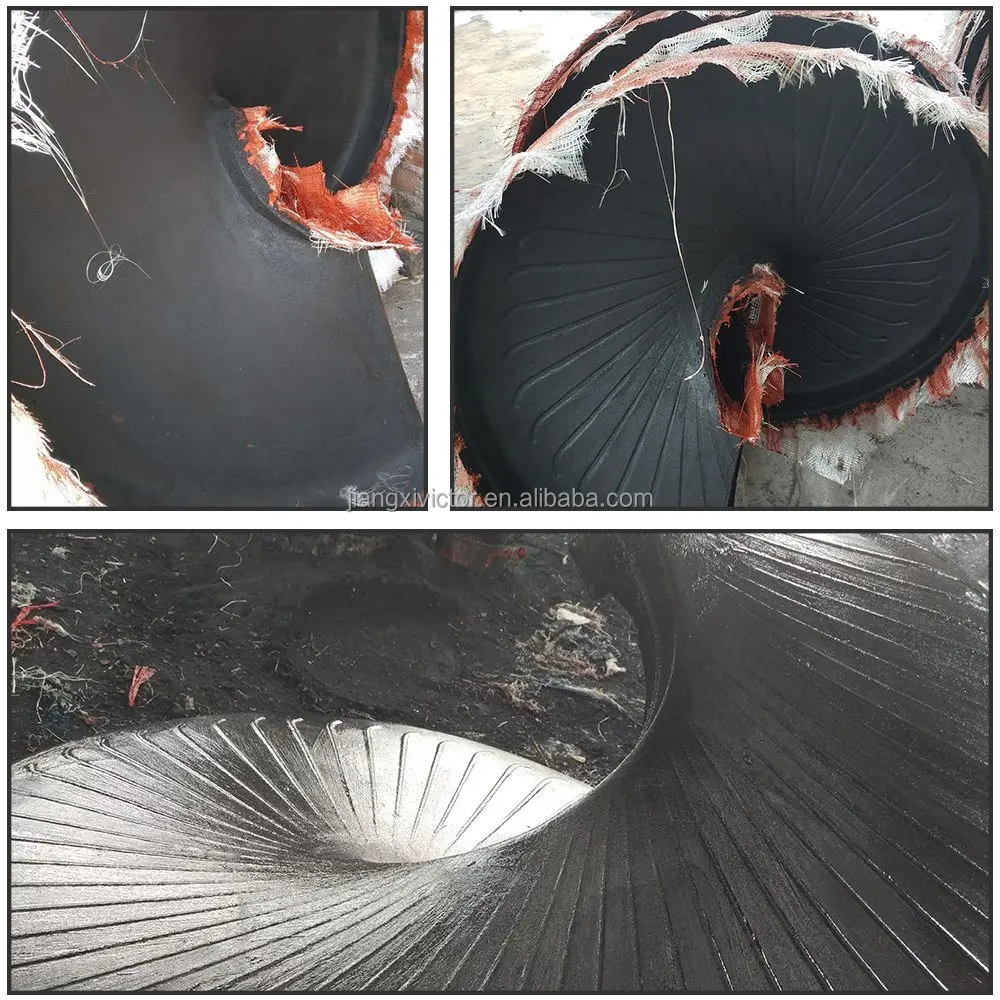

9. The surface of corundum forms strong friction the concentration effect surpass plastic surface
2. High recovery, high efficiency, and precise separation
3. Non-required power
4. Light in weight, anti corrosion, rust and wear resistant
5. Simple installation and Minimal maintenance requirements
6. Low operating cost and long working life
7. Reliable running with minimal operator attention
8. Strong adaptability to fluctuation of feeding amount, density, size and grade
9. The surface of corundum forms strong friction the concentration effect surpass plastic surface

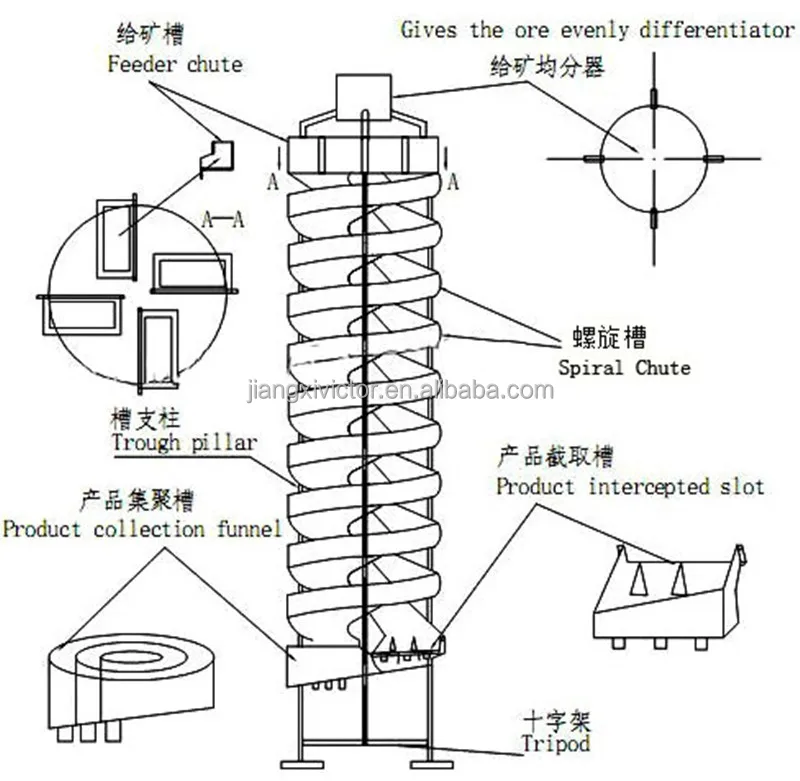

Working Principle for humphrey spiral separator
Spiral chute is to Use physics and a precisely designed piece of equipment, the material is discharged onto a banked metal flight which is spirally wound around a central shaft. As the material flows down the separator, its speed increases, and centrifugal force carries it toward the outer edge of the flight.
1.Precise separation
2.Non-required of electricity
3.Light weight, anti corrosion, rust and wear resistant
4.Simple installation and minimal maintenance requirements
5.Low operating cost and long service life
6.Reliable running with minimal operator attention
7.Strong adaptability to fluctuation of feeding amount, density, size and grade
2.Non-required of electricity
3.Light weight, anti corrosion, rust and wear resistant
4.Simple installation and minimal maintenance requirements
5.Low operating cost and long service life
6.Reliable running with minimal operator attention
7.Strong adaptability to fluctuation of feeding amount, density, size and grade

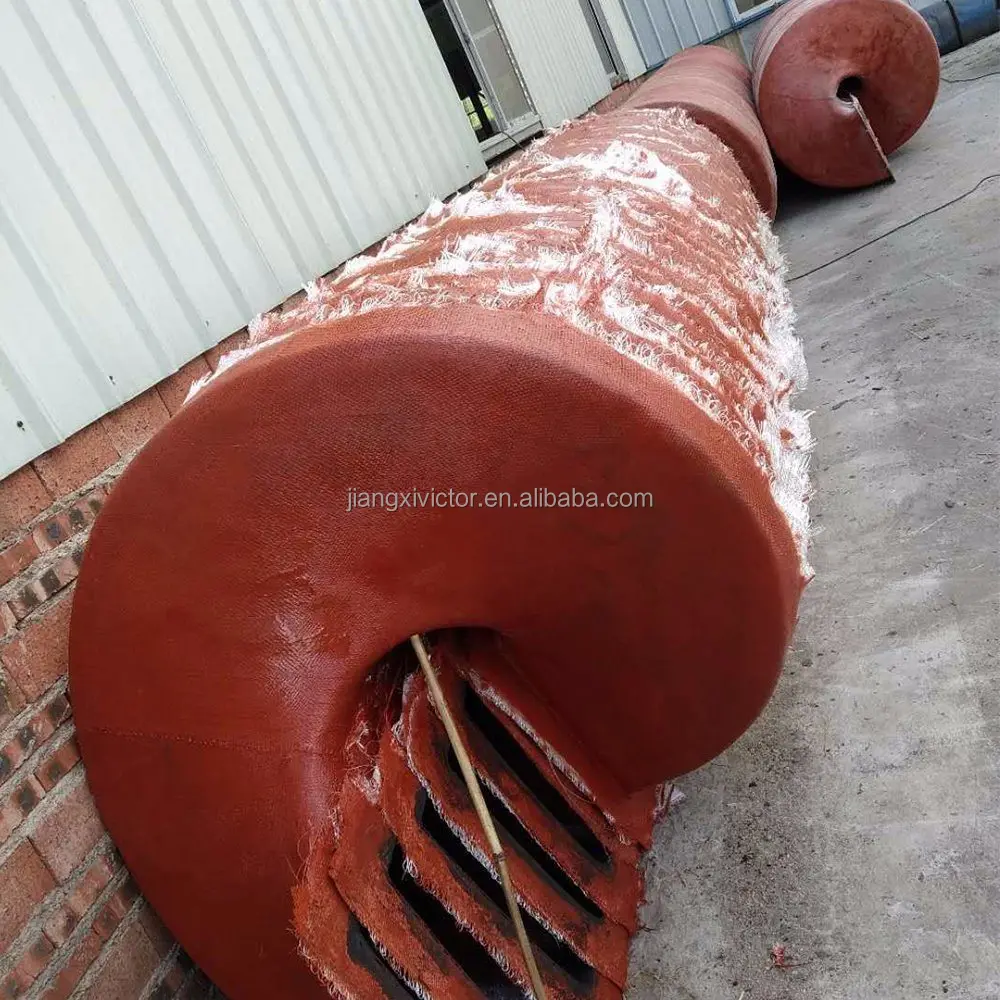

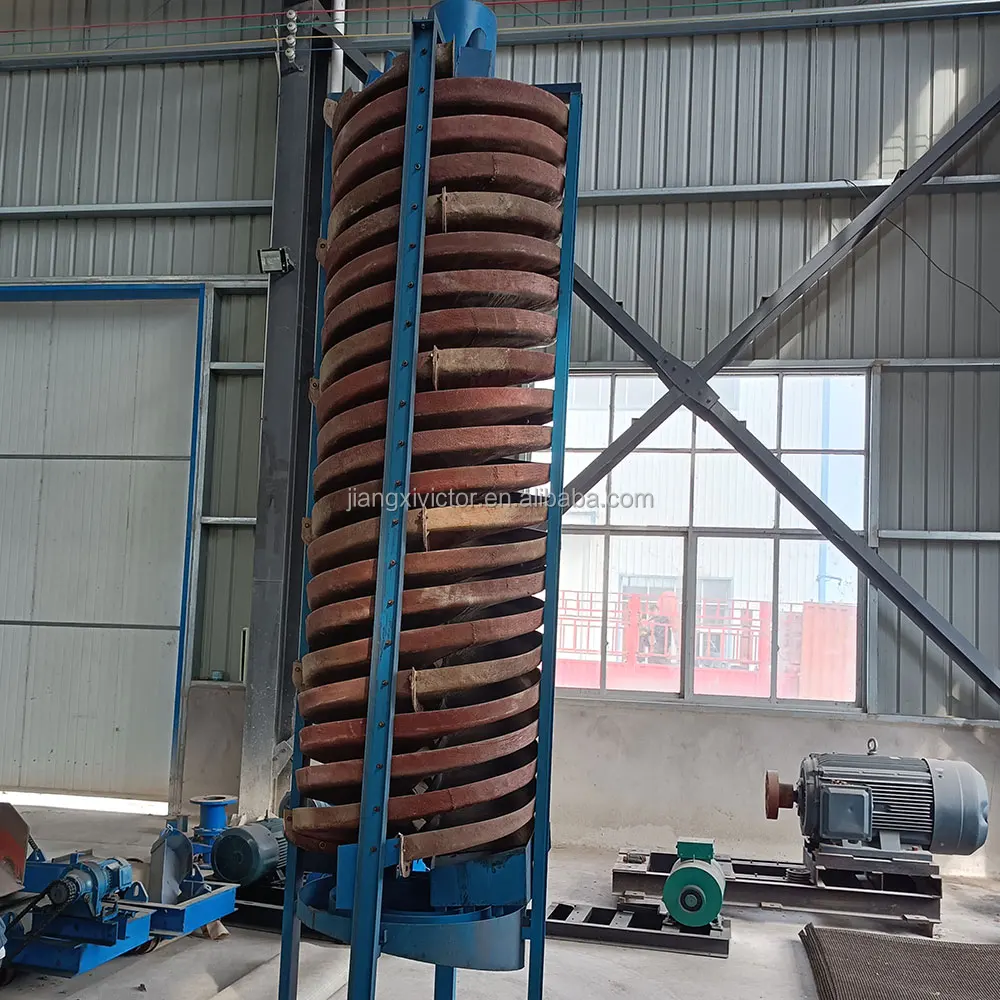

Detailed Images

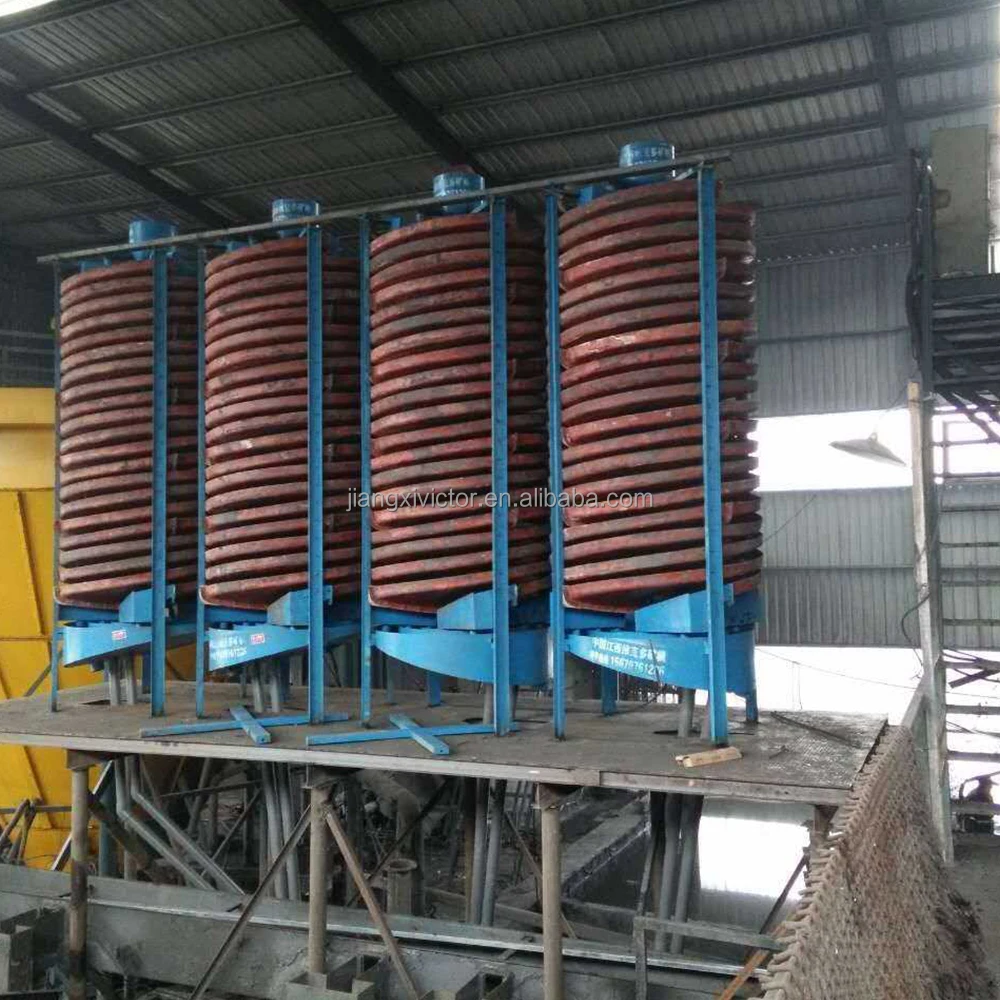

Successful Cases
Company Information
WELCOME TO VISIT OUR FACTORY
-- Our customers from over 50 countries and regions.
-- We have 20+ manufacturing experience and can provide custom design.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
FAQ
1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
