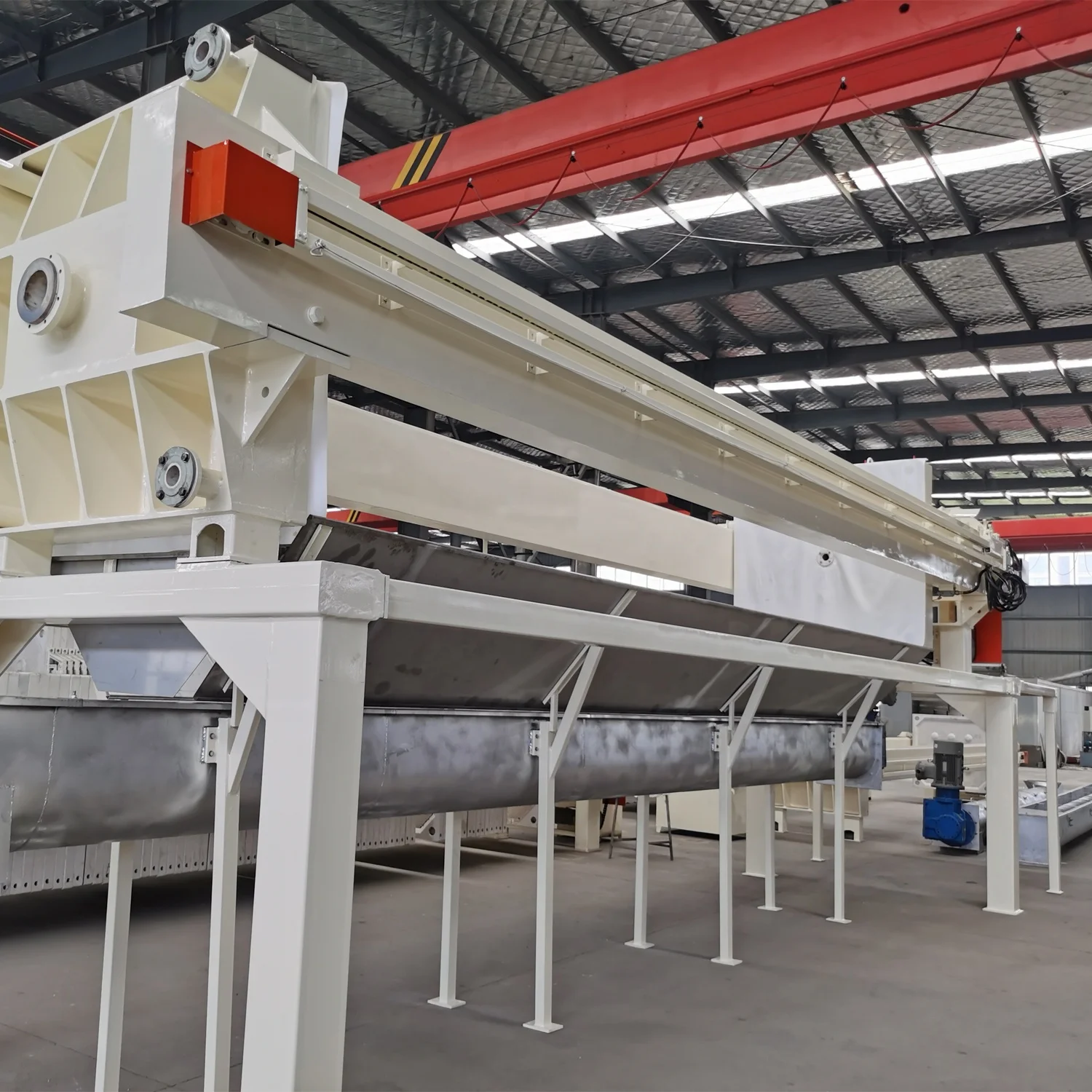

Высокоэффективный автоматический камерный фильтр-пресс с ленточным конвейером легко избавиться от фильтровального торта
1 957 040,25-1 980 761,95 ₽
Оборудование для Концентрации Медной суспензии загуститель железной руды
- Категория: >>>
- Поставщик: Nuclear Industry Yantai Toncin Group Co. Ltd.Nuclear Ltd.
Сохранить в закладки 1601171625897:
Описание и отзывы
Характеристики
Products Description

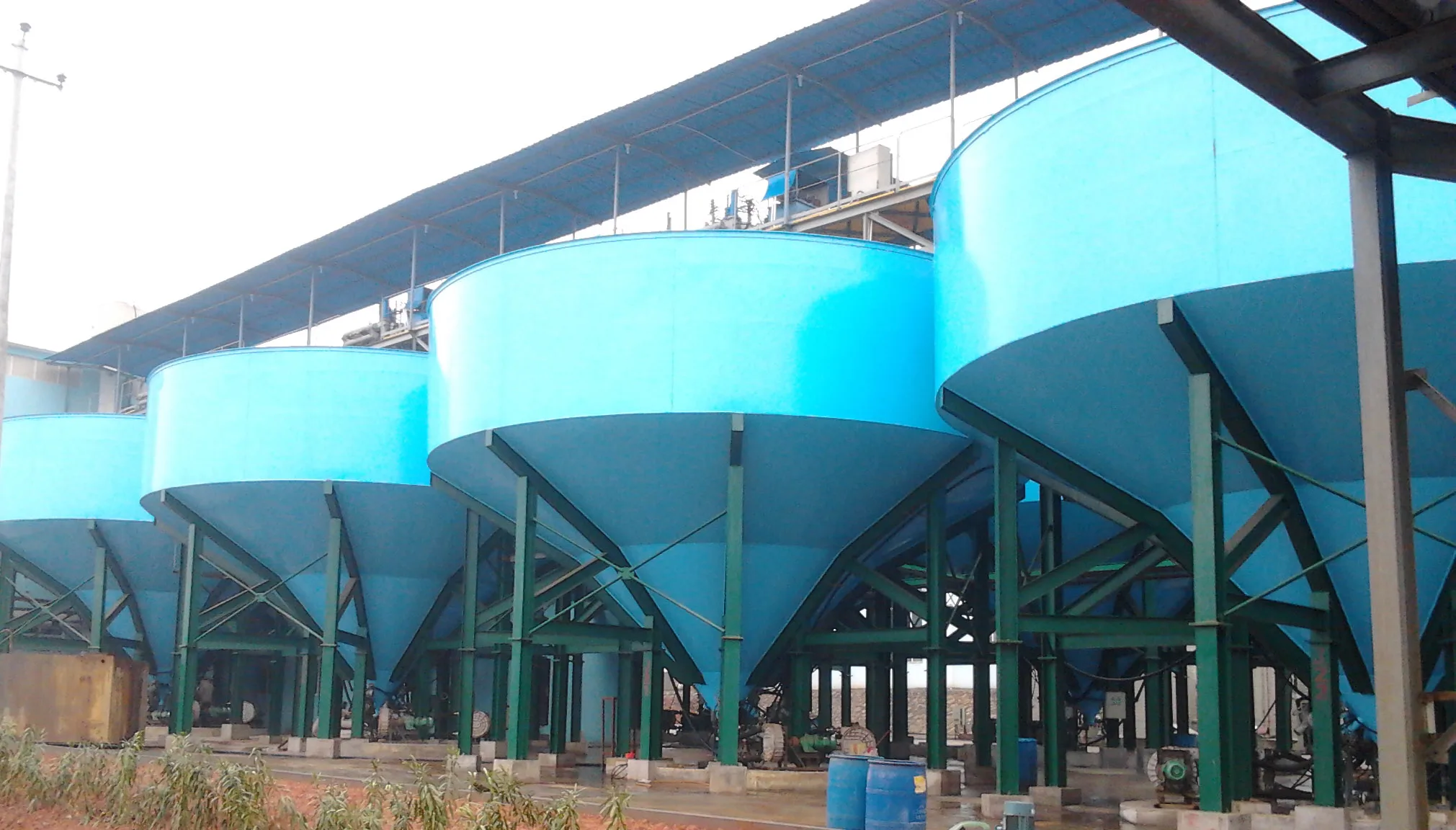

GNZ centre drive efficient thickener |
GNZ centre drive efficient thickener is a kind of new-style solid-liquid separation equipment, and is designed by our company with the introduction of foreign advanced technology. The thickener has multiple national patents such as center drive, high-efficiency feeding hopper and automatic rake lifting technology. The adoption of the heavy-duty core design ensures the machine normal running in extreme conditions, greatly boosting the concentrating efficiency. GNZ type of high-efficient thickener achieves the efficient dewatering by the action of material itself gravity and flocculating settlement. The slurry is mixed with the flocculating agent in the feed tank and fed to the high-efficiency feed hopper (steady flow tank). After the degassing and energy dissipation by the steady flow tank, the material is fed along the horizontal tangent of the inner tank of the steady flow tank, which is equipped with multiple flocculent adding points based on the material nature; the material and the flocculating agent are settled downwards after mixed for the second times; then they are transported along the parabola direction by the distributor disc at the bottom of the tank; the settled material is scraped by the rake to the center throat of the pool body for centralized discharge.
PRODUCT ADVANTAGES
-High concentrating and scraping efficiency is three to five times than that of ordinary thickeners
- Excellent Feeding System - efficient steady flow tank
- Ultra-heavy-duty drive lifting system and large torque designs to ensure the normal operation of equipment in extreme conditions.
- Logarithmic spiral design and teeth density upon the nature of the material for rake teeth is greatly improves the efficiency of scraping.
-High concentrating and scraping efficiency is three to five times than that of ordinary thickeners
- Excellent Feeding System - efficient steady flow tank
- Ultra-heavy-duty drive lifting system and large torque designs to ensure the normal operation of equipment in extreme conditions.
- Logarithmic spiral design and teeth density upon the nature of the material for rake teeth is greatly improves the efficiency of scraping.
Product Paramenters
1.Design of main driving and rake lifting gear
1)Driving framework and chassis are made according to heavy type transmission device,
running is stable and reliable.
2)full automatic rake lifting.
3)Star transmission,the max running torque is 5000,000Nm.The designed torque of driving
transmission Is designed according to following standards.
a.Running torque value: 33% of the designed torque.
b.High torque alarm: 50% of the designed torque.
c.Rake rising; 60% of the designed torque.
d.Rake decreasing: 40% of the designed torque.
e.The designed torque value of mechanical device: 150% of the designed torque.
2. Control system
Site control and remote control are combined,DCS control points are supplied.
1,PLC control,overloading protection.
2,Material discharging terminal is set up with mud layer pressure sensor to control rotation and mud discharging by pump.
Product Application
GNZ thickener is a new High-rate thickener with central-drive, automatic lifting rake that we have developed based on foreign technology .It is widely applicable to treatment of various industrial feed pulp, like coals, metal ore dressing water,metallurgy, chemical, tailings treatment, environmental protection etc.

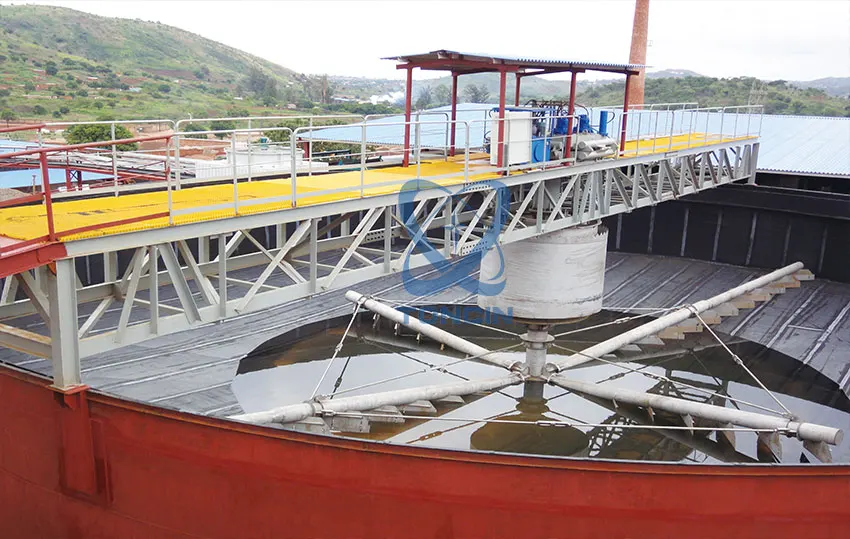

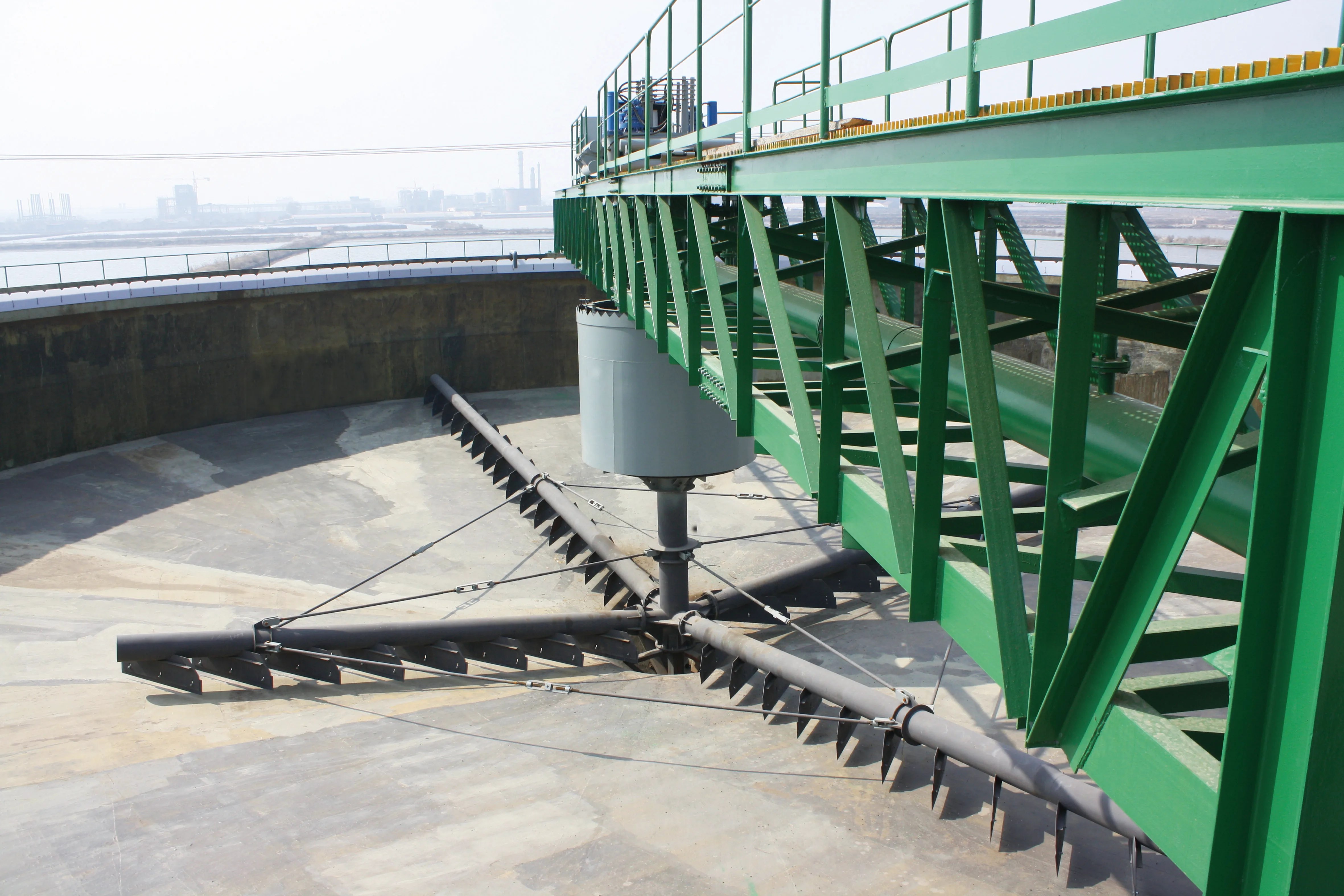

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
1)Driving framework and chassis are made according to heavy type transmission device,
running is stable and reliable.
2)full automatic rake lifting.
3)Star transmission,the max running torque is 5000,000Nm.The designed torque of driving
transmission Is designed according to following standards.
a.Running torque value: 33% of the designed torque.
b.High torque alarm: 50% of the designed torque.
c.Rake rising; 60% of the designed torque.
d.Rake decreasing: 40% of the designed torque.
e.The designed torque value of mechanical device: 150% of the designed torque.
2. Control system
Site control and remote control are combined,DCS control points are supplied.
1,PLC control,overloading protection.
2,Material discharging terminal is set up with mud layer pressure sensor to control rotation and mud discharging by pump.
Product Application
GNZ thickener is a new High-rate thickener with central-drive, automatic lifting rake that we have developed based on foreign technology .It is widely applicable to treatment of various industrial feed pulp, like coals, metal ore dressing water,metallurgy, chemical, tailings treatment, environmental protection etc.
This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
Recommend Products
SERVICE SUPPORT
We can provide whole technological designToncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and the oretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
PROJECT CONSTRUCTION
Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.
RESPONSE TIME AND AFTER-SALES SERVICES
If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
Company Profile
About us
Nuclear Industry Yantai Toncin Group Co., Ltd. Currently own 5 state-level high-tech enterprises, maintain 177 valid patents, including 38 invention patents, presided and participated in the formulation of more than 10 national standards and industry standards of the Horizontal Vacuum Belt Filter, Vertical Automatic Filter Press, Ceramic Disc Vacuum Filter, SSPF Smart Press Filter, thickener and so on.
Our Vacuum Rubber Belt Filter, Ceramic Filter, Vertical Filter Press, High Efficiency Thickener, Intelligent Press Filter, Centrifuge, Tubular Filter and other equipment. It is widely used in chemical industry, mining, metallurgy, fertilizer, medicine, food, paper, sewage treatment, tailings treatment and other industries.
Certifications
Exhibition
Packaging and shipping
FAQ
1.Q:Are you a manufacturer or trading company？
A: We are a manufacturer, we have rich experience in solid liquid industry for more than 20 years.We are the Horizontal belt vacuum filter and TC ceramic disc vacuum filter,HVPF tower press filter leader of China.We are the solid liquid separation equipment standard drafter of China.There are more than 10000 sets our equipment are running all of the world.
2.Q:Where is your factory located? How to get there?
A: Our factory is located in C distict of Qixia Songshan development zone Yantai City of Shandong Province,China. It is just half an hour from Yantai airport. We can pick you up at any time at there, we warm welcome you come to visit our factory at any time.
3.Q: Do you have minimum order quantity request?
A: for spare parts we have no MOQ,but for whole set equipment of course 1 set is the minimum.
4.Q: Do you have certificates?
A: Yes, we have CE, ISO,SGS.etc. certificates.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have rich expeirence and we have a professional design team. We can provide differents drawings according to your requirements.
6.Q:How to buy your idea products?
A:You just need provide us your slurry informations ,water sources, ground area (connect us for more details).Then will give a satisfy solution.
7.Q:How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading by TT.
8.Q:What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
9.Q: How to pack the products?
A: We use stuitable package for ocean shipment according to our experience. If you have special package requirements, we will pack as required.
10.Q: How to keep your equipments from corrosion?
A: We use differents consturction material for your differents material slurry,according to your slurry PH value.Normally,for painting we use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.
11.Q: How do you produce your equipment ?
A:We use high automatic machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending machine,you can see the high-tech machinces in our company workshop everywhere.
12.Q:How to install after the equipments arriving destination?
A: We will arrange our engineers for you to guide installation and commissionning jobs.Meanwhile,we provide detailed illustrations to you.
13.Q:How to select the correct equipment size ?
A:We will send you a questionnaire about your material slurry,you just try to fill out it,then we will try to give you a suitable solution for you according to our experience,or you can send us some sample to do the tests.We can do the tests for free for you,we own a high-tech tests room in our plant.
A: We are a manufacturer, we have rich experience in solid liquid industry for more than 20 years.We are the Horizontal belt vacuum filter and TC ceramic disc vacuum filter,HVPF tower press filter leader of China.We are the solid liquid separation equipment standard drafter of China.There are more than 10000 sets our equipment are running all of the world.
2.Q:Where is your factory located? How to get there?
A: Our factory is located in C distict of Qixia Songshan development zone Yantai City of Shandong Province,China. It is just half an hour from Yantai airport. We can pick you up at any time at there, we warm welcome you come to visit our factory at any time.
3.Q: Do you have minimum order quantity request?
A: for spare parts we have no MOQ,but for whole set equipment of course 1 set is the minimum.
4.Q: Do you have certificates?
A: Yes, we have CE, ISO,SGS.etc. certificates.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have rich expeirence and we have a professional design team. We can provide differents drawings according to your requirements.
6.Q:How to buy your idea products?
A:You just need provide us your slurry informations ,water sources, ground area (connect us for more details).Then will give a satisfy solution.
7.Q:How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading by TT.
8.Q:What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
9.Q: How to pack the products?
A: We use stuitable package for ocean shipment according to our experience. If you have special package requirements, we will pack as required.
10.Q: How to keep your equipments from corrosion?
A: We use differents consturction material for your differents material slurry,according to your slurry PH value.Normally,for painting we use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.
11.Q: How do you produce your equipment ?
A:We use high automatic machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending machine,you can see the high-tech machinces in our company workshop everywhere.
12.Q:How to install after the equipments arriving destination?
A: We will arrange our engineers for you to guide installation and commissionning jobs.Meanwhile,we provide detailed illustrations to you.
13.Q:How to select the correct equipment size ?
A:We will send you a questionnaire about your material slurry,you just try to fill out it,then we will try to give you a suitable solution for you according to our experience,or you can send us some sample to do the tests.We can do the tests for free for you,we own a high-tech tests room in our plant.
Похожие товары

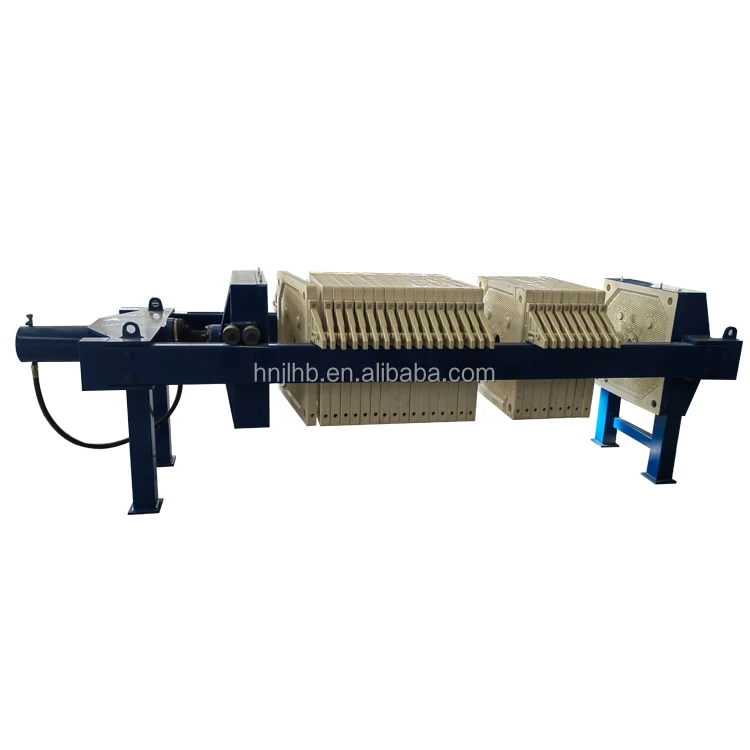

Гидравлический фильтр пресс-машина для масляного фильтра гидравлический пресс оборудование цена
Автоматический камерный фильтр-пресс с горизонтальным и наклонным винтовым конвейером для нефтехимического завода
4 151 297,50-4 175 019,20 ₽
Гидравлический утопленный фильтр-пресс для очистки сточных вод и смешанного обезвоживания осадка
177 912,75-189 773,60 ₽

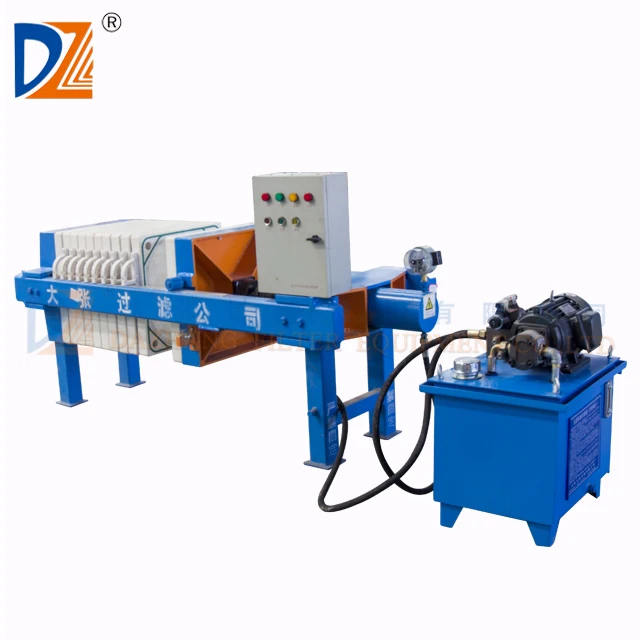

Автоматический фильтр-пресс высокого давления с автоматическим фильтром
2 229 839,80-2 253 561,50 ₽
Картонный фильтр-пресс для фильтрации крови с технологией высокого уровня разделения inc
770 955,25 ₽

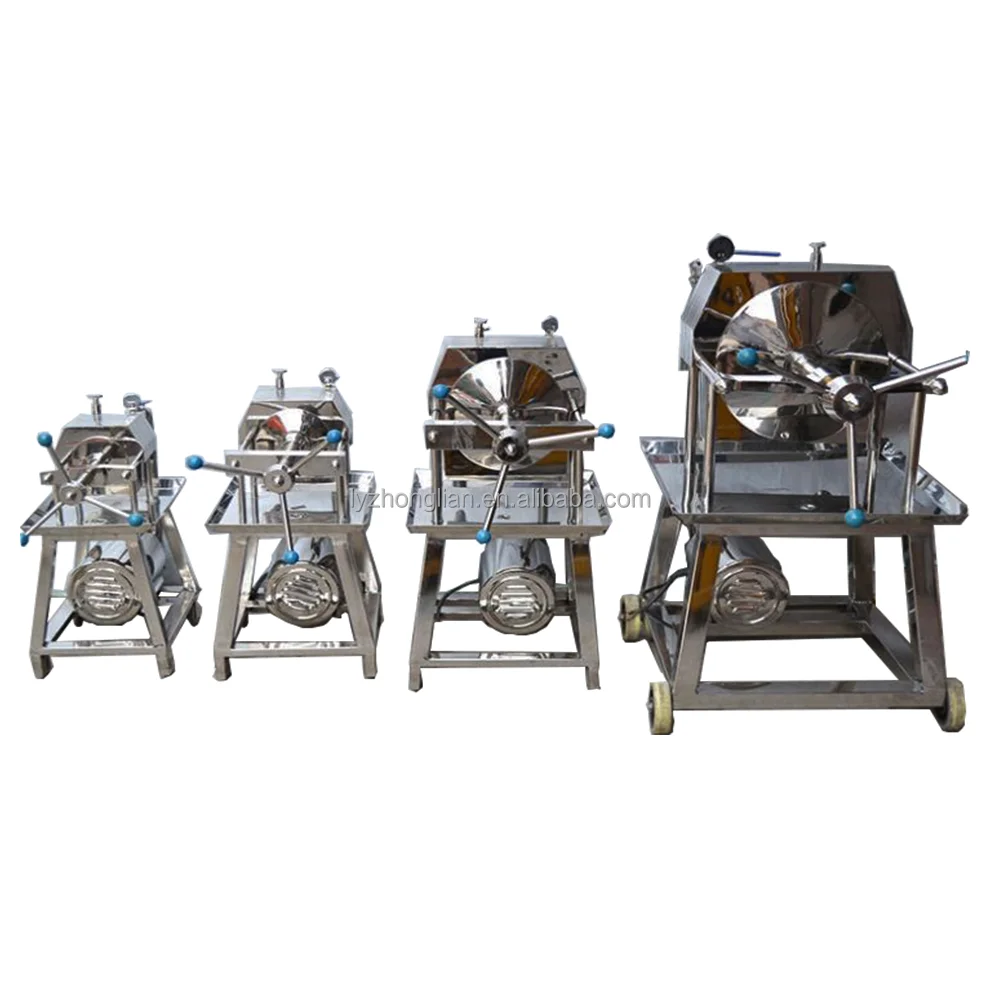

Маленькая пластина и рамка фильтр пресс машина нержавеющая сталь кокосовое масло
296 521,25 ₽

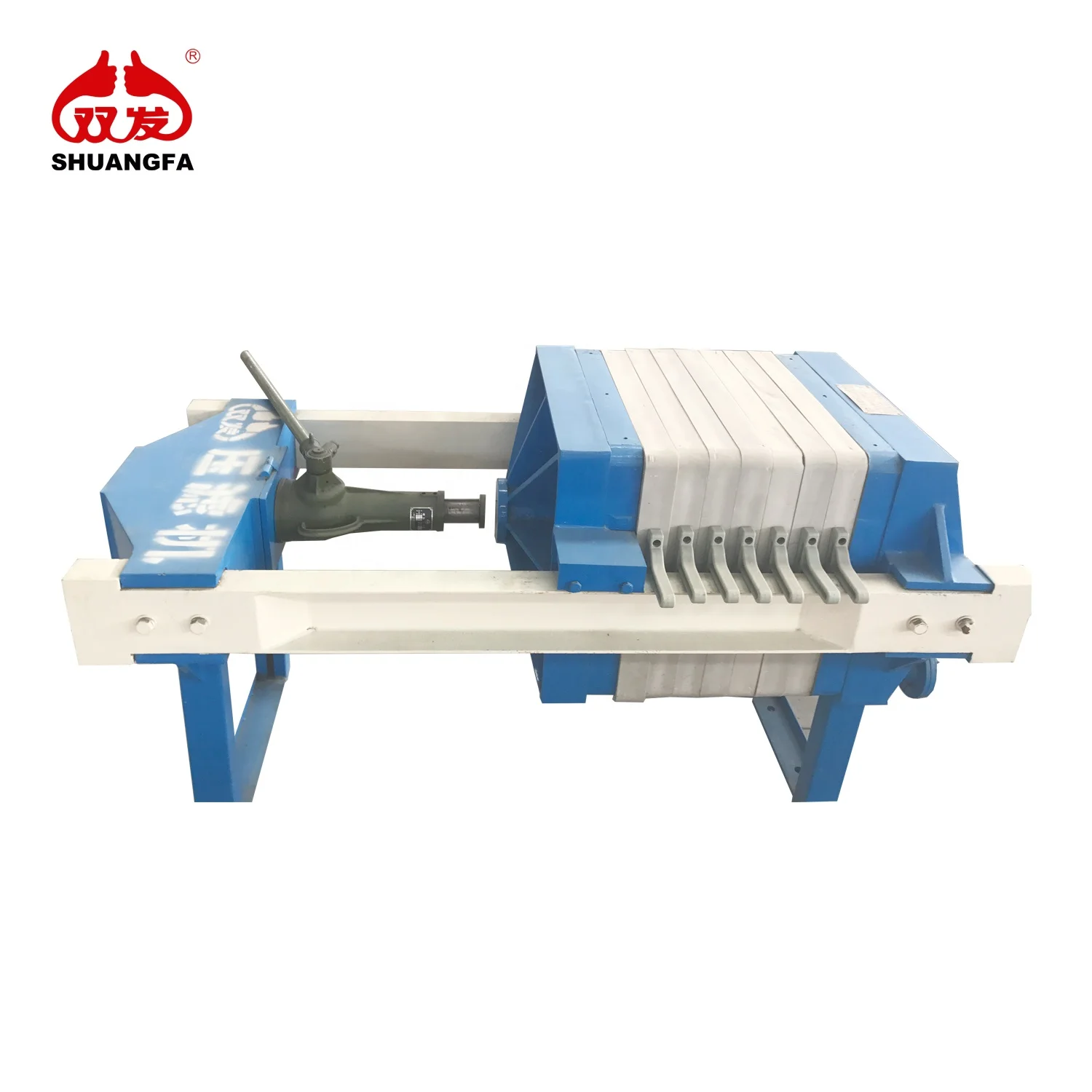

Низкая цена ручной фильтр-пресс
