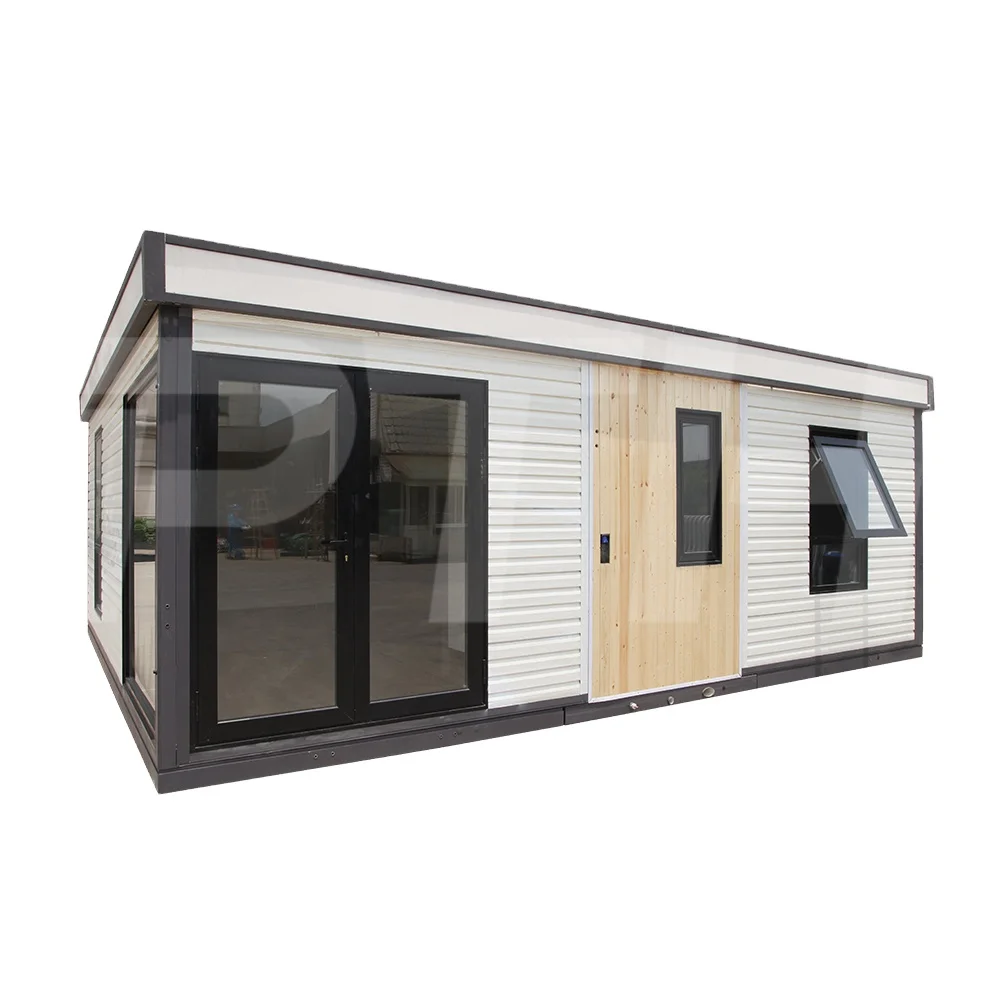

Тотальное решение для проектов сборные крошечные цены жилые Австралия расширяемый контейнерный дом домашний офис
819 367,36-915 763,52 ₽
Гальванизированная стальная проволочная сетка шестиугольная габионная корзина для хранения камня
- Категория: >>>
- Поставщик: Taian Binbo New Material Co. Ltd.Taian Ltd.
Сохранить в закладки 1601190362523:
Описание и отзывы
Характеристики
Products Description

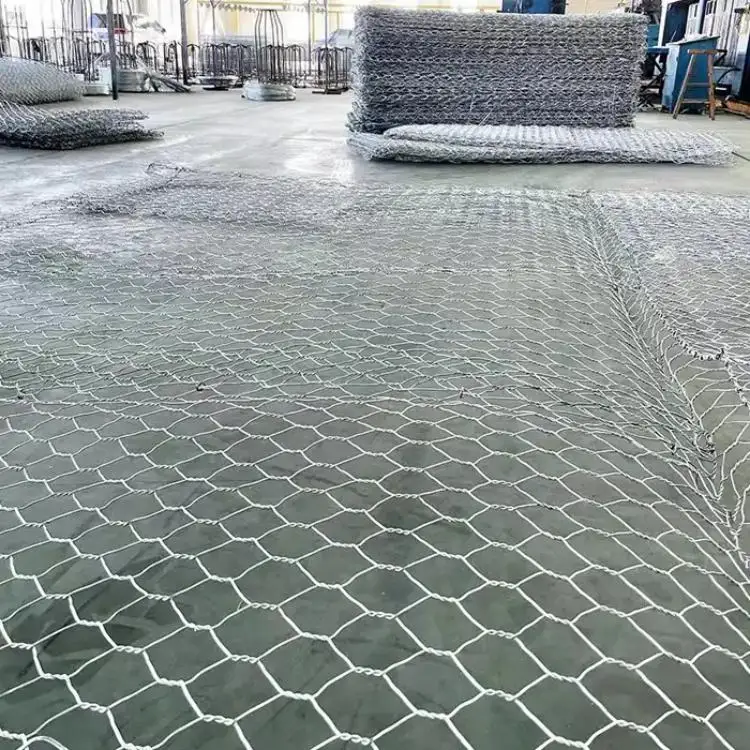

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical.Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.Gabion mesh is suitable for slow banks with high flow rate, serious erosion and lots of water seepage on bank slope. Gabion is a flexible structure with good self-adjustment for uneven subsidence. The porosity of the shore surface, the gap between the stone is conducive to the habitat of animals and the growth of plants, and the stone cage surface above the water line can be planted with guest soil bags to meet the ecological considerations and safety requirements.
Material introduction:
(1) Galvanized steel wire: high quality low carbon steel wire, the diameter of the steel wire 2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surface of the steel wire is protected by hot dip galvanizing, the thickness of the galvanized protective layer is made according to customer requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum (10% aluminum) -mixed rare earth alloy steel wire: (also called Golfan) steel wire, which is an international emerging a new material, corrosion resistance is more than 3 times that of traditional pure galvanized, the diameter of the steel wire can reach 1.0MM-3.0MM, the tensile strength of the steel wire is not less than 1380Mpa.

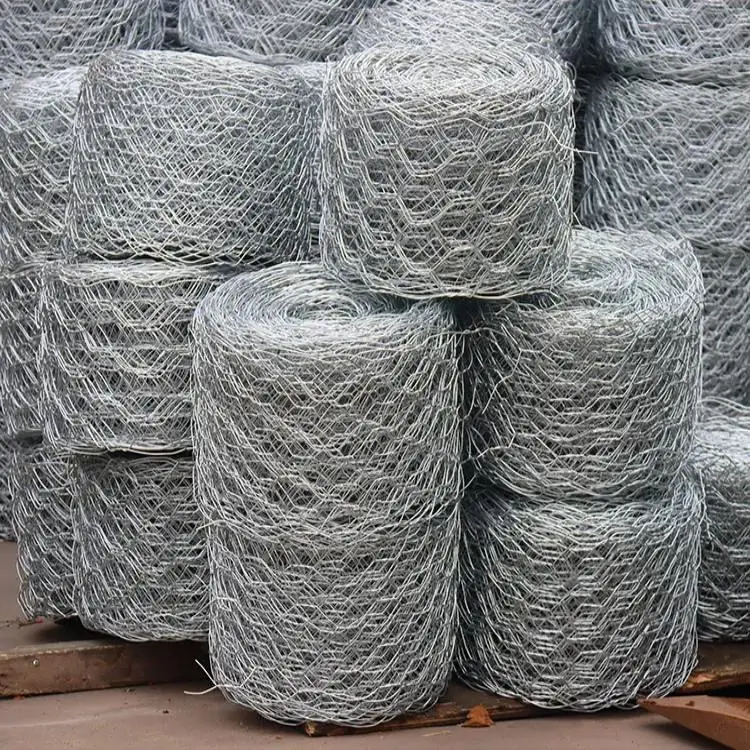

(3) Galvanized steel wire coated: high-quality low carbon steel wire, a layer of PVC protective layer on the surface of the steel wire, and then woven into various specifications of hexagonal nets. This layer of PVC protective layer will greatly increase the protection in the highly polluted environment, and through the choice of different colors, it can be integrated with the surrounding environment.
(4) Zinc-5% aluminum (10% aluminum) -mixed rare earth alloy steel wire coating: The surface of zinc-5% aluminum - mixed rare earth alloy steel wire is covered with a layer of PVC protective layer.
(1) Galvanized steel wire: high quality low carbon steel wire, the diameter of the steel wire 2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surface of the steel wire is protected by hot dip galvanizing, the thickness of the galvanized protective layer is made according to customer requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum (10% aluminum) -mixed rare earth alloy steel wire: (also called Golfan) steel wire, which is an international emerging a new material, corrosion resistance is more than 3 times that of traditional pure galvanized, the diameter of the steel wire can reach 1.0MM-3.0MM, the tensile strength of the steel wire is not less than 1380Mpa.
(3) Galvanized steel wire coated: high-quality low carbon steel wire, a layer of PVC protective layer on the surface of the steel wire, and then woven into various specifications of hexagonal nets. This layer of PVC protective layer will greatly increase the protection in the highly polluted environment, and through the choice of different colors, it can be integrated with the surrounding environment.
(4) Zinc-5% aluminum (10% aluminum) -mixed rare earth alloy steel wire coating: The surface of zinc-5% aluminum - mixed rare earth alloy steel wire is covered with a layer of PVC protective layer.
Specification
Material | Mild steel wire | ||||||
Surface treatment | Hot-dip galvanized, pvc plastic coated | ||||||
Characteristics | Corrosion resistance, high strength, good ductility, flood control and guidance | ||||||
Usage | River, lake and sea slope protection, bank protection, traffic engineering, soil and water conservation and other fields | ||||||
Mesh hole | 60mm×80mm, 80x100mm，100x120mm | ||||||
Wire diamater | Mesh wire: 2.0mm-4.0mm | ||||||
Selvadge wire:3.4mm,3.8mm | |||||||
Lacing wire:2.2mm,2.5mm | |||||||
Gabion basket size | 1.5x1x1m, 2x1x1m, 3x1x1m, 2x1x0.5m, 4x1x1m | ||||||
Product Application

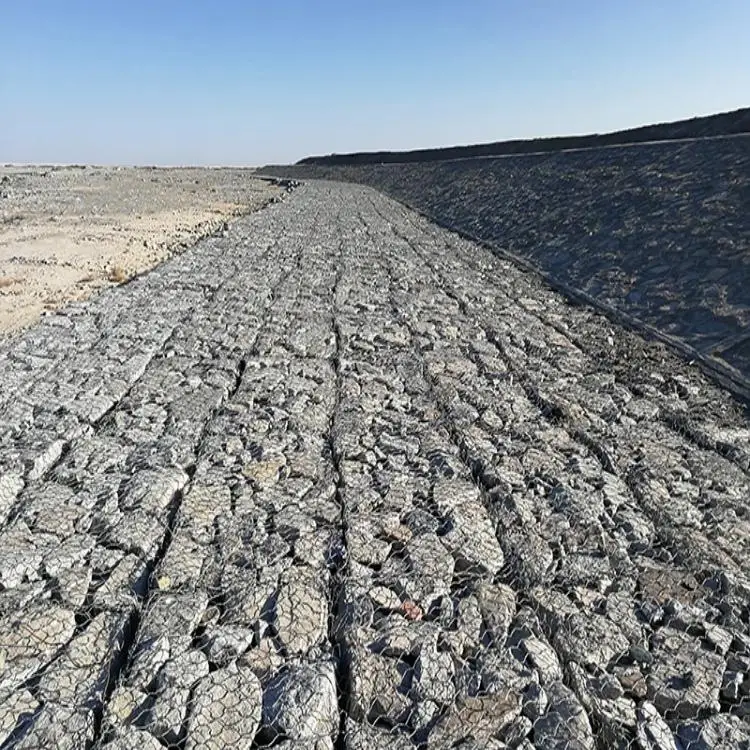

Gabion basket application&Project cases
-Control and guide of water or flood
-Flood bank or guiding bank
-Preventing of rock breaking
-Water and soil protection
-Bridge protection
-Strengthening structure of soil
-Protection engineering of seaside area
It has been successfully applied in water conservancy project, highway, railway project and dike protection project. In the world,it has become the first choice structure for protecting river bed, controlling landslide, preventing debris flow and preventing rockfall.
It has been successfully applied in water conservancy project, highway, railway project and dike protection project. In the world,it has become the first choice structure for protecting river bed, controlling landslide, preventing debris flow and preventing rockfall.
Characteristics of stone cage net:
1. Strong adaptability, can well adapt to the deformation of the foundation.
2. Corrosion resistance and erosion resistance, with a strong ability to resist natural damage, bad weather, and the impact of earthquakes.
3. High flexibility, not easy to break, can withstand large-scale deformation, and still do not collapse.
4. Water permeable or impermeable to prevent damage caused by hydrostatic force.
5. Improve vegetation landscaping, the silt between the stone gaps is conducive to the growth of plants, and can be integrated with the surrounding environment.
6. The construction is convenient, no special skills are required, just put the stone into the cage to seal it.
7. Save transportation costs, can be folded up for transportation, assembly on the site.
Product packaging & delivery
Packaging: Ship to any country's port by sea, if you have a freight forwarder in China, we can also ship to the designated
location according to customer requirements.

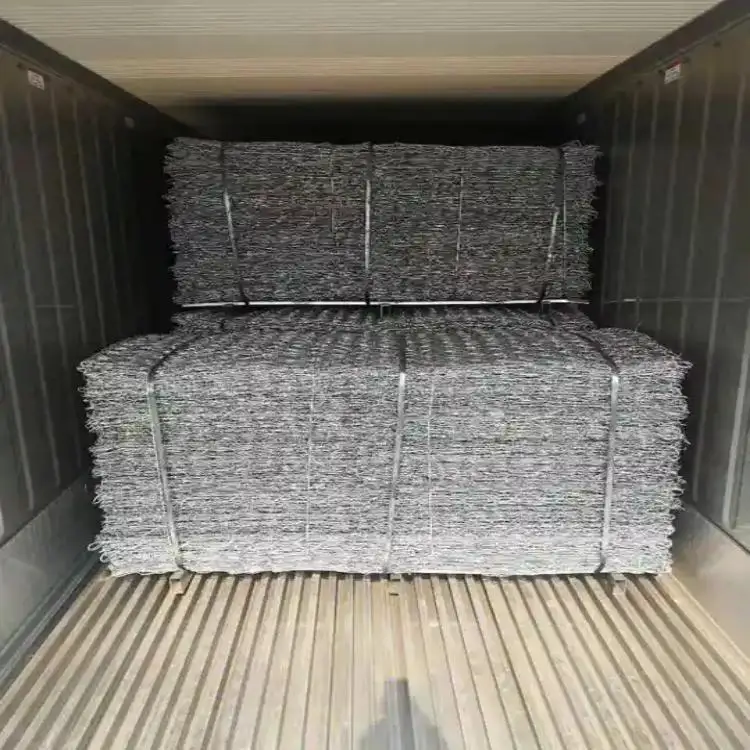

Shipping: Usually it is packed in wooden pallets, and can also be packed in cartons ,according to customer requirements.
location according to customer requirements.
Shipping: Usually it is packed in wooden pallets, and can also be packed in cartons ,according to customer requirements.
Company Profile
About us
Tai'an Binbo New Material Co., Ltd. is located at the foot of the world-famous Mount Taishan Mountain, the beautiful tourist city of Tai'an,with convenient transportation,it is less than 400 kilometers away from the largest port in the north, Qingdao Port, and nearby ports such as Rizhao and Yantai. As the leading geosynthetics manufacturers and suppliers, It has long been committed to the development and application of new polymer materials for engineering purposes. The company mainly produces geomembranes, geotextiles, high-strength polyester warp knitted geogrids, geocell, high toughness machine woven geotextiles, geotextiles,composite grids, three-dimensional grass planting nets, anti composite mesh pads and gabion nets, polyester fiber flexible nets,mining flexible safety support nets, coal mine filling pillars, flexible molds, etc., serving engineering, transportation, water conservancy, port shipping, municipal engineering, environment, mining erosion and geological disaster prevention and control. Now We have multiple advanced geosynthetic product production lines, we owns many professional high-tech equipments. We also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.The company's products have been sold to Zambia, Vietnam, Australia, Southeast Asia, Africa, Europe, etc more than 50 countries and regions worldwide. Sincerity is the foundation, winning with quality, high cost-effectiveness, and win-win cooperation are our principles. We look forward to working with you!
Welcome to visit our company.
Welcome to visit our company.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is yourterms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is yourterms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Похожие товары

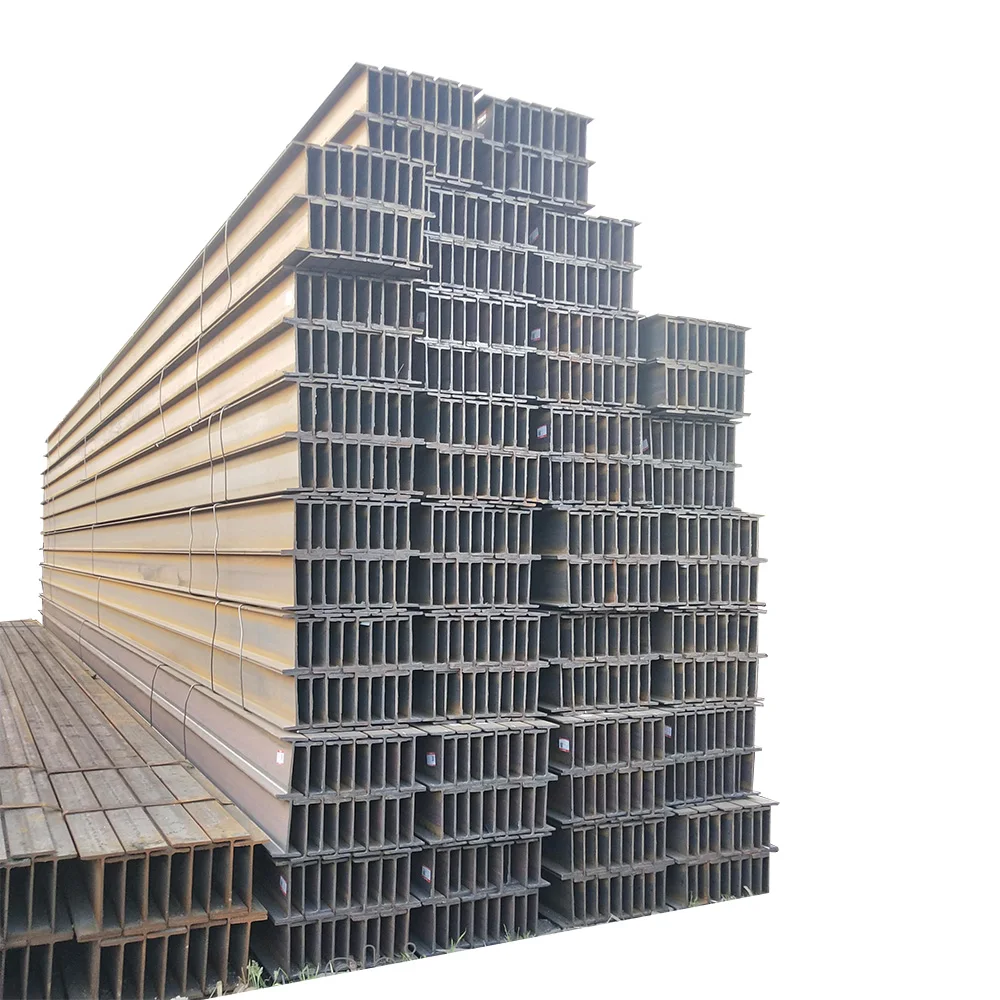

Q235B H-BEAM структура сталь
78 321,88 ₽

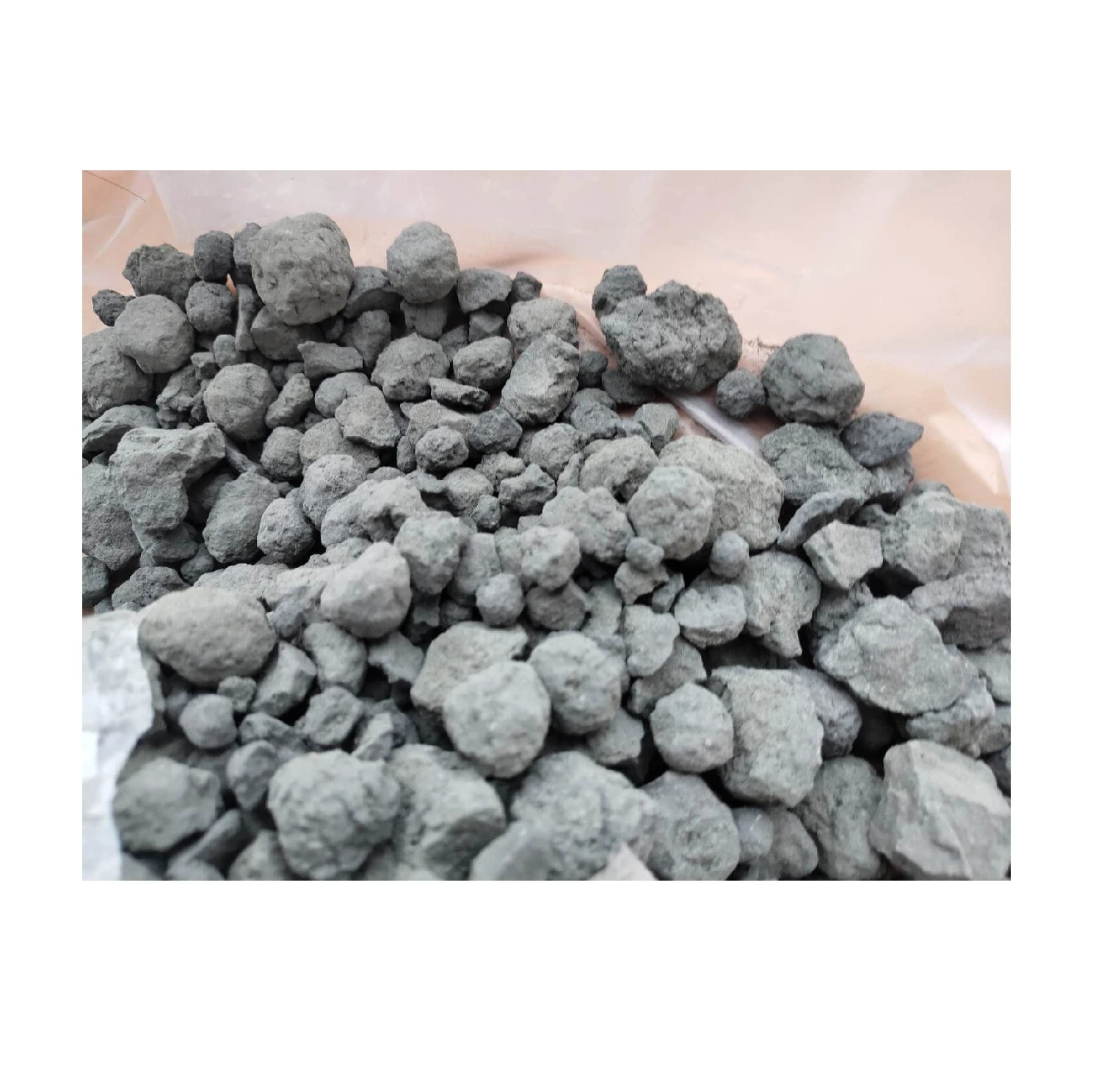

Готовый к экспорту из Вьетнамского цементного строительного портландцементного клинкера/типа II и I для продажи 2024
