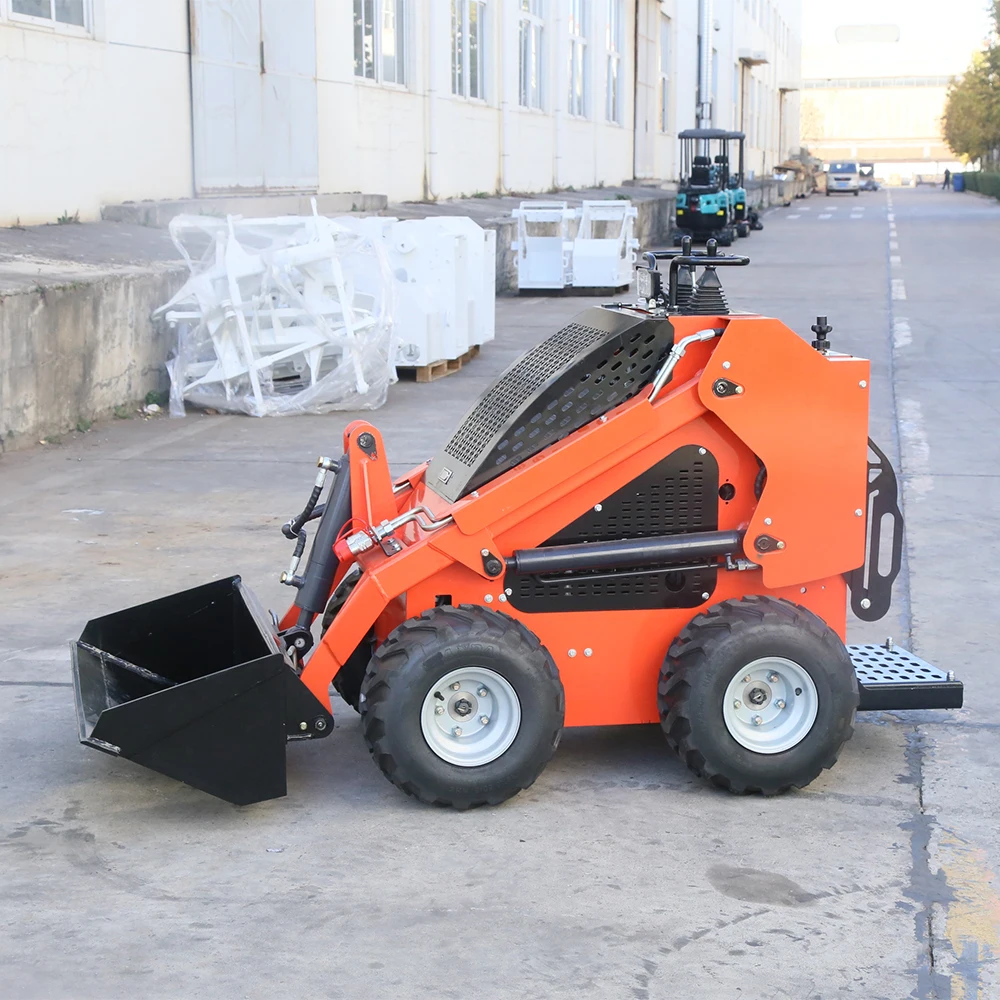

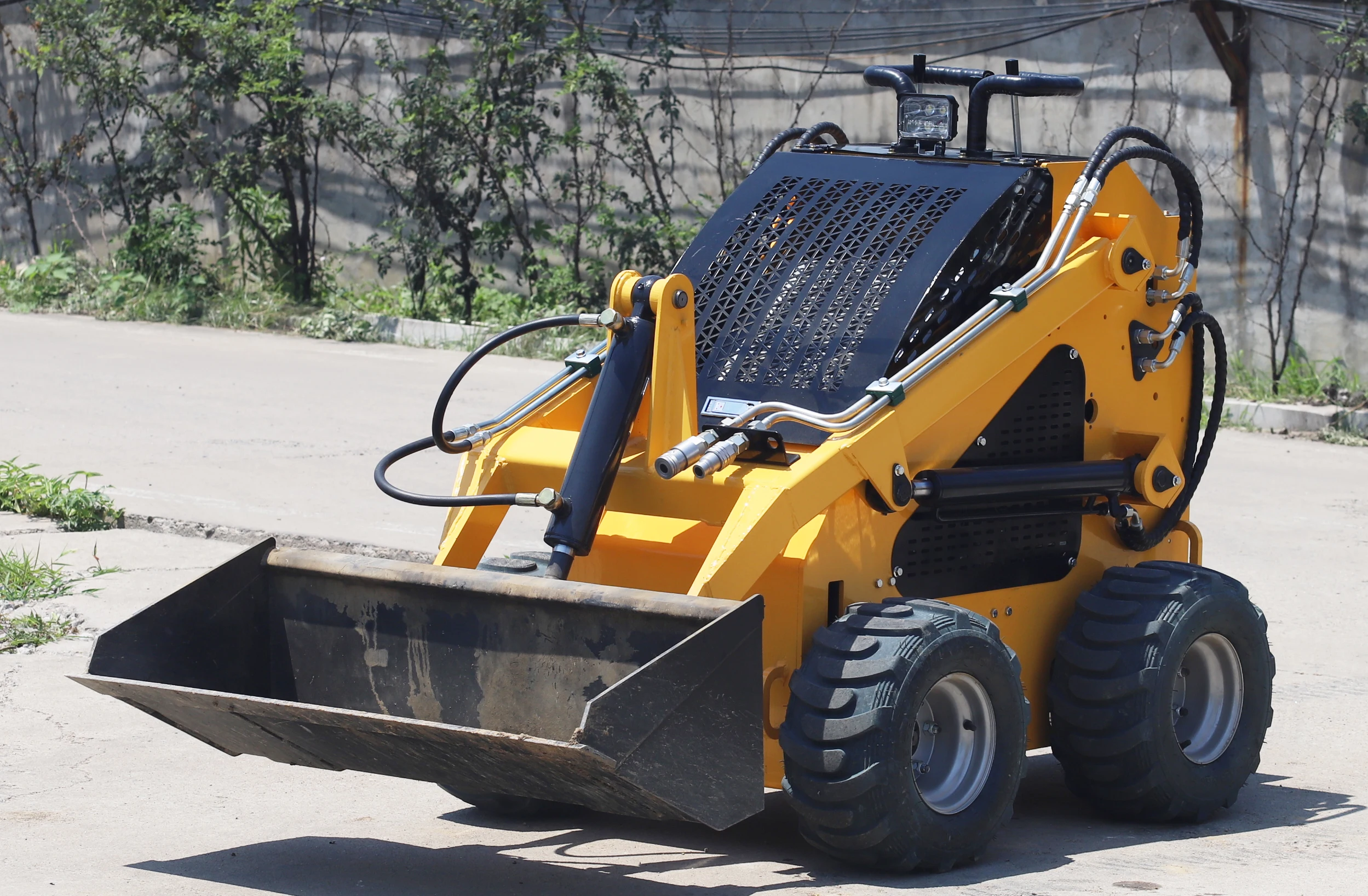

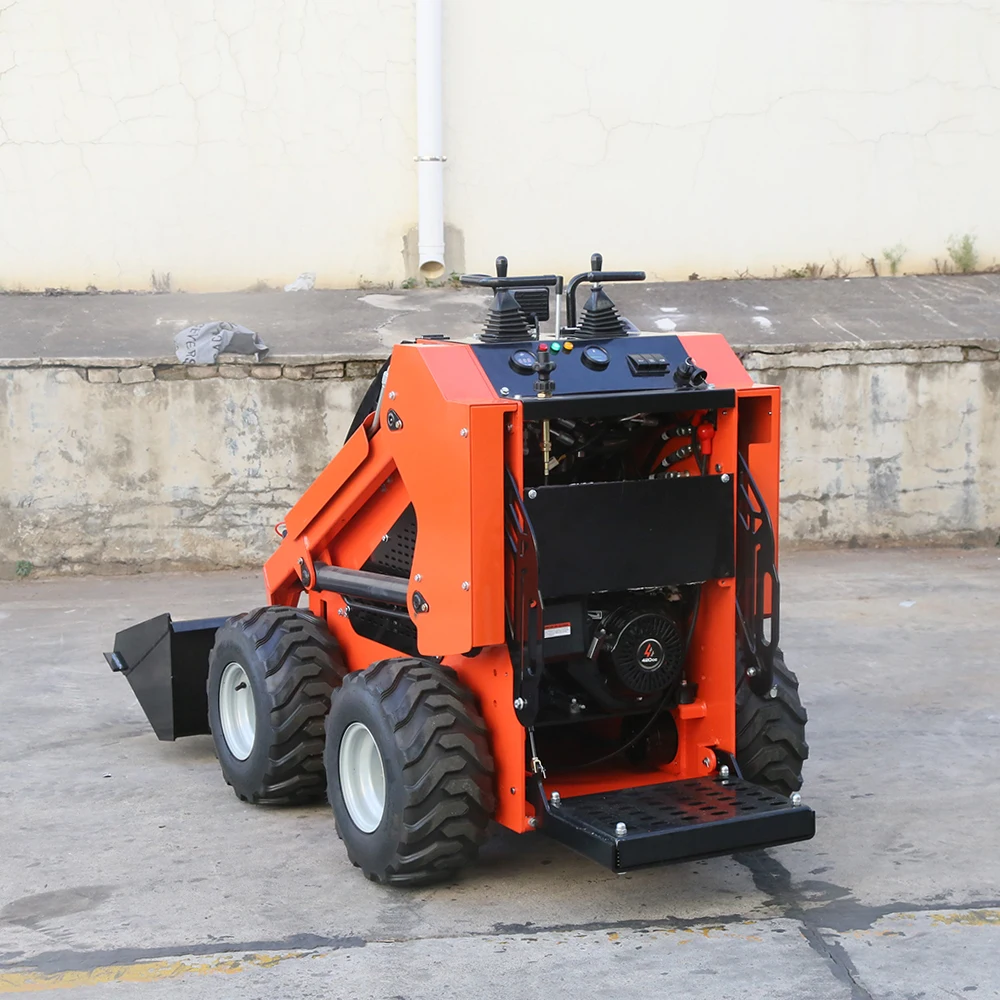

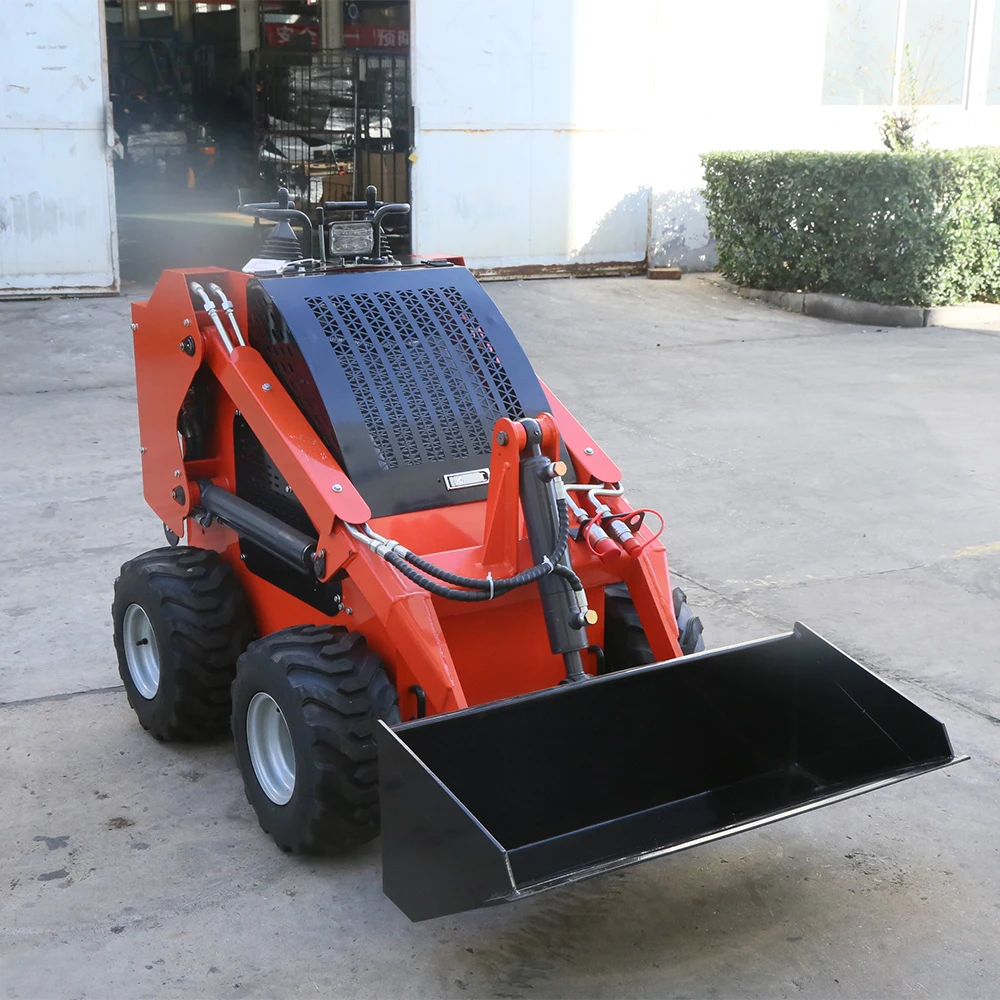

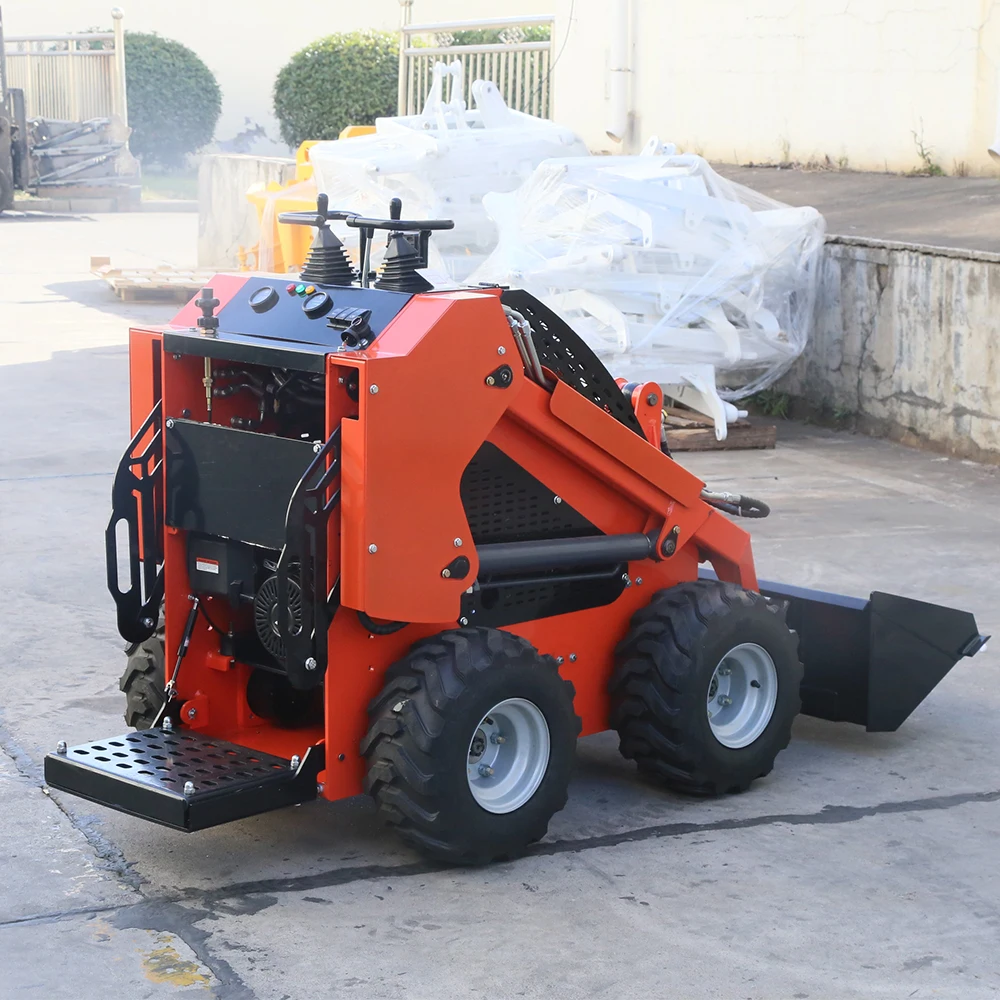

LUXIN skid steer loader manufacturer 360kg 460kg 480kg 750kg China crawler mini skid steer loader for sale
Skid steer loader factory, support customization, fast delivery.
Contact the supplier for exclusive services and preferential prices.
The product price is FOB price, please consult customer service for details.
Product Paramenters
Factory orders, support all kinds of customization, customize the design you want
Shandong LUXIN can meet the needs of most customers and try our best to help customers do more business in the market
Let me introduce the configuration of the small skid loader produced by our factory in detail for my dear friend
Product model | LX-360 |
Engine brand | Koop/Briggs&Stratton/Rato |
Rated power | 10/13.5/15HP |
Calibration speed | 3000rpm |
Rated load | 200Kg |
Maximum digging force | 350Kn |
Bucket capacity | 0.12m³ |
Operation quality | 900Kg |
Maximum operating height | 2450mm |
To bucket pin height | 1870mm |
Wheelbase | 850mm |
Tail length | 280mm |
Bucket width | 1000mm |
Walking mode | Track/4 wheels |
Product model | LX-460 |
Engine brand | Koop/Briggs&Stratton/Rato |
Rated power | 19hp-24hp |
Calibration speed | 3600rpm |
Rated load | 300Kg |
Maximum digging force | 450Kn |
Bucket capacity | 0.12m³ |
Operation quality | 1200Kg |
Maximum operating height | 2450mm |
To bucket pin height | 1870mm |
Wheelbase | 850mm |
Tail length | 280mm |
Bucket width | 1000mm |
Walking mode | Track/4 wheels |
Product model | LX-480 |
Engine brand | Yanmar 380 |
Rated power | 20-28Hp |
Calibration speed | 3000rpm |
Rated load | 350Kg |
Maximum digging force | 450Kn |
Bucket capacity | 0.12m³ |
Operation quality | 1200Kg |
Maximum operating height | 2450mm |
To bucket pin height | 1870mm |
Wheelbase | 850mm |
Tail length | 280mm |
Bucket width | 1000mm |
Walking mode | Track/4 wheels |
Engine model | Yanmar 380 |
No. of cylinders | 3 cylinder |
Net Power | 24hp |
Operating height | 2900mm |
Height to bucket hinge pin | 2160mm |
Height to top | 1540mm |
Overall length with GP bucket | 2700mm |
Overall length without bucket | 2100mm |
Wheelbase | 1180mm |
Overall width | 980mm |
Mini ground clearance | 200mm |
Angle of departure | 23° |
Rated loading capacity | 400kgs |
Machine weight | 1200kgs |
Working system pressure | 250 bar |
Working system flow rate | 62.4 L/min |
Driving system pressure | 250 bar |
Driving system flow rate | 62.4 L/min |
Working pressure | 18mpa |
Diesel fuel tank capacity | 30L |
Walking speed | 3km/h |
Product Details
Product Attachments
Application
Manufacturing Technique
Packing & Delivery
Packaging type
1.Plywood box package
2.Standard exported nude packed for fcl (full container load)
We can ship your goods
1.To destination sea port by sea
2.To destination inland port by sea + railway or trailer
3.To your door by sea + railway or trailer (but not recommended, not economical)
4.To your door by land express
5.Door-to-door delivery
1.Plywood box package
2.Standard exported nude packed for fcl (full container load)
We can ship your goods
1.To destination sea port by sea
2.To destination inland port by sea + railway or trailer
3.To your door by sea + railway or trailer (but not recommended, not economical)
4.To your door by land express
5.Door-to-door delivery
About Us
Shandong luxin heavy industry co, ltd.Is located in jining, shandonga famous construction machinery manufacturing base in china.
Closeto the bejing-kowloon, beijing-shanghal, bejing-fuzhou railway andthe beijing-hangzhou grand canal that run through the north andsouth the superior geographical location provides convenienttransportation conditions for the majority of customers luxin heavy industry is a high-tech enterprise integrating aggregateindustry, and trade since its establishment, the company has focusedon designing,developing,and manufacturing small and medium-sizedroad rollers.
Now has an annual production capacity of 5000 roadrollers and has unique competitive and product advantages.
Closeto the bejing-kowloon, beijing-shanghal, bejing-fuzhou railway andthe beijing-hangzhou grand canal that run through the north andsouth the superior geographical location provides convenienttransportation conditions for the majority of customers luxin heavy industry is a high-tech enterprise integrating aggregateindustry, and trade since its establishment, the company has focusedon designing,developing,and manufacturing small and medium-sizedroad rollers.
Now has an annual production capacity of 5000 roadrollers and has unique competitive and product advantages.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a manufacturer and our factory has more than 20 years manufacturing experience.
Q2: Where is your factory?
A: Our factory is located in Jining, Shandong, a famous construction machinery manufacturing base in China. Close to the Beijing-Kowloon, Beijing-Shanghai, Beijing-Fuzhou Railway, and the Beijing-Hangzhou Grand Canal that run through the north and south.China. Welcome, tovisit us. We can also show you our factory and production through video chat.
Q3: What's your warranty?
A: The warranty of our products is 1 year, and we will always provide after-sale service
Q4: What's your advantage?
A: As a factory with R & D capabilities, we can provide OED, OEM service, and also can guarantee delivery time and competitive prices.
Q5: What kind of payment terms do you accept?
A: T/T, L/C at sight, Western Union, Cash, etc. We also accept a trade on Alibaba directly
A: Yes, we are a manufacturer and our factory has more than 20 years manufacturing experience.
Q2: Where is your factory?
A: Our factory is located in Jining, Shandong, a famous construction machinery manufacturing base in China. Close to the Beijing-Kowloon, Beijing-Shanghai, Beijing-Fuzhou Railway, and the Beijing-Hangzhou Grand Canal that run through the north and south.China. Welcome, tovisit us. We can also show you our factory and production through video chat.
Q3: What's your warranty?
A: The warranty of our products is 1 year, and we will always provide after-sale service
Q4: What's your advantage?
A: As a factory with R & D capabilities, we can provide OED, OEM service, and also can guarantee delivery time and competitive prices.
Q5: What kind of payment terms do you accept?
A: T/T, L/C at sight, Western Union, Cash, etc. We also accept a trade on Alibaba directly
