Laser Welding Machine for Gantry Frame 1500W 2000W 3000W Type Welders With Marking Function Built in Galvanometer
- Категория: >>>
- Поставщик: Chengdu Heltec Energy Technology Co. Ltd.Chengdu Ltd.
Сохранить в закладки 1601202455021:
Описание и отзывы
Характеристики
PRODUCT SPECIFICATIONS
Product Name | Laser spot welding machine for gantry frame |
Supply Voltage | AC 220V+/-10% 50Hz |
Laser Power | 1500W/2000W/3000W (optional) |
Laser Wave length | 1070+/-10mm |
Optical fiber length | 8m (standard) |
Operating Mode | Continuous/modulation pulse |
Welding speed range | 0-20000mm/s |
Cooling water machine | Dual temperature dual control constant temperature water tank |
Working environment temperature range | 15-35°C |
Working environment humidity range | 10-90% frost-free |
Welding thickness | 0.3-5mm |
Machine Dimension | 144x104x202cm |
Net Weight | About 320kg |
Export wooden box packaging size and weight | 170x130x195cm 470kg |
Product Overview

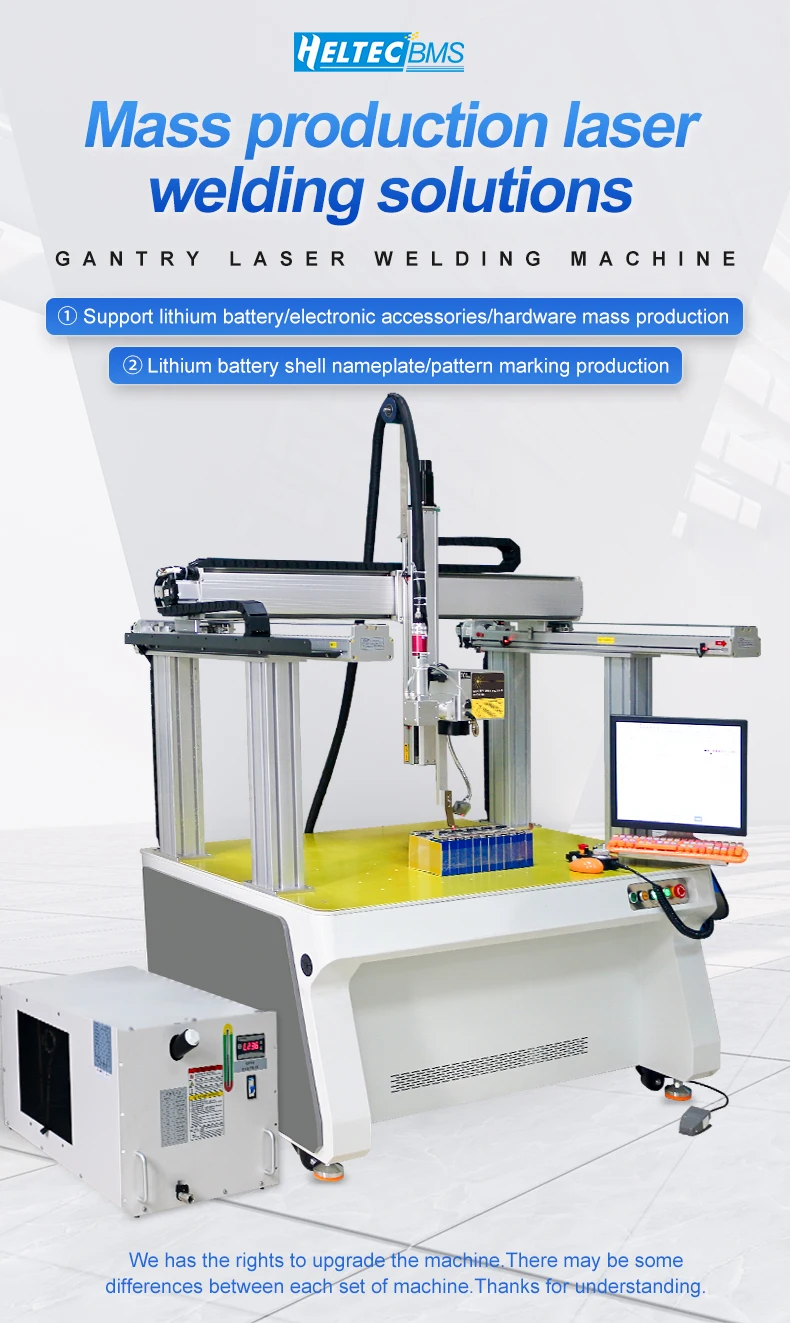

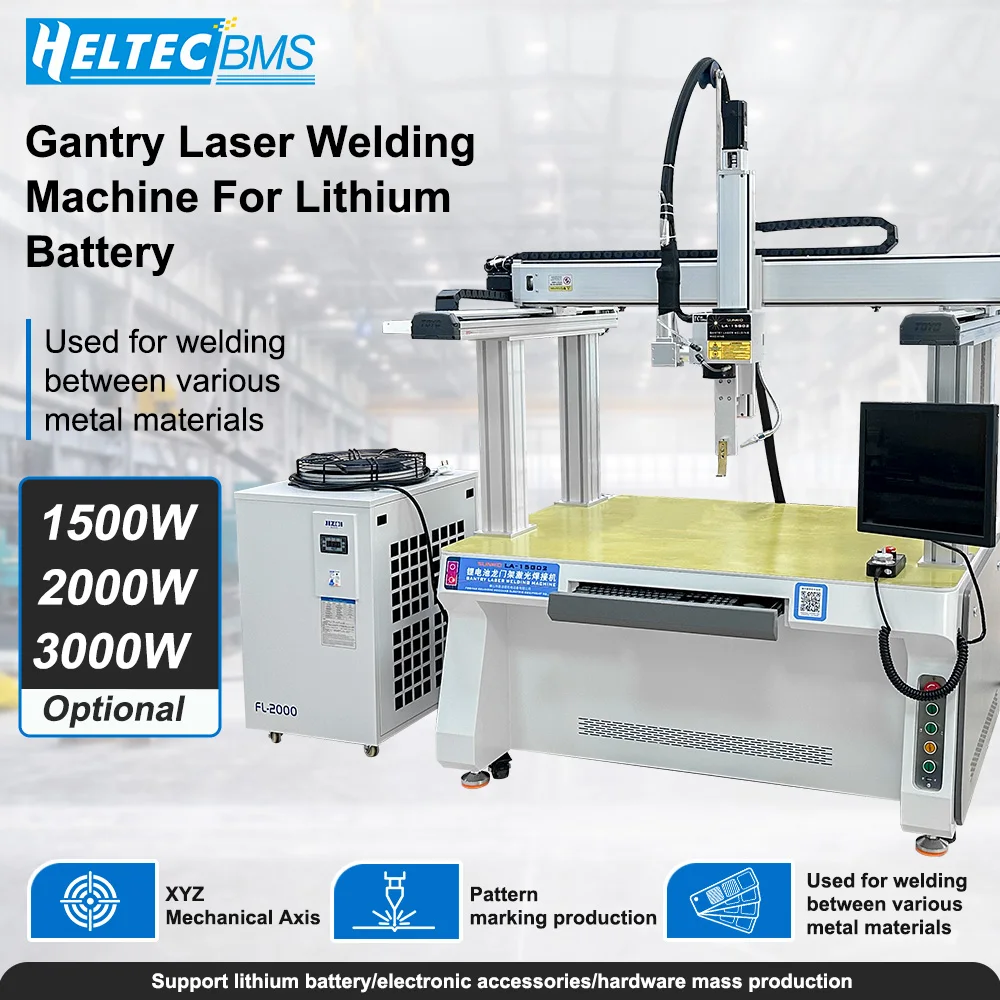

Gantry Laser Welding Machine For Lithium Battery
HT-LS02G Gantry Laser Welding Machine For Lithium Battery adapts automated gantry structure. lt can flexibly weld lithium battery modules of various types and sizes on the operating console.Precise and reliable welding reduces the contact resistance of lithium batteries during assembly and improves the output and performance of lithium battery modules. Automated operation improves production efficiency, and the specially designed operating system makes operation easier and reduces the skill requirements of operators. The output power is 1500W/2000W/3000W optional, which can weld vehicles battery easily and marking the shell nameplate of lithium battery modules.
Product | SKU |
1500W Gantry Laser Welding Machine | HT-LS02G1500 |
2000W Gantry Laser Welding Machine | HT-LS02G2000 |
3000W Gantry Laser Welding Machine | HT-LS02G3000 |
Air Compresser | AIR2550 |
FEATURES AT A GLANCE
- Gantry structure
- Production efficiency
- Faster welding speed
- High-precision control system
- Multi-shape welding through program control
- Faster welding speed
- High-precision control system
- Multi-shape welding through program control
- With software of graphics processing functions
- Advanced control system
- High-quality lenses
- Good stability
- Diversified welding:
not only can weld single pattern, but also mark and draw.
Application range:
Lithium battery module mass production, battery copper and aluminum welding, battery ear pole, battery box nameplate laser marking.
Lithium battery module mass production, battery copper and aluminum welding, battery ear pole, battery box nameplate laser marking.
Spot welding material:Copper, aluminum, copper-aluminum composite sheet, stainless steel, pure nickel.
Our Advantage:

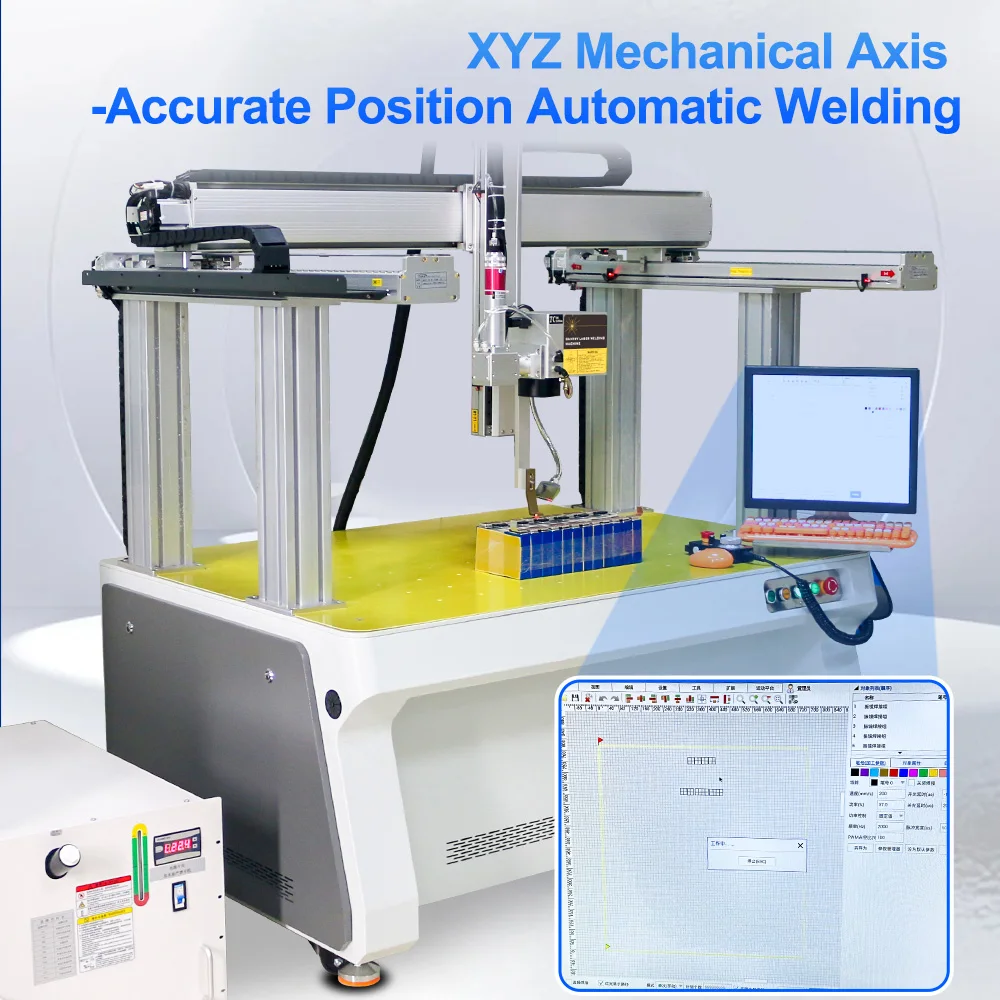

1. Automated three-axis gantry, batch survival battery pack

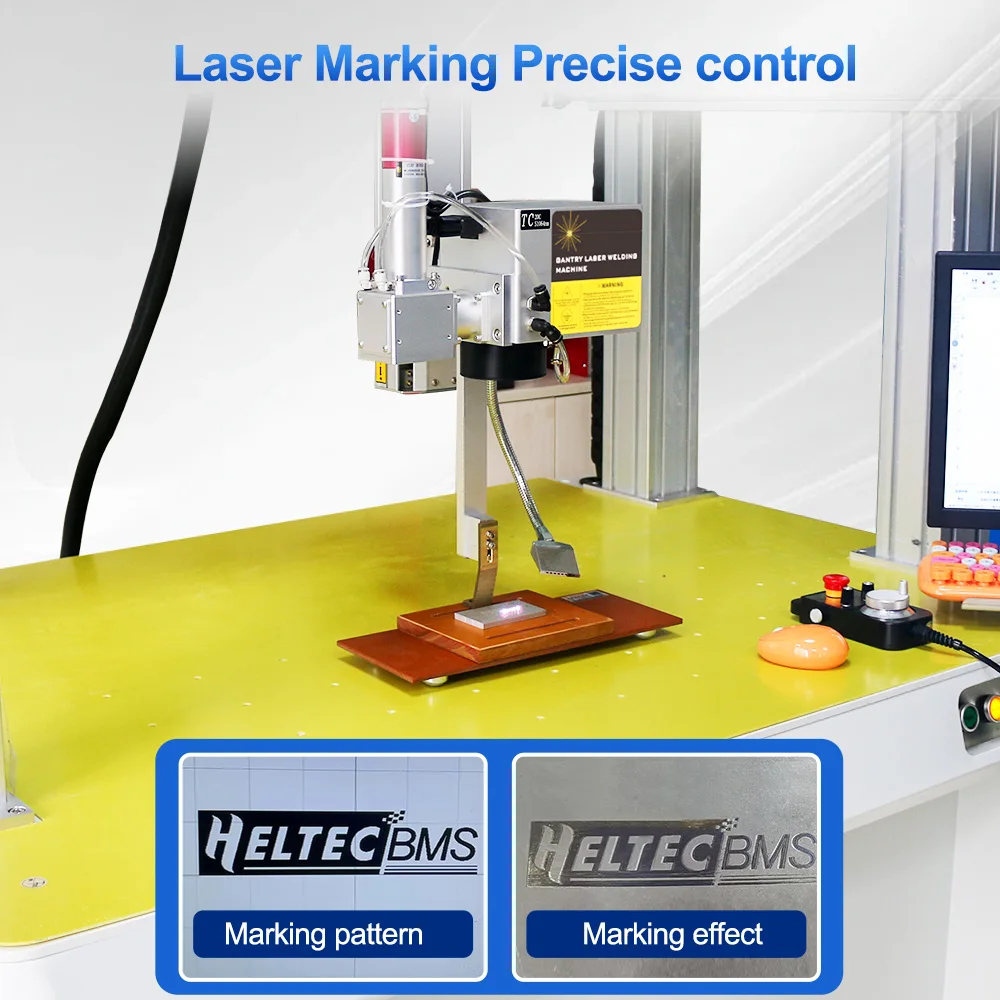

2. Built-in galvanometer, with marking function
1. Automated three-axis gantry, batch survival battery pack
2. Built-in galvanometer, with marking function
Details & Images
Air Compresser SKU:AIR2550
Packing & Shipping
Company Profile
Chengdu Heltec Energy Technology Co., Ltd, as known as HeltecBMS, is one professional manufacture located in Chengdu, Sichuan, China. We focus on battery management system for many years. We design, produce, and sell hardware BMS, Smart BMS, Active Balancer, battery welding machine, battery maintenance and test instruments and other accessories. All these products are widely used in lithium battery industry.
We have strong technical R&D teams, scientific production platform and strict quality control system that allow us to provide all kinds of services including BMS design and manufacturing, sample orders and batch orders, OEM and ODM orders. We have professional engineer support, high efficiency sales team and reliable quality products that attract customers from all over the world. We are honored as the excellent supplier of many companies all around the world including Europe, USA, Canada, Australia, Brazil, Japan, Korea and South Africa.
We are reliable supplier of the battery management system industry with 1 year warranty. We deeply believe that on the road to innovation, we are not standing still. We constantly, with reliable quality requirements, to meet the market demand as the goal, development and production of exquisite appearance, excellent performance, energy conservation and environmental protection green products, is committed to be a leader in the market. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
FAQ
1. Can you accept customization?
A: Yes，our company has a design department.And we provide Hardware design,ARM and Mbed system software design... If you want to know our service, please click here: why choose us.
2. How long will it take for sample making and mass production?
A: It takes 3-5 days to make the sample, and 7-30 days for mass production.
3.How about the productivity of your company?
A: We have enough storage for most of our products, if you need customize we have SMT factory to fulfill your needs after you pay for the products.
4.What about the mode of transportation ?
A: According to the quantity and volume, we will choose the most suitable and cost-effective way of transportation for you. Of course, you are also free to choose the most convenient one.
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test, and we use manual inspection. Each product will be tested before packaging.
A: Yes，our company has a design department.And we provide Hardware design,ARM and Mbed system software design... If you want to know our service, please click here: why choose us.
2. How long will it take for sample making and mass production?
A: It takes 3-5 days to make the sample, and 7-30 days for mass production.
3.How about the productivity of your company?
A: We have enough storage for most of our products, if you need customize we have SMT factory to fulfill your needs after you pay for the products.
4.What about the mode of transportation ?
A: According to the quantity and volume, we will choose the most suitable and cost-effective way of transportation for you. Of course, you are also free to choose the most convenient one.
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test, and we use manual inspection. Each product will be tested before packaging.
