Машина для точечной сварки металла из проволочной сетки машин ремонта кузова автомобиля
1 299,00 $
Профессиональный небольшой портативный однофазный пистолет 220V аппарат точечной сварки для автомобиля
- Категория: >>>
- Поставщик: Chengdu Xinwei Welding Technology Co. Ltd.Chengdu Ltd.
Сохранить в закладки 1601358886860:
Описание и отзывы
Характеристики
The suspension spot welding machine uses the resistance heat generated by the current flowing through the weldment as a heat source for welding under pressure. Mainly used for spot welding of low-carbon steel parts of thin plate structures. Suspension spot welding machines are generally suspended in the air and connected to the welding tongs through flexible cables. The welding tongs of the suspension spot welding machine have various structural forms to choose from, so the suspension spot welding machine has a strong adaptability for large workpieces that are inconvenient to move, workpieces with complex shapes, or workpieces that must be stuck on the fixture for spot welding. In automobile body spot welding, the spot welding process for large sheet metal boxes has a wide range of applications and is an indispensable welding equipment.
1. The Suspension spot welding machine combines a welding transformer with a welding clamp, and has an aluminum body, featuring small size, high output, high efficiency, energy conservation, and portability. During operation, the Suspension spot welder can easily achieve 360 degree rotation in both horizontal and vertical directions.
2. The Suspension spot welding machine consists of welding tongs, welding transformer, welding controller, water cooling system, pneumatic pressurization system, (and suspension device), etc. Compact structure, convenient maintenance, small size, light weight, greatly reducing the labor intensity of workers and greatly saving energy consumption.
3. The electrode arm of the portable spot welding machine adopts high-quality chromium zirconium copper (CuCrZr-1), ensuring the stability of welding performance, the service life of the welding machine, and the strength of the electrode arm.
4. During welding, the heating time is short, the heat is concentrated, and there is no electric arc, spark splash, welding slag, fusion welding accumulation, and thermal deformation of the weldment. In addition, after the innovation of the welding machine, the diameter of the gas path system is increased, so not only the welding productivity is high, but also the appearance of the weldment is beautiful and the quality is good.
5. Welding is accomplished using the proper combination of resistance heat and mechanical force, so it is possible to obtain high-strength high-quality solder joints for the weld nuggets of the weldment.
5. Due to the simple welding process, without the need for filler materials, solvents, and shielding gas, the cost is low.
6. Due to the high current density and high temperature of the solder joint of the weldment, the precise control of the power-on time by the welding machine controller allows the solder joint to obtain a reproducible nugget size, which can adapt to the welding of multiple types of the same or different metals and coated steel plates.
2. The Suspension spot welding machine consists of welding tongs, welding transformer, welding controller, water cooling system, pneumatic pressurization system, (and suspension device), etc. Compact structure, convenient maintenance, small size, light weight, greatly reducing the labor intensity of workers and greatly saving energy consumption.
3. The electrode arm of the portable spot welding machine adopts high-quality chromium zirconium copper (CuCrZr-1), ensuring the stability of welding performance, the service life of the welding machine, and the strength of the electrode arm.
4. During welding, the heating time is short, the heat is concentrated, and there is no electric arc, spark splash, welding slag, fusion welding accumulation, and thermal deformation of the weldment. In addition, after the innovation of the welding machine, the diameter of the gas path system is increased, so not only the welding productivity is high, but also the appearance of the weldment is beautiful and the quality is good.
5. Welding is accomplished using the proper combination of resistance heat and mechanical force, so it is possible to obtain high-strength high-quality solder joints for the weld nuggets of the weldment.
5. Due to the simple welding process, without the need for filler materials, solvents, and shielding gas, the cost is low.
6. Due to the high current density and high temperature of the solder joint of the weldment, the precise control of the power-on time by the welding machine controller allows the solder joint to obtain a reproducible nugget size, which can adapt to the welding of multiple types of the same or different metals and coated steel plates.
AC WELDING
Item/Models | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
Rated Power At 50%(KVA) | 31 | 31 | 40 | 40 | 63 | 63 |
Transformer Turns Ratio | 70 | 70 | 56 | 56 | 48 | 48 |
Maximum Short Circuit Current(KA) | 14 | 14 | 18 | 18 | 20 | 20 |
Secondary Unload Voltage(V) | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
Voltage At 50Hz/60Hz(V) | 380 | 380 | 380 | 380 | 380 | 380 |
Distance Between The Arms(MM) | 168-288 | 100 | 168-328 | 100 | 168-428 | 100 |
Min. Length Of Arms(MM) | 220 | 200 | 300 | 200 | 400 | 200 |
Max. Strength At Electrodes(N) | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
Working Stroke(MM) | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max. Stroke Of Cylinder(MM) | 70 | 50 | 100 | 50 | 100 | 50 |
Max. Arm Length(MM) | 750 | 350 | 1000 | 450 | 1100 | 500 |
Compressed Air Supply(MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max.Thickness Of Mild Steel Sheet With Min. Length Arm(MM) | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
With 500mm Arms(MM) | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With Maximum Length Arms(MM) | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross Wire Maximum(MM) | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling Water Pressure(Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Cooling Water Flow(L/min) | 4 | 4 | 4 | 4 | 4 | 4 |
Item/Models | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
Rated Power At 50%(KVA) | 35 | 35 | 45 | 45 | 65 | 65 |
Maximum Short Circuit Current(KA) | 15 | 15 | 16 | 16 | 46 | 46 |
Secondary Unload Voltage(V) | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
Voltage At 50Hz/60Hz(V) | 380 | 380 | 380 | 380 | 380 | 380 |
Distance Between The Arms(MM) | 120-280 | 100 | 120-330 | 100 | 160-430 | 100 |
Max. Strength At Electrodes(N) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
Working Stroke(MM) | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max. Stroke Of Cylinder(MM) | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
Arm Length(MM) | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
Compressed Air Supply(MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max.Thickness Of Mild Steel Sheet With Min. Length Arm(MM) | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
With 500mm Arms(MM) | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With Maximum Length Arms(MM) | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross Wire Maximum(MM) | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling Water Pressure(Mpa) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Cooling Water Flow(L/min) | 12 | 12 | 12 | 12 | 12 | 12 |

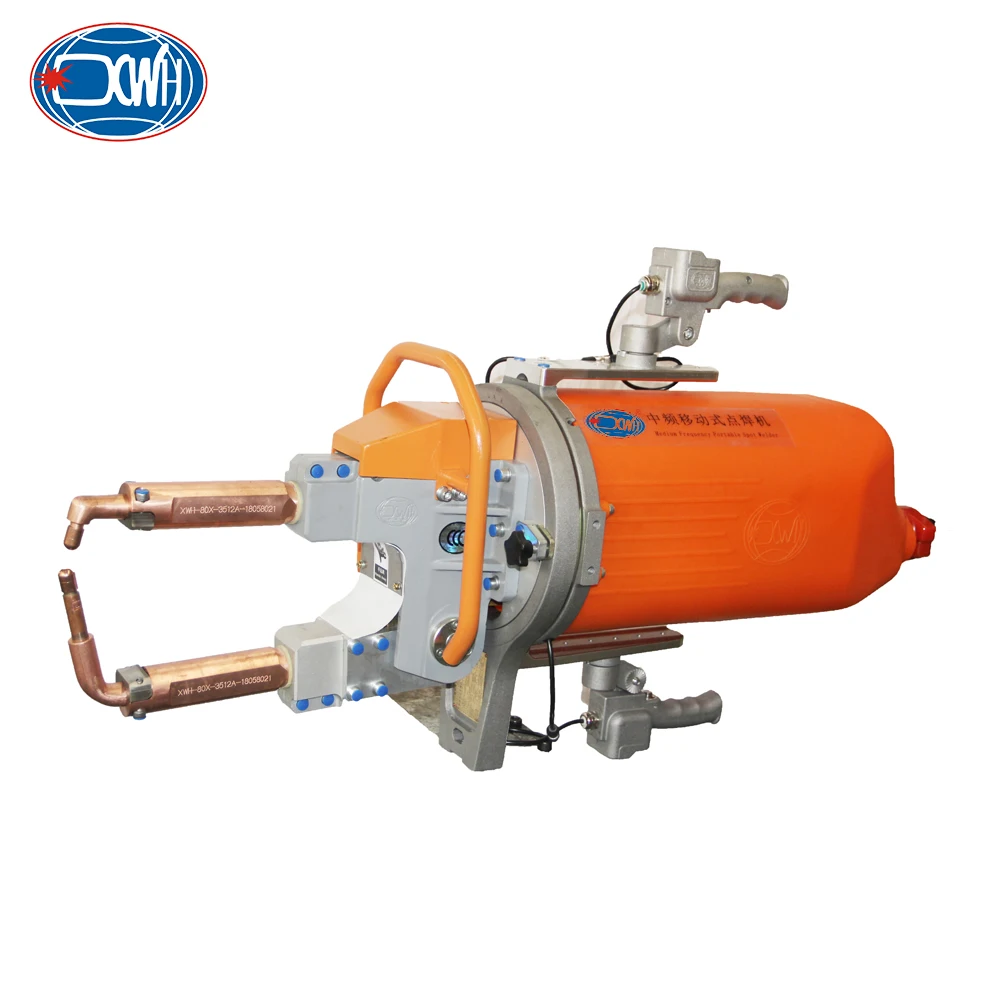

MDFC WELDING
Item/Models | DN(B)2-60X | DN(B)2-60C | DN(B)2-80X | DN(B)2-80C | DN(B)2-100X | DN(B)2-100C |
Rated Power At 50%(KVA) | 60 | 60 | 80 | 80 | 100 | 100 |
Maximum Short Circuit Current(KA) | 10 | 10 | 12 | 12 | 14 | 14 |
Secondary Unload Voltage(V) | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Voltage At 50Hz/60Hz(V) | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
Distance Between The Arms(MM) | 120-280 | 100-300 | 120-128 | 100-300 | 120-128 | 100-300 |
Max. Strength At Electrodes(N) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
Working Stroke(MM) | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max. Stroke Of Cylinder(MM) | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
Arm Length(MM) | 240-500 | 200-500 | 240-500 | 200-500 | 240-500 | 200-500 |
Compressed Air Supply(MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max.Thickness Of Mild Steel Sheet With Min. Length Arm(MM) | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
With 500mm Arms(MM) | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With Maximum Length Arms(MM) | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross Wire Maximum(MM) | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling Water Pressure(Mpa) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Cooling Water Flow(L/min) | 8 | 8 | 8 | 8 | 8 | 8 |

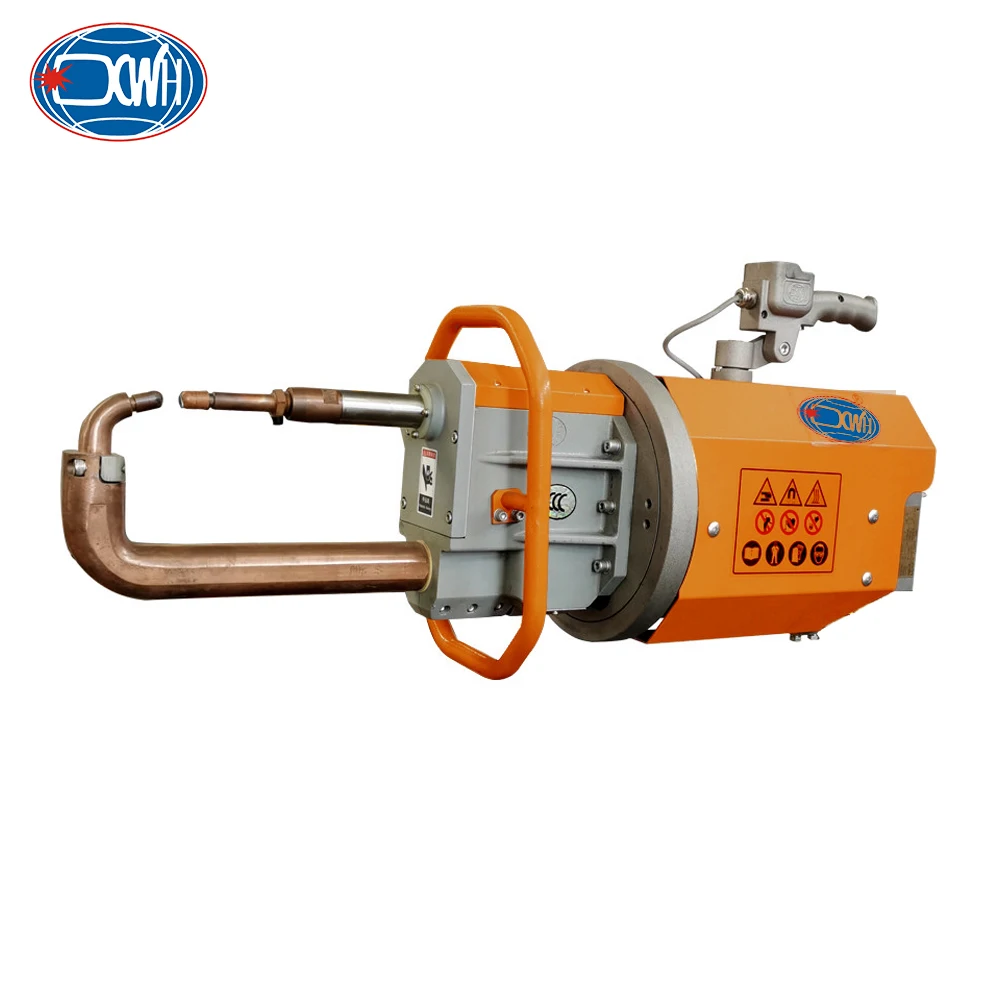

C Type Welding Gun: suitable for welding on vertical plane or near vertical plane.

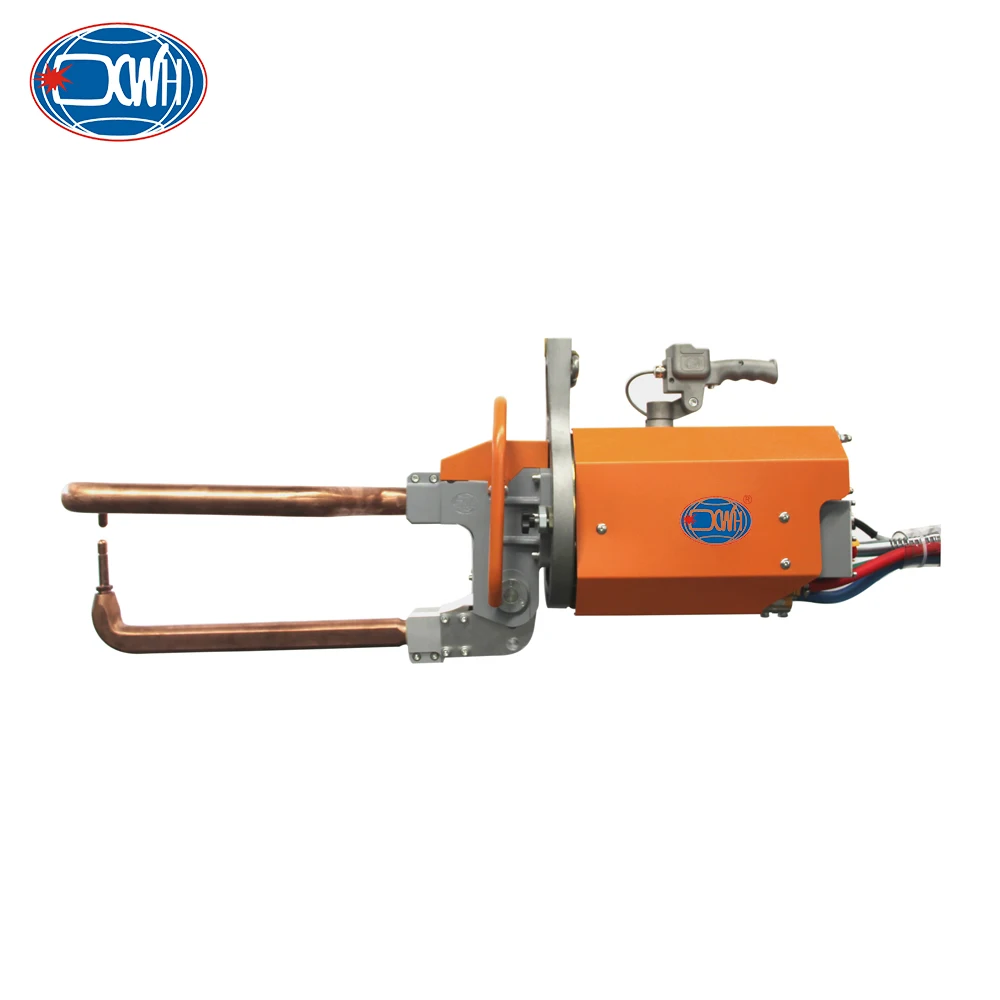

X Type Welding Gun: suitable for welding on horizontal plane or near horizontal plane.

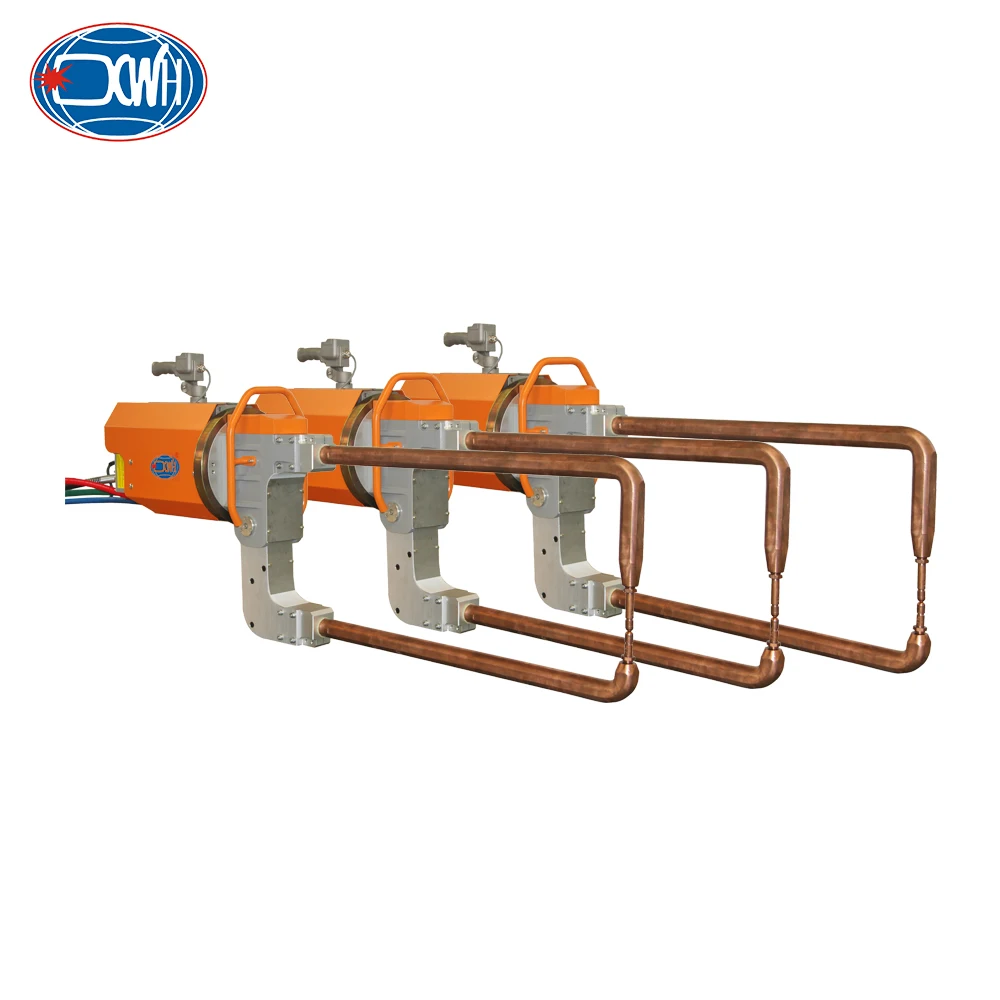

Multiple Styles To Choose
Supporting Facility: suspension device
Spring Balancer
Spring balancer (hereinafter referred to as the balancer) is a kind of auxiliary tool specially used with hanging manual operation tools, especially suitable for production line operation, or a variety of station tools are heavy, heavy workload, long time operation occasions. After hanging the tool with a balancer, the weight of the tool and its auxiliary devices is balanced, allowing the operator to operate the tool easily. When the tool needs to rise and fall frequently, it can move up and down as long as the operator exerts less force on the tool.
Suspension spot welding machine with spring balancer and suitable lightweight sliding block, can be in X, Y, Z three-dimensional space for up, down, left, right, front, back and any direction of movement and rotation, the operation is very light and flexible, to achieve all positions and all directions of welding operation. The rotary table is equipped with a limited position device, and the rotation angle can be selected arbitrarily.

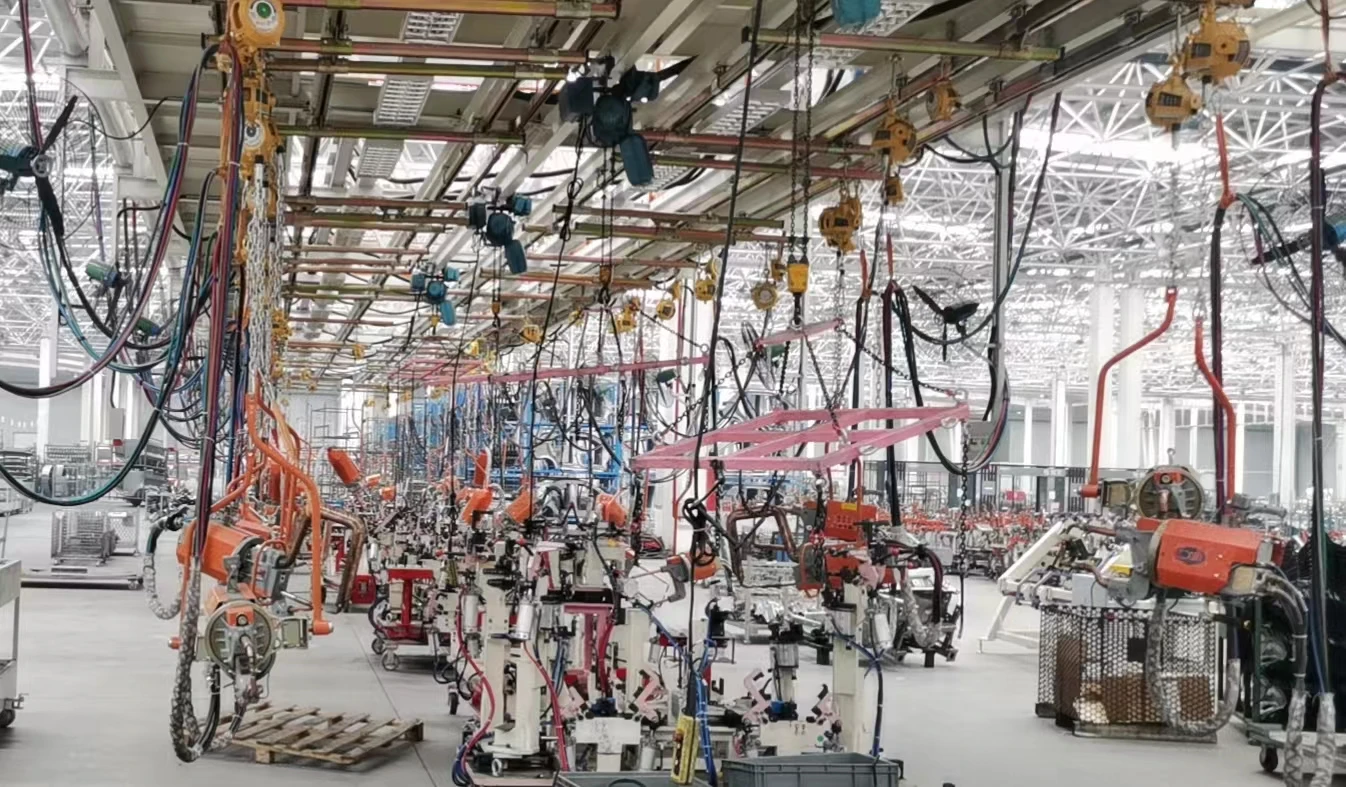

Customer Sites: automobile industries
Похожие товары
DR 6000J точечная сварочная машина
10 000,00 $
Battery Pack Manual Spot Welding Machine Gantry Welder
Полуавтоматическая машина для точечной сварки стальной проволочной сеткой портативная листового металла с ножным приводом
2 099,00 $
Resistance Lithium Battery Spot Welding Machine Foot Metal Cylindrical
399,00-500,00 $
Подвесной портативный точечный сварочный аппарат с настраиваемым точечным сварочным аппаратом на длину руки
1 000,00-3 000,00 $

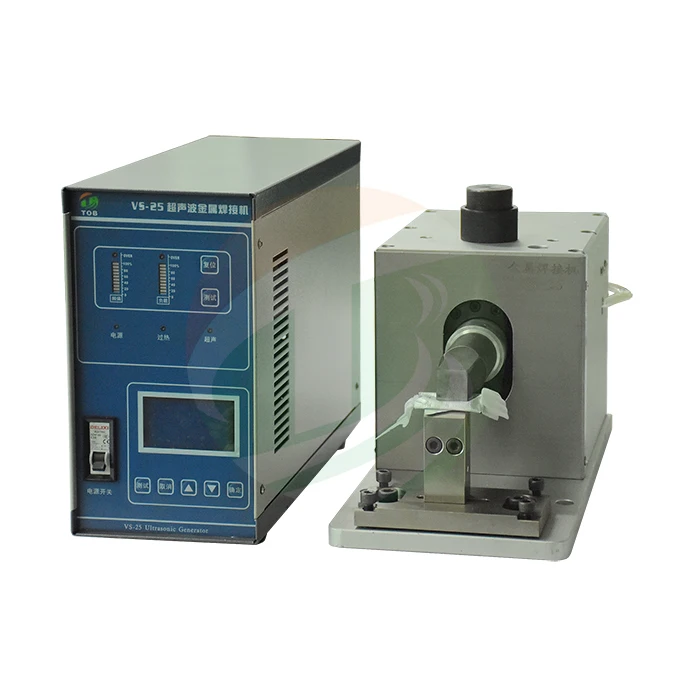

Индивидуальная ультразвуковая машина для точечной сварки металла 25K1500W сварочный аппарат меди и алюминия
