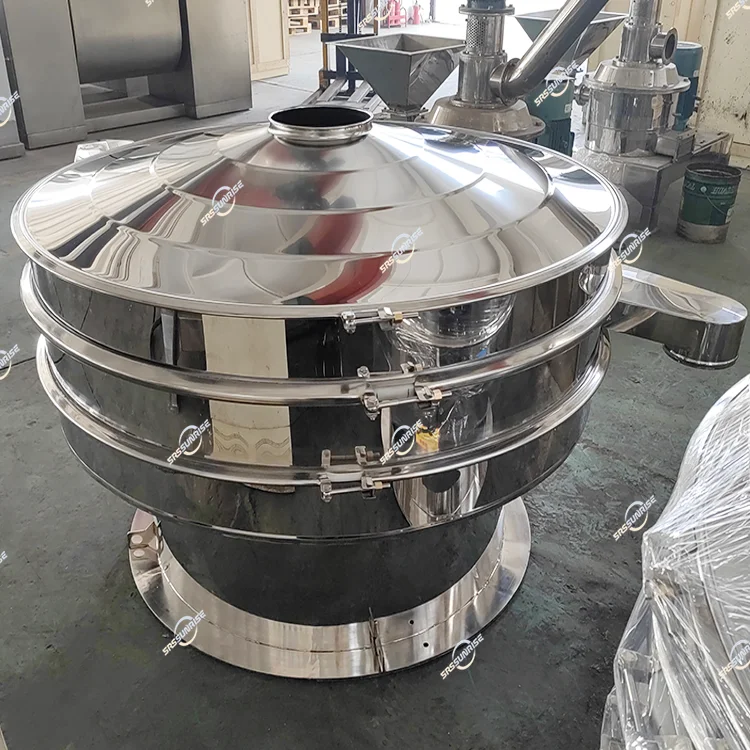

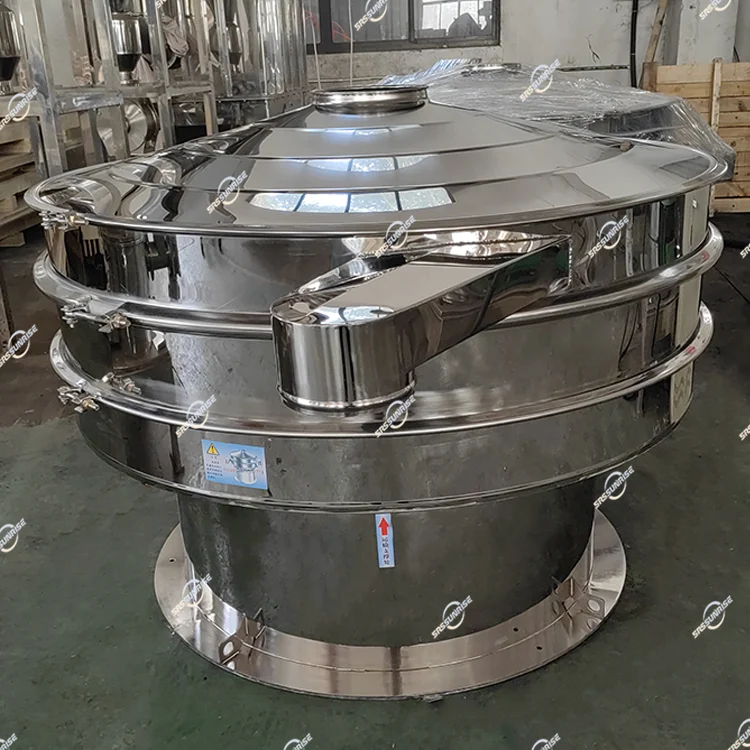

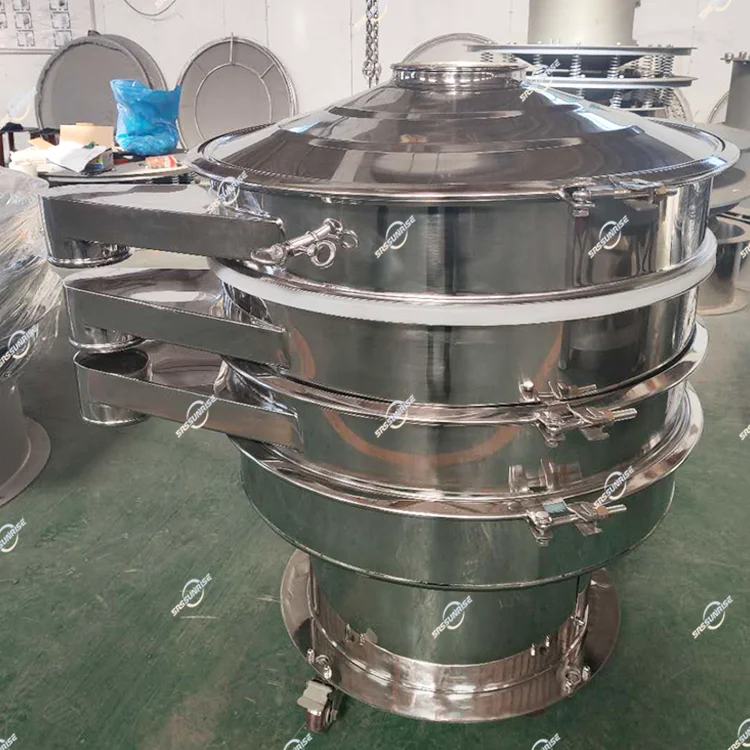

Introduction Of Rotary Vibrating Screen
The rotary vibrating screen is a high-precision fine powder screening machine with low noise, high efficiency, and quick screen change within 3-5 minutes. It has a fully enclosed structure and is suitable for screening and filtering of materials such as particles, powders, liquids and mucus.
The rotary vibrating screen can continuously separate different particles, powders and liquid materials through screens of different mesh sizes to meet the needs of different industries.
Description Of Rotary Vibrating Screen

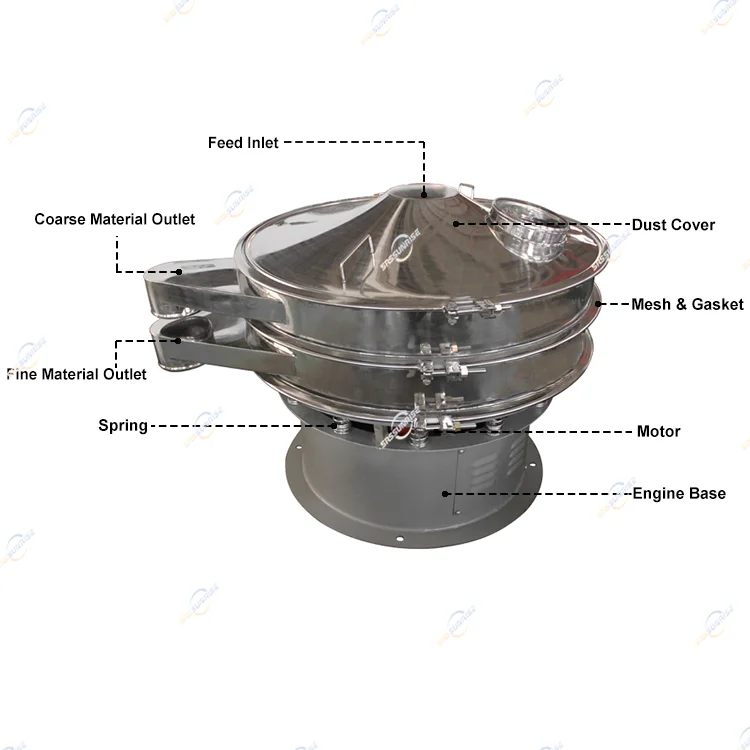

The rotary screen is composed of a hopper, an oscillation chamber, a coupling, a motor, etc. The oscillation chamber is composed of an eccentric wheel, rubber software, a main shaft, bearings, etc.
Working Principle Of Rotary Vibrating Screen
The rotary vibrating screen uses an upright vibrating motor as the excitation source. Eccentric weights are installed at the upper and lower ends of the motor. The adjustable eccentric weights are driven by the motor to the center line of the main shaft. In an unbalanced state, centrifugal force is generated to force the material to change and form an orbital vortex in the screen. The amplitude of the weight regulator can be adjusted according to different materials and screens.
Main Features
1. High screening accuracy, high efficiency, and wide application range.
2. Coarse and fine materials are automatically discharged, the screen is not blocked, and the powder does not fly.
3. Convenient screen replacement, only 3-5 minutes, simple operation, and easy cleaning.
4. Small size, light weight, and easy to move.
5. Can be used in single or multi-layer, and the part in contact with the material is made of stainless steel.
2. Coarse and fine materials are automatically discharged, the screen is not blocked, and the powder does not fly.
3. Convenient screen replacement, only 3-5 minutes, simple operation, and easy cleaning.
4. Small size, light weight, and easy to move.
5. Can be used in single or multi-layer, and the part in contact with the material is made of stainless steel.
Model | Effective Diameter | Screen Area | Screening Mesh | Layers | Vibration Motor |
S49-600 | φ560 | 0.23 m³ | 2-500 Mesh | 1-5 Layers | 0.25 Kw |
S49-800 | φ760 | 0.42 m³ | 2-500 Mesh | 1-5 Layers | 0.55 Kw |
S49-1000 | φ930 | 0.64 m³ | 2-500 Mesh | 1-5 Layers | 1.1 Kw |
S49-1200 | φ1130 | 0.95 m³ | 2-500 Mesh | 1-5 Layers | 1.1 Kw |
S49-1500 | φ1430 | 1.61 m³ | 2-500 Mesh | 1-5 Layers | 1.5 Kw |
S49-1800 | φ1730 | 2.35 m³ | 2-500 Mesh | 1-5 Layers | 3 Kw |
S49-2000 | φ1920 | 2.9 m³ | 2-500 Mesh | 1-5 Layers | 3 Kw |
All kinds of industries Any particles, powders, and liquids within a certain range can be screened with a rotary screen.
Application Of Rotary Vibrating Screen
Food industry: sugar, salt, alkali, flour, nut powder, whey protein powder, maltodextrin, flavor, sucralose, xanthan gum, soybean lecithin, starch, monosodium glutamate, starch, milk powder, yeast powder, pollen, food additives, soy milk, juice, etc.
Chemical industry: resin pigment, calcium carbonate, decorative coating, grease, paint, cosmetics, etc.
Grinding materials and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materials, mud, etc.
Papermaking industry: coating slurry, waste liquid, papermaking liquid, wastewater recycling, etc.
Metallurgical and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Machinery industry: foundry sand, charcoal, limestone, powder metallurgy, electromagnetic materials, metal powder, etc.
Chemical industry: resin pigment, calcium carbonate, decorative coating, grease, paint, cosmetics, etc.
Grinding materials and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materials, mud, etc.
Papermaking industry: coating slurry, waste liquid, papermaking liquid, wastewater recycling, etc.
Metallurgical and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Machinery industry: foundry sand, charcoal, limestone, powder metallurgy, electromagnetic materials, metal powder, etc.
Q1: What power do you use in your factory?-V,-Hz, 3 phase or single phase?
(Like 220 V , 50 Hz , single or 380 V, 50 Hz ,3 phase...etc)
Q2: Can I Put my Logo on the machine?
Yes, Sure .
Q3. How can I trust you for the first-time business?
We can supply the business license and certificates. if you still worry about our company,
Q2: Can I Put my Logo on the machine?
Yes, Sure .
Q3. How can I trust you for the first-time business?
We can supply the business license and certificates. if you still worry about our company,
we suggest using Alibaba trade assurance service for all transactions to protect your money
and ensure our service for you.
Q4. How can you ensure the machine's quality after we purchase the order?
Before delivery, we will produce the equipment according to the agreed requirements, and
Q4. How can you ensure the machine's quality after we purchase the order?
Before delivery, we will produce the equipment according to the agreed requirements, and
after production, we will provide detailed operating instructions, testing videos, certification
documents, etc. Alternatively, you can arrange a third-party inspector to do inspection and
give you report.
Q5: How about the after-sale service and guarantee period?
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’
after-sale service starts from the date when you receive machine .
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3.English software, user manual and the installation & debugging by our experienced technicians.
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3.English software, user manual and the installation & debugging by our experienced technicians.
Похожие товары

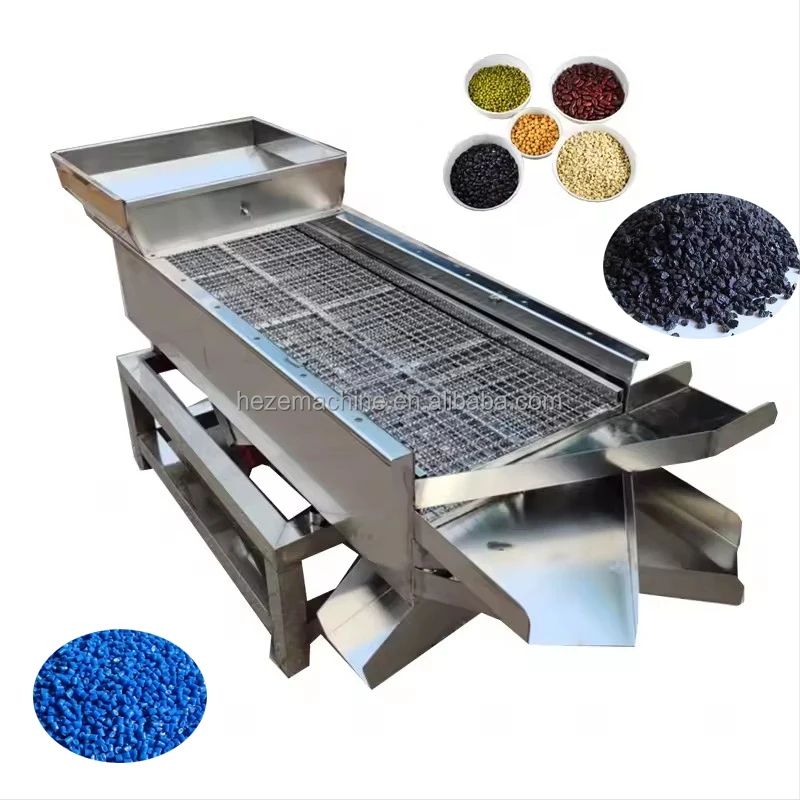

Сито для разделения риса СЛОМАННАЯ МАШИНА сортировки вибрационный экран
60 614,62 ₽ - 65 022,96 ₽

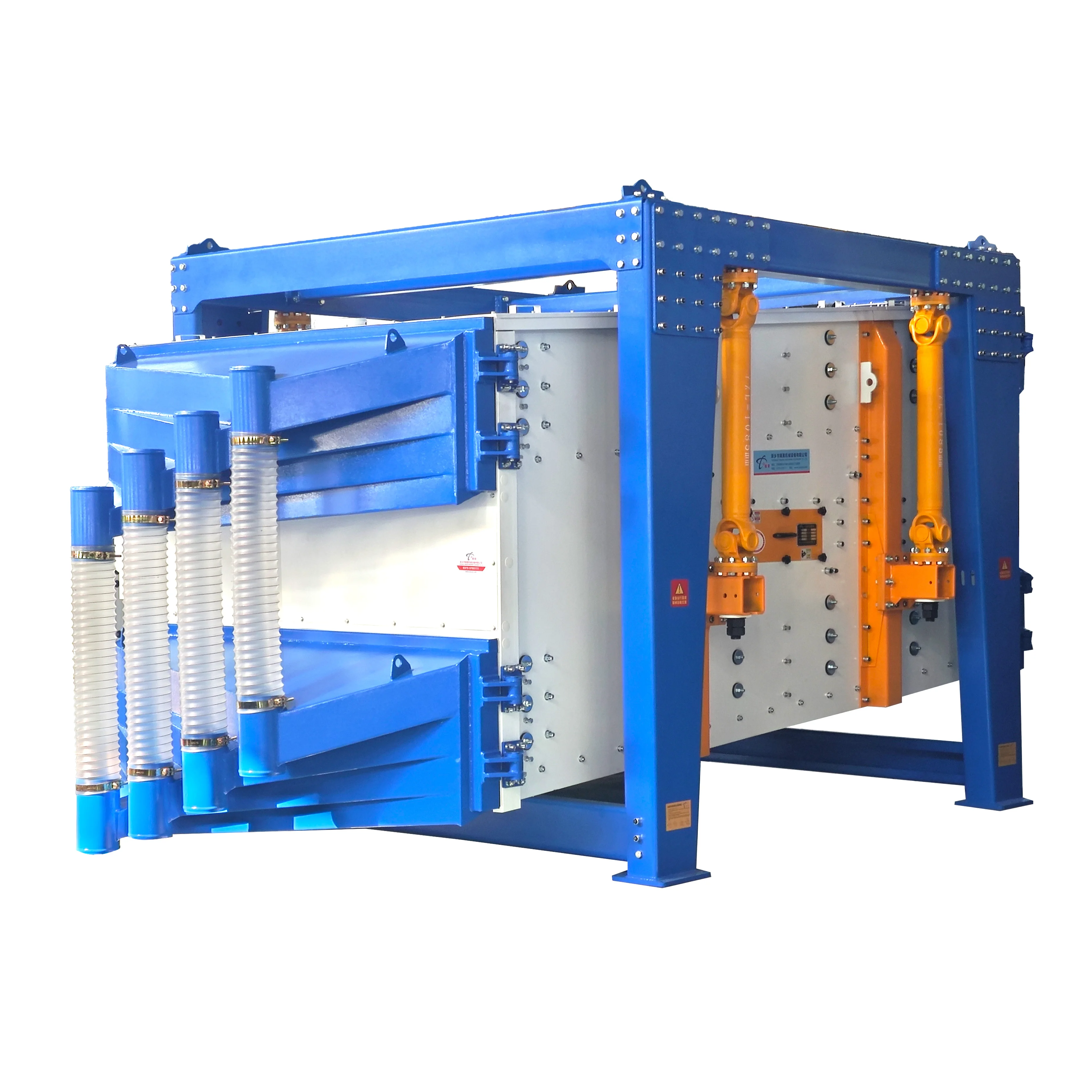

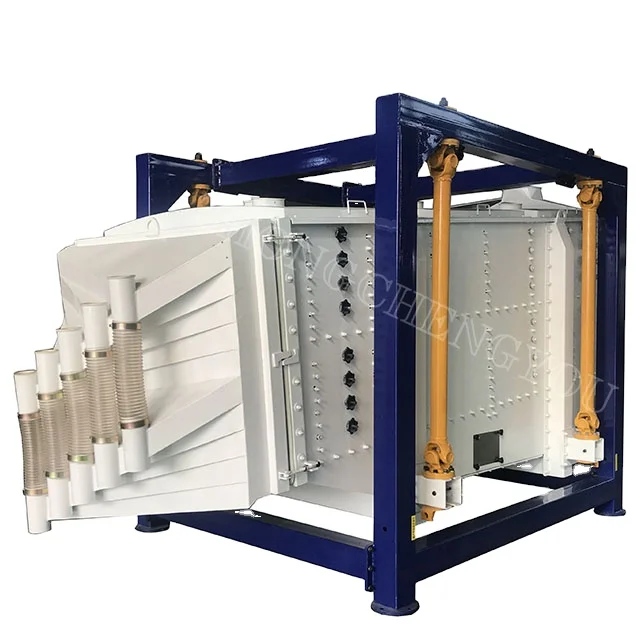

Квадратный вращающийся вибрационный сито
