Product Overview
Greenlandplast abs ps pc pa single stage plastic recycling plastic recycling machine PP PE pelletizing line
This Recycled Plastic Machines Waste PP PE Plastic Granulator is mainly used for plastic regrind flakes recycling
pelletizing .
The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durabl. Customers aso may choose two-stage pelletizing system, use the two extruders pass the secondary filtration to make the pellets be cleaner and higher quality;
The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durabl. Customers aso may choose two-stage pelletizing system, use the two extruders pass the secondary filtration to make the pellets be cleaner and higher quality;
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Scew diameter(mm) | L/D | Capacity |
GL80 | 80 | 33 | 100-200kgh |
GL100 | 100 | 33 | 200-300kgh |
GL130 | 130 | 33 | 300-450kgh |
GL160 | 160 | 33 | 450-600kgh |
GL180 | 180 | 33 | 650-750kgh |
GL200 | 200 | 33 | 750-1000kgh |
PRODUCT CONFIGURATION

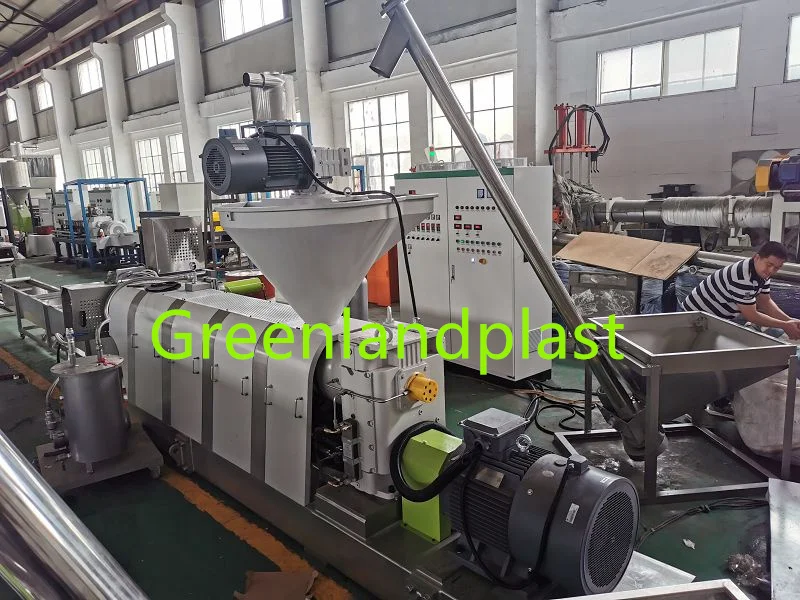

Quantificational feeder
feed material into extruder smoothly and evenly

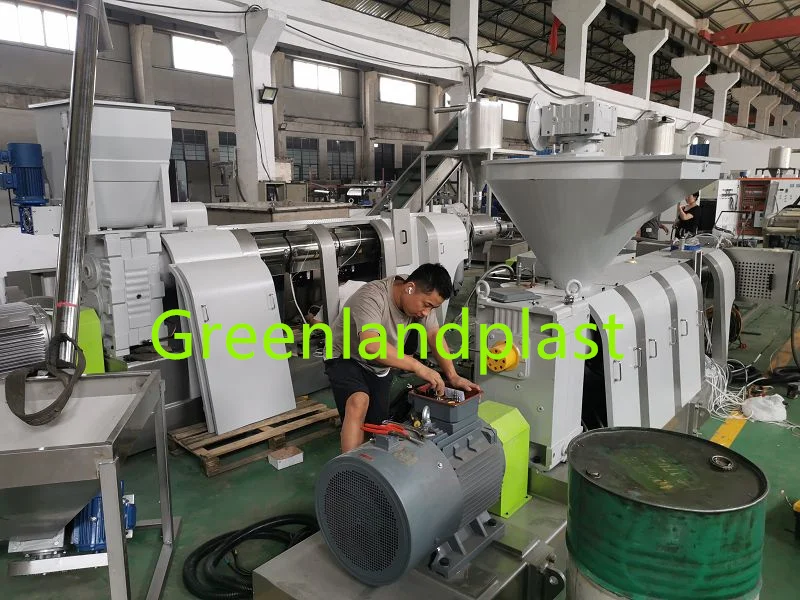

First stage extruder
38crMoAl screw&barrel with nitriding treatment ,with vacuum exhaust system,with hydraulic screen changing system
Vacuum degass system
forced vacuum degassing system

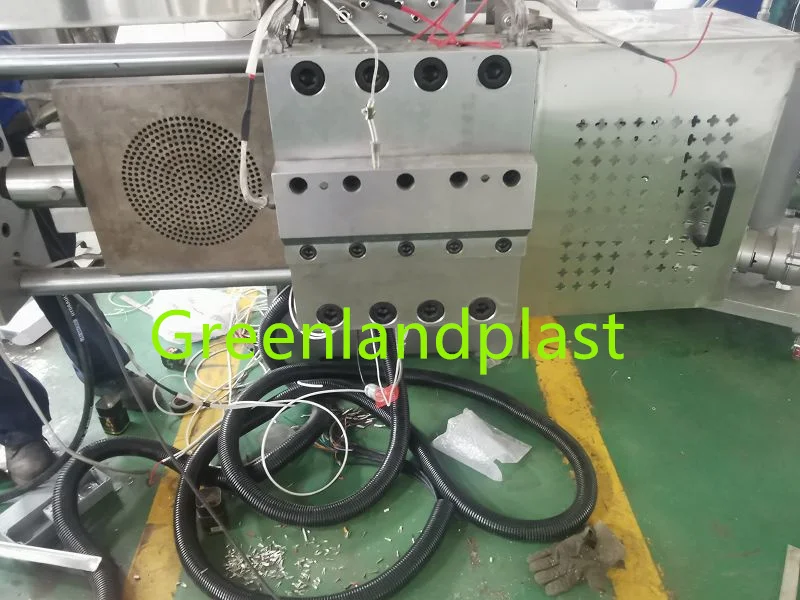

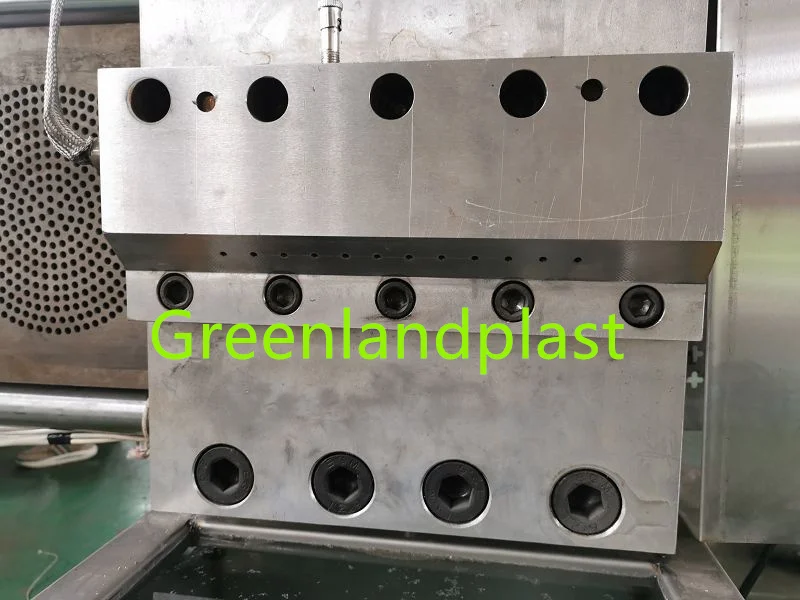

Water-strand cutting (noodle cutting)system
suitable more type material ,for example ,ABS ,PS and high viscosity material
blowing dryer
Vibrating &blowing drying method, stainless steel 304 material.

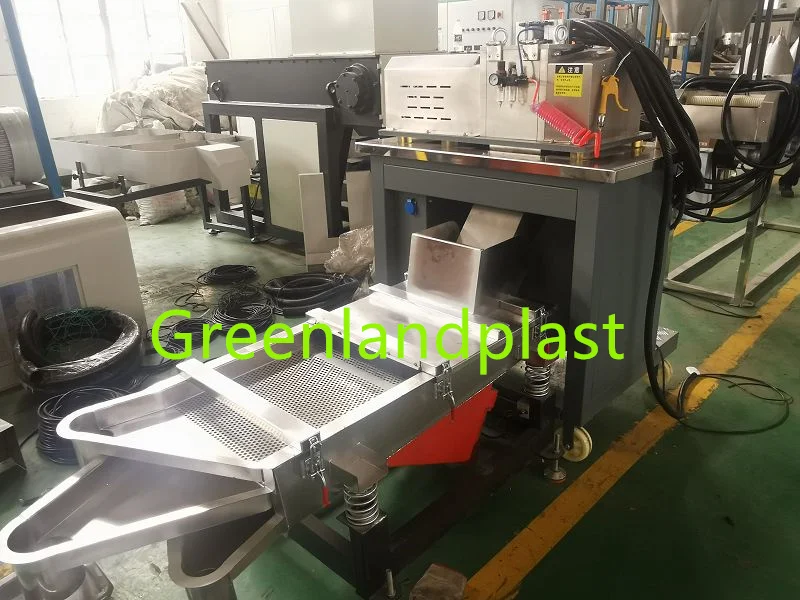

Pelletizing cutter&vibrator
Cutter inverter speed control ,Vibrator stainless steel 304 material.
