Прямые продажи с завода шлифовальный станок для полировки камня
6 845 023,20 ₽ - 7 176 234,00 ₽

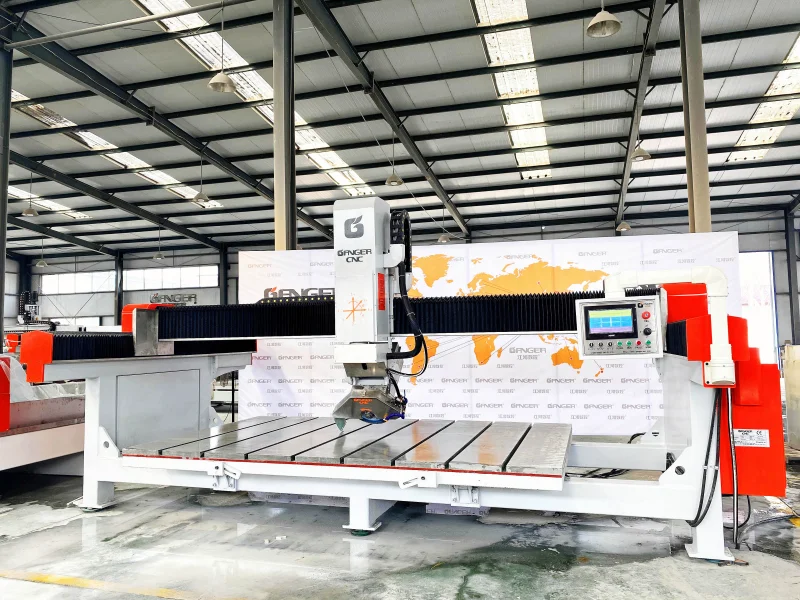

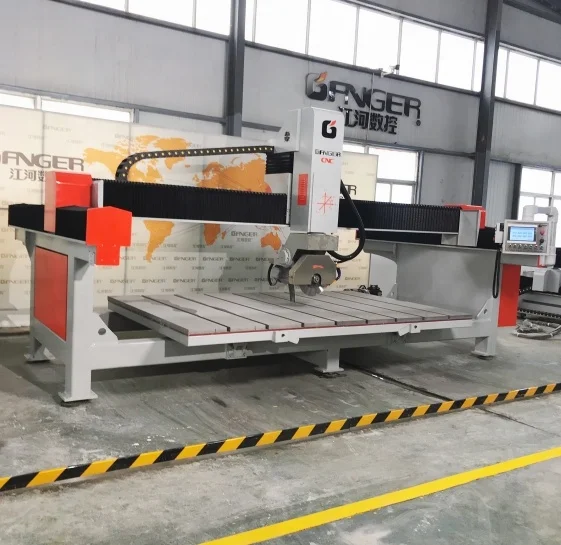

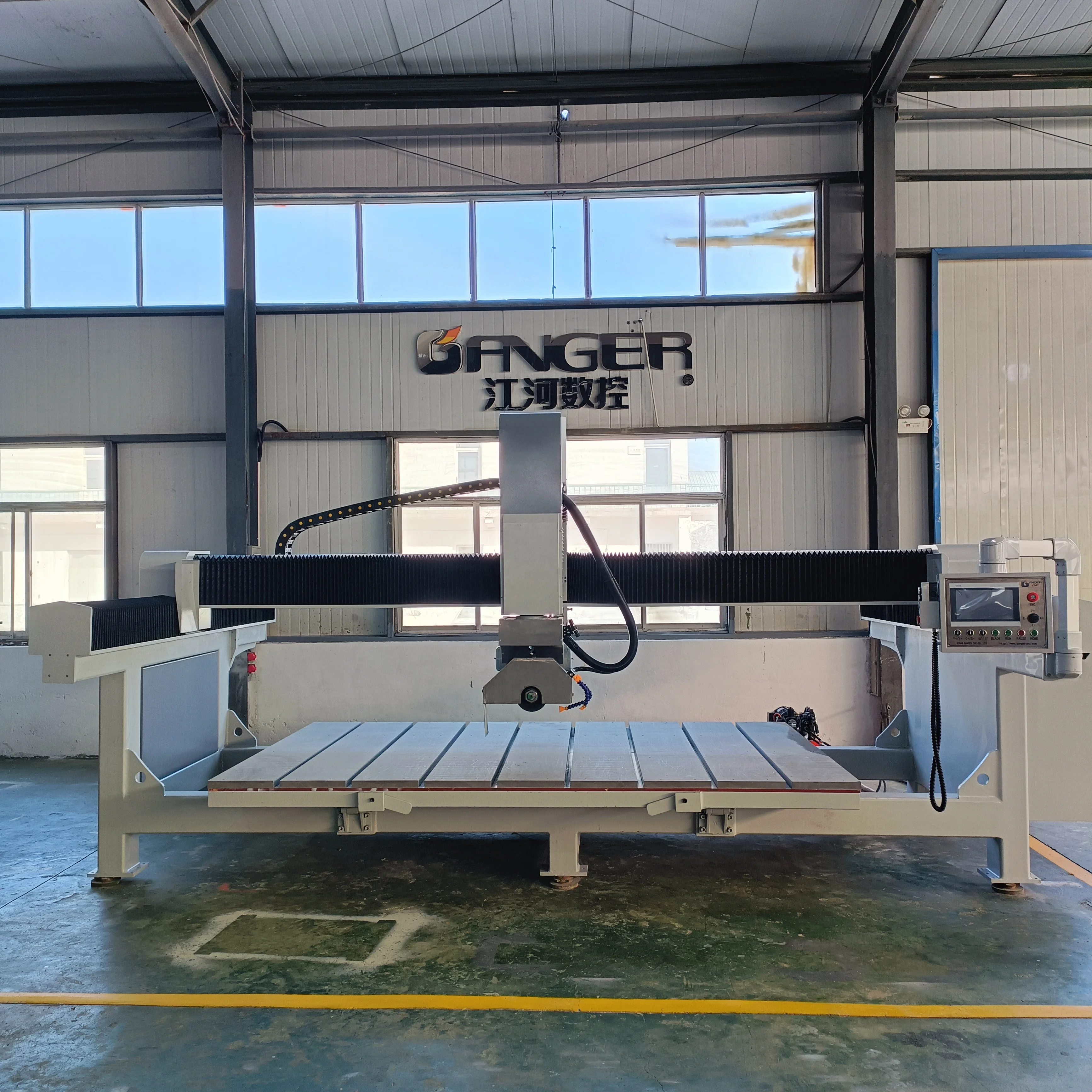

GANGER 5 оси ЧПУ мраморные плиты для резки камня и гранита продажи каменного оборудования
- Категория: >>>
- Поставщик: JINAN GANGER CNC CO. LTD
Сохранить в закладки 1601209815067:
Описание и отзывы
Характеристики
20+
Our company has been established
for 20 years.
for 20 years.
20+
Our company has 20 years of export experience.
90+
The machineries are exported to more than 90 countries and regions in the world.
50+
50 Patents and certificates.
300+
Professional technical team of over 300 persons.
45000
High-level professional factory with over 45,000㎡.
Products Description
Machine Features
1.XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degree automatic rotation.
2.Vertical and horizontal cutting, multi-angle diagonal cutting.
3.Four sides chamfering (any angle between 0°-90°).
4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.
5.Cutter bits, Contouring, Suction moving.
6.Table tilts 85 degree to load slabs easily.
7. Intelligent control system.
8.VVith camera.
2.Vertical and horizontal cutting, multi-angle diagonal cutting.
3.Four sides chamfering (any angle between 0°-90°).
4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.
5.Cutter bits, Contouring, Suction moving.
6.Table tilts 85 degree to load slabs easily.
7. Intelligent control system.
8.VVith camera.
Cutting function：Countertop,Table 85°flip(front),Table 85°flip(back),Horizontal cutting,Vertical cutting,Dlamond cutting-45°,Miter 45°chamfer cutting,Circular cutting,Sector cutting,Are cutting,Sink cut-out,Hexagon cutting,Curve cuting,Ellipse cutting,Suction Function,L-shaped table cutting,CAD Input,NC Code Input,Contouring cutting,Cutter bits,Edging Function,Horse belly,Drilling/polishing.
Technical Parameters
Model | GQ-3220DS |
X/Y/Z Axis working size | 3200*2000*500mm |
Diameter of blade | 350mm |
Working table size | 3200x2000mm |
Blade Motor power | 15KW |
Total power | 29KW |
Rotation speed of blade | 3000/6000rpm |
A axis rotation angle | 0°-90° |
C axis rotation angle | 0°-360° |
Table Tilting angle | 85° |
Control system | GANGER |
Camera | YES |
Gross weight | 4500KGS |
Product Details
XYZAC FIVE AXIS
A axis 0 to 90 degree automatic rotation.
C axis 0 to 360 degree automatic rotation.
C axis 0 to 360 degree automatic rotation.

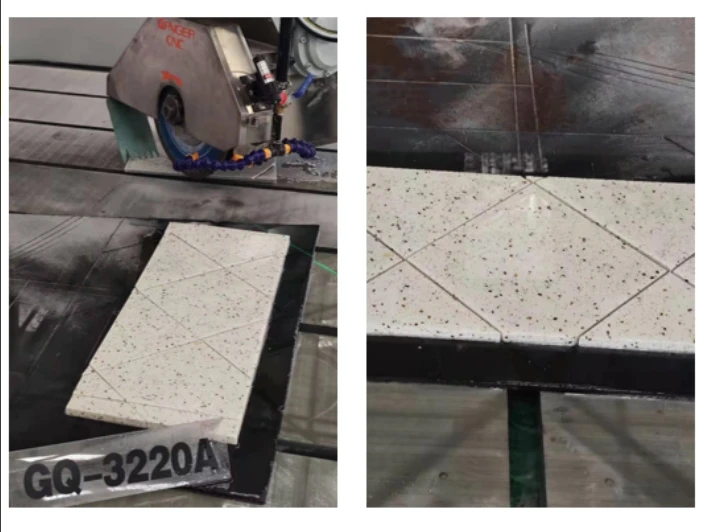

SAW CUT
Multiple shapes cut.
Profile.
MILLING BIT
Sink cut.
Edge polish.
Edge polish.
CNC CONTROLLER
Professional with CAM software Read DXF, NC file Keep upgrading.
WITH CAMERA
Read slab size.
Draw on slab photo directly.
Draw on slab photo directly.
AUTO LOADING & UNLOADING
Details Images
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
GANGER Group since 2005
Participate Canton Fair every year,
Focus on exporting to the US and European markets,
Professional focus in custom-made special stone machine for you.
Outstanding advantages
●Latest automatic Monoblock Bridge saw.
●For horizontal, vertical and diagonal cutting.
● Four-axis, 11kw motor for blade, total power 25kw.
●PLC control, simple and intuitive operation.
●Tilting table 0- 85° automatic for load materials.
●Monoblock delivery, shipped 98% assembled, convenient installation.
●Stable struction, high precision, clean cutting, no chipping.
●Applicable material: Dekton, sintered stone, quartzstone, granite, ceramic plate and all stone stuffs.
●Option 4 axis 45 degree miter cutting, 5 axis bridge saw.
Participate Canton Fair every year,
Focus on exporting to the US and European markets,
Professional focus in custom-made special stone machine for you.
Outstanding advantages
●Latest automatic Monoblock Bridge saw.
●For horizontal, vertical and diagonal cutting.
● Four-axis, 11kw motor for blade, total power 25kw.
●PLC control, simple and intuitive operation.
●Tilting table 0- 85° automatic for load materials.
●Monoblock delivery, shipped 98% assembled, convenient installation.
●Stable struction, high precision, clean cutting, no chipping.
●Applicable material: Dekton, sintered stone, quartzstone, granite, ceramic plate and all stone stuffs.
●Option 4 axis 45 degree miter cutting, 5 axis bridge saw.
FAQ
QUALITY CONTROL
●Our professional technical engineers inspect the processing to ensure the quality of products
●Each machines will run around 24 hours and tested 8 hours before delivery to ensure normal using in your workshop .
GUARANTEE &AFTER SALE SERVICES
● Free training available here China or online teaching video
●12 months guarantee under normal use & Lifetime maintenance free of charge
●Spare parts shall be free of charge if any problem during the warranty periode
●Consumable parts will be offered at agency price when replacement needed
OEM SERVICE AVAILABLE
●XYZ working size customized according to your requirement
●Main spare parts: motor,system,inverter choose as your choice
●Machine brand and oil painting customized (agent available or MOQ 10 sets
DELIVERY
●Standard model: 10-20 working days
●Customized model: Depends on special spare parts delivery time
PAYMENT TERMS
●T/T in advance
●West union: Available when amount less than 1000$, banking charges paid by buyer
●LC draft should be sent to confirm before Original LC made.
●Our professional technical engineers inspect the processing to ensure the quality of products
●Each machines will run around 24 hours and tested 8 hours before delivery to ensure normal using in your workshop .
GUARANTEE &AFTER SALE SERVICES
● Free training available here China or online teaching video
●12 months guarantee under normal use & Lifetime maintenance free of charge
●Spare parts shall be free of charge if any problem during the warranty periode
●Consumable parts will be offered at agency price when replacement needed
OEM SERVICE AVAILABLE
●XYZ working size customized according to your requirement
●Main spare parts: motor,system,inverter choose as your choice
●Machine brand and oil painting customized (agent available or MOQ 10 sets
DELIVERY
●Standard model: 10-20 working days
●Customized model: Depends on special spare parts delivery time
PAYMENT TERMS
●T/T in advance
●West union: Available when amount less than 1000$, banking charges paid by buyer
●LC draft should be sent to confirm before Original LC made.
Похожие товары

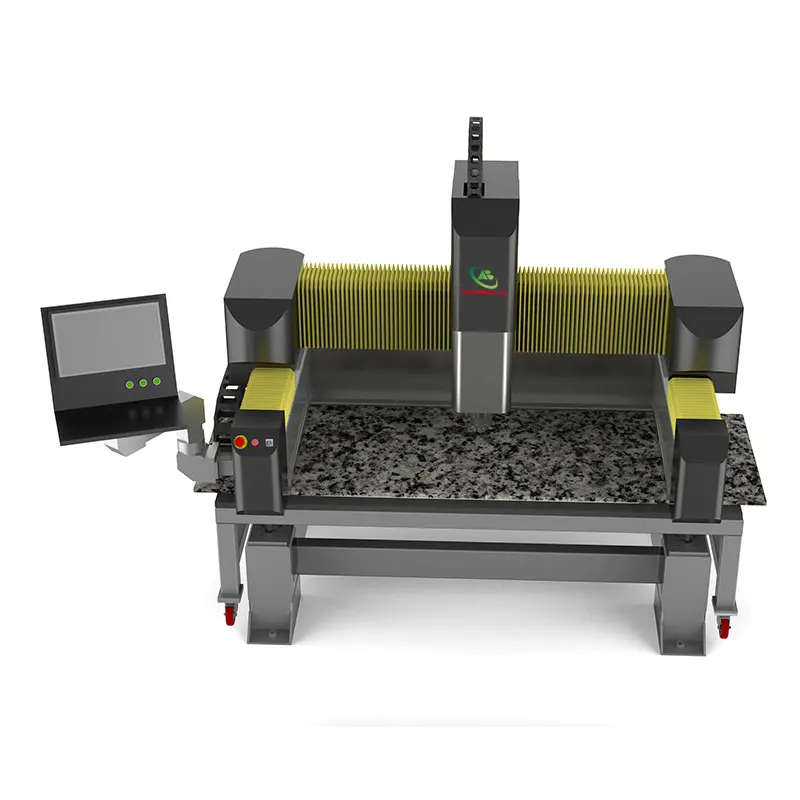

Оптовая продажа индивидуальная машина для резки камня 1300 мм * 800 система shanlong резьба по мраморному гранитному камню с ЧПУ мрамора и гранита
712 103,22 ₽ - 839 067,36 ₽
Лидер продаж полуавтоматическая металлическая ручная Горизонтальная ленточная пила GB4240
938 430,60 ₽ - 1 015 713,12 ₽

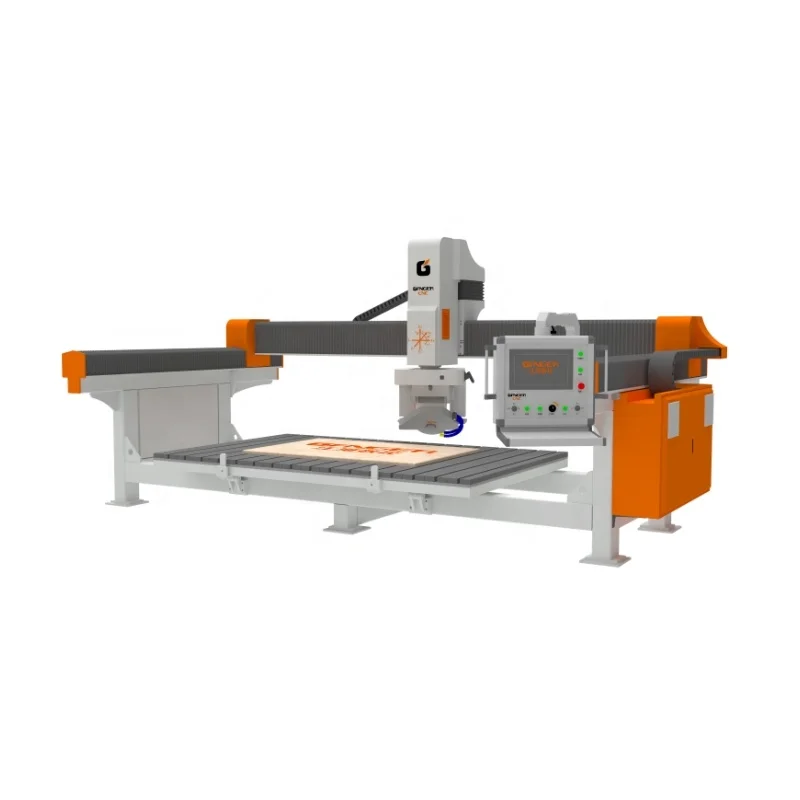

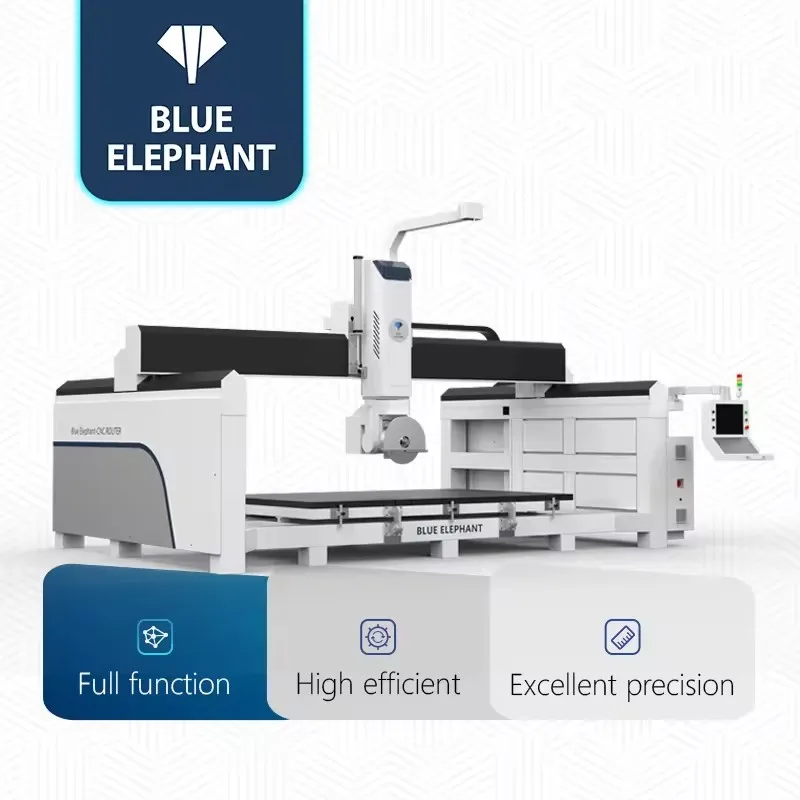

Новый дизайн усовершенствованный Многофункциональный 5-осевой мостовой станок для резки гранита каменный
3 091 300,80 ₽ - 3 312 108,00 ₽

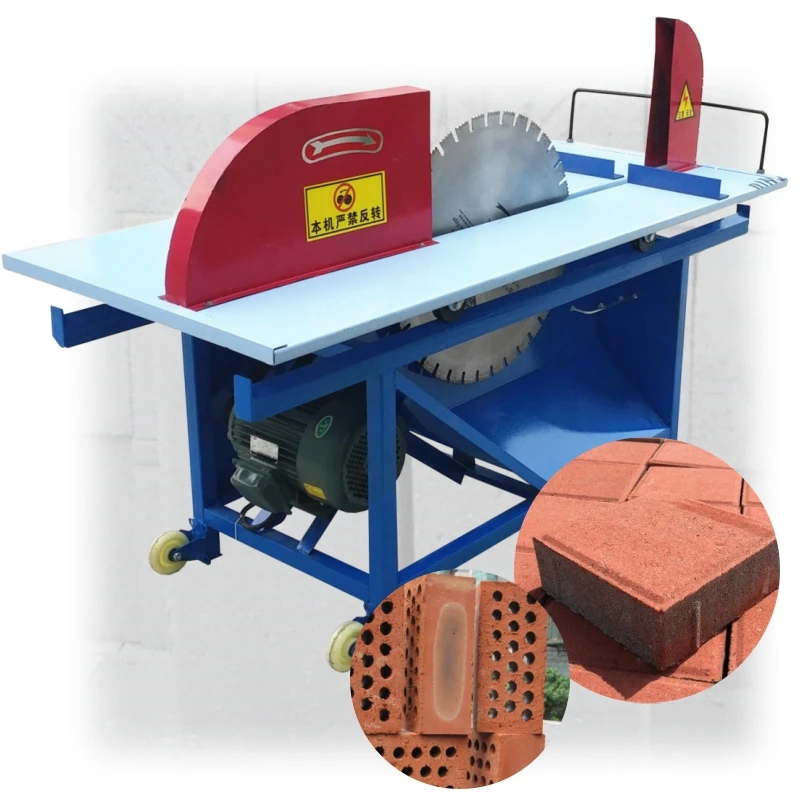

Автоматическая машина для резки кирпича с охлаждающим соплом
73 749,61 ₽

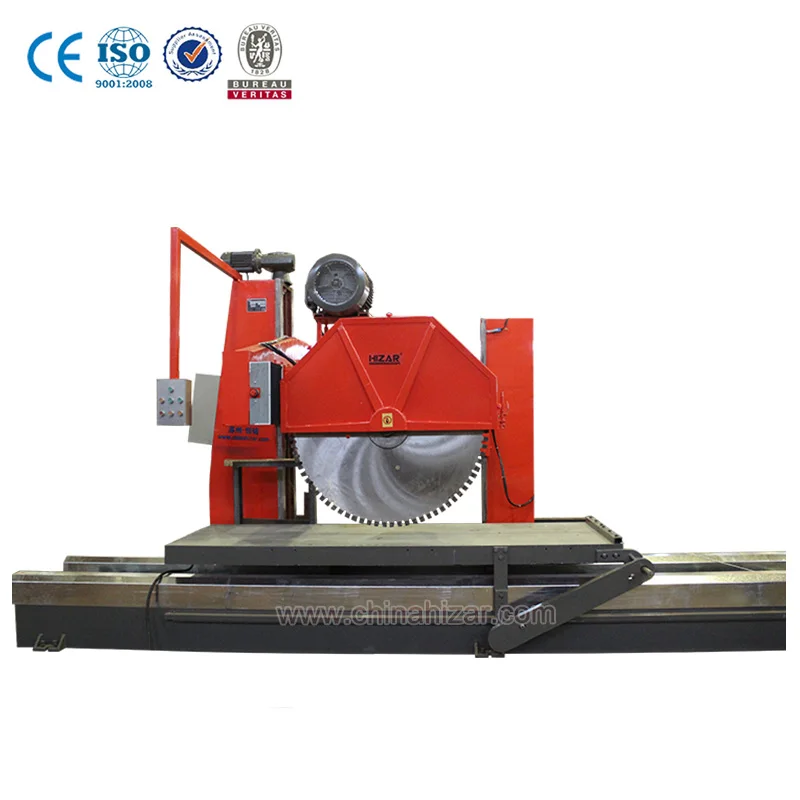

Высокая эффективность гранита блок резки для продажи
