What kind of panels do you want to produce?
This machine mainly produces:
EPS sandwich panel, Foam cement panel
High Automatic, 2-3 labors can produce 30-40 pcs panel (100mm thickness) within 15mins.
Panel Details | ||
Panel density | 500-900kg/CBM, can change density via adjusting formulas. | |
Panel length/width | Length usually is 2440,2800,3000mm, etc, Width is 600mm or 610mm. Size can be customized. | |
Panel's thickness | 75, 100, 150, 200, 250mm etc. | |
Strength of panels | 3-6Mpa | |
Feature of EPS panel
Only 1/6 weight of the normal concrete brick.
Reduce the vertical load of building structure，cost of building material, the amount and intensity of labor.
Faster Construction process.

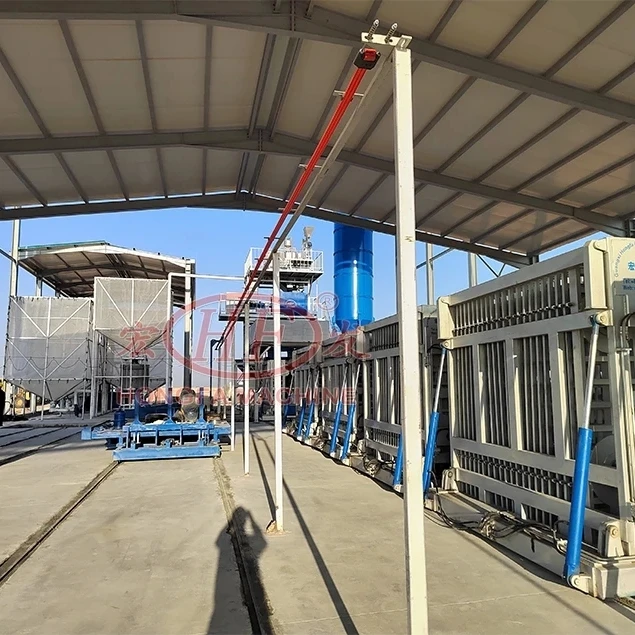

Main Parts of Production Line
1. Mixing & infusion plant
Include mixer, movable infusion unit.
Using touch screen control. Automatic weighing material, mixing,etc.
Record every data for production process.
3.6CBM capacity guarantees infusion efficiency. Only about 15 seconds to complete making a panel (size 2440*610*100mm).
2. EPS Expander & Boiler
It is used for expanding the raw EPS particles
to bigger particle, make EPS density to around 3.5-6kg/CBM.
Then it need less EPS particles for producing one panel, save the material cost
3. Molding machine
One molding machine can produce 30-40pcs panels per day.
Quantity of molding machine is key point to capacity.
Using high standard material - Q345 steel, heat treated mould. Ensure it to be used for a long time without trouble.
Machine can stand up and lay down, so is easy to maintainence & clean
Capacity of Molding machine for different size panels (HFP530A) | ||
Panel size | Capacity | |
2440*610*60mm | 40pcs/Shift | |
2440*610*100mm | 30pcs/Shift | |
2440*610*150mm | 22pcs/Shift | |
Other size can be customized. | ||
4. De-molding machine
It can pull the cured panels out from molding machine.
De-molding machine is movable, so after demolding, the molding machine can start the next production immediately, without any delay.
It's efficiency is triple compared to traditional production line.

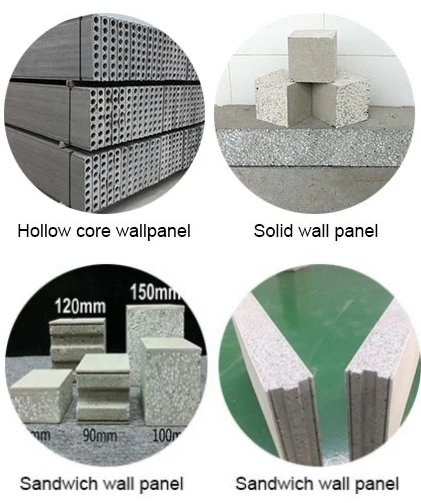

5.Hollow core panels unit
If you want hollow core wall panels, we offers complete system solution.
Hollow panels usually use for roof, cladding etc.purpose without any bearing demand.
6. Movable infusion pump unit
This unit is movable, so we can have flex lay out for factory.
It can mix and inject at same time, guarantee the heavier material(cement) not separates from lighter one (EPS).
7. Recycling unit
With recycling unit, we can collect the waste slurry
and treat the waste, and reuse it.
So we can reduce wasting material and lower the totoal material cost.
and treat the waste, and reuse it.
So we can reduce wasting material and lower the totoal material cost.

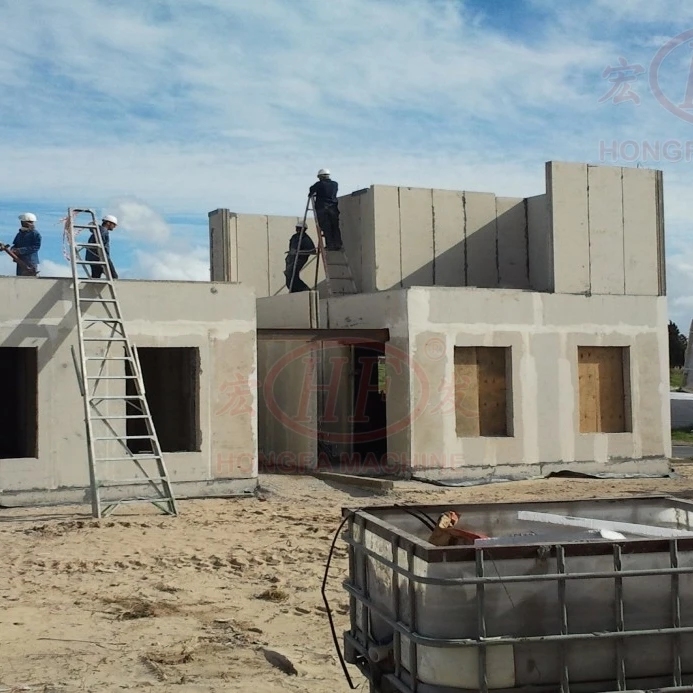

Applied range of EPS wall panel
Widely applied in various of buildings: office building, hospital, school, bank, hotel, shopping mall, etc
Lightweight Sandwich Panel Automatic Machine For Making Precast Prefab Cement EPS foam Insulation Wall Hollow Board Production
Excellent building performance of EPS wall panel
(A) Fireproof performance:
In the text, the 90mm panel's fireproof performance can be longer than 3 hours.
(B) Waterproof performance:
The bibulous rate is only 3.3%, reach the international advanced level.
(C) Insulation Resistance:
EPS insulation materials, insulation performance is extremely good, and meet the building energy efficiency design standards, rank first among similar products.
(D) Soundproofing:
Has good air aspiration, sound insulation - more than 40 db sound insulation.
The bibulous rate is only 3.3%, reach the international advanced level.
(C) Insulation Resistance:
EPS insulation materials, insulation performance is extremely good, and meet the building energy efficiency design standards, rank first among similar products.
(D) Soundproofing:
Has good air aspiration, sound insulation - more than 40 db sound insulation.
Lightweight Sandwich Panel Automatic Machine For Making Precast Prefab Cement EPS foam Insulation Wall Hollow Board Production

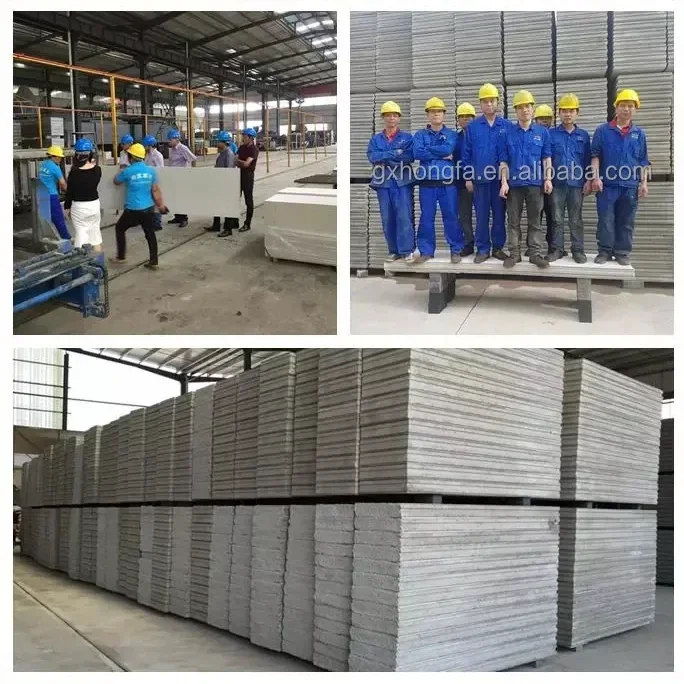

Client cases
Packing and Shipping
Company Profile
Since 1990, Hongfa Machinery Co., Ltd has been in the field of construction and building materials equipments.
1) More than 30 years experience. 1500 employee (50+engineers)
2) 4 factories with 440,000m2 and annual sell above USD100 Million.
3) 10,000 customers in over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.
2) 4 factories with 440,000m2 and annual sell above USD100 Million.
3) 10,000 customers in over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.
Exhibitions & Cooperation
Philippine Construction Exhibition
Canton Fair
Saudi Arabia Construction Exhibition
FAQ
Q: Are you manufacturer or trading company?
A: We are Direct factory, not agent or trading company, the quality and after-sale services is guaranteed.
A: We are Direct factory, not agent or trading company, the quality and after-sale services is guaranteed.
Q: How long is the warranty of your equipment?
A: 1year
Q: Can this machine make other size product?
A: We would design and do the mould according to customer's Drawing or as ours.
Q: When do you delivery the goods?
A: Normally 30 days after receipt of deposit and moulds confirmation from Buyer.
Q: What about the payment?
A: 30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
Q: What does the total price include?
A: After some simple communication, we will make the plan according to you target onCapacity and budget. Then we will send the accurrate quotation for you shortly.
Q: Would you mind provide the video?
A:The video is available to send to you, please contact me.
