Products Description

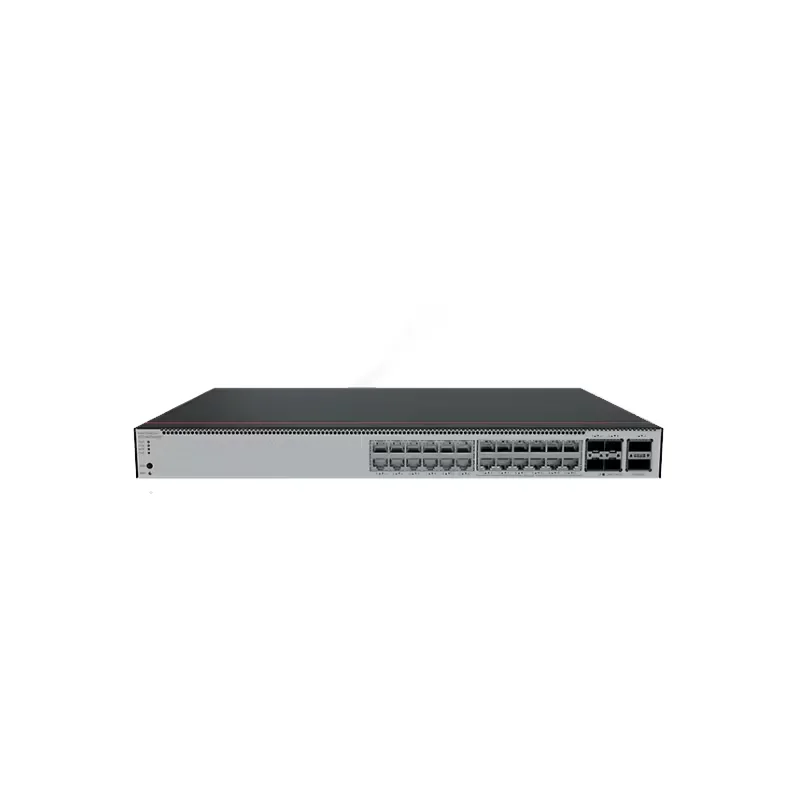

CloudEngine S5755-H series multi-GE switches are high-quality gigabit access switches with 24- or 48-port options, offering GE/Multi-GE electrical downlink ports, four 10GE, four 25GE plus two 100GE uplink ports.

By leveraging unified software platform, CloudEngine S5755-H series multi-GE switches create a multi-purpose network through VXLAN-based network virtualization. The series also stands out for free mobility that delivers consistent user experience anywhere, anytime. A maximum of 48 downlink ports and MACsec support on all ports make CloudEngine S5755-H the best choice of access switches for the Wi-Fi 6 and Wi-Fi 7 era. With these merits, CloudEngine S5755-H series can be widely used in healthcare, retail, mining, Internet Service Provider (ISP), and other industries.

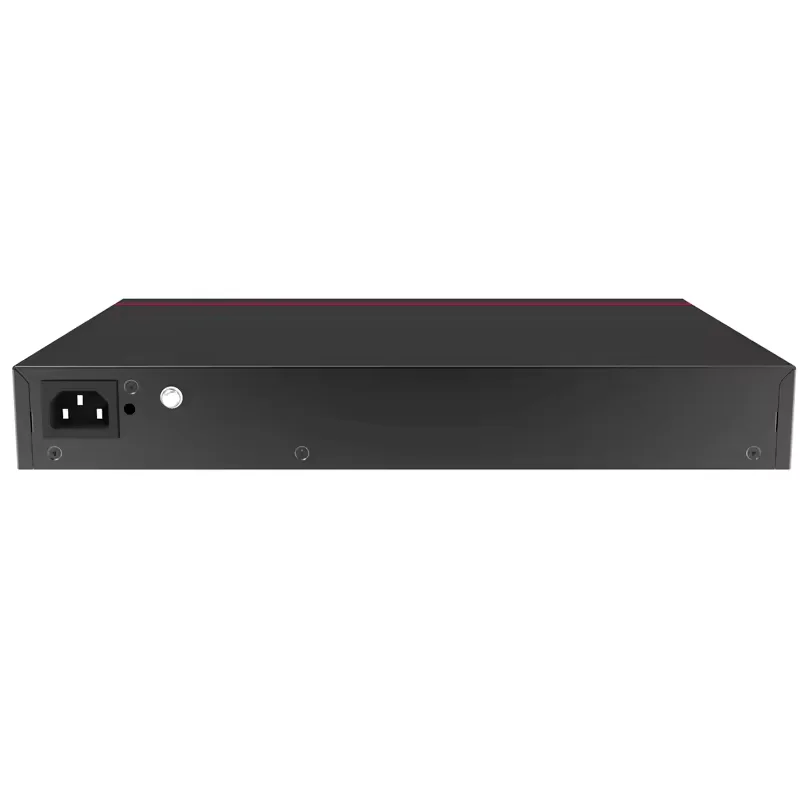

Details Images




Specification


Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
145 mm x 650 mm x 550 mm (5.71 in. x 25.59 in. x 21.65 in.)
Chassis height [U]
1 U
Weight without packaging [kg(lb)]
5.92 kg (13.05 lb)
Weight with packaging [kg(lb)]
7.83 kg (17.26 lb)
Typical power consumption [W]
30% traffic under the ATIS standard, dual power supplies:
92 W (all ports used)
81 W (2 x 100GE ports not used)
Typical heat dissipation [BTU/hour]
30% traffic under the ATIS standard, dual power supplies:
313.91 (all ports used)
276.38 (2x100GE ports not used)
Maximum power consumption [W]
100% traffic under the ATIS standard, dual power supplies:
99 W (all ports used)
88 W (2 x 100GE ports not used)
Maximum heat dissipation [BTU/hour]
100% traffic under the ATIS standard, dual power supplies:
337.80 (all ports used)
300.26 (2 x 100GE ports not used)
Static power consumption [W]
57 W
MTBF [years]
82.56 years
MTTR [hours]
1.45 hours
Availability
> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]
48.1 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]
36.1 dBA
Number of card slots
2
Number of power slots
2
Number of fans modules
2
Redundant power supply
1+1
Pluggable AC and DC power modules can be used together on the same device.
NOTE:
Power modules with fans and power modules without fans cannot be installed on the same device.
Long-term operating temperature [°C(°F)]
–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following
conditions must be met:
The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year.
The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used
for short-term operation cannot exceed 10 km.
When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to
104°F).
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]
0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Power supply mode
Pluggable power supply
Rated input voltage [V]
AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC input: –48 V DC to –60 V DC
Input voltage range [V]
AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum input current [A]
The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory
4 GB
Flash memory
Physical space: 2 GB
Console port
RJ45
Eth Management port
RJ45
USB
Supported
RTC
Supported
RPS input
Not supported
Power supply surge protection [kV]
Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)
IP20
Types of fans
Pluggable
Heat dissipation mode
Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction
Air intake from left, front, and right and air exhaust from rear
PoE
Not supported
Certification
EMC certification
Safety certification
Manufacturing certification
