China Manufacturers Hydraulic Cylinder Tipper Tipping Dump Semi Trailer

---CHENGDA Group are a manufacturer with 18 years export experience of truck and trailers. Product quality is guaranteed.Any needs just contact us directly.

---We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our cooperation can be ODM or OEM mode.



Products Description

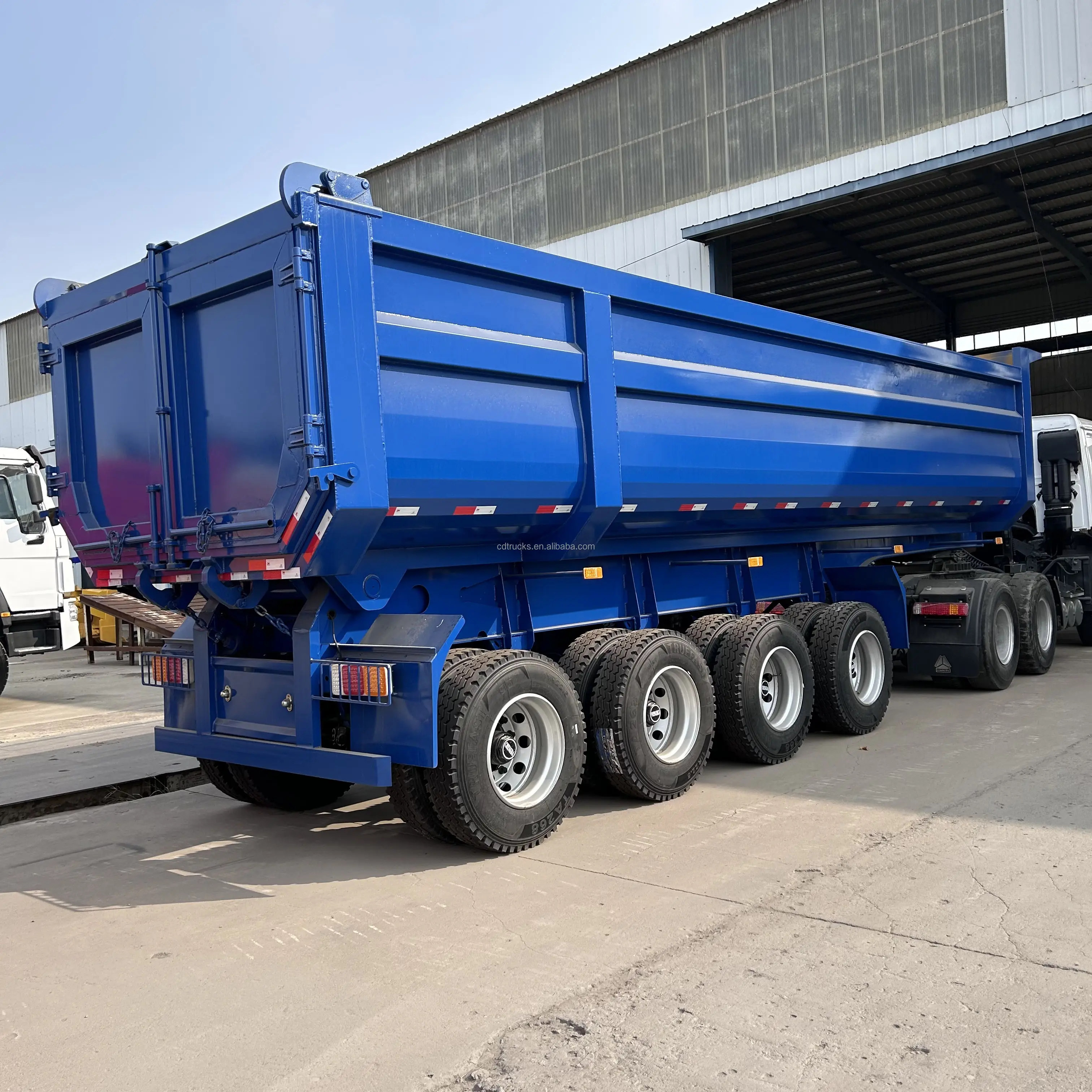

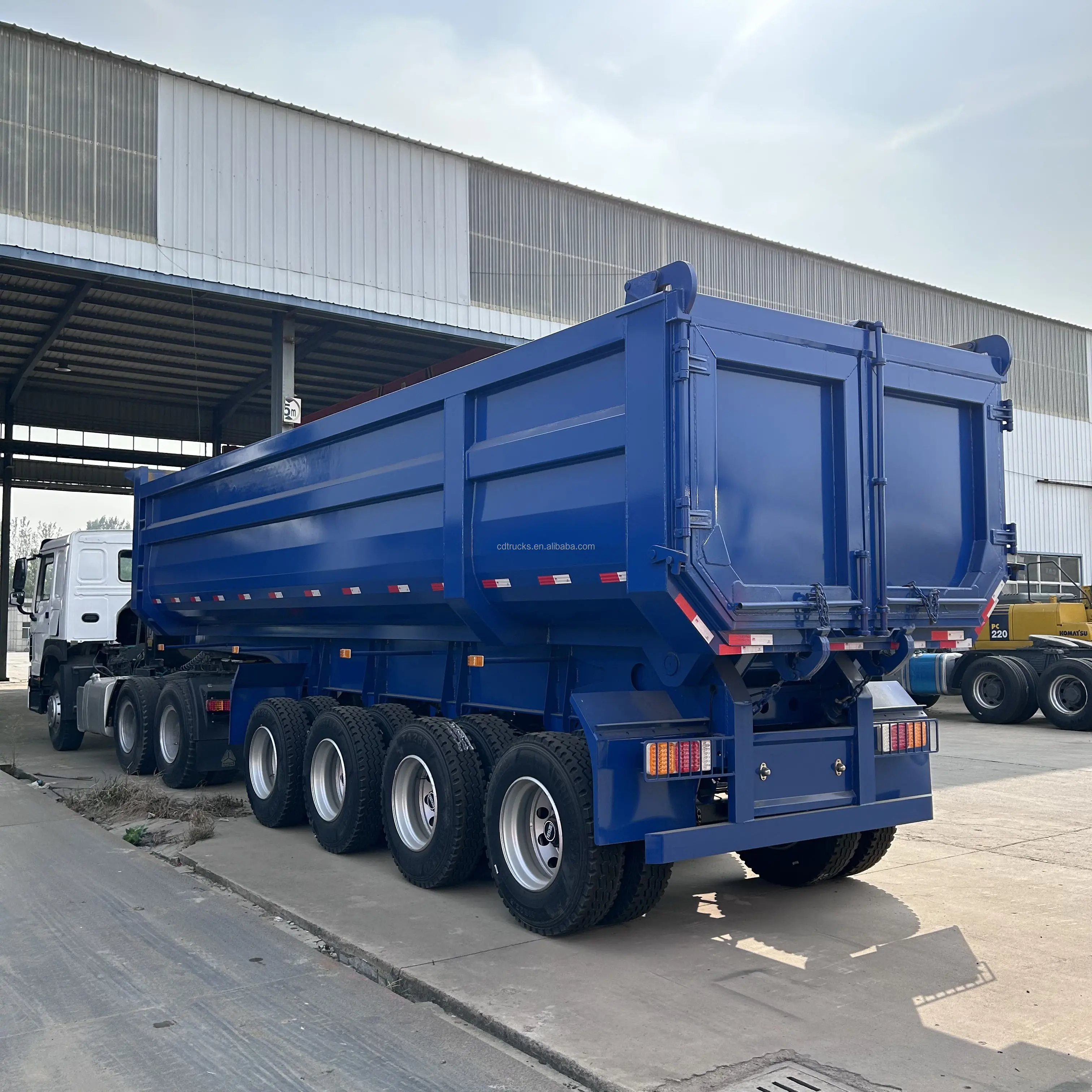

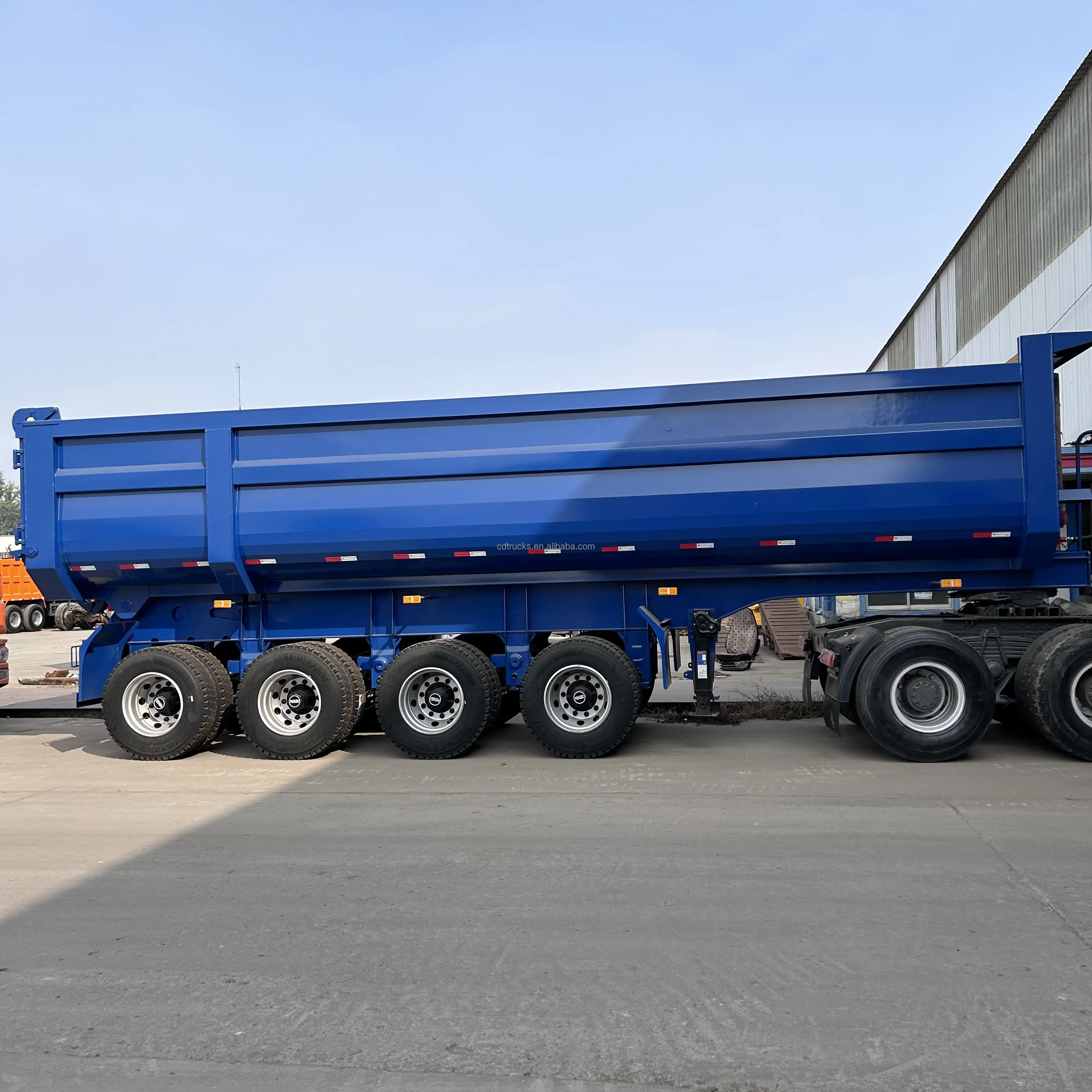

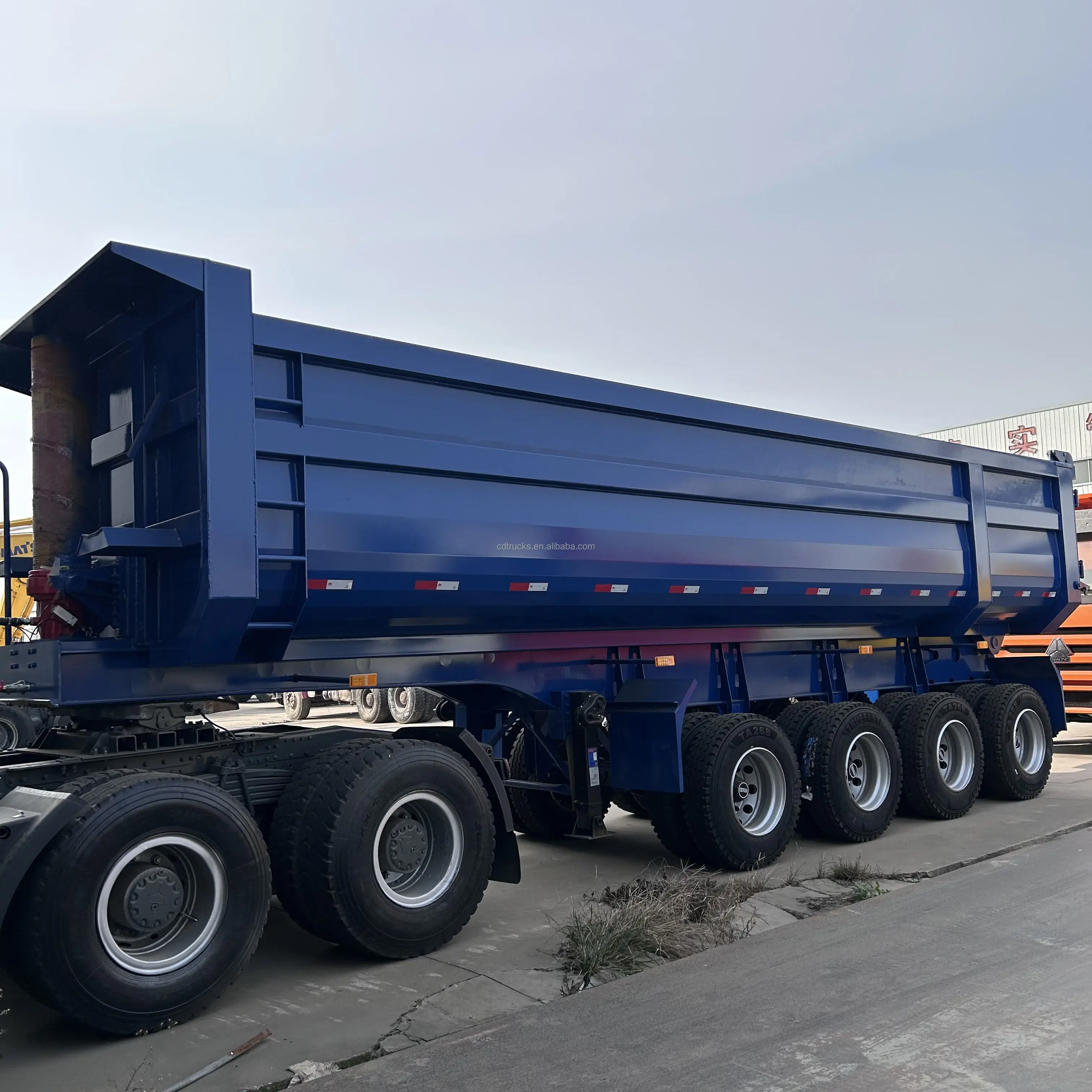

U Shape Dump Trailer

Dump is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn't exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled.We adopt world famous brand of parts, like JOST, WABCO braking valve, etc.


Dump semi trailer adopt advanced design concept.For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.Rectangle Type or U Type Tanker Optional.

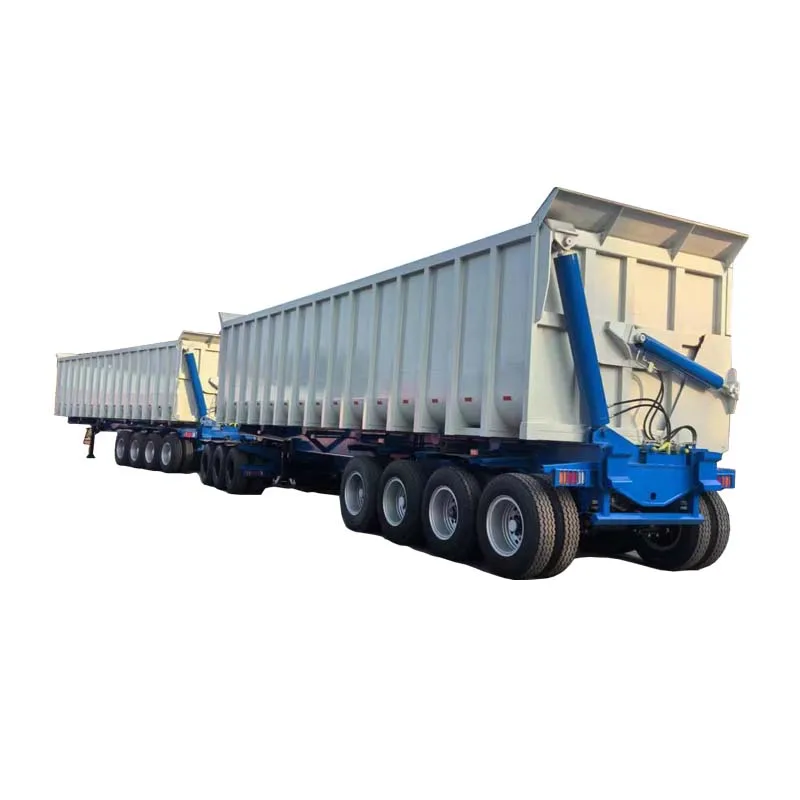

Side Dump Trailer Also Available




Product Paramenters


Product Name
Tipper Trailer Dump Semi Trailer
Function
Transport heavy  Stone and Sand
Semi trailer Dimension
11280*2495*3970mm(can be customized)
Total Volume
37m3 or less than 80tons
Side wall thicknes(mm)
3mm-6mm Q235 steel
Bottom plate thickness(mm)
5mm-8mm Q235steel or can be optional
Lifting system
Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder
Spring leaf
90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12
King pin
Jost brand 2.0 0r 3.5 inch bolts type or welding type
Suspension
Mechanical suspension/America Type/Germany Type
Land gear
JOST brand C200T or China brand 28Tons (Double speed)
Axle
13T/16T,FUWA/BPW/Huajing Brand
Main beam
Q345B Steel
Rim
9.00-22.5 12pcs
Valve
WABCO VALVE
Brake Chamber
6 big chamber brake system
Tool box
1 unit 1m*0.5m*0.5m






Material:
Hardox 450 or equal wear and abrasion-resistant material box, T700 high tension beam, tare weight lighter 2000kg than normal material tipper, longer service time and lower fuel consumption

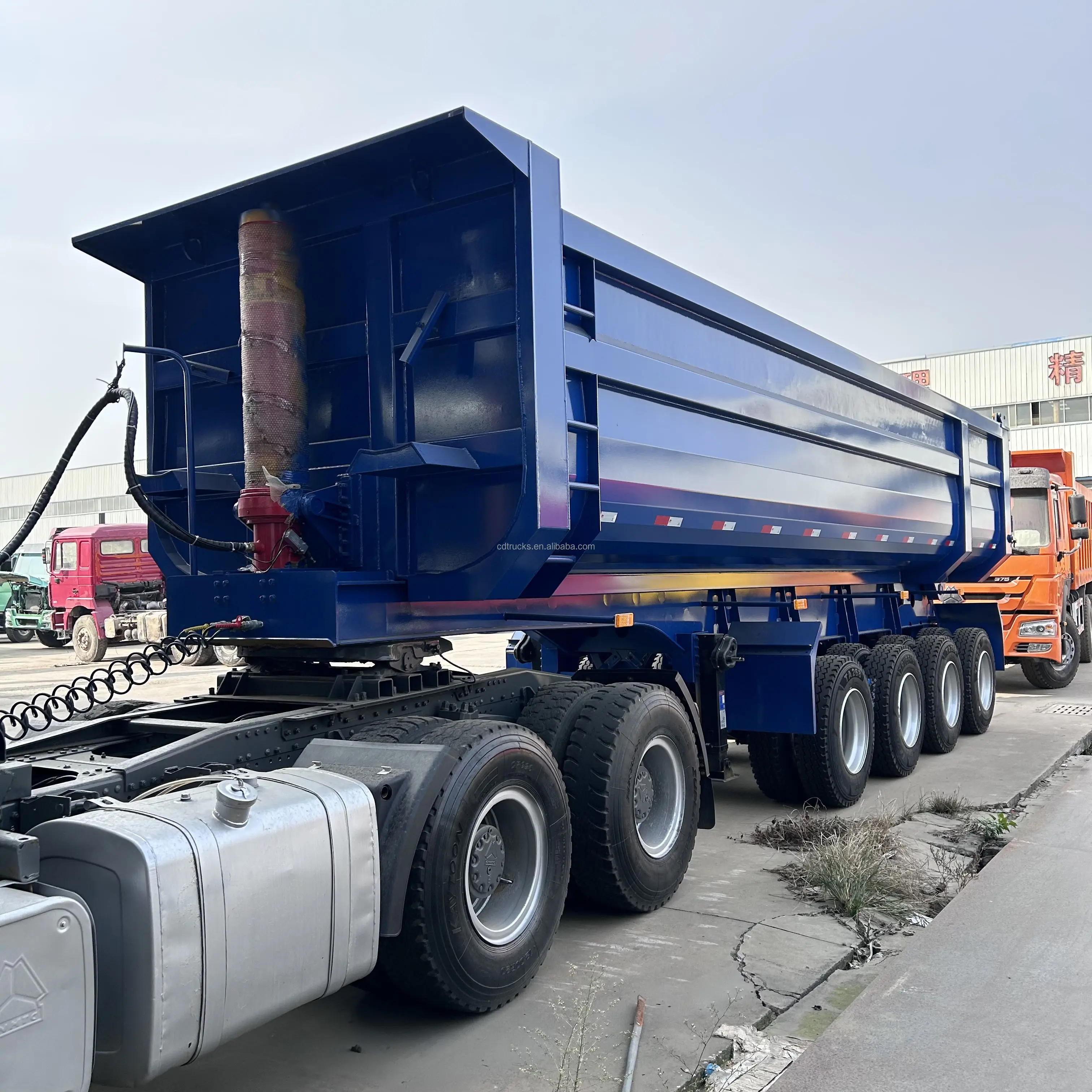

Cylinder:
FC and FE model optional, higher operating pressure, help Max 45° tilt angle, reducing turnaround time with faster-ripping speed, increasing operating time with long service intervals

Fasten Sys:
Rear door auto fasten lock efficiency work, adjustable design keep suitable situation,easy maintenance and replace


Packing & Delivery


Nude and Wax

We will provide you with the best transportation plan to reduce transportation costs and ensure timely delivery of goods.


1. Flatrack container

2. By bulk ship

3. By RO-Ro ship : Pirce is high but protect the trailer very well





Why Choose Us






CHENGDA Group are verified by SGS group.Our annual export as a branch is over $5,000,000.We maintain Alibaba's four-star and five-star level stores all year.

Professional Production Team:
More Than 300 Experienced Workers,Provide Clients High Assembling for Fast Quality Delivery.We have passed ISO9001:2008, CCC, BV, SGS, TUV.
Customize:
Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
7*24H Service:
7*24H Service Provide Professional Fast Response.We have rest assured after-sales service.
Parts Support:
Abundant Parts Supply Provide Lasting Support for Worldwide Clients

----- Below is our Real Customer Feedback----






Welcome to visit our company!!
We have received customers from many countries in the world, such as Ghana, Botswana, Zimbabwe, Mozambique, and the Philippines.They have given a high evaluation.






We have rich export experience !!
Our products are exported to many countries in Africa, Southeast Asia and South America, such as Ghana Philippines Zimbabwe Boswana Nigeria Senegal.Customers are also very satisfied with our products and services.We have ability to solve the problems you may encounter.




Factory




Shandong Chengda Auto sales Co.,Ltd is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed semi-trailer, cargo trailer, etc. With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, BEIBEN, etc




Contact




FAQ


Q1. Are you a factory or trading company?
We are a comprehensive factory integrating product design, scientific research and development, production and sales. So we know what you're looking for. Welcome to our factory and production line at any time.

Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM, etc.

Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. Do you have stock?
Yes we have a few stock in our warehouse for your urgent order, but the main design already finished, the only we can change are some of the spare parts such like tires, axles, stickers, painting etc.

Q5. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
