Промышленное лазерное режущее оборудование Tuosheng полностью защищенная двухобменная платформа волоконно-лазерная резка
21 860,00-47 300,00 $

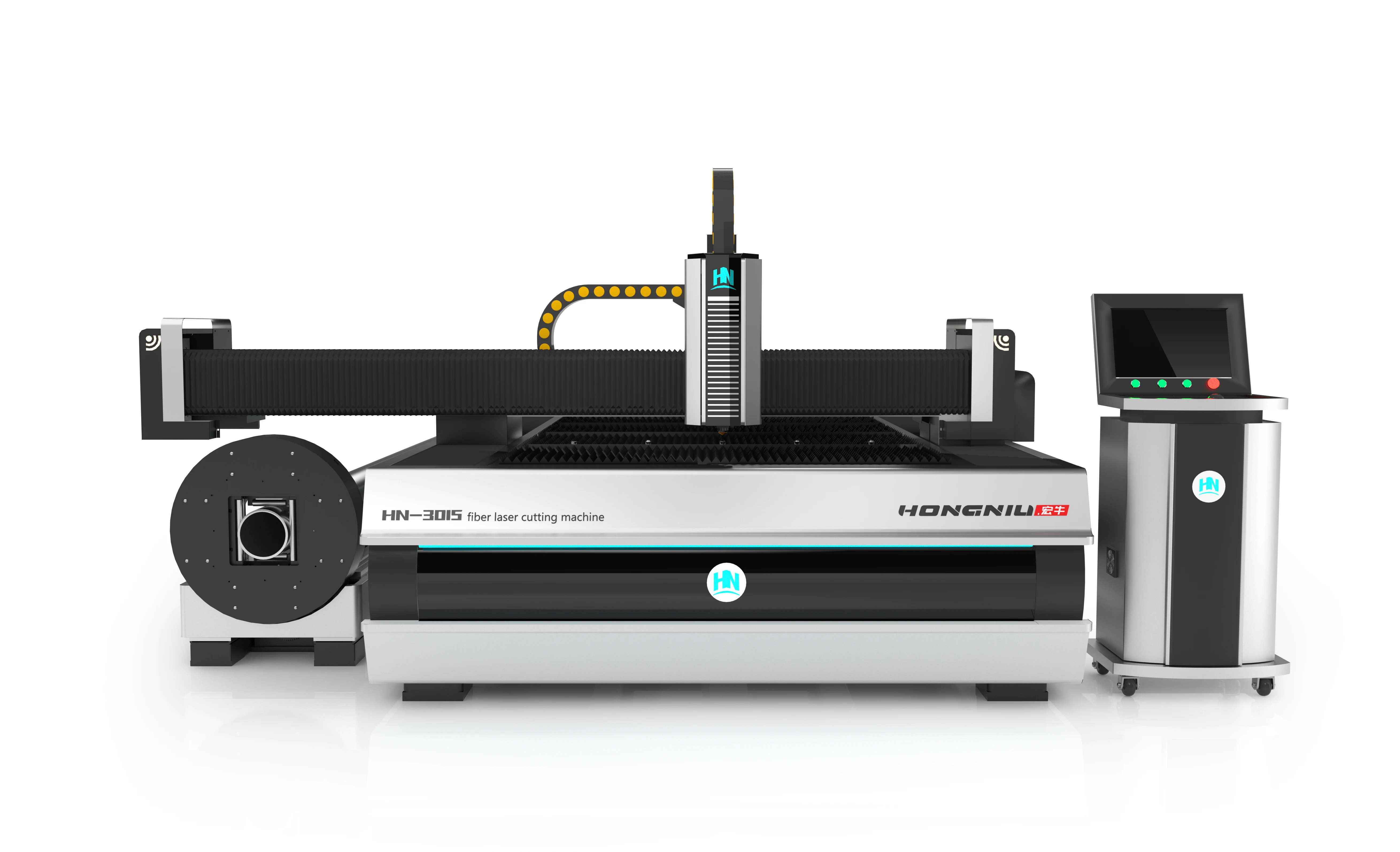

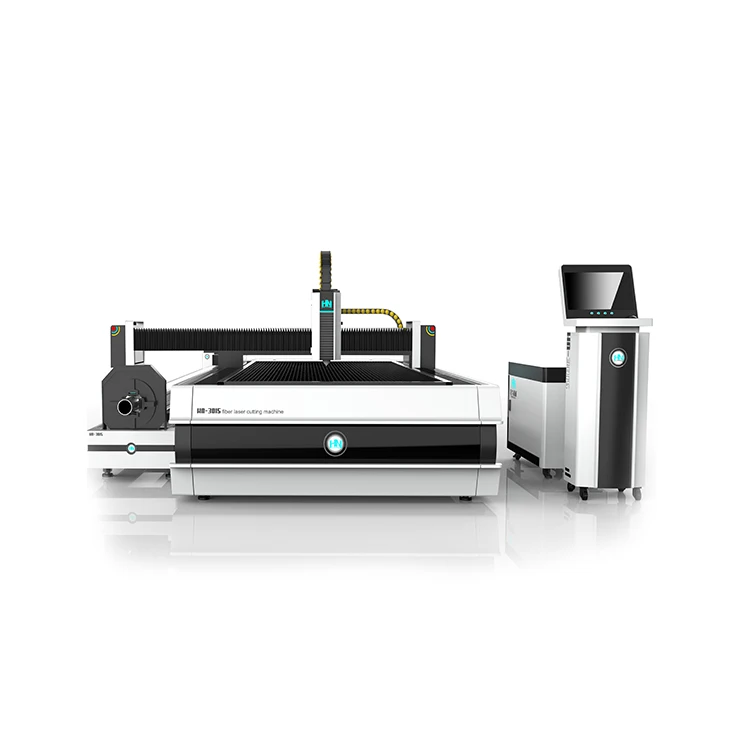

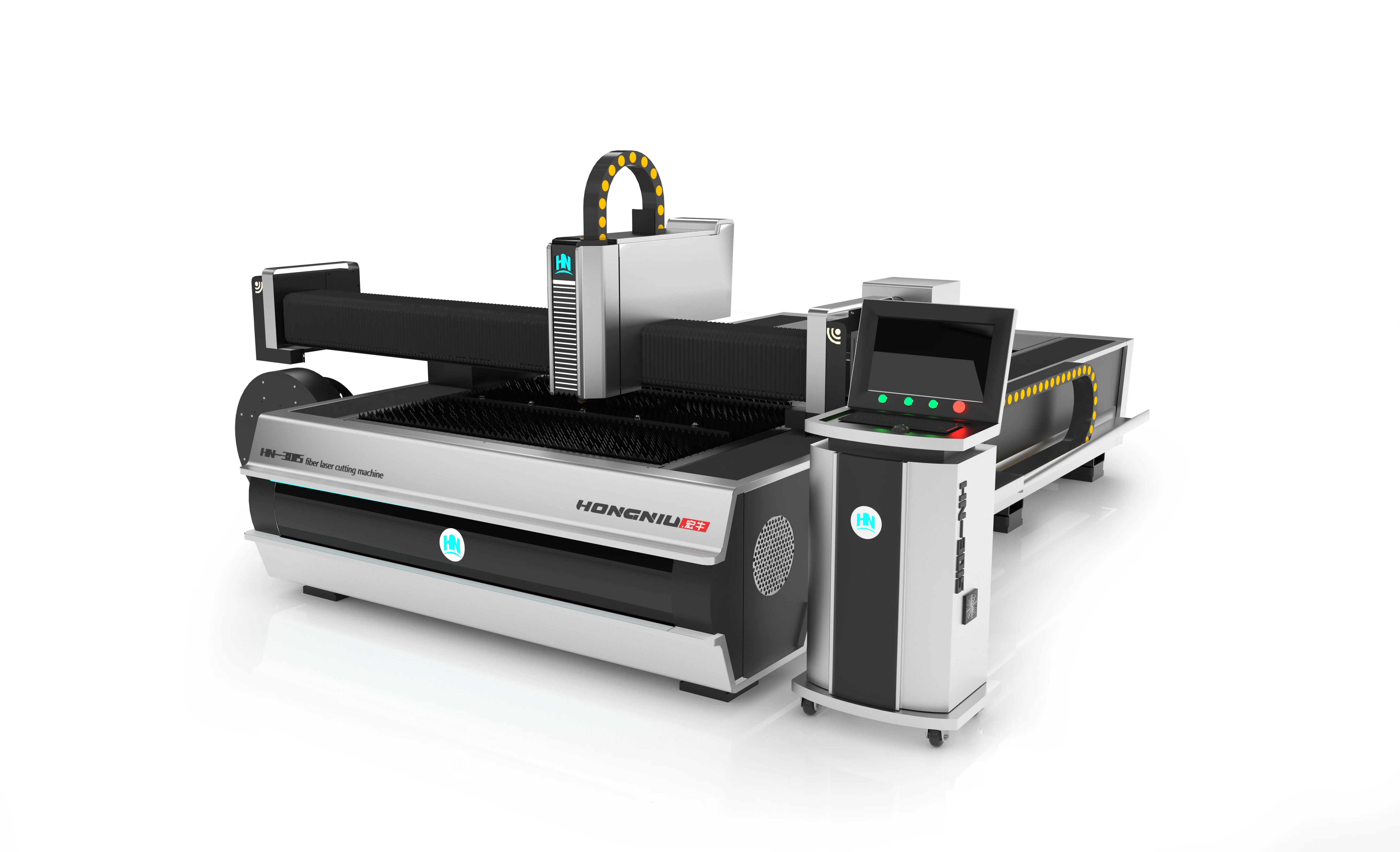

Лазерный стол Hongniu 3000*1500 мм 3000 Вт машина для резки листового металла с резкой трубкой
- Категория: >>>
- Поставщик: Shandong Hongniu Laser Equipment Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601220729908:
Описание и отзывы
Характеристики
DESCRIPTION
Product parameter
Product Name | Fiber Laser Cutting Machine with two tables and 6m axis |
Machine Model | HN-3015HJR |
Cutting Area | 1500*3000mm |
Servo motor | DELTA |
Laser Power | 3000W |
Laser Source | Raycus |
Control System | FSCUT 3000 with tubetro software |
Laser Cutting Head | Raytools BM110 |
Reducer | Jinan Shimpo |
Chiller | HANLI |
Tube cutting | 6m length 220mm diameter |
Product details
Heavy Duty Welded Bed
The bed uses a groove weld procedure to achieve constant strength welding. It has high tensile strength, sturdiness and durability, and the weld does not break; it can be used continuously for more than 20 years.
Cast Aluminum Alloy Beam
The aluminum beam is due to its excellent processing technology and the reason of the province. Make the gauge have the characteristics of "hard, light and fast", ensure the best dynamic performance in the cutting process, and move faster. The fastest cutting speed can reach 120m/min
Laser Cutting Head
the focal length adjustment range is large，From 1MM to 20mm
the accuracy is high. Deviation is within 0.01mm
Auto focus, always keep a distance of 0.02mm from the cutting surface。
the long service life, Ceramic ring 4000 hours, nozzle: 600 hours, collimation protection lens: 4000 hours
the accuracy is high. Deviation is within 0.01mm
Auto focus, always keep a distance of 0.02mm from the cutting surface。
the long service life, Ceramic ring 4000 hours, nozzle: 600 hours, collimation protection lens: 4000 hours
Working table-guide rail, rack
DTX and Leitesen are used in conjunction with each other, with high guiding accuracy and smooth movement, which can improve the accuracy and stability of the equipment greatly .
Auto Chuck
Chuck is for dual use plate&pipe cutting machine. It adopts the pneumatic chuck clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm.
Sample&Industry
The laser cutting machine can cut most metal materials.
Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.
Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.
Recommend Products
Application Materials and Industries
1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
2.Application Industries: Hongniu Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts,
Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts,Glasses Frame, Electronic Parts, Nameplates, etc.ensure that it can operate ng possible during the laser cutting process.
2.Application Industries: Hongniu Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts,
Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts,Glasses Frame, Electronic Parts, Nameplates, etc.ensure that it can operate ng possible during the laser cutting process.
Packing & Delivery
Our company cooperates with more than 10 logistics companies, with transportation routes covering more than 150 countries and regions around the world. Provide strong guarantee for product transportation. Under normal circumstances, product delivery can be completed within 30-45 working days.
(1) Two years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
(2) Lifetime maintenance free of charge.
(3) Free training course at our plant.
(4) 24 hours on line service each day, free technical support.
(5) Machine has been adjusted before delivery. We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.
(6) If you have any problem during your use. you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and whatsapp with call till all of your problems solved.
(2) Lifetime maintenance free of charge.
(3) Free training course at our plant.
(4) 24 hours on line service each day, free technical support.
(5) Machine has been adjusted before delivery. We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.
(6) If you have any problem during your use. you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and whatsapp with call till all of your problems solved.
Company information
Hongniu Laser’s production equipment mainly includes: laser cutting machine, ultra-high power laser cutting machine, integrated plate and tube laser cutting machine, automatic loading and unloading laser tube cutting machine, handheld laser welding machine and other equipment.
The annual output can reach more than 8,000 units, and the products are sold in 160 countries and regions. Has served 50,000+ corporate users. The equipment processes products with high precision, smooth cutting, fast speed and higher productivity. We have a complete after-sales service system, and we have the strength to promise to provide new and old customers with high-quality and cost-effective laser cutting machine equipment.
The annual output can reach more than 8,000 units, and the products are sold in 160 countries and regions. Has served 50,000+ corporate users. The equipment processes products with high precision, smooth cutting, fast speed and higher productivity. We have a complete after-sales service system, and we have the strength to promise to provide new and old customers with high-quality and cost-effective laser cutting machine equipment.
FAQ
Q1: Our workers can't operate the machine, how to train the staff?
A:We will send you the teaching video of the machine and 24-hour online service,we also support free training service，engineers can train your workers for free in our factory for 1-3 days,if you want door-to-door service.
A:We will send you the teaching video of the machine and 24-hour online service,we also support free training service，engineers can train your workers for free in our factory for 1-3 days,if you want door-to-door service.
Q2: I don’t know which one is suitable for me?
A:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3: It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A:It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work.Q4: Do you have CE document and other documents for customs clearance?
A:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5: I don’t know how to use after I receive Or I have problem during use,how to do?
A:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. Our sales sunny and after-sales technician can provide team viewer/Whatsapp/Email/Phone/Skype with camera till all of your problems finished.We can also provide Door service if you need.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. Our sales sunny and after-sales technician can provide team viewer/Whatsapp/Email/Phone/Skype with camera till all of your problems finished.We can also provide Door service if you need.
Q6: Why does the machine price not include fiber sources and tube components?
A:Because you can customize the generator, rotary and other configurations, the price is the base bed price.
