Европейская версия Growatt MAC 50 ~ 70ktl3x50 кВт инвертор 3 MPPTS на сетке трехфазный инвертор фотоэлектрический преобразователь солнечной энергии
147 681,09 ₽ - 153 150,76 ₽
Гибридный инвертор Deye параллельный 12Kw трехфазный солнечный с Wi Fi модулем ЕС склад
- Категория: >>>
- Поставщик: Sunpal Power Co. Ltd.
Сохранить в закладки 1601221323587:
Описание и отзывы
Характеристики
Product Description

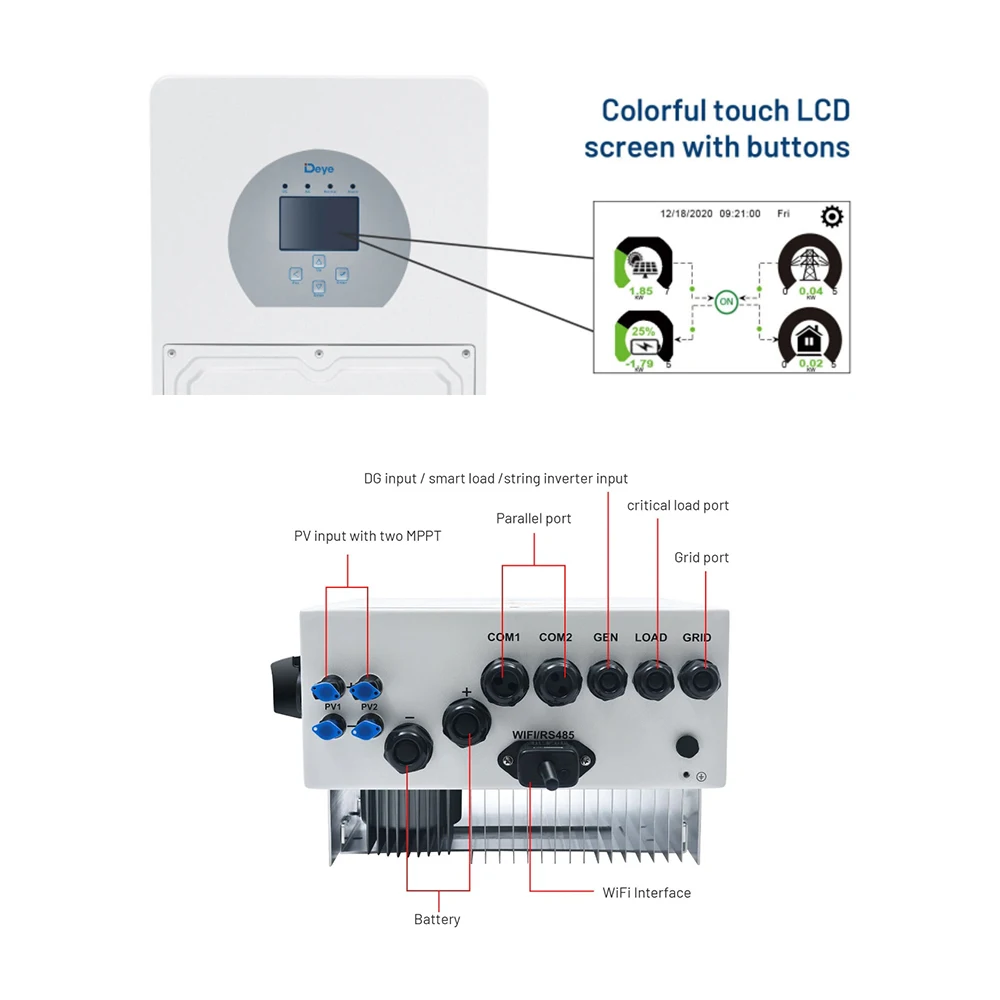

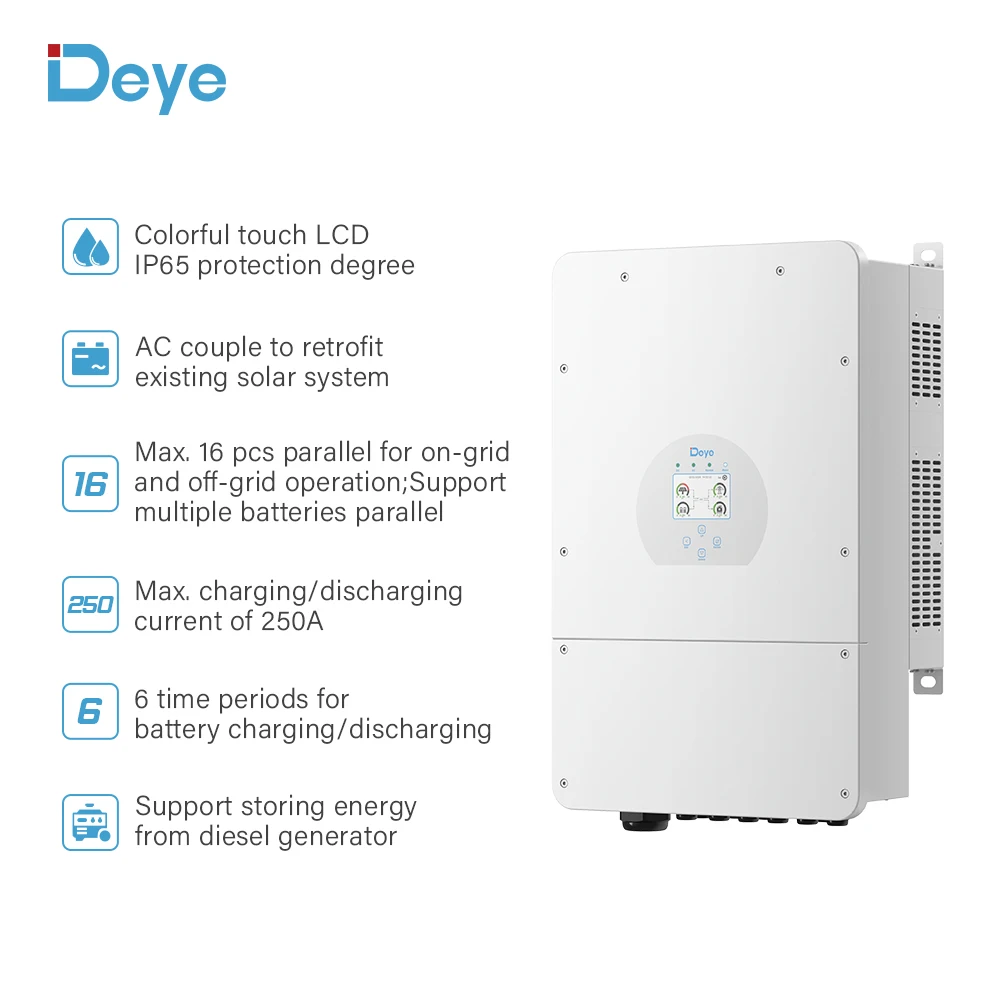

* Colorful touch LCD, IP65 protection degree; AC couple to retrofit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 250A; 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 250A; 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
Working Modes
Selling First
This Mode allows hybrid inverter to sell back anyexcess power produced by the solar panels to the grid.
Zero Export to Load
Hybrid inverter will only provide power to the backupload connected. The hybrid inverter will neither provide
Zero Export To CT
Hybrid inverter will not only provide power to the backup load connected
but also give power to the home load connected power to the home load nor sell power to grid.
but also give power to the home load connected power to the home load nor sell power to grid.
Model | SUN-7.6K-SG02LP1-EU-AM2 | SUN-8K-SG02LP1-EU-AM2 | SUN-10K-SG02LP1-EU-AM3 | SUN-12K-SG02LP1-EU-AM3 | ||||
Battery Input Data | ||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||
Battery Voltage Range(V) | 40-60 | |||||||
Max.Charging Current(A) | 190 | 190 | 220 | 250 | ||||
Max.Discharging Current(A) | 190 | 190 | 220 | 250 | ||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||
Number of battery input | 1 | |||||||
PV String Input Data | ||||||||
Max DC Input Power（W） | 11400 | 12000 | 15000 | 18000 | ||||
Max DC Input Voltage（V） | 500 | |||||||
Start-up Voltage（V） | 125 | |||||||
MPPT Voltage Range（V） | 150-425 | |||||||
Rated DC Input Voltage(V) | 370 | |||||||
Max. Operating PV Input Current (A) | 26+26 | 26+26+26 | ||||||
Max. Input Short-Circuit Current (A) | 44+44 | 44+44+44 | ||||||
No.of MPP Trackers/No.of String Per MPP Tracker | 2/2+2 | 3/2+2+2 | ||||||
AC Input/Output Data | ||||||||
Rated AC Input/Output Active Power（W） | 7600 | 8000 | 10000 | 12000 | ||||
Max AC Input/Output Apparent Power （VA） | 8360 | 8800 | 11000 | 13200 | ||||
Peak Power (off-grid)（W） | 2 times of rated power,10s | |||||||
Rated AC Input/Output Current（A） | 34.6/33.1 | 36.4/34.8 | 45.5/43.5 | 54.6/52.2 | ||||
Max AC Input/Output Current（A） | 34.6/33.1 | 36.4/34.8 | 45.5/43.5 | 54.6/52.2 | ||||
Max Continuous AC Passthrough (grid to load)（A） | 50 | 60 | ||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||
Rated Input/Output Voltage/Range (V) | 220/230 0.85Un-1.1Un | |||||||
Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||||||
Grid Connection Form | L+N+PE | |||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||||
DC Injection Current | <0.5%ln | |||||||
Efficiency | ||||||||
Max Efficiency | 97.6% | |||||||
Euro Efficiency | 96.5% | |||||||
MPPT Efficiency | ＞99% | |||||||
Equipment Protection | ||||||||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level | |||||||
Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||||||
Interface | ||||||||
Communication Interface | RS485/RS232/CAN | |||||||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||||
General Data | ||||||||
Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||||||
Permissible Ambient Humidity | 0~100% | |||||||
Permissible Altitude | 2000m | |||||||
Noise | ＜45 | |||||||
Ingress Protection(IP) Rating | IP 65 | |||||||
Inverter Topology | Non-Isolated | |||||||
Over Voltage Category | OVC II(DC),OVC IV(AC) | |||||||
Cabinet size（W*H*D）[mm] | 420×670×233（Excluding connectors and brackets） | |||||||
Weight[kg] | 35.6 | |||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||||
Type Of Cooling | Intelligent air cooling | |||||||
Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||
Details Images & Packing
Compatible Lithium Battery
* POWERPAL Y4 is a perfect wall-mounted solar energy lithium battery for residential home use.
*Built-in with High-Quality LiFePO4 large capacity cells.
*It ensures a long cycle life of the battery
system.
system.
*The designed BMS is verified to be
compatible with different brands of inverters,
hybrid on grid&off grid or off grid.
compatible with different brands of inverters,
hybrid on grid&off grid or off grid.
Sunpal Stackable Lifepo4 Battery
*Strong Expansibility,support 16 modules in parallel
*Long Life, 4 times long static and 8 consistencyscreening make the battery more durable
*Stronger Compatibility,Cover all mainstream protocols and match most mainstream inverters1C discharge
Deye LV Lifepo4 Battery
* High discharge power support up to 10C pulse discharge
* IP65 enclosure for outdoor installations
* Operating temperature ranges from -20°C to 55°C
* Intelligent BMS for active cell balancing and protection
* Auto-networking between battery modules
* Remote monitoring and firmware upgrades
* IP65 enclosure for outdoor installations
* Operating temperature ranges from -20°C to 55°C
* Intelligent BMS for active cell balancing and protection
* Auto-networking between battery modules
* Remote monitoring and firmware upgrades
Company Profile
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products, mainly in charge of solar panels, solar batteries, solar inverter and a complete solar system.
Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CE.ISO Laboratory Certificate by TUV SUD. Sunpal focused on research and manufacture of solar battery since the year 2005, we have exported our various kinds of battery to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CE.ISO Laboratory Certificate by TUV SUD. Sunpal focused on research and manufacture of solar battery since the year 2005, we have exported our various kinds of battery to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Project Case
Contact Us
