CE сопротивление тайфун сильное тепловыделение 30 кВт ветряная турбина низкое шумовое напряжение настройка
1 754 374,40 ₽
Ветряная мельница высокой эффективности 3 кВт 5 10 ветряная турбина с вертикальной осью 48 В 120 220 380
- Категория: >>>
- Поставщик: Qingdao HenryD Wind Power Equipment Co. Ltd.
Сохранить в закладки 1601222981986:
Описание и отзывы
Характеристики

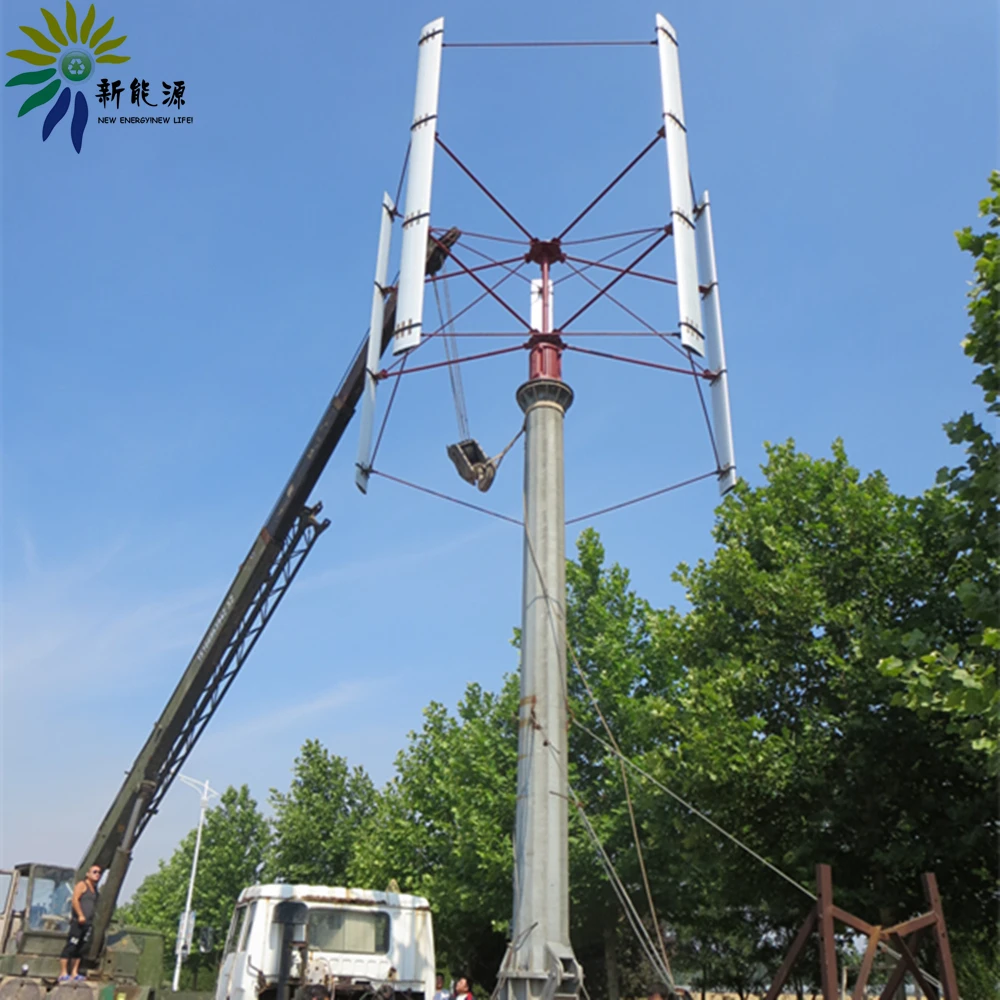

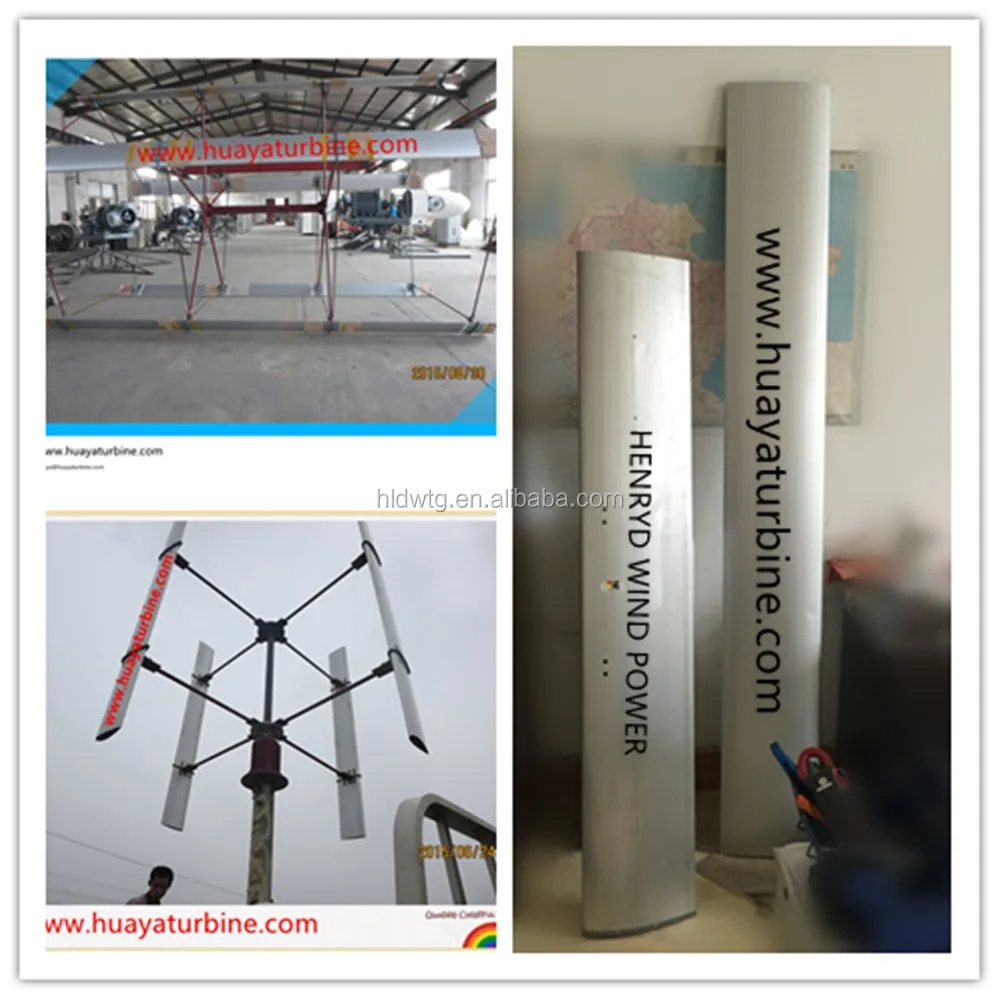

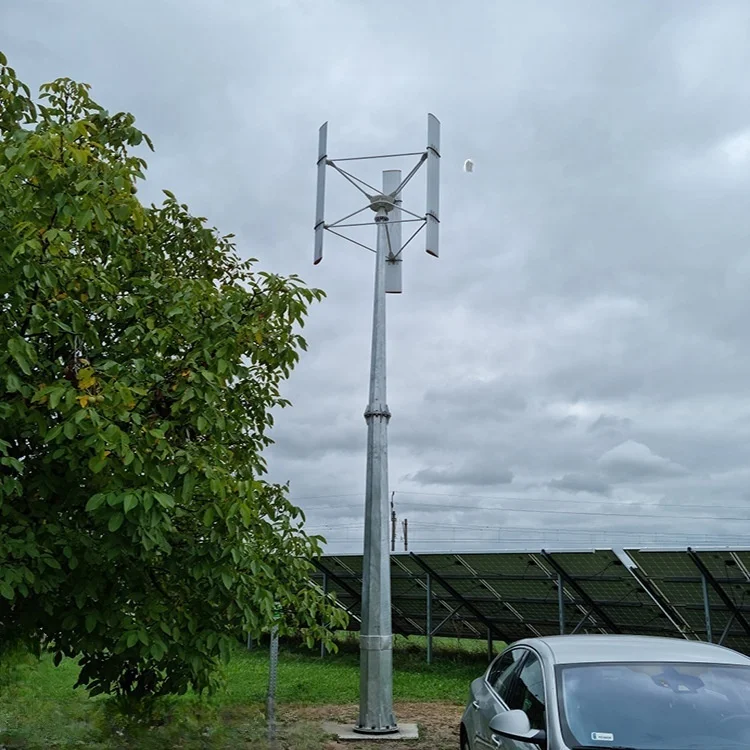

H type Vertical axis wind turbine: 1kw 2kw 3kw 5kw 10kw 20kw
| H Vertical Wind Turbine Data Sheet | ||||||
| Model | H-1000w | H-2000W | H-3000w | H-5000W | H-10KW | H-20KW |
| Rated power | 1000w | 2000w | 3000w | 5kw | 10kw | 20kw |
| Max power | 1200w | 2300w | 3500w | 6kw | 11kw | 22kw |
| Rated voltage | 48V/96V/220V | 96V/220V/380V | 96V/220V/380V | 96V/220V/380V | 96V/220V/380V | 96V/220V/380V |
| Blade height | 2800 mm | 3200 mm | 3600 mm | 4000 mm | 6000 mm | 8000 mm |
| Rotor Diameter | 1600 mm | 1800 mm | 2400 mm | 3000 mm | 3500 mm | 5000 mm |
| Start wind speed | 2 .5m/s | 2 .5m/s | 2 .8m/s | 3 m/s | 2 m/s | 2 m/s |
| Rated wind speed | 11 m/s | 11 m/s | 11 m/s | 11 m/s | 11 m/s | 11 m/s |
| Blade material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Blade color | White/Red/Green for choose,other colors need to be customized | |||||
| Blade quantity | 3 pcs | 5 pcs | ||||
| Safe wind speed | With in 45m/s | |||||
| Generator type | Three phase permanent magnet permanent magnet | |||||
| Brake mode | Electromagnet | |||||
| Generator protection grade | IP54 | |||||
| The wind adjustment | Automatically adjust to windward | |||||
| Working temperature | -40℃--80℃ | |||||
| Noise level | <50dBA | |||||
| Warranty | 2 years | |||||
| Design life | 20 years | |||||
| price | US$1,400 | US$1,700 | US$2,315 | US$4,100 | US$10,600 | US$19,300 |
| Remark | outer rotor pma | Maglev pma | ||||
Product Description
HENRYD designs and manufactures below products:
Fixed pitch wind turbine 300w-30kw, for low and normal average wind speed place; The cost is lower.
variable pitch wind turbine 2kw-50kw, for rich wind place. The cost is higher. But it is more safety and reliable.
1. Fixed pitch wind turbine 300w-30kw
Horizontal axis, fixed pitch wind turbine 300w-30kw (low cost, average wind speed lower than 7m/s place)
300w-30kw wind turbine off grid working system;
1kw,1.5kw, 2kw, 2.5kw, 3kw, 5kw, 10kw, 15kw, 20kw,25kw 30kw wind turbine on grid working system; On grid inverter input data, pls contact us to ask for it.
1kw,1.5kw, 2kw, 2.5kw, 3kw, 5kw, 10kw, 15kw, 20kw,25kw 30kw wind turbine on grid working system; On grid inverter input data, pls contact us to ask for it.
| Model | 500w | 1kw | 2kw | 3kw | 5kw | 10kw | 20K | 30kw |
| Rotor Diameter (m) | 2.5 | 2.8 | 3.2 | 4 | 6 | 10 | 12 | 12 |
| Blades | ||||||||
| Rated Wind Speed (m/s) | 8 | 9 | 9 | 10 | 10 | 10 | 10 | 12 |
| Startup Wind Speed | 2m/s | 3m/s | ||||||
| Working Wind Speed | 3~25m/s | 4~30 m/s | ||||||
| Survival Wind Speed | 40m/s | |||||||
| Rated Output Power | 500w | 1kw | 2kw | 3kw | 5kw | 10kw | 20kw | 30kw |
| Max Output Power | 800w | 1.5kw | 3kw | 4kw | 7.5kw | 15kw | 30kw | 35kw |
| Rated rotation (r/min) | 400 | 350 | 350 | 300 | 220 | 180 | 150 | 120 |
| Type Of Generator | ||||||||
| Speed regulation | Yaw +auto brake | Yaw + manual brake+ auto brake | YAW+ MANUAL BRAKE+ AUTO BRAKE+ AUTO FURLING | |||||
| Working voltage | 12V | 24V-240V | 24V- 380V | 48V-500V | 120V- 500V | 240V- 500V | ||
| Normal Tower height | 6m-15m | 8m-15m | 10m-30m | |||||
| WTG main body weight | 45kgs | 56kgs | 68kgs | 150kgs | 310kgs | 720kgs | 1300kgs | 1500kgs |
For lower average wind place, we provide the larger blades rotor diameter and solution for you.
300w 500w 1kw 1.5kw 2kw 2.5kw 3kw fixed pitch wind turbine
10kw 15kw 20kw 25kw 30kw fixed pitch wind turbine+auto furling
Aluminum generator + iron cast generator, 3 phase AC permanent magnet
FRB/CARBON/aluminum blades for wind turbine
2. Variable pitch wind turbine
Pitch controlled wind turbine 2kw-50kw (safety and reliable, high cost. In average wind speed higher than 7m/s rich wind place)
The wind turbine itself control the rotation speed. It makes the wind turbine working system more safety and reliable than normal fixed pitch wind turbine.
2kw 3kw 5kw 10kw is centrifugal pitch controlled wind turbine, with yaw system;
20kw, 30kw, 50kw 60kw is up wind, electric pitch controlled wind turbine, with wind measure equipment system.
Both off grid working system and on grid working system.
Both off grid working system and on grid working system.
| Item | FD3.8-2kw | FD4-3kw | FD5.4-5kw | FD10-10kw | FD12-20kw | FD14-30kw | FD23-50kw |
| Rotor diameter(m) | 3.8 | 4 | 5.4 | 10 | 12 | 14 | 23 |
| Blade material | FRB | FRB | FRB | ||||
| Blade quantity | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Rated wind speed (m/s) | 9 | 10 | 10 | 10 | 10 | 9 | 9 |
| Start-up wind speed(m/s) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Working wind speed(m/s) | 3.0-25 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 |
| Security wind speed(m/s) | 40 | 40 | 45 | 45 | 50 | 50 | 50 |
| Starting torque(n/m) | 1.4 | 2.5 | 4.5 | 7.5 | 14 | 20 | 110 |
| Speed adjusting mode | Centrifugal Pitch Control | Active Pitch Control, Active Yawing | |||||
| Stop method | Electromagnetic + Manual brake | Feathering,Yawing, Electromagnetic | |||||
| Generator type | Permanent Magnet Three phase AC generator | ||||||
| Rated power | 2KW | 3KW | 5KW | 10KW | 20KW | 30KW | 50KW |
| Maximum power | 3KW | 4KW | 6KW | 12KW | 25KW | 35KW | 60KW |
| Rated RPM(r/min) | 380 | 300 | 240 | 180 | 150 | 140 | 60 |
| Working voltage | DC24V-500V | DC48V-500V | DC48V-500V | DC120V- 500V | DC240V-500V | DC500V | DC700V |
| Wind turbine weight(kg) | 130 | 160 | 260 | 1000 | 2500 | 2800 | 6580 |
2kw 3kw 5kw 10kw centrifugal pitch wind turbine
Electric varialbe pitch wind turbine 20kw 30kw 50kw

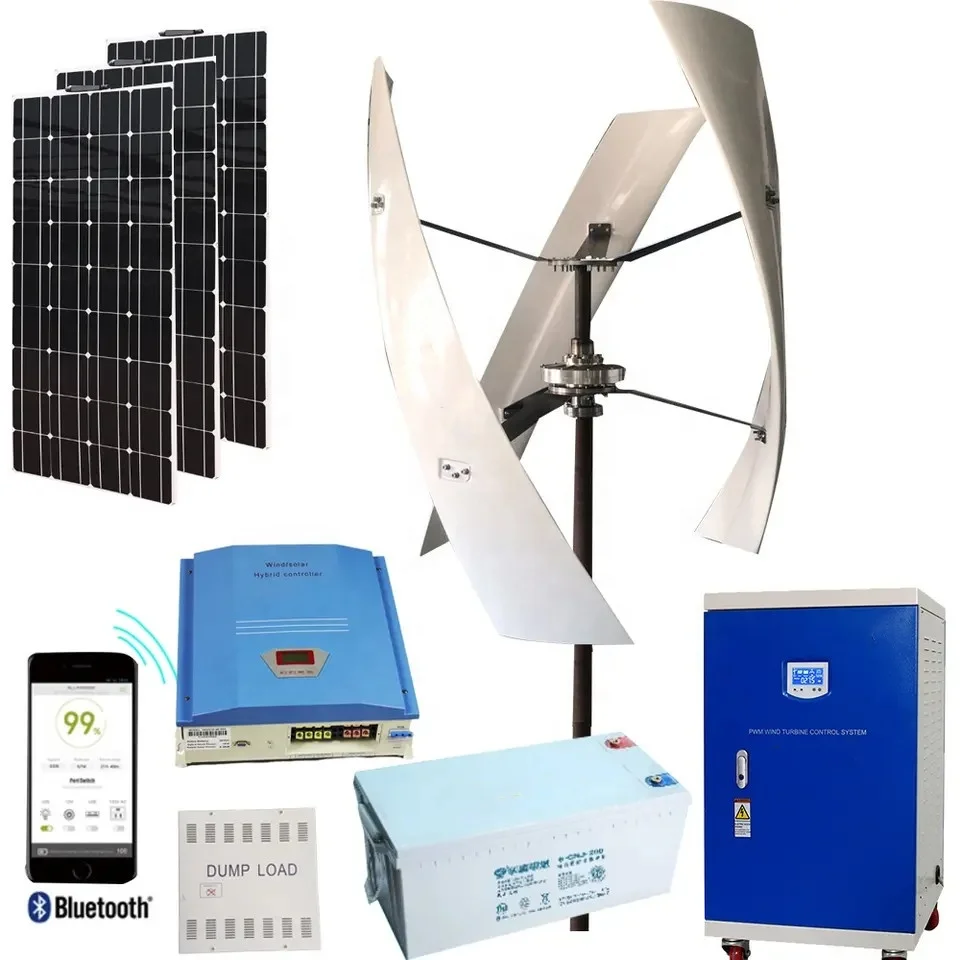

3. wind solar power system
The system can be designed according to user actual daily/monthly power consumption, local average wind speed, monthly sunshine day.
solar panel is mono solar: 50w, 100w, 200w, 250w or 300w per piece.
| Parts Name | Model | 1K | 2kw | 3kw |
| Wind generator | Wind power Rated Power | 600W | 1000W | 2000W |
| Max Power | 900W | 1500W | 3000W | |
| Blades Rotor Diameter | 2.5m ( 8.2 ft.) | 2.8m ( 9.18 ft.) | 3.2m(10.50ft) | |
| Blade Quantity &Material | 3 Pcs / FRP | 3 Pcs / FRP | 3 Pcs / FRP | |
| Rated Rotate Speed | 500(r/min) | 400(r/min) | 350(r/min) | |
| Start Torque | 0.34(N.M) | 0.4(N.M) | 0.8(N.M) | |
| Generator Type | PMG AC Direct Drive | PMG AC Direct Drive | PMG AC Direct Drive | |
| Generator Material | Aluminium body+copper wire+Nd-Fe-B | Aluminium body+Copper wire+Nd-Fe-B | Aluminium body+copper wire+Nd-Fe-B | |
| Output Voltage | 24V | 48V | 48V | |
| Start Wind Speed | 3 m/s ( 6.72 mph) | 3 m/s ( 6.72 mph) | 3 m/s ( 6.72 mph) | |
| Rated Wind Speed | 10m/s ( 17.92mph) | 8m/s ( 17.92mph) | 8m/s ( 17.92mph) | |
| Working Wind Speed | 3-25m/s (6.72-56 mph) | 3-25m/s (6.72-56 mph) | 3-25m/s (6.72-56 mph) | |
| MAX.Design Wind Speed | 40m/s (89.6mph) | 40m/s (89.6mph) | 40m/s (89.6mph) | |
| Top Weight | 45kg | 56kg | 68kg | |
| Protection method | Tail vane Autofurling +PMW | Tail vane Autofurling+ PMW | Tail vane Autofurling +PMW | |
| Wind Tower | Free folding tower | 6m | 6m | 6m |
| Tower Thickness | 4mm | 4mm | 4mm | |
| Tower top Diameter | 60mm | 76mm | 89mm | |
| Tower bottom Diameter | 180mm | 196mm | 250mm | |
| Solar panels | Total PV power | 400W | 1kW | 1kW |
| Each panels power | 200W | 250W | 250W | |
| Solar panels quantity | 2pcs | 4pcs | 4pcs | |
| Pv Type | Mono | Mono | Mono | |
| Connect method | 2pcs In parallel | 2pcs in series then 2groups In parallel | 2pcs in series then 2groups In parallel | |
| Effeciency | 12.45% | 12.45% | 12.45% | |
| Controller | Rated wind input power | 500W | 1kW | 2kW |
| Rated solar input power | 500W | 1kW | 1kW | |
| Battery voltage | 24VDC | 48VDC | 48VDC | |
| Invertor | Rated Output Capacity | 1KVA | 2KVA | 3KVA |
| Rated Battery Voltage | 24Vdc | 48Vdc | 48Vdc | |
| Rated Output Voltage | 110/120/220/230/240 VAC | 110/120/220/230/240 VAC | 110/120/220/230/240 VAC | |
| Output Frequency | 50/60 Hz±0.05Hz | 50/60 Hz±0.05Hz | 50/60 Hz±0.05Hz | |
| Invertor efficiency | Max 90% | Max 90% | Max 90% | |
| Output wave form | Pure sine wave | Pure sine wave | Pure sine wave | |
| Batteries | GEL Strorage battery | 12V150AH(4pcs) | 12V200AH(4pcs) | 12V200AH(4pcs) |
POWER | 500W | 800W | 1.5KW | 2.5KW | 4KW | 5KW | 8KW |
WIND TURBINE | 300W | 500W | 1KW | 2KW | 3KW | 3KW | 5KW |
SOLAR PANEL | 200W | 300W | 500W | 500W | 1KW | 2KW | 3KW |
WIND/PV HYBRID CONROLLER | 500W | 800W | 1.5KW | 2.5KW | 4KW | 5KW | 8KW |
INVERTER | 800VA | 1KVA | 2KVA | 3KVA | 5KVA | 8KVA | 10KVA |
BATTERIES | 12V 200AH 2PCS | 12V 200AH 4PCS | 12V 200AH 4PCS | 12V 200AH 8PCS | 12V 200AH 12PCS | 12V 150AH 16PCS | 12V 200AH 20PCS |
300w wind turbine + 200w solar panel;
500w wind turbine + 300w solar panel
500w wind turbine + 500w solar panel
1kw wind turbine + 500w solar panel/1kw solar panel
1.5kw wind turbine + 500w solar panel/1kw solar panel/1.5kw solar panel
2kw wind turbine + 500w solar panel/1kw solar panel/2kw solar panel
2.5kw wind turbine + 500w solar panel/1kw solar panel/1,5kw solar panel/2kw solar panel/2.5kw solar panel/3kw solar panel
3kw wind turbine + 1kw solar panel/2kw solar panel/3kw solar panel/5kw solar panel
5kw wind turbine + 2kw solar panel/3kw solar panel/4kw solar panel/5kw solar panel/10kw solar panel
10kw wind turbine + 2kw, 3kw, 5kw, 10kw 20kw solar panel
15kw wind turbine + 5kw, 10kw, 15kw solar panel
20kw wind turbine + 5kw 10kw 15kw 20kw solar panel
Low average wind speed place, we will provide the system design plan accordingly.
4. Tower for wind turbine
Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
5. Working system for wind turbine
Off grid system:
Wind turbine generator with tower/mono solar panel + hybrid controller with dump load + battery group + inverter
(grid power, diesel power as backup power for whole system)
On grid system:
Wind turbine generator with tower/mono solar panel + hybrid PWM on grid controller with dump load + grid tie inverter
6. Matched controller
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phase/ 3 phase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
7. Matched grid tie inverter 1.5k-15k, pure sine wave inverter single phase/3 phrase
Inverter output voltage, frequency can be manufactured according to different countries request.
9. Main market
US,UK,ITALY...
10. Manufacture capacity:
1-3 sets: 15-20 working days after payment
11. Testing
Adjust blades rotor balance;
Generator plateform testing;
Inside motor testing;
Testing controller variable pitch control, remote control... function
Packaging & Shipping
Wind turbine main body, blades, pma, controller, inverter: plywood case
Wind Turbine main body packed in plywood case;
Wind turbine controller with dump load packed in plywood case or carton;
Tower is soft packages;
Inverter is plywood case.
Delivery by sea, by air
FOB/C&F, CIF
Our Services
Provide professional technical support;
Provide system design;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation design support;
Completely system provider and designer;
Support LC at sight, paypal payment, TT payment;
Company Information
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
Thanks!
CE,CNACL, truck testing for variable pitch wind turbine/vertical axis windturbine.
FAQ
- 1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind
condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different
user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know
Chinese small wind turbine market well and can provide user more useful advise.
Похожие товары
5 кВт 10 горизонтальный ветровой турбины магнитный генератор цена для дома с переменным шагом лопастей
436 400,64 ₽
5 кВт с регулируемым шагом высокая Выходная горизонтальная ось ветряная турбина магнитный генератор эффективность
3 837 584,36 ₽
Бытовая ветроэнергетика 5 кВт ветрогенератор для фермы 5000 Вт высокая эффективность низкая скорость 48 вольт
Горизонтальный генератор ветровой турбины mppt контроллер и система
32 784,88 ₽
Ветряная Турбина на крыше 1 кВт 48 В и солнечная гибридная система вертикальная ветряная турбина
39 363,78 ₽ - 43 749,72 ₽
1 кВт 5 низкий Rpm 150RPM крутящий момент вес Осевой поток Coreless Постоянный Магнит ветрогенератор
120 613,24 ₽
Вертикальная ветряная турбина с сертификатом Ce
109 538,76 ₽ - 328 835,56 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
