Sunark, оптовая цена, солнечный инвертор с разделенной фазой, 10 кВт, 120 В переменного тока 240 В, гибридные Mppt Pv инверторы
190 090,92 ₽ - 227 893,09 ₽
Sunark 10Kw США версия гибридный солнечный инвертор 120 В 240 преобразователи с разделенной фазой для энергосистемы
- Категория: >>>
- Поставщик: Sunrack Solar Co. Ltd.
Сохранить в закладки 1601224477513:
Описание и отзывы
Характеристики
Product Description
Input Data (DC) | Sunteny S10000H-48SP |
Max. recommended PV power (for module STC) | 15000W |
Max. DC voltage | 525V |
Start voltage | 150V |
MPPT voltage range | 150V~450V/370V |
No.of MPP trackers | 3 |
No.of PV string sper MPP tracker | 2 |
Max.input current per MPP tracker | 22A |
Max.short-circuit current per MPP tracker | 27A |
Output Data (AC) | |
AC nominal power | 10000W |
Max. AC apparent power | 10000VA |
Nominal AC voltage ( range* ) | 120V/240V Split(180Vac~280Vac) |
AC grid frequency ( range* ) | 50Hz/60Hz |
Max. output current | 50A |
Adjustable power factor | 0.8leading...0.8lagging |
THD | <3% |
AC grid connection type | Split phase |
Battery Data (DC) | |
Battery voltage range | 40~60V |
Max charging and discharging current | 200A |
Continuous charging and discharging power | 10000W |
Type of battery | Lithium/Lead-acid |
Backup Power(AC) | |
AC nominal output power | 10000W |
Nominal AC output voltage | 120V/240V Split |
Nominal AC output frequency | 50/60Hz |
Switch time | <10ms |
Efficiency | |
Max. efficiency | 98.10% |
European efficiency | 97.60% |
MPPT efficiency | 99.9% |
Protection Devices | |
PV Switch | Yes |
AC over current protection | Yes |
AC over voltage protection | Yes |
Ground fault monitoring | Yes |
Grid monitoring | Yes |
Anti-islanding protection | Yes |
Residual-current monitoring unit | Yes |
Insulation resistance monitoring | Yes |
AFCI Protection | Yes |
Surge protection | DC Type II / AC Type II |
General Data | |
Dimensions (W / H/ D) | 830*440*255mm |
Weight | 36kg |
Operating temperature range | -25°C ~ +60°C (-13 ~ +140°F)with derating above 45°C/113°F |
Noise emission (typical) | ≤30 dB(A) |
Self-Consumption < | <60W |
Topology | transformer-base |
Cooling | Smart cooling |
Protection degree | IP65/NEMA4 |
Relative humidity | 0~100% |
Altitude | 2000m |
DC connection | Quick Connector |
Display | LCD |
interface: RS485/CAN/USB | Yes |
Mointor: RF / WiFi / GPRS | Opt |
Warranty | 5 Years |
Low-Frequency Inverter Advantages
Low-frequency inverters have the advantage over high-frequency inverters in two fields: peak power capacity, and reliability.
Low-frequency inverters are designed to deal with higher power spikes for longer periods of time than high-frequency inverters.
Power spikes can occur for a number of reasons (e.g. devices like power tools, pumps, vacuum cleaners and other appliances with electric motors require high starting power); when inverters experience such spikes, they can endure the increased power for a short period of time before shutting down in order to prevent any damage being done to them.
Low-frequency inverters have much greater peak power capacity to handle large loads with power spikes than high-frequency inverters. In fact, low frequency inverters can operate at the peak power level which is up to 200% of their nominal power level for several seconds, while high-frequency inverters can operate at 150% power level for a small fraction of a second.
Low-frequency inverters are designed to deal with higher power spikes for longer periods of time than high-frequency inverters.
Power spikes can occur for a number of reasons (e.g. devices like power tools, pumps, vacuum cleaners and other appliances with electric motors require high starting power); when inverters experience such spikes, they can endure the increased power for a short period of time before shutting down in order to prevent any damage being done to them.
Low-frequency inverters have much greater peak power capacity to handle large loads with power spikes than high-frequency inverters. In fact, low frequency inverters can operate at the peak power level which is up to 200% of their nominal power level for several seconds, while high-frequency inverters can operate at 150% power level for a small fraction of a second.

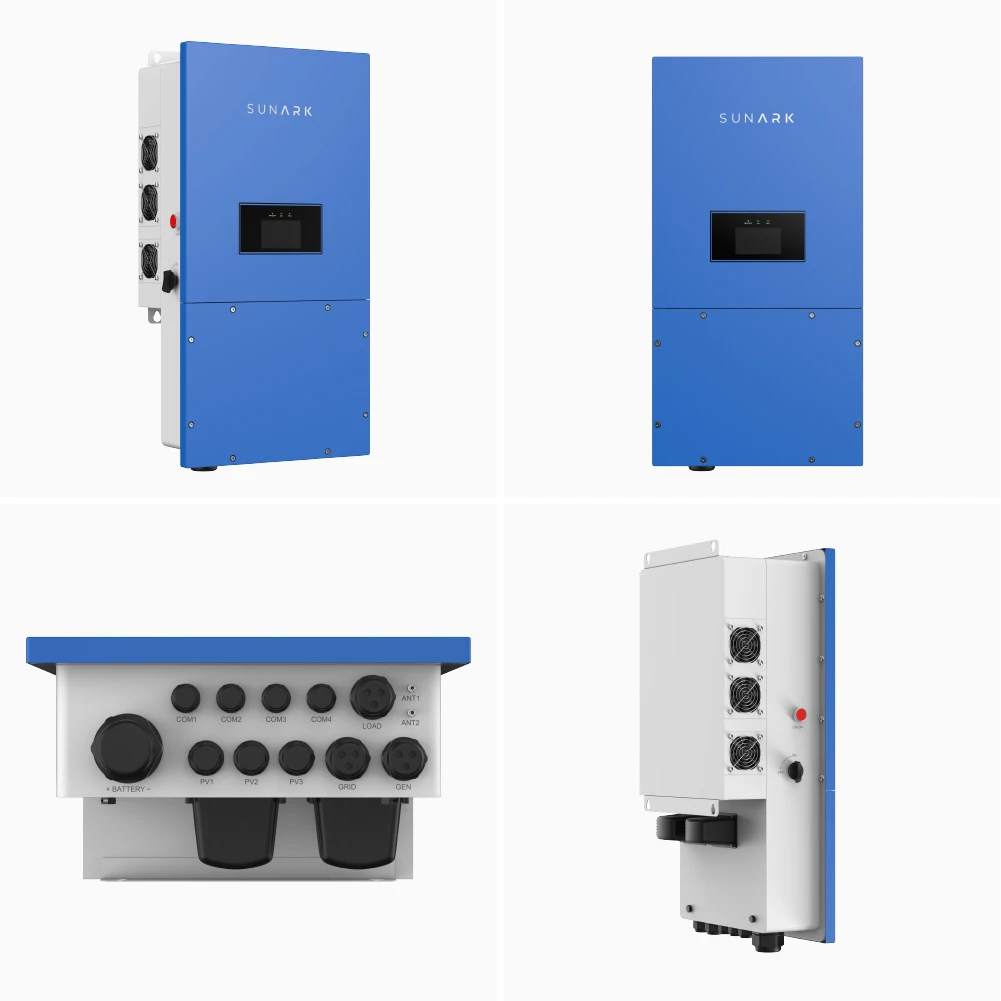

Details Images
Applications

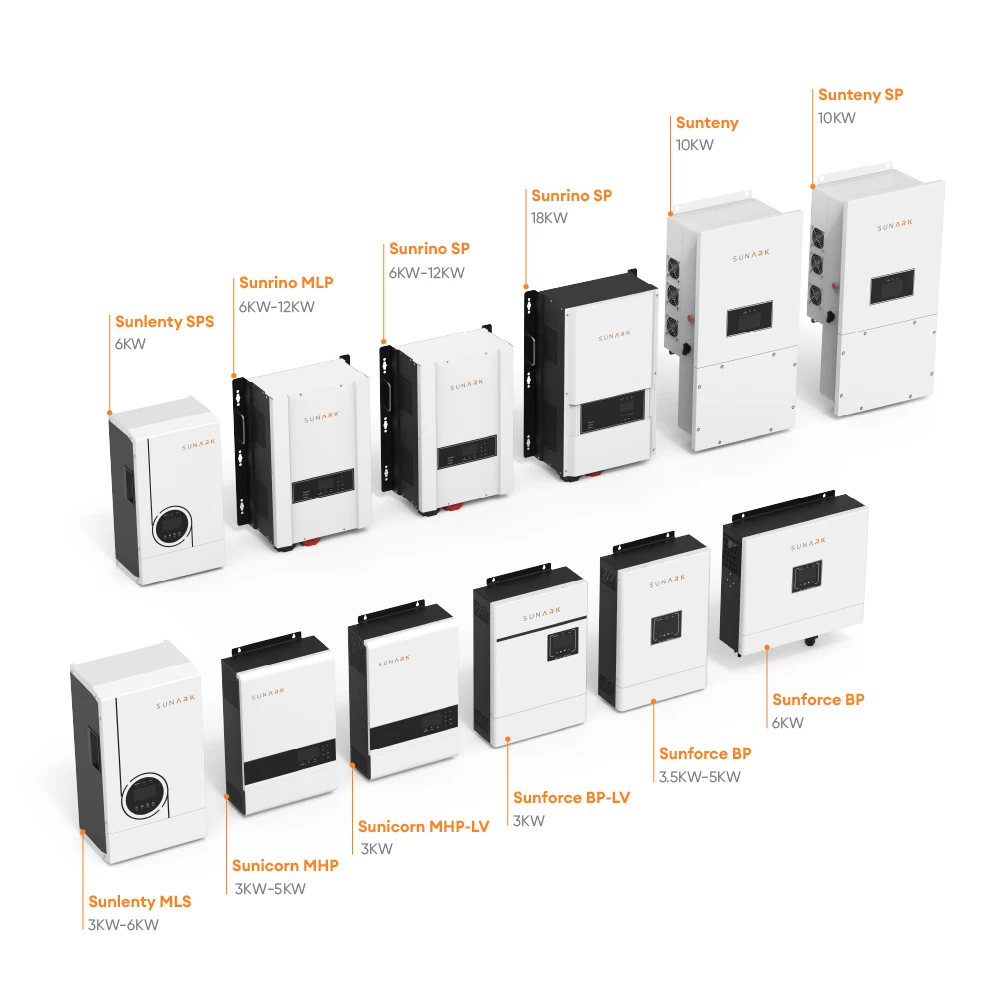

Products Series
Sunrino MLP 6KW-12KW
Output Power: 6KW-12KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunteny SP 10KW
Output Power: 10KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunicorn MHP-LV 3KW
Output Power: 3KW US Single Phase
Output Voltage: 100/110/120VAC
Battery Voltage: 48VDC
Output Voltage: 100/110/120VAC
Battery Voltage: 48VDC
Sunforce BP 3.5-5KW
Output Power: 3.5KW-5KW EU Single Phase
Output Voltage: 220/230/240VAC
Battery Voltage: 48VDC
Sunlenty MLS 3-6KW
Output Power: 3KW-6KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunicorn MHP-C 5KW
Output Power: 5KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunrino SP 18KW
Output Power: 18KW Split Phase Output Voltage: 120/240VAC Battery Voltage: 48VDC
Sunforce BP-LV 3KW
Output Power: 3KW US Single Phase Output Voltage: 100/110/120VAC Battery Voltage: 48VDC
Sunicorn MHP 3KW-5KW
Output Power: 3KW-5KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 24/48VDC
Our Factory
SunArk factory is located in Shenzhen City, China. With more than 30,000 m2 area, our factory is equipped with advanced manufacturing facilities and adheres to the highest quality standards, ensuring the production of reliable and high-performance inverters.
At our inverter factory, we prioritize innovation and technological advancements. We employ a team of skilled engineers and technicians who are dedicated to developing and improving our inverter products. We closely monitor market trends and customer feedback to ensure that our inverters meet the ever-changing demands of the industry.
At our inverter factory, we prioritize innovation and technological advancements. We employ a team of skilled engineers and technicians who are dedicated to developing and improving our inverter products. We closely monitor market trends and customer feedback to ensure that our inverters meet the ever-changing demands of the industry.

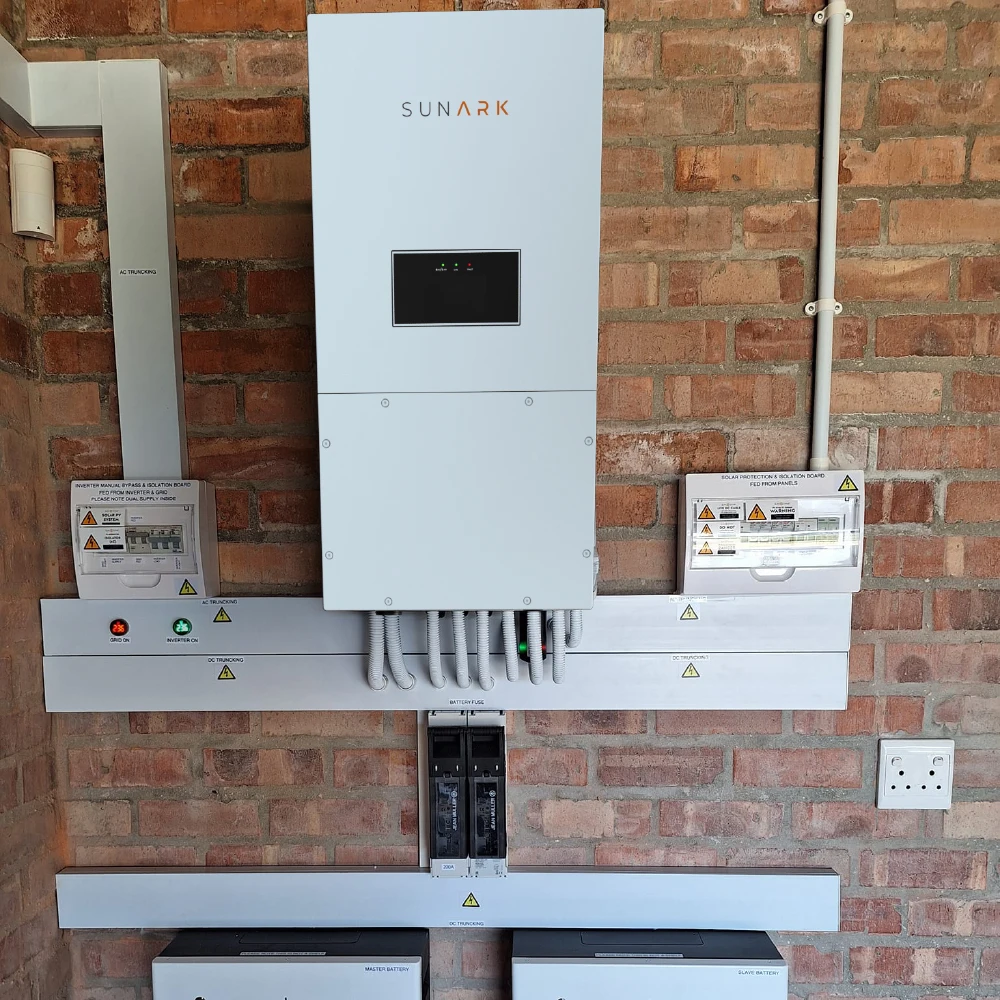

Project Case
Company Profile
Our Factory
SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on.SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
