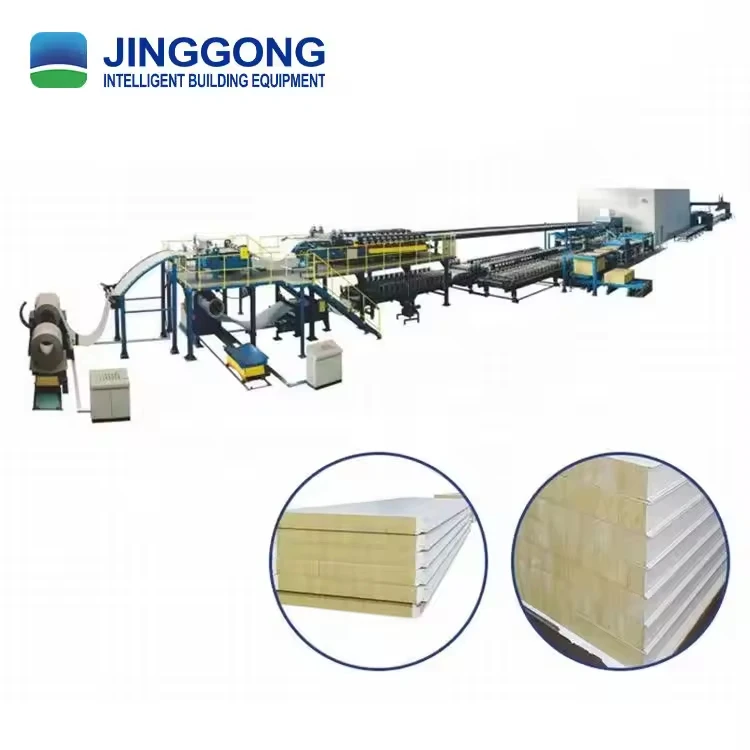

Производственная линия система подачи панелей из минеральной ваты для продажи
1 096 484,00 ₽
Автоматическое оборудование для производства стеновых панелей на крыше
- Категория: >>>
- Поставщик: Zhejiang Jinggong Integration Technology Co. Ltd
Сохранить в закладки 1601225988247:
Описание и отзывы
Характеристики
Product Paramenters
Item | Parameter | ||||||
Suitable Raw Material | Type | Color Steel Sheet/Stainless Steel Sheet/Aluminum Sheet | |||||
Tickness | 0.4-0.8mm(Steel Sheet)、0.35-0.6mm（Stainless Steel Sheet) | ||||||
Width | ≤1250 mm | ||||||
Weight | Maximum 6T/10T | ||||||
Core Material | PU/PIR/Rock wool/Glass Cotton | ||||||
Product Specification | Panel Length(mm) | 2000-18000mm | |||||
Panel Width(mm) | 600-1200mm | ||||||
Panel Thickness(mm) | 30-200mm/250mm Cold Storage Panel | ||||||
Procuct Speed(m/min) | 3-7 Adjustable | ||||||
Valid Length Of Double Belt Conveyor (mm) | 16000-40000mm | ||||||
Work Pressure On Pouring Foam(Bar) | 150-200 Bar | ||||||
Total Power(KW) | About 200 KW(Not Including The Heating Power | ||||||
Total Size(Length*Width*Height)(m） | (100-200)m*(16-30)m*6m | ||||||

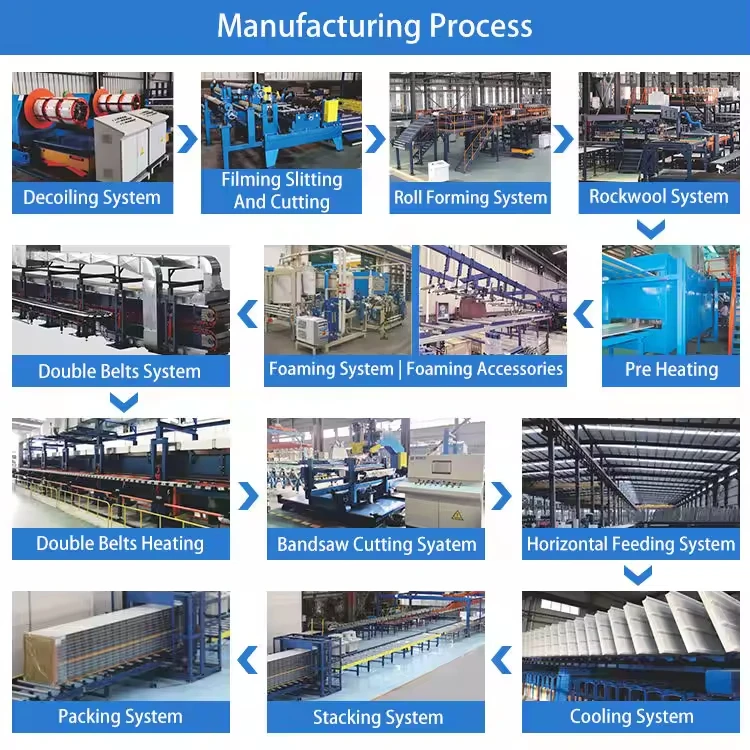

Details Images
Decoiling system
Filming device
Slitting device
Roll forming system
PU foaming system
Double belts system
Bandsaw cutting system
Stacking system
Cooling system
Packing system

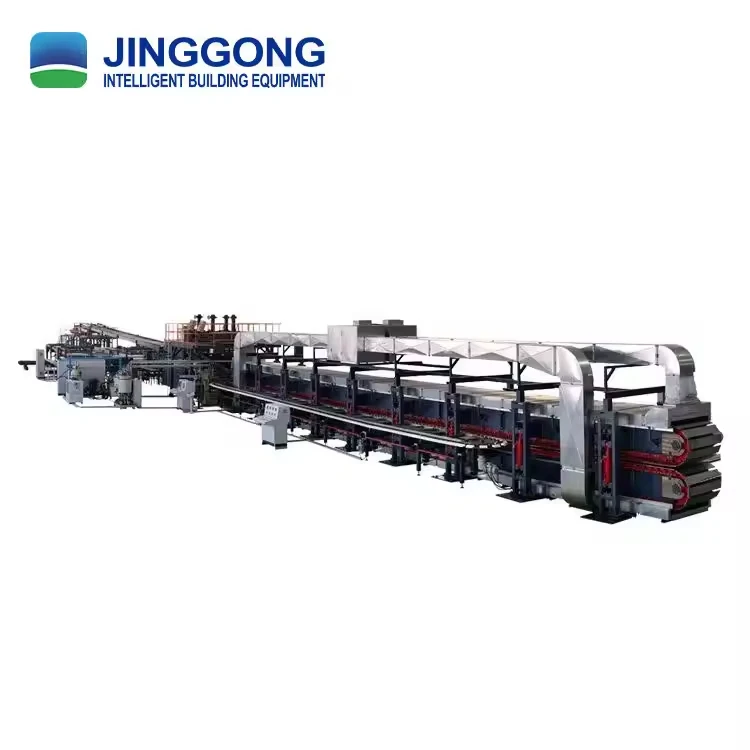

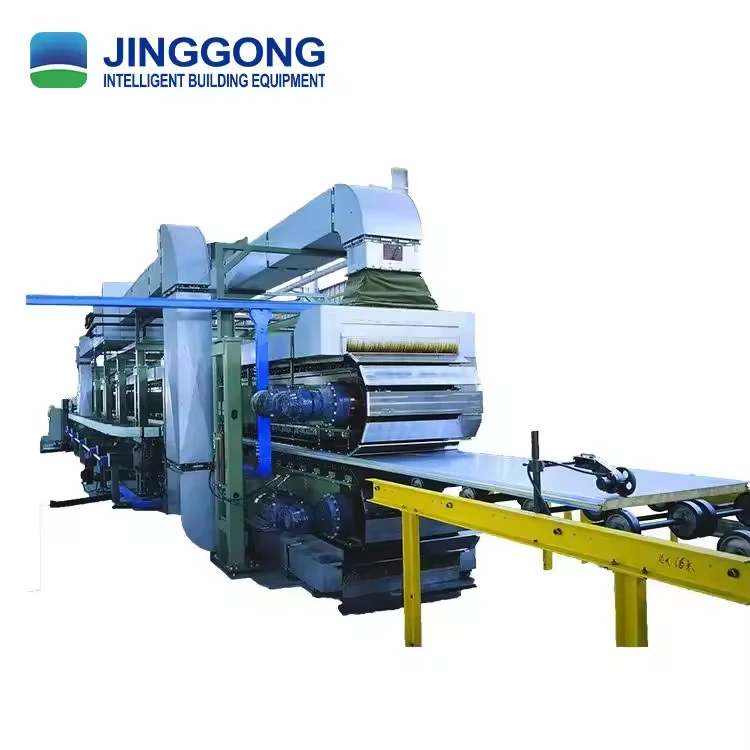

JF 100 type PU sandwich panel line is an automatic production line, which is consisting of decoiler, film coating, pre-cutting equipment,roll forming machine system, preheating, foaming, solidification, band saw cuttinig, cooling, stacking and packing. The whole line integtates technologies of mechanics, chemistry, eletrical control, hydraulic pressure pneumatic and temperature control.
Features
1.Beautiful and applicable,multiple functions,such as thermal isolation,sound isolation and flame retardence.
2.Using heated air recycle oven,strictly control the temperature of PU foaming and solidification in suitable range.
3.Using high pressure foaming system,precise measurement,high stabilith,little dust in locale,protect the worker's health.
4.Using 141B Or C5 as foaming agent.Insted of carbon chloral-fluoride,make the PU foaming treatment treatment become environmental
production crafe.
5.Special double belt cojveyor,flat surface of sandwich panel,even thinckness,anti-patter n.
6.Operation system controlled by PLC computer,personal design and simple operation.
1.Beautiful and applicable,multiple functions,such as thermal isolation,sound isolation and flame retardence.
2.Using heated air recycle oven,strictly control the temperature of PU foaming and solidification in suitable range.
3.Using high pressure foaming system,precise measurement,high stabilith,little dust in locale,protect the worker's health.
4.Using 141B Or C5 as foaming agent.Insted of carbon chloral-fluoride,make the PU foaming treatment treatment become environmental
production crafe.
5.Special double belt cojveyor,flat surface of sandwich panel,even thinckness,anti-patter n.
6.Operation system controlled by PLC computer,personal design and simple operation.
Recommend Products
Company Profile
FAQ
1、Does one machine can only produce one size?
Not exactly, it depends on the machine.
2、Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the
machine if needed.
3、How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4、What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the
new parts replace the broken parts, but you need pay the express cost by yourself. if after
warranty period, we can through negotiation for solving the problems, and we supply the technical
support for the whole life of the equipment.
5、Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6、You are trade company or factory?
We are Manufacturer.
7、Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and
money on developing how to make machines much more automatic, accurate and high quality.
We can make sure that our machine could use more than 20 years without any problem.
8、Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9、Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.
We are professional sheet metal forming machine designer and manufacturer.
Not exactly, it depends on the machine.
2、Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the
machine if needed.
3、How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4、What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the
new parts replace the broken parts, but you need pay the express cost by yourself. if after
warranty period, we can through negotiation for solving the problems, and we supply the technical
support for the whole life of the equipment.
5、Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6、You are trade company or factory?
We are Manufacturer.
7、Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and
money on developing how to make machines much more automatic, accurate and high quality.
We can make sure that our machine could use more than 20 years without any problem.
8、Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9、Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.
We are professional sheet metal forming machine designer and manufacturer.
Contact us
Похожие товары
Оцинкованная металлическая рулонная краска с двойным покрытием
109 648,40 ₽
Высокое качество непрерывной сэндвич панели производственной линии ролл формируя машину
6 030 662,00 ₽ - 6 085 486,20 ₽
Длительный срок службы пряжки делая машину с ручной подающей стойкой
734 644,28 ₽
Автоматическая вакуумная формовочная машина из полистирола декоративная
15 799 457,26 ₽

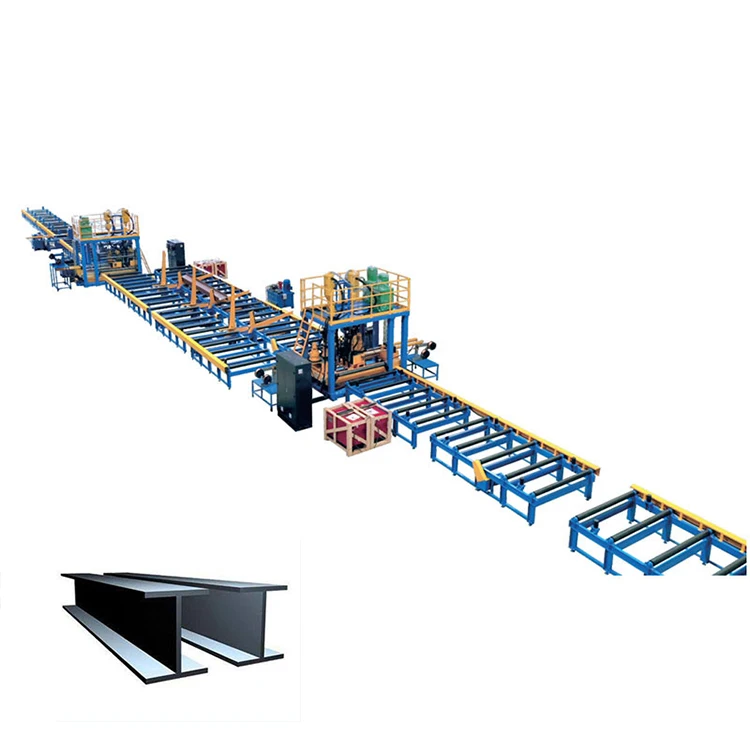

Полуавтоматическая сборочная машина горизонтального типа производства производственная линия H луча
8 771 872,00 ₽
Гибочная машина для сэндвич-плит высокого давления гидравлическая резки
4 166 639,20 ₽

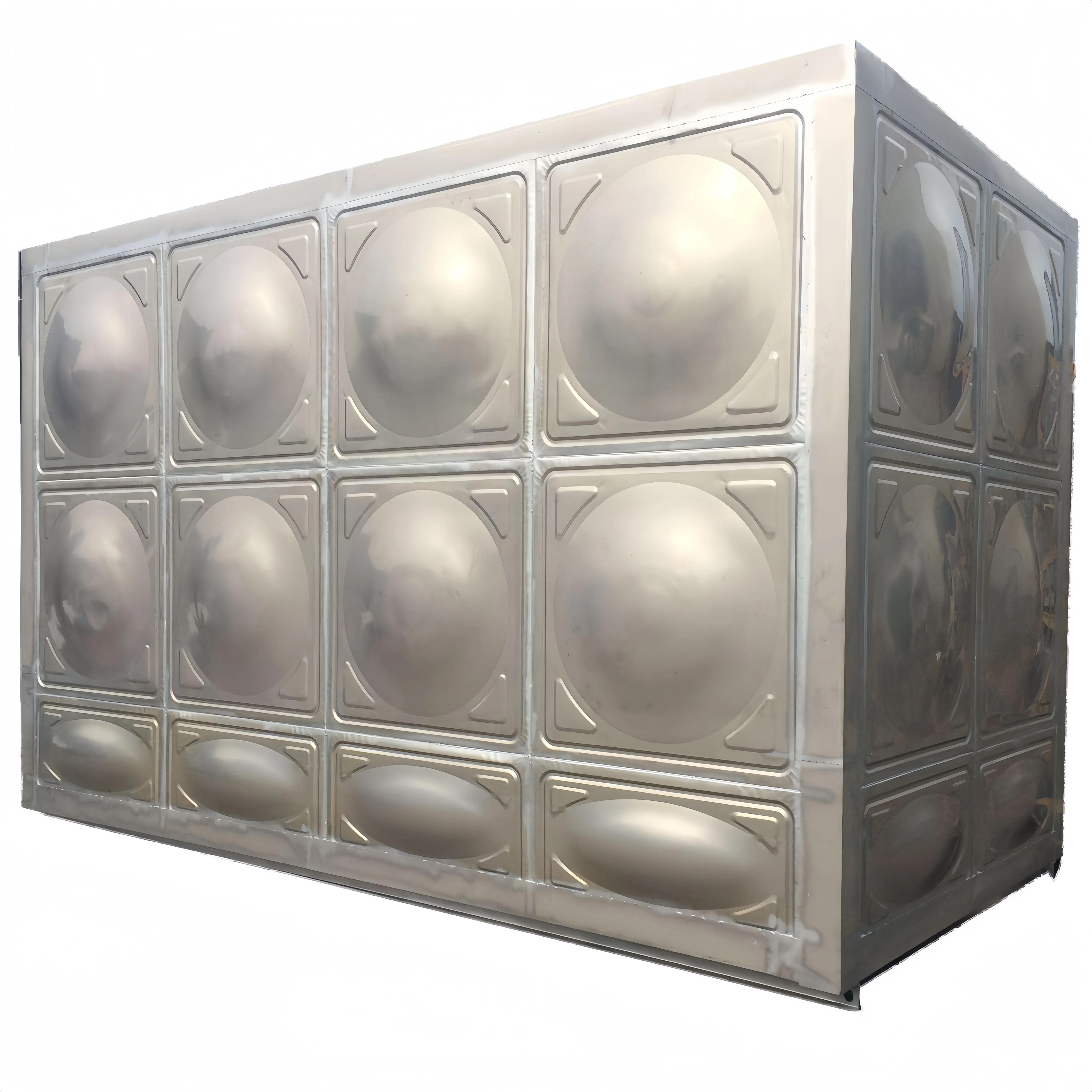

Квадратные изолированные резервуары для воды из нержавеющей стали ежедневного и заводского использования
