1500*3000 мм рабочая зона волоконно лазерная резка с резкой трубы для технологического металла алюминия стали

Сохранить в закладки 1601227246783:


Цена:1 969 081,20 ₽ - 2 187 868,00 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description


3015F High speed 3000*1500 2060F 2040F steel sheet and tube best CNC fiber laser cutter price for sale 3000w 4000w 6000w


The 4 axis Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.

It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.

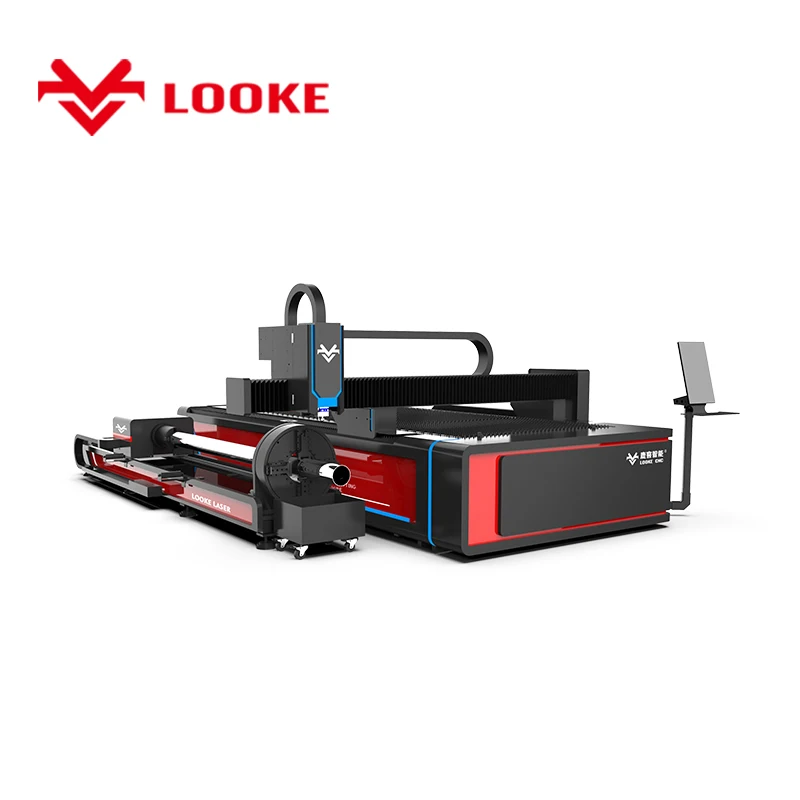

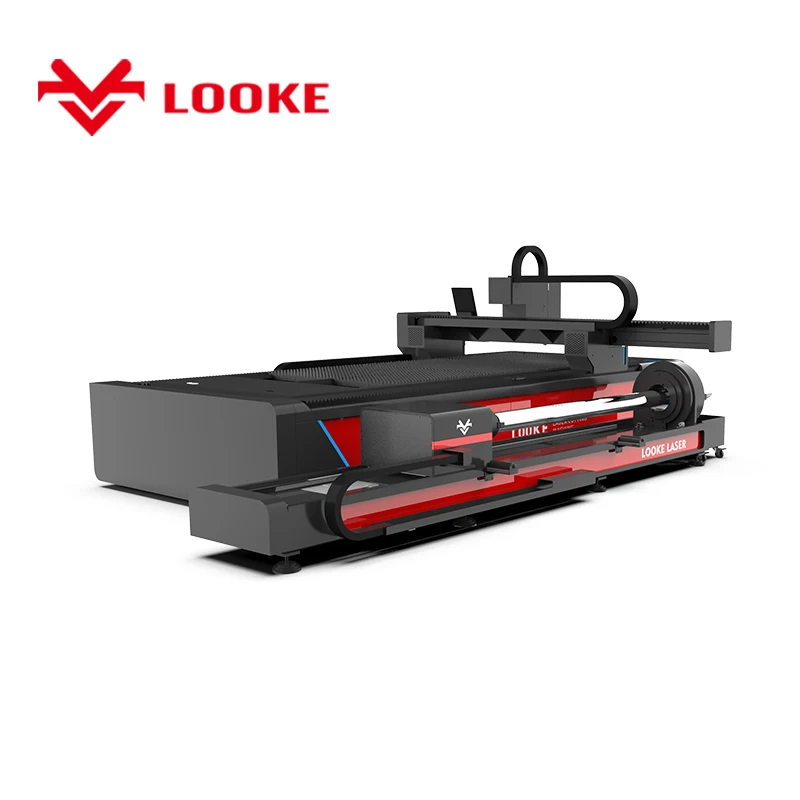

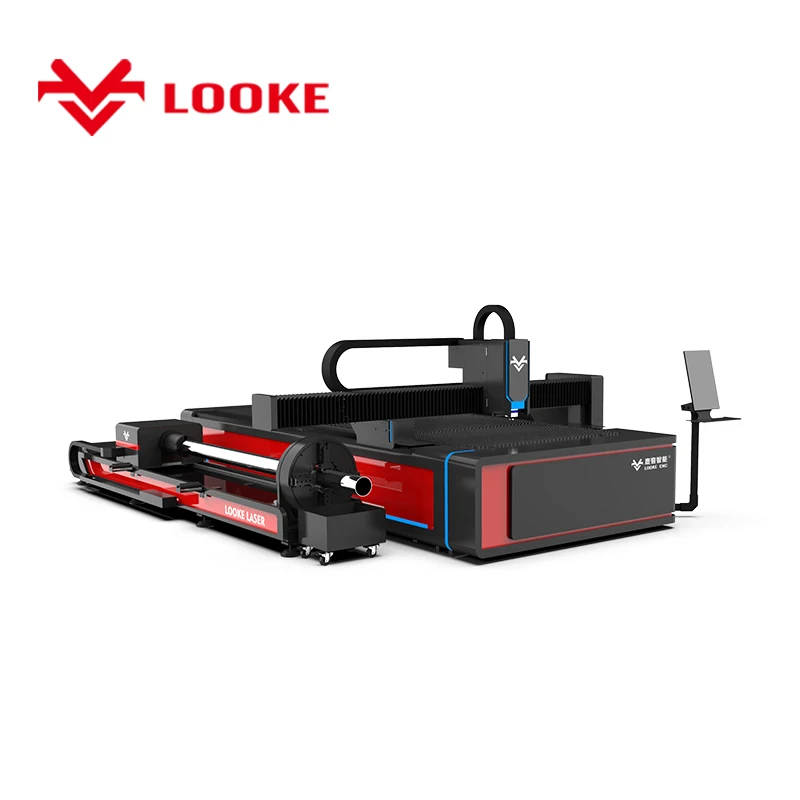

This model with the rotary device on the side of the machine, which can be cut the steel tube, pipe.










LOOKE-L3015 fiber laser metal cutting machine outline dimension wire frame diagram
1. This picture is only used for customer to plan the venue and display the machine.
2. When the machine dimension changed, will let you know.
3. This picture provided by Jinan LOOKE Intelligent Equipment Co.,LTD


Specification


Model
LOOKE-L3015R 4 Axis Fiber laser cutting machine
Working area
1500*3000mm working area
Laser source
1000/1500/2000/3000W Raycus/ MAX fiber laser source
Laser cutting head
Raytools laser head
Bed structure
High rigidity welded steel framework
Table surface
Blade table
Guide rail
Taiwan Hiwin linear square guide rail 25mm
Transmission
X,Y with helical gear rack ,Z with TBI ball screw
Motors and drivers
FUJI servo motor & driver, X,Y axis 750w, Z axis 400w
Control system
FSCUT 3000S control system
Software
TubePro CypCut software
Chiller
S&A, Dual Temperature Control
Tube size
Length: 6m
Diameter: 200/350mm
Reducer
Japan imported SHIMPO reducer
Tool sensor
Automatic tool sensor
Lubrication system
Electric automatic lubrication system
Pressure valves
High-pressure(N2,air):2.5MPa(Shuoda)
Low-pressure(O2):1MPa(SMC)
Electronic Proportional Valve
SMC from Japan
Electronic Components
SCHNERDER, Omron
Max. idling speed
80m/min
Positioning Accuracy
±0.03mm
Re-Positioning Accuracy
±0.02mm
Instruction format
G code *.u00 *.mmg *.plt
Working voltage
AC380V, 3 phase,50-60hz(for more than 1000w)
AC220V, single phase, 50-60hz(for 1000w)
Others
Tool box, English Manual, Exhaust fan, cutting nozzle, protection mirrors etc


Machine details




Performance feature
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.


Sample exbition




Packing & Delivery


We will strictly inspection the goods before packing by professional team. Before shipping, they will commission cnc router firstly, then brush oil to linear guide, ball screw, and all the metal sheet,and then lubricate all the hinged parts like pin and bearings. All those wood carving machine will be kept clean,covered of plastic film and then put into the plywood case. Then the cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.










Company Profile


Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in CNC equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.








FAQ


Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material
thickness and working size.

Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.

Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5 years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
