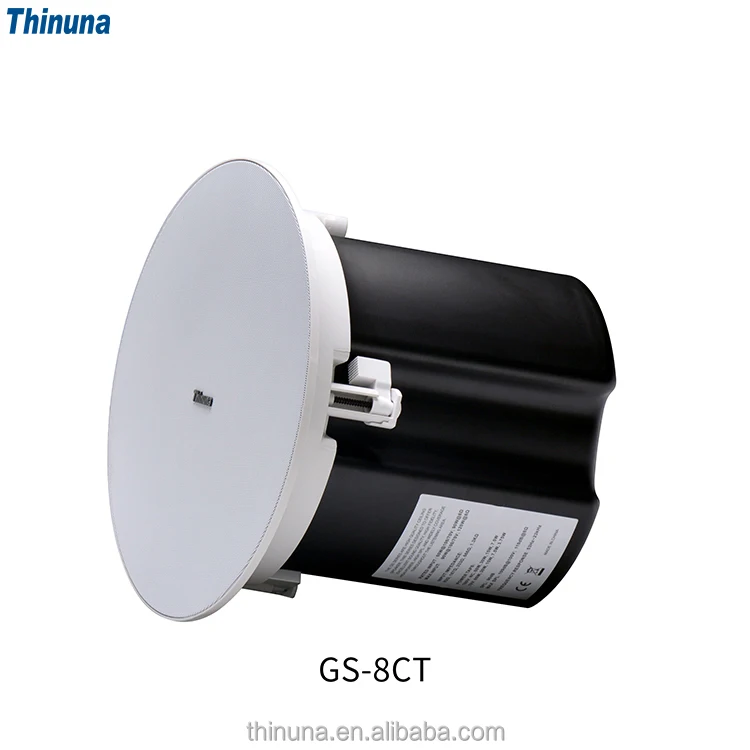

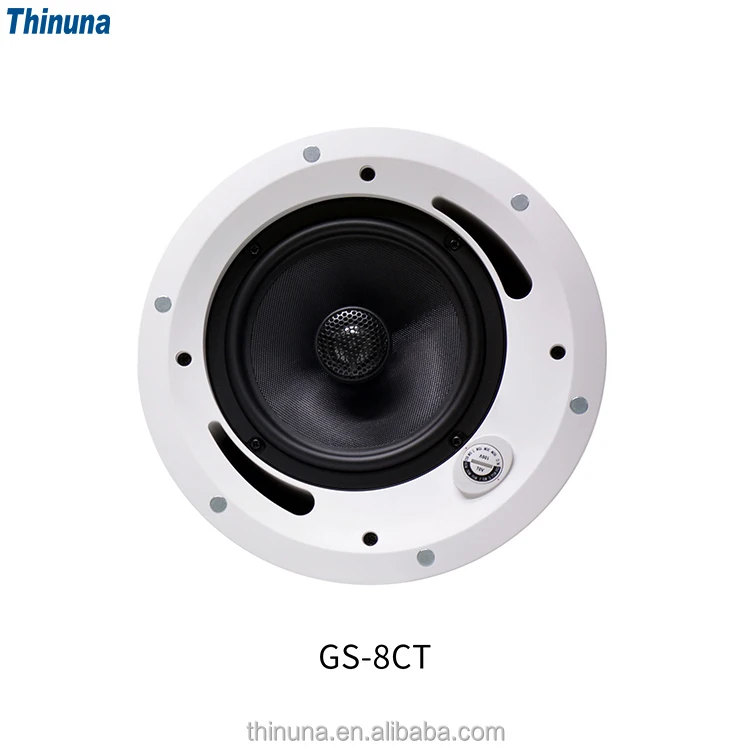

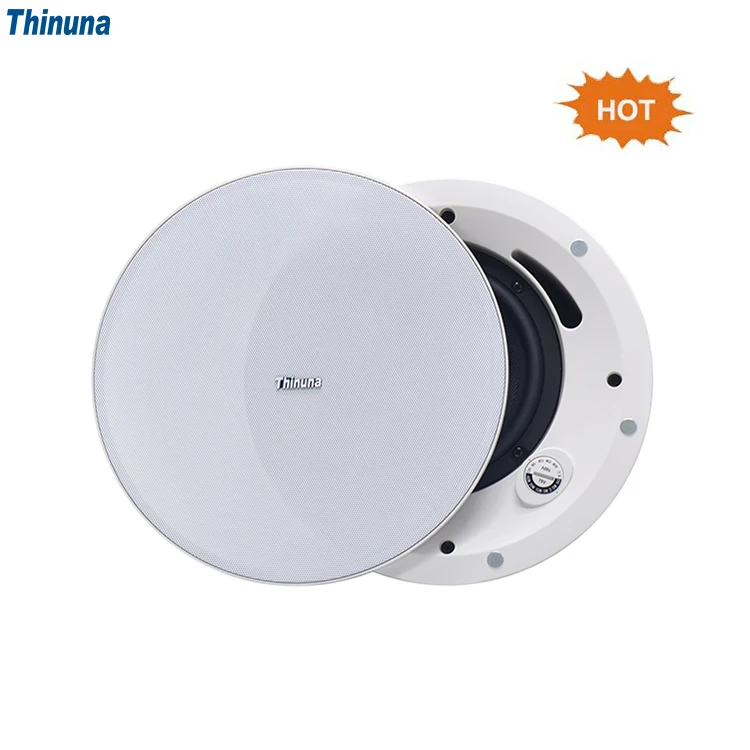

Thinuna GS-8CT Public address system 8 inch super high quality coaxial ceiling speaker In-ceiling flush mounted full range ceiling speaker
Products Description
GS Series ceiling speakers are outstanding ceiling speakers of Thinuna.The entire series of products are designed with the aim of pursuing perfect sound quality, with features as high-fidelity, high-power, high sound pressure level etc...
Each speaker has a stunning performance. Accurate design of frequency divider and inverted hole can make the level of bass and
bass more distinct and more in line with various installation needs
choosing this distinguished ceiling speaker series means choosing quality, This high-quality music and voice reproduction, definitely used to meet many demanding workplace. such as: brand stores, a conference center, banquet hall, high-end Western
restaurants, railway stations, airports and any pursuit of quality of place.
All models are equipped with 100/70V and 8Ω selector switches, which provide multi-gear power selection for constant-voltage input connections, suitable for a wide range of public broadcasting and commercial audio systems.
Each speaker has a stunning performance. Accurate design of frequency divider and inverted hole can make the level of bass and
bass more distinct and more in line with various installation needs
choosing this distinguished ceiling speaker series means choosing quality, This high-quality music and voice reproduction, definitely used to meet many demanding workplace. such as: brand stores, a conference center, banquet hall, high-end Western
restaurants, railway stations, airports and any pursuit of quality of place.
All models are equipped with 100/70V and 8Ω selector switches, which provide multi-gear power selection for constant-voltage input connections, suitable for a wide range of public broadcasting and commercial audio systems.
Features:
* Outstanding ceiling speakers from brand of Thinuna.
* Stunning exceptional quality.
* Designed for professional audio and commercial audio field.
* Innovative magnetic mask for easy installation.
* Treble can adjust the angle of rotation can be more precise control of the sound field.
* Imported superior tweeter: 20 core (GS-5CT), 25 core (GS-6CT, GS-8CT) voice coil / imported transparent silk sound film.
* Good imported polypropylene woofer.
* Treble transparent, bright, soft, not annoying.
* Surging bass strong, thick solid.
* 2-way speaker system built-in high-quality crossover.
* Front guide holes for strengthened bass.
* All models are equipped with 100/70V and 8Ω selector switches.
* Built-in 100V / 70V transformer for business matching audio system and provides multi-gear power selection
* Concave punch grille enhance the sound reproduction.
* Rotary mounting ears makes installation easy and simple.
* Safety rope connection port, with steel wire rope protection.
* Outstanding ceiling speakers from brand of Thinuna.
* Stunning exceptional quality.
* Designed for professional audio and commercial audio field.
* Innovative magnetic mask for easy installation.
* Treble can adjust the angle of rotation can be more precise control of the sound field.
* Imported superior tweeter: 20 core (GS-5CT), 25 core (GS-6CT, GS-8CT) voice coil / imported transparent silk sound film.
* Good imported polypropylene woofer.
* Treble transparent, bright, soft, not annoying.
* Surging bass strong, thick solid.
* 2-way speaker system built-in high-quality crossover.
* Front guide holes for strengthened bass.
* All models are equipped with 100/70V and 8Ω selector switches.
* Built-in 100V / 70V transformer for business matching audio system and provides multi-gear power selection
* Concave punch grille enhance the sound reproduction.
* Rotary mounting ears makes installation easy and simple.
* Safety rope connection port, with steel wire rope protection.

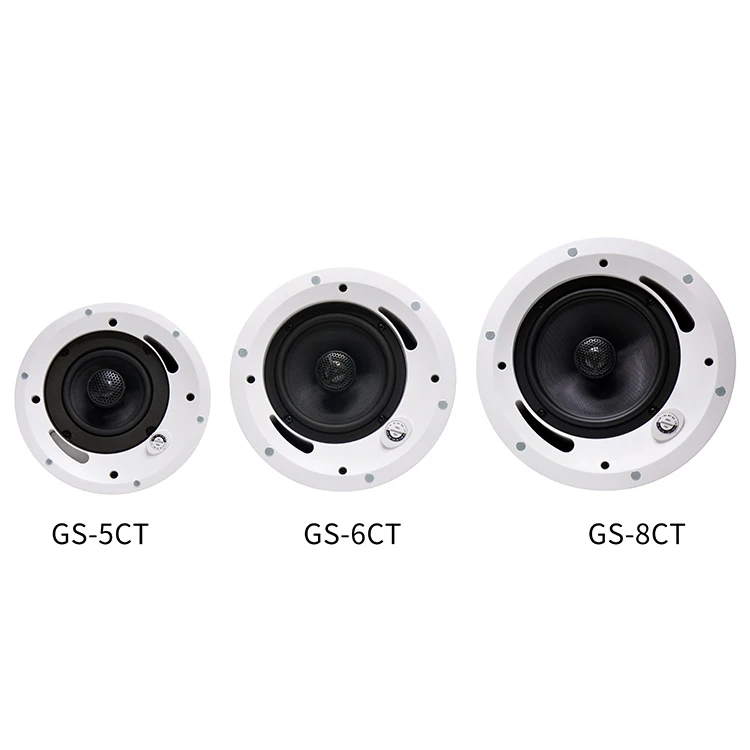

Model | GS-5CT | GS-6CT | GS-8CT | ||
Rated power | 20W@100V; 30W@8Ω | 40W@100V; 60W@8Ω | 60W@100V; 90W@8Ω | ||
Max power | 30W@100V; 45W@8Ω | 60W@100V; 90W@8Ω | 90W@100V; 120W@8Ω | ||
Impedance(Constant voltage ) | 250Ω, 500Ω, 1kΩ, 2kΩ, 4kΩ | 125Ω, 250Ω, 500Ω, 1kΩ, 2kΩ | 83Ω, 167Ω, 333Ω, 666Ω, 1.3kΩ | ||
Power selection(Constant voltage ) | 100V: NC, 20W, 10W, 5W, 2.5W 70V: 20W, 10W, 5W, 2.5W, 1.25W | 100V: NC, 40W, 20W, 10W, 5W 70V: 40W, 20W, 10W, 5W, 2.5W | 100V: NC, 60W, 30W, 15W, 7.5W 70V: 60W, 30W, 15W, 7.5W, 3.75W | ||
SPL(1W / 1m) | 87dB | 89dB | 90dB | ||
Max SPL (Rated / 1m) | 102dB@100V; 103dB@8Ω | 107dB@100V; 108dB@8Ω | 109dB@100V; 110dB@8Ω | ||
Frequency response(-10dB) | 80Hz~23kHz | 65Hz~23kHz | 53Hz~23kHz | ||
Dispersion angle(4kHz / 1kHz) | 70° / 140° | 65° / 140° | 50° / 100° | ||
Power selection method | Rotary selection switch | ||||
Material | Panel & Back Cover: ABS; Grille: Iron | ||||
Color | Front grille: white; Rear barrel: black | ||||
Operating Temperature / Humidity | -20°C ~ 55°C; <95% | ||||
Speaker unit | 4" woofer + 1" tweeter | 5.25" woofer + 1" tweeter | 6" woofer + 1" tweeter | ||
Dimensions | Ø205 x 180H mm | Ø238 x 200H mm | Ø265 x 205H mm | ||
Hole size | Ø 175 mm | Ø 205 mm | Ø 230 mm | ||
Weight | 2.6kg | 3.16kg | 4.2kg | ||
Installation | 4 claw rotary mounting ears | ||||
Gross weight | 24.5kg, 8pcs | 16.3kg, 4pcs | 19.7kg, 4pcs | ||
Packing dimensions | 0.0932CBM, 45 x 45 x 46 cm, 8pcs | 0.0431CBM, 55 x 55 x 28 cm, 4pcs | 0.1008CBM, 60 x 60 x 28 cm, 4pcs | ||
Application Cases
Suitable occasions: Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks,stage performances, dance halls, live audio recording, music screening rooms and other places.......
Recommend Products
The main products：
Speaker：Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.
Amplifier：Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.
Public Address System：IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
Amplifier：Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.
Public Address System：IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
About us
Production Flow
Our customer feedback
Packing & Delivery
FAQ
Q: Are you Manufacturer or Trading company?
A: We have more than 20 years experience in researching and manufacturing
Q: Do you have any qualification certificate?
A:Yes, we have the CCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10 days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced engineers to design the expected items as you want, we have much experience at ODM.
Q: Do you have any qualification certificate?
A:Yes, we have the CCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10 days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced engineers to design the expected items as you want, we have much experience at ODM.
Q:What is your payment terms?
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12 months after shipment
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12 months after shipment
Public Address Speaker：in Ceiling Speaker，Pa speaker;Outdoor Wall Speaker，Wall Mount Speaker，indoor and outdoor Column Speaker,Horn Speaker，Waterproof Speaker, Outdoor Speaker,Indoor Speaker, Conference Speaker，Project speaker,Professional speaker,Active Speaker，Garden Speaker，Subwoofer Speaker,wall hanging speaker, lawn speaker, pendant speaker,audio Loudspeaker;Audio speaker;Wireless speaker;powered speaker;sound speaker;speaker box;subwoofer;sub woofer speaker;Bass speaker;line array speaker;volume controller,radio receiver and professional broadcast cabinets etc.
Public Address Amplifier：Pa Amplifier，Two Channel Power Amplifier , Blue tooth Amplifier，Four Channels Amplifier，High power amplifier, Mixer Amplifier ,Mixing Consoles , Class D amplifier，Class AB amplifier,Audio amplifier，Professional power Amplifier, Professional digital power amplifier,Mixer power amplifier,Power amplifier,Pure amplifier,Professional amplifier,Amplificadores de 2000 w para veiculos ，etc.
Public Address System：IP network system，IP Network Host，IP Network Soft，SIP onvif ip speaker，IP Amplifier，IP Speaker，SIP speaker,ONVIF/RTSP speaker , IP Microphone;IP Horn Speaker ,IP Ceiling Speaker,IP Column Speaker,Sound system,audio system;public broadcasting system, fire emergency broadcasting system, the campus computer addressable broadcasting system,digital addressable broadcasting system,conference system，home theatre system;IP pa system;
Products can be widely used in sports venues, stadium,gym;conference and exhibition center; hotel, bar;school, hospital;supermarket, park, sauna, stations, factories, residential,home,villa ,business conference, multi-functional hall, government enterprise, conference room,mobile performance, mobile sound reinforcement, band performance, live performance, etc.
Похожие товары
T высококлассная Конференция профессиональный DSP USB звукозаписывающий аудио цифровой процессор Dante 16-канальный цифровой аудиопроцессор
59 977,68 ₽ - 79 166,15 ₽
DEKEN FIT GS6L WIFI умный дом беспроводной потолочный динамик аудиосистема WiFi синий зуб Многокомнатные активные динамики
14 583,24 ₽ - 21 820,04 ₽
Высококлассная Конференц-Колонка 150 Вт с большой мощностью, настенный звук
16 118,32 ₽ - 16 556,91 ₽
T 30 Вт SIP Сеть Водонепроницаемый мечеть PA звук Открытый IP67 POE звуковой динамик с сухим контактом для подключения с IP-камерой
19 188,47 ₽ - 24 890,19 ₽
Коаксиальный линейный массив 2-сторонний 10-дюймовый Профессиональный линейный массив звуковая система уличная звуковая система
679 820,08 ₽ - 712 714,60 ₽
6-дюймовый Многофункциональный 50 Вт коаксиальный аудио стерео звук Dante SIP POE синий зуб потолочный динамик для умного дома/отелей/школы
1 907,89 ₽ - 2 609,64 ₽

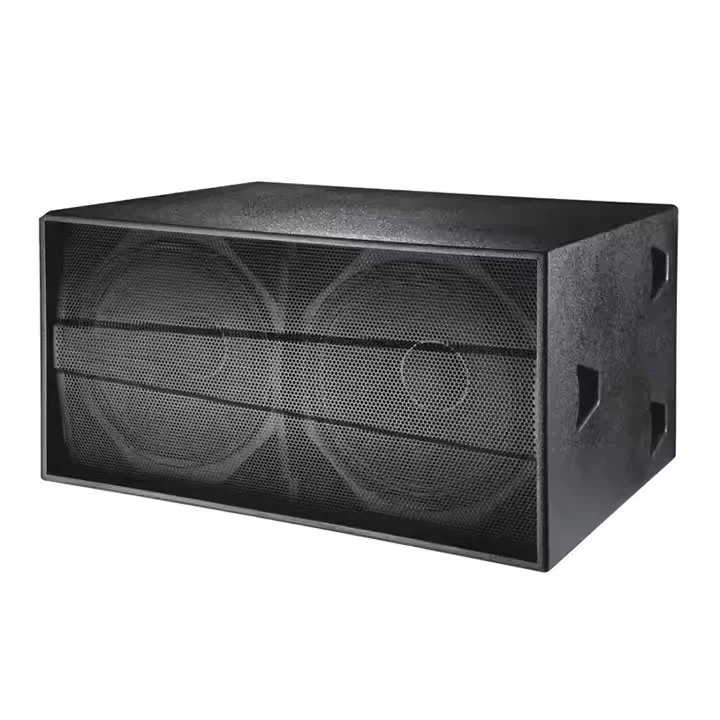

S-218 Профессиональный сабвуфер, двойной 18-дюймовый бас-динамик, звуковая система
