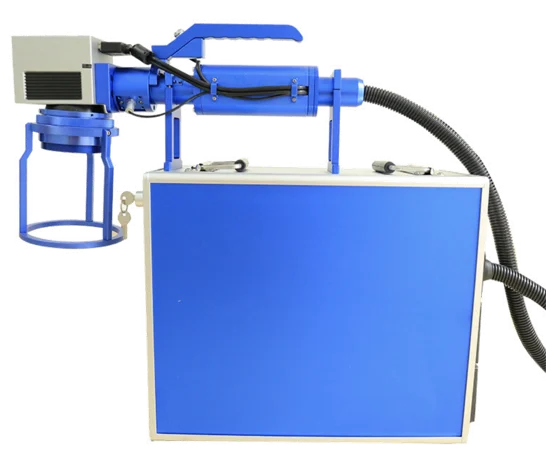

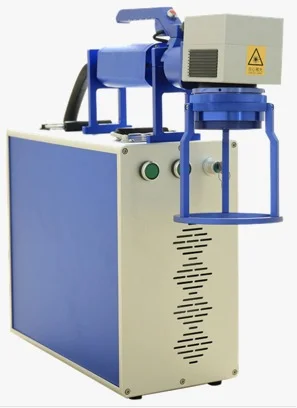

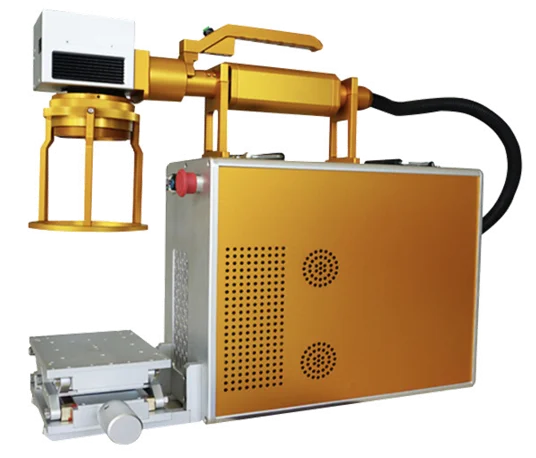

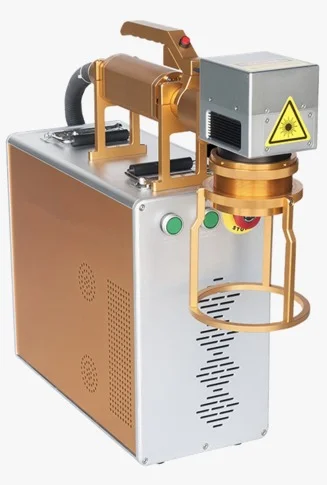

Высококачественная портативная ручная лазерная маркировочная машина для изготовления логотипов на металлическом волоконном лазерном максимуме/RAYCUS лазерный источник

 Hot sale model fiber laser marker Main Configurations:

#Standard Working area:160x160mm

#Lenovo industrial computer /protable desktop high configurations full set

#Original Raycus Power source 20/30/50W ..............one set

#Digital Sino Galvo scanning head 7110...............(Fast speed)

#F-theta lens..............................................(Best quality)

#Power supply mean well..................(Import from Taiwan)

#Double red pointer for focusing ...........(not single)

#Original EZCAD software support win7/8/10 system.

#user manual and Too accessories ………...one set

#Metal switches instead of plastic types...(better quality)

#Tools and tool box comes with machine.........one set

#Protective glasses

#Include all necessary part,you could use directly after its arrival.

General Information

@1.There are 10W/20W/30W/50W ,Which power should I choose ?

Common Fiber Laser Power 10W/20W/30W/50W ,The bigger power,marking efficiency would be greater.

--20W fiber laser engraver is the most pop choice. Basic 20W fiber laser can meet 90% work.

--10W is good for shallow marking work. (Very rare customer select it now.)

--30W for some deep engraving, or match with big size F-theta lens for big size marking. --50W for some deep engraving or high precision thin thickness cutting work(0-0.5mm).(Most popular model selected by customers.) The bigger power,price would be higher.

@2.There are many sizes for the machine,which size should I choose ?

--SF110 110X110mm Small size, Deep engraving.

--SF160 160x160mm Standard device for Smartech.

--SF300 300x300mm For big size engraving

--Customized size,such 500*500mm/700*700mm etc

@3.There are table type and portable type machine,which type should I choose ?

--First Difference between table type and portable type is the size.If your workshop is big enough,you could select the table type.but if you wanna an air shipping for international express shipping way, it is better to select the portable type to help save some shipping cost.

--Secondly,the table type comes with computer,while the portable type comes with laptop.But configuration is the same 4GB Installed memory(RAM)

--Thirdly,outward appearance.Internal configurations are all the same except for the outward appearance difference.

Applications for 3 types laser marking machine

Smart-F series fiber laser marker is for all metal and most of the nonmetal materials.such as: Metal materials:stainless steel,aluminium,copper,silver, gold, carbon steel etc Non-metal materials :plastic,pvc,rubber,glass,stone,wood,feather,jewelry etc

Smart-CO2 series CO2 laser marker is for all of the nonmetal materials.such as: Non-metal materials :wood,plastic,pvc,rubber,glass,stone,coconut,all kind of shells,melon,eggs,oysters,crabs,leather,fabric,feather,jewelry etc

Smart-UV series UV laser marking machine is for all metal and nonmetal materials. Especially used for the high precision equipments or instruments etc works.which has a high precision requirements.

Technical data

Laser source system

EZCAD Software

Features: Very easy to operate,comes with user manual.Machine support six languages,USA English, English,Japanese,Korean,Chinese,complex Chinese

*Main functions of the software:

 Users can design their graphics freely.

Various types of fonts are supported. Such as SHX,JSF(Single line font defined by EzCad2), DMF(Dot Matrix), One-Dimensional/Two-Dimensional bar code etc)

 Flexible variable text: changes the text real time while in laser processing. Excel data sheet is supported.

Can through the serial port and network direct read text data

Strong node editing function make the curve modification more easier

The software can support 265 “pencils”, which used to draw graphic and can be set different processing parameters.

Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)

Common vector images are supported. (ai, dxf, dst, plt…)

Image processing (Grayscale, White / Black Transformations)

Powerful hatching functions, such as support round hatch.

More convenient IO operations and more easier to harmonize the auxiliary equipment.

Supports the dynamic focus (3 axis processing system)

An opening language supporting system makes it easy to run the software in various languages plat.

Processed samples
