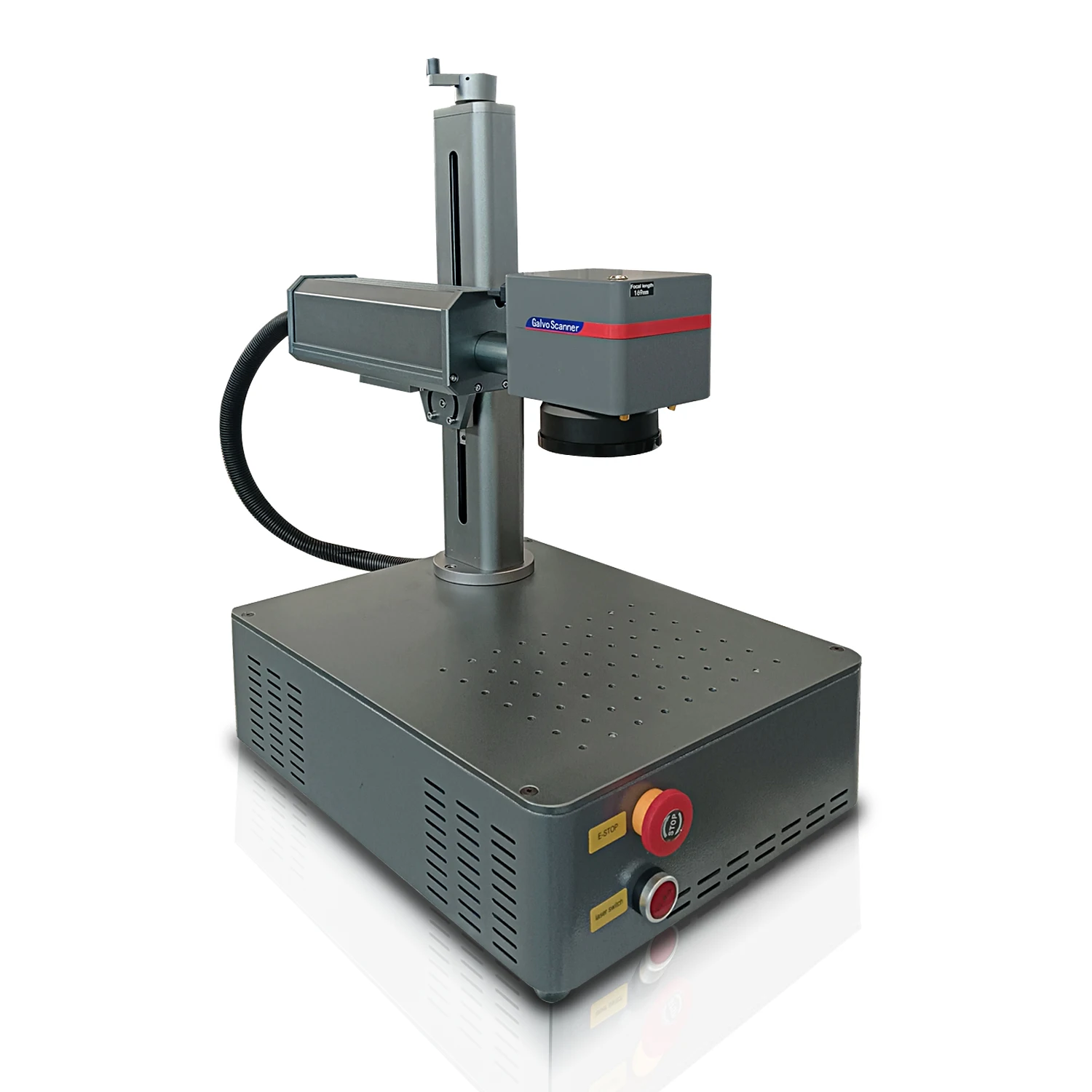

20 Вт 30 50 маркер с вращающейся волоконно лазерной маркировочной машиной для маркировки металлических материалов
- Категория: >>>
- Поставщик: Shenzhen MKC Laser Devices Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601231365012:
Описание и отзывы
Характеристики
Products Description
Advantage:
Fiber laser marking machine can widely apply to many industry.
Fiber laser marking machine adopts most advanced technology. And the fiber lasers are of exceptional quality. If you have a high demand for fiber laser beams, then this fiber laser marking machine will definitely be your choice.

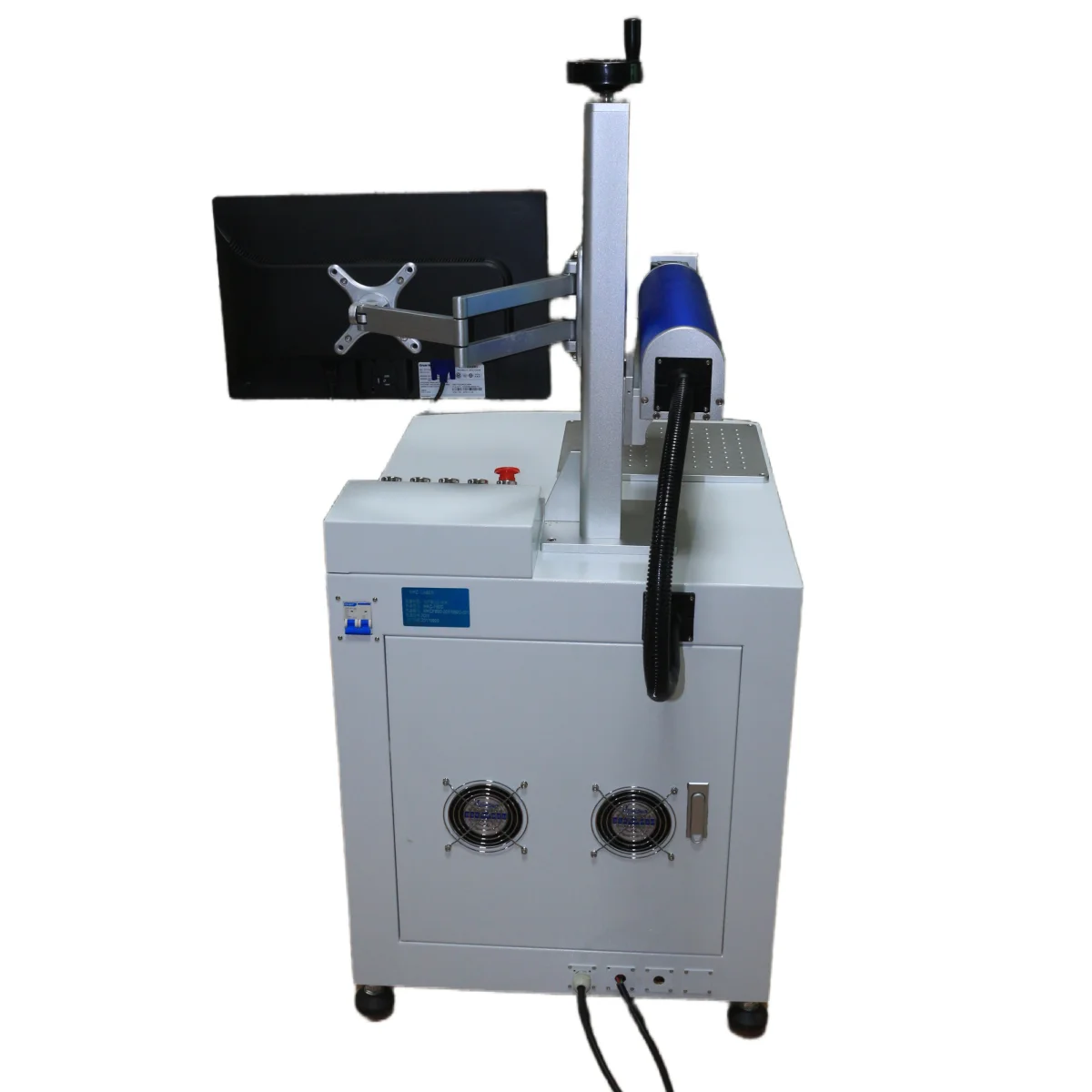

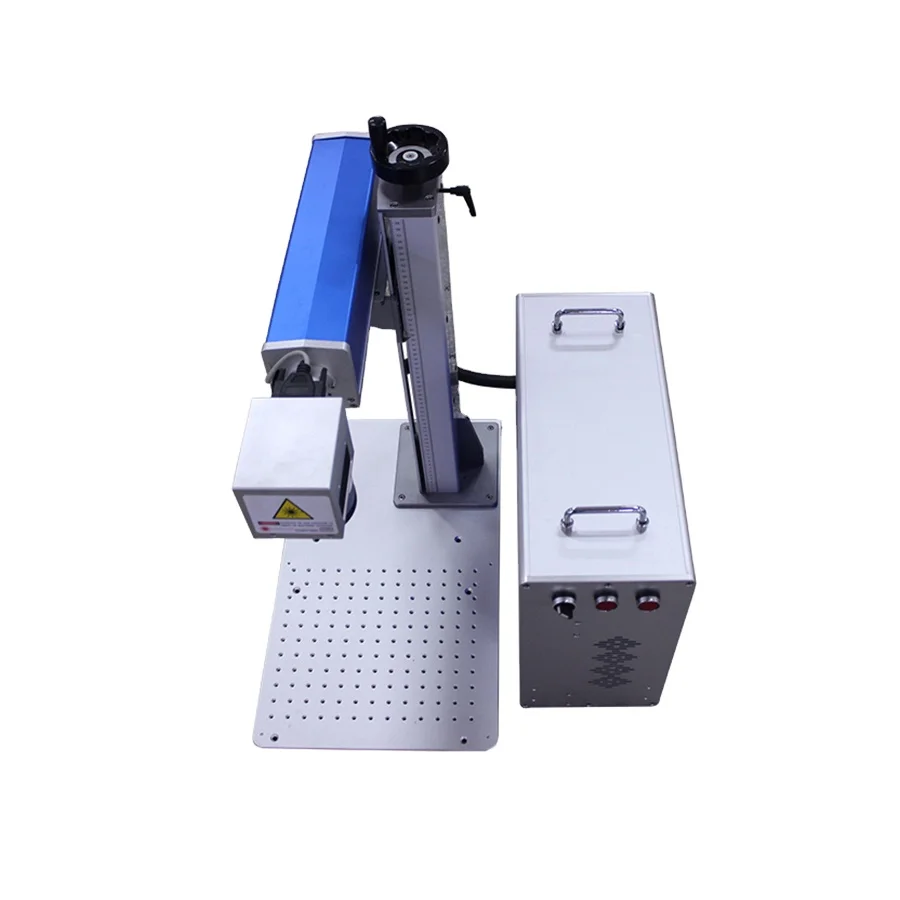

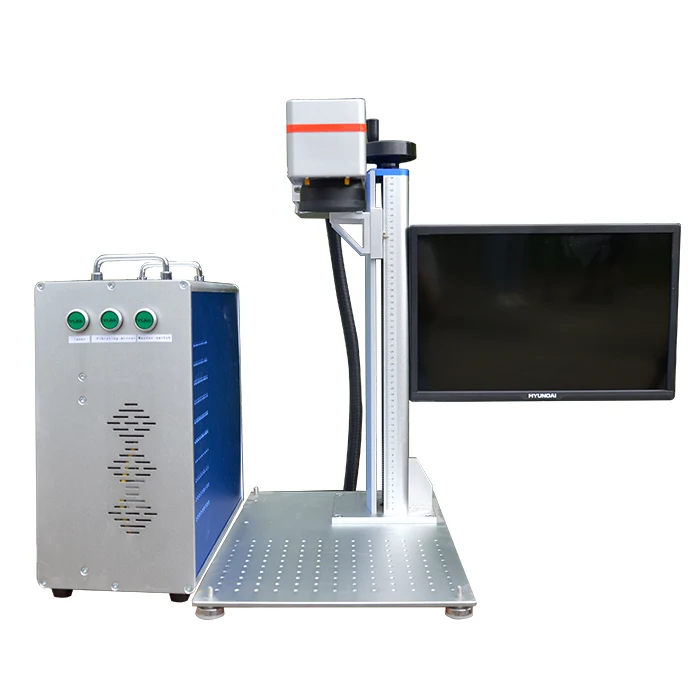

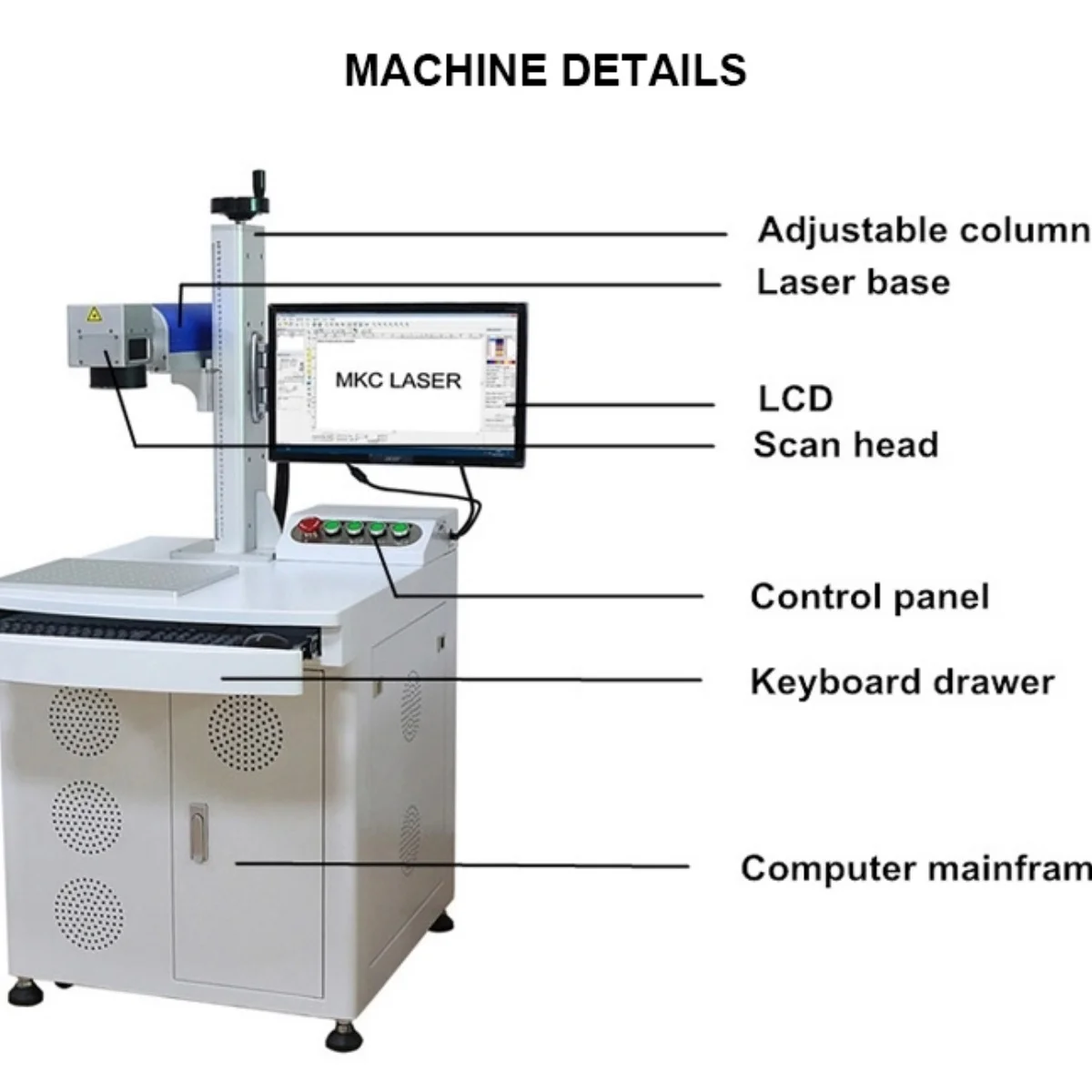

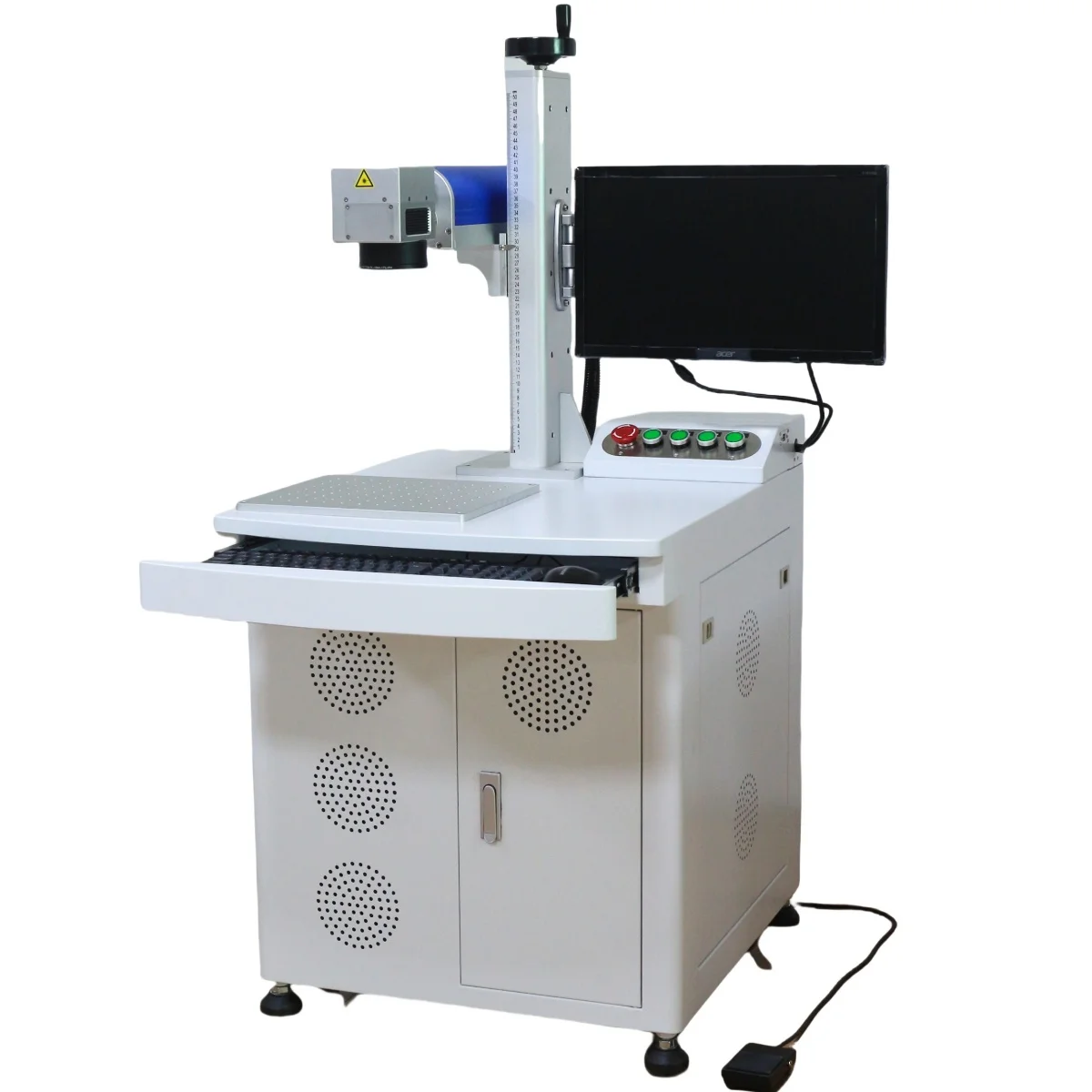

Details Images
Optional Parts

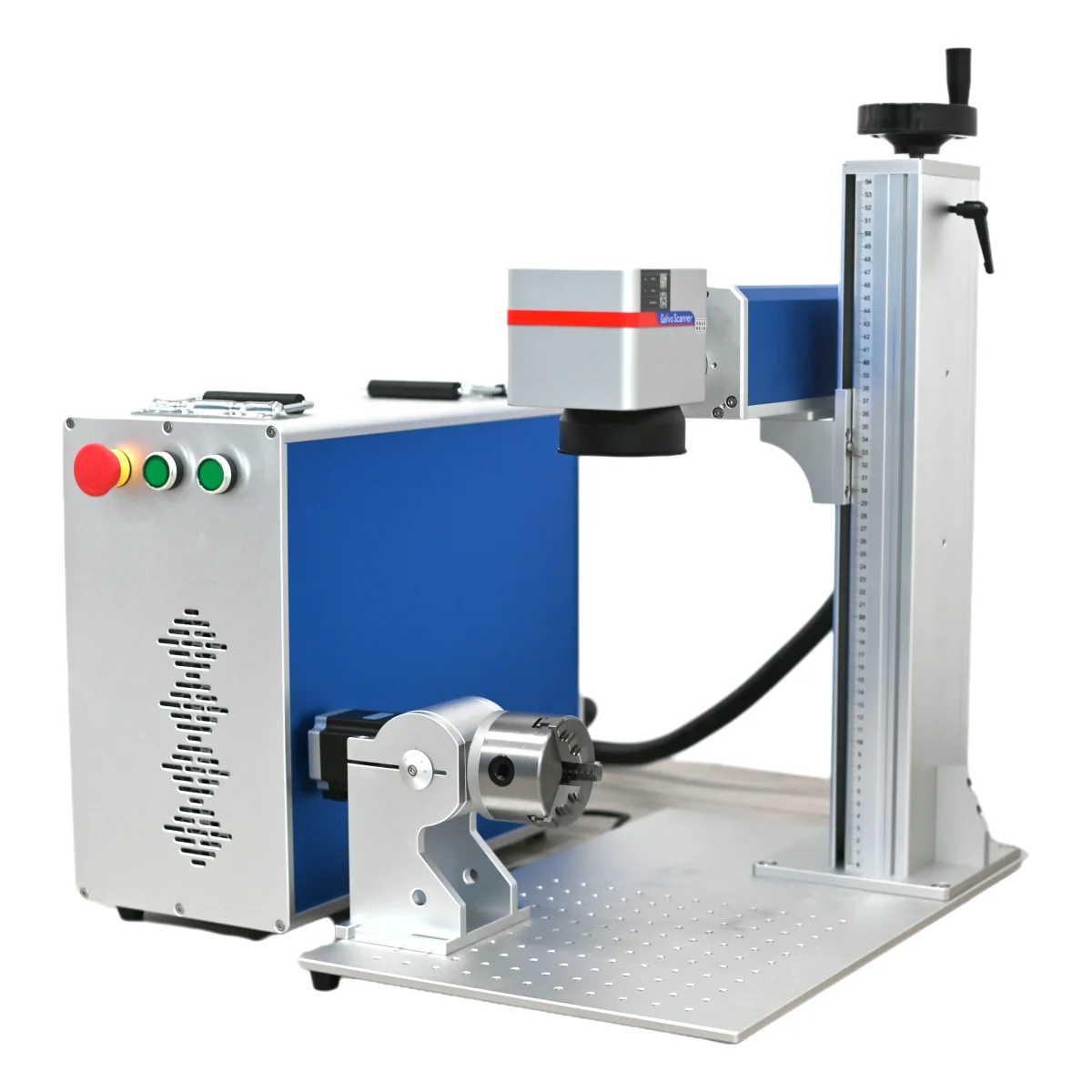

Rotary Fixture
Can attach max inside daimeter 8cm, max outside diameter 11cm.
Work Table
All aluminum alloy, can move up-down, right-left.

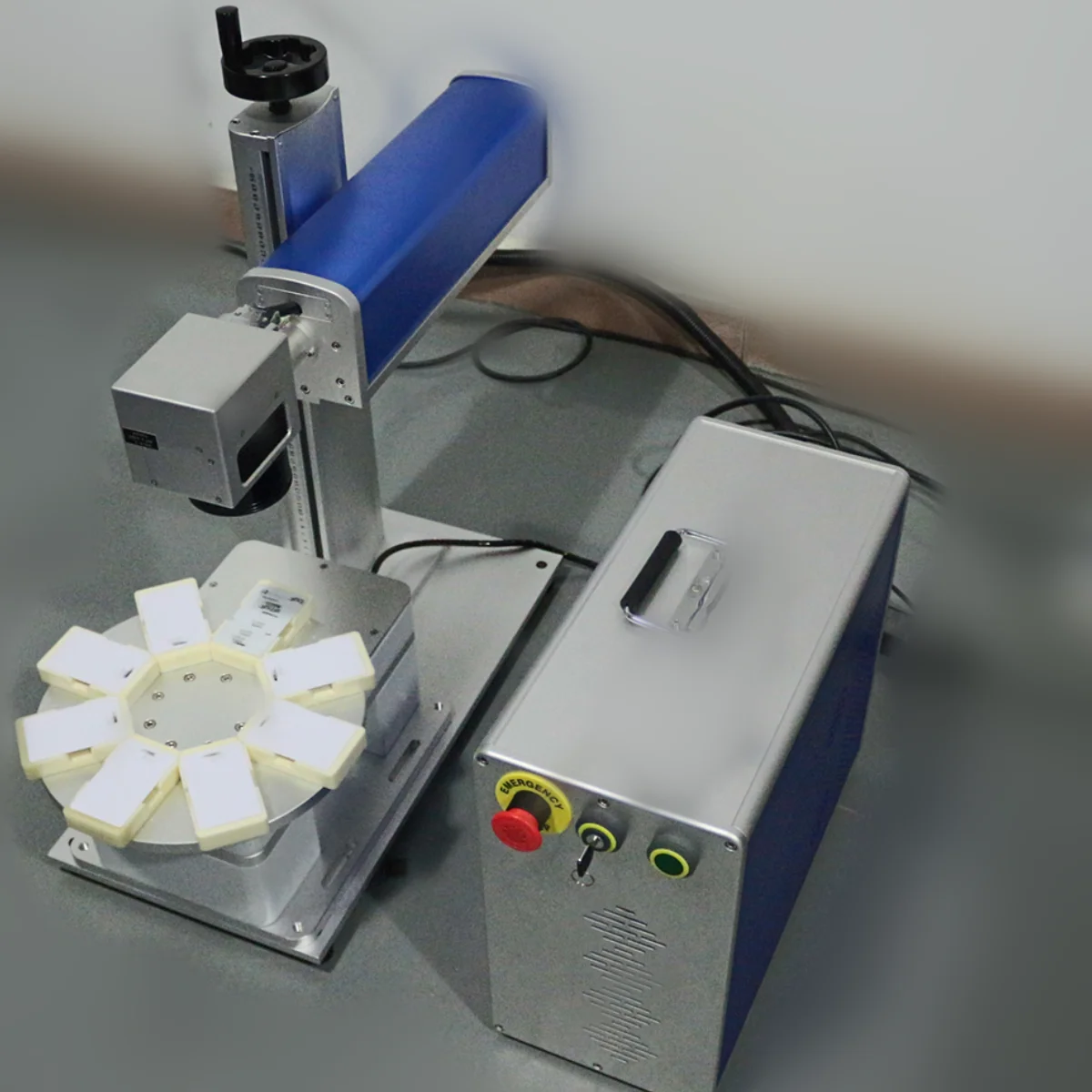

8 Stations Rotary Disk
Aluminum alloy, customized made according to customer's requirement.
Specification
Product Name | Laser marking machine | ||||
Laser Type | Fiber | CO2 | UV | ||
Normal Laser Power | 20W 30W 50W 100W | 10W 30W 60W 100W | 3W 5W 10W 15W 20W | ||
Wavelength | 1064nm | 1064um | 355nm | ||
Marking materials | stainless steel,carbon steel, aluminium, brass/copper, zinc, PVC pipe/ PVC tube, PCB circuit board, wire cable, animal ear tags, dog tags, cattle tags, silicon materials, ceramic tiles, led bulb. | stainless steel,carbon steel,mild steel,aluminium,brass/copper,zinc,PVC pipe/ PVC tube,PCB circuit board,wire cable,animal ear tags, dog tags,cattle tags,silicon materials,ceramic tiles,led bulb. | stainless steel,carbon steel,mild steel,aluminium,brass/copper,zinc,plastic,glass,mask,etc. | ||
Repeatability | 0.002mm | ||||
Pulse Frequency | 20-80KHZ | ||||
Voltage | 90-240v | ||||
Focus mode | Manual / Auto | ||||
Use environment | Clean or less dust；No dust, no fumes, no corrosive gases | ||||
Support Format | JPEG/BMP/PLT/JPG/DXF，etc | ||||
Marker content | English, numbers, punctuation, Chinese, graphics, barcodes, etc. | ||||
Output Power Stability | <3% | ||||
Cooling Method | Air Cooling | ||||
Working Temperature | 10-45℃ | ||||
Oil mist, condensation | NO | ||||
Support Language | Multi-languages can be chosen | ||||
Application
1. Many type of metals Gold, copper, aluminum, stainless steel, chrome, Brass .etc.
2. Alloy and Metal oxides .
3. Some non-metallic materials Silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink Plating, Spraying, Coating film and special surface treatment.
2. Alloy and Metal oxides .
3. Some non-metallic materials Silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink Plating, Spraying, Coating film and special surface treatment.
Packing&Delivery
The normal package is wooden box. we will use PE film to pack the machine, then put into the wooden box. Also we can pack it according to customers special request.
Customer Visit
Company introduction
Shenzhen MKC Laser Devices Co., Ltd. was founded in 2012, and is a professional laser company who manufacturer, sale and service for laser and automatic devices. We adopt the newest technology from overseas, integrated the strong technical and process application. Our production in the industry have made good reputation and considerable competitive advantages.
Our target market is the worldwide. Our vision is building a world brand. Our spirit is to create added value for you as a customer. We strive to always provide the best products on time with sincere service. By far, we have passed CE, FDA certificates Etc. And our laser machines has been sold to USA, UK, Canada, Italy, Spain, Russia, South Korea, Sri Lanka, India, UAE, Pakistan, Singapore and more than 20 countries.
FAQ
1. Who are we?
A: We are a professional laser company who manufactures sales and services for laser and automation devices. We adopt the newest technology from overseas, integrated the strong technical and process application.
2. What’s kind of machine will you provide?
A: We have different type laser machine: laser marking machine series, laser cutting machine series, laser welding machine series. For the laser marking machine, we can provide CO2 laser marking, Fiber laser marking, UV laser marking, Green laser marking and Semiconductor laser marking.
3. Your laser marking machine can meet CE requirements?
A: Our laser marking machines are with the certificate of CE.
4. Can you print my picture or logo on the machine cover?
A: Yes, OEM is available. We can print your picture or logo on the machine case when we have your authorization.
5. Can we change the shape based on the original?
A: Yes, our product can be customer-made according to your requirement.
6. What’s kind of guarantee you give?
A: For the laser machine our warranty time is 1year. During the free warranty, customer normal use of the device of this contract caused by equipment failure and damage for free maintenance warranty.
Похожие товары
20 Вт 30 50 портативная литиевая батарея металлическая сталь углеродистая Максимальная волоконная лазерная резьба маркеры гравировальная маркировочная машина
126 164,77-332 804,05 ₽

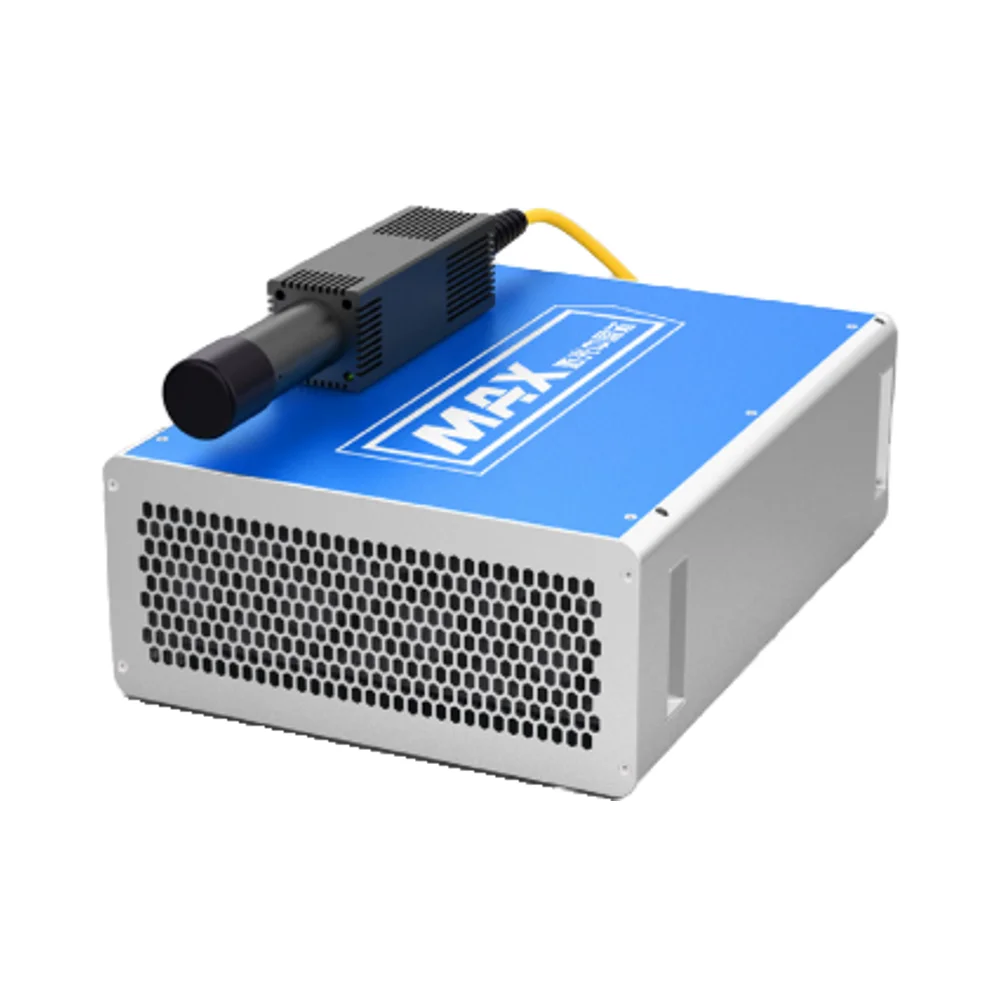

20 Вт MOPA импульсный волоконный лазер
164 852,23-181 383,37 ₽
Вертикальный 60 Вт jpt mopa m7 волоконно-лазерный маркировочный аксессуар волоконный лазерный источник 30 raycus 50 лазер для золотых украшений

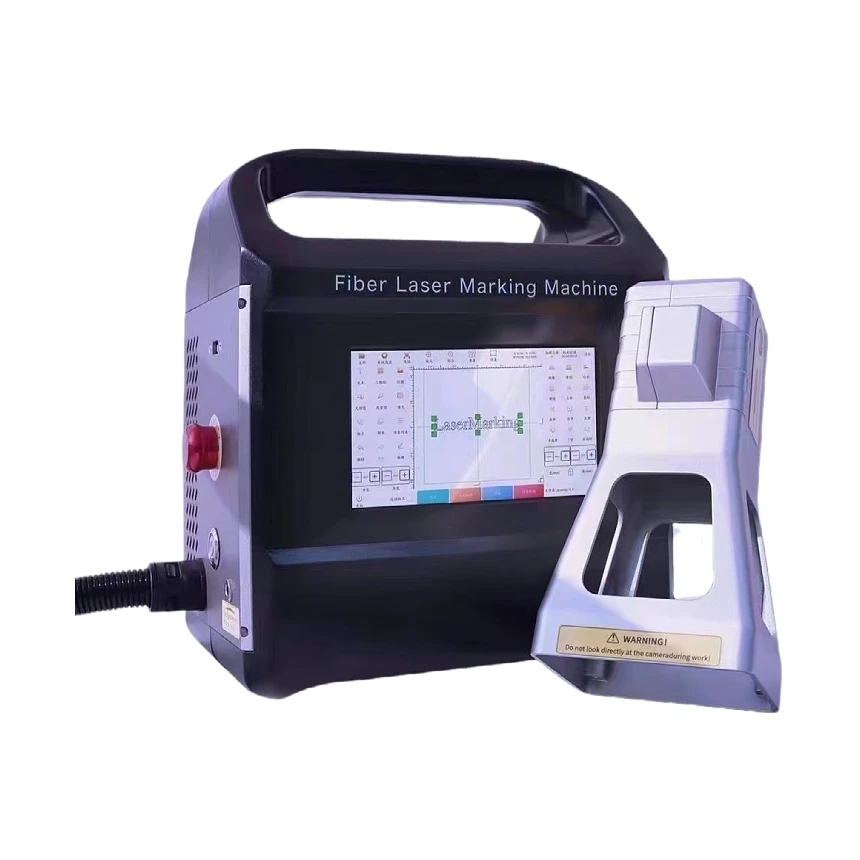

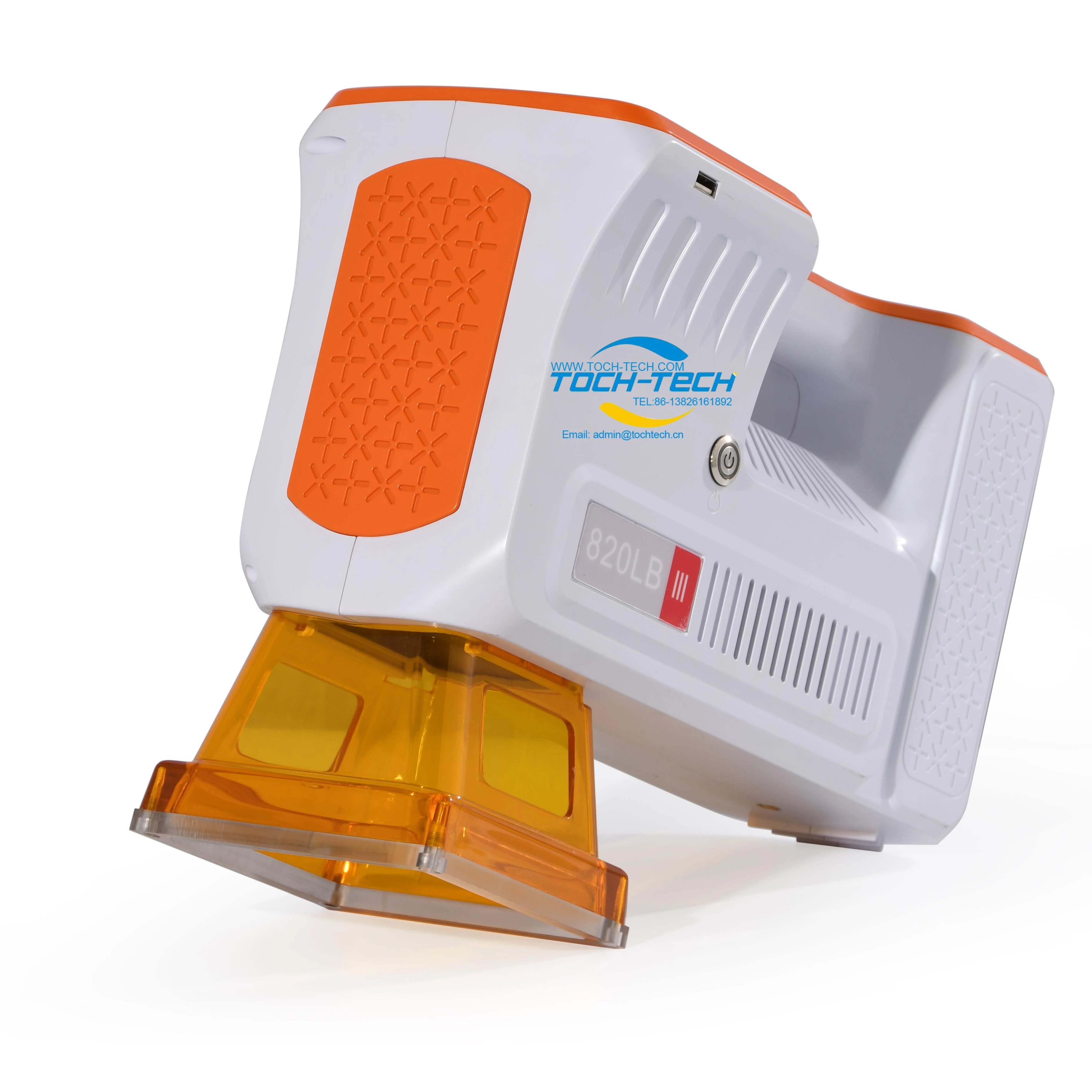

4kgs портативное лазерное устройство Мобильная Лазерная маркировочная машина 20 Вт ручной волоконный лазер
