Оптимизированная производственная линия cnc для алюминиевых окон делая 5 осей
6 612 678,00 ₽

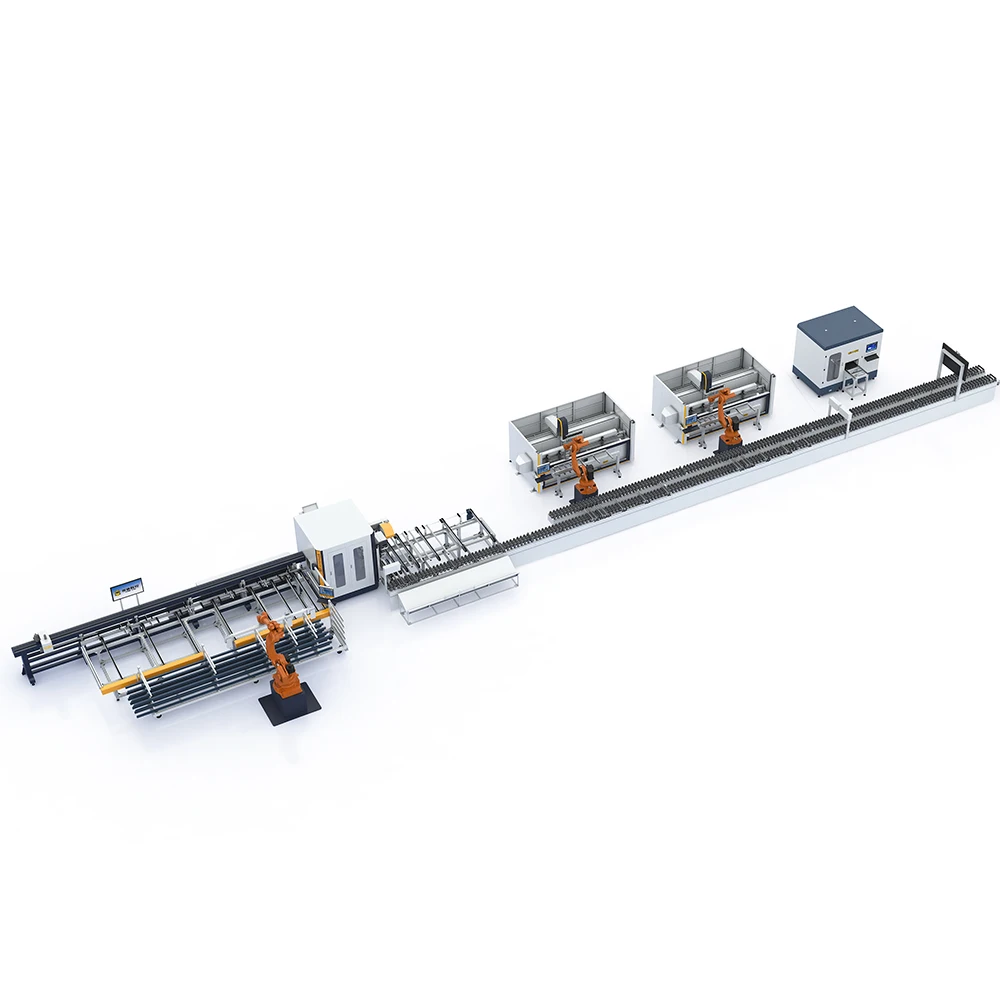

Интеллектуальная производственная линия для изготовления оконных дверей с 5 осевым концевым фрезерным станком И лазерной пилой фрезерным
- Категория: >>>
- Поставщик: Shandong LEAD CNC Machinery Co. Ltd
Сохранить в закладки 1601233108112:
Описание и отзывы
Характеристики
Why choose LEDECNC to build a smart factory?
Problems of traditional factories | Solutions of intelligent factories | |
Delivery TIme | days of delivery time | Delivery time short to 7-12 days |
Recruitment | Emphasis on skilled workers High salary | Ordinary workers can do the job. Low salary |
Quality | Cutting and processing are prone to errors such as dimensional deviation | Intelligent connection, zero error, 100% qualified |
Energy efficiency per capita | Average daily production capacity 5-6 square meters | Average daily production capacity 10-15 square meters |
SIte area （Ping efficiency） | 3000 square meters of factiry building, producing 3000square meters of windows per month | Increased 5 times, 3000 square meters of factory building, can produce 15000 square meters per month |
Cost | The labor cost per square meter is about 58-98 CNY | Reduce by 2 times, the labor cost per square meter is about 25-35 CNY |
Image | The internal process of the factory is chaotic and the products are piled up. | Intelligent and streamlined production realizes a one-stream production model |
Enterprise development | The demand for technicial positions is high, and factory replication cannot be achieved | Through the construction of intelligent factories, national factory replication can be achieved |
OPeration cost | The manfacturing cost is too high and there is no comperhensive competitiveness | Reduce the manufacturing cost by 8%-10% and improve the comprehensive competitiveness of the enterprise |
Investment promotion | The factories are highly homogeneous and there are no outstanding highlights | Intelligent factories empower investment and increase the competitiveness of enterprises |
CNC Intelligent cutting center
Technical parameters | Configuration of main components | ||||||
Power | 380V/50Hz | Servo motor | Mitsubishi | JAPAN | |||
Consume | 13.5kw | Servo motor driver | Mitsubishi | JAPAN | |||
Air pressure | 0.5~0.8Mpa | Electric spindle | OLISPEED | Italy | |||
Air consumption | 100L/min | Electric spindle | GMT | CHINA | |||
Motor consume | 3.0KW | Pneumatic components | AIRTAK | TAIWAN | |||
Motor speed | 2800r/min | Guide rail | HIWIN | TAIWAN | |||
Saw blade specifications | φ550×φ30×4.4, Z=120 | Screw | PMI | TAIWAN | |||
Sawing length | 300~7000mm | Tool rotary axis reducer | SPINA | Czech | |||
Sawing width | 150mm | Linear axis reducer | APEX | TAIWAN | |||
Sawing height | 150mm | Rack | APEX | TAIWAN | |||
Sawing angle | 45°, 90° | Note: In case of insufficient supply, other brands of products will be used as substitutes, but there will be no difference in quality and grade | |||||
Maximum speed of manipulator | 100m/min | ||||||
Cutting accuracy | ±0.1mm | ||||||
Cutting surface flatness | ≤0.10mm | ||||||
Machine size(including two sides of the workbench) | 15000×5000×2500mm | ||||||
Weight | 7500kg | ||||||

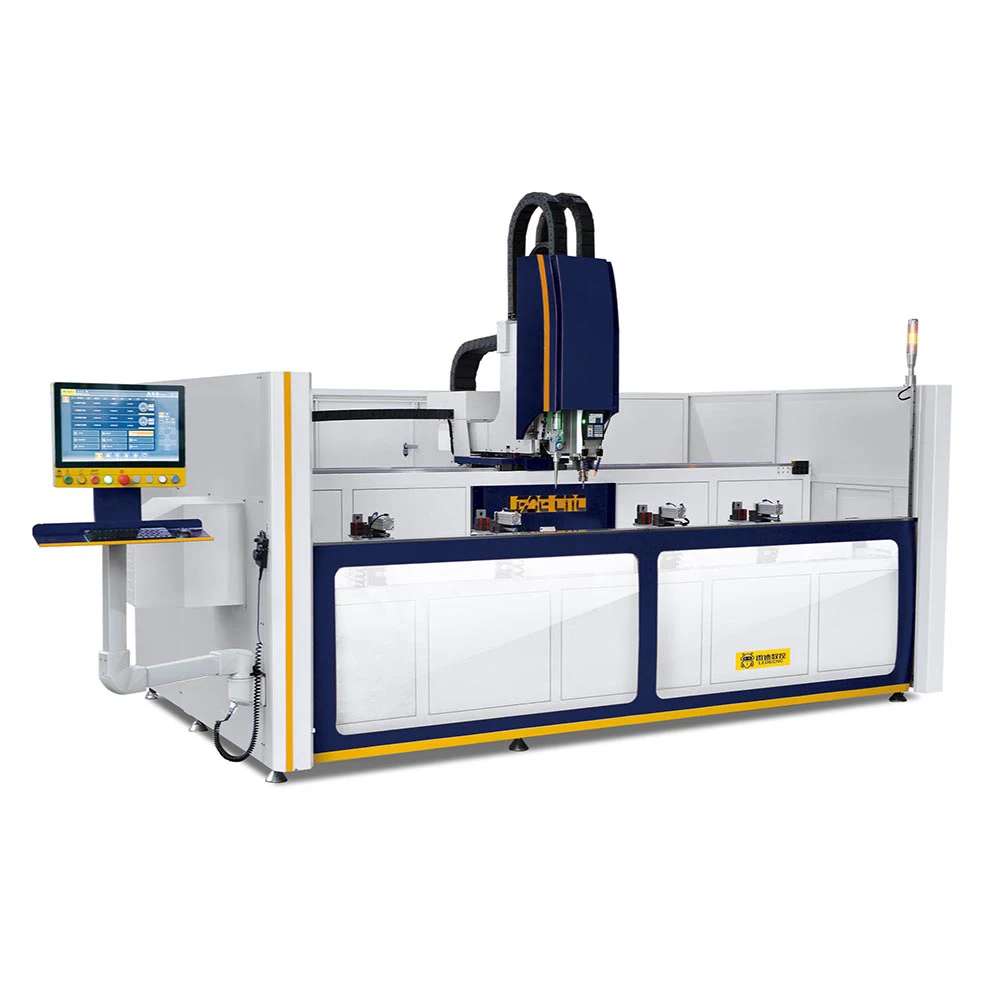

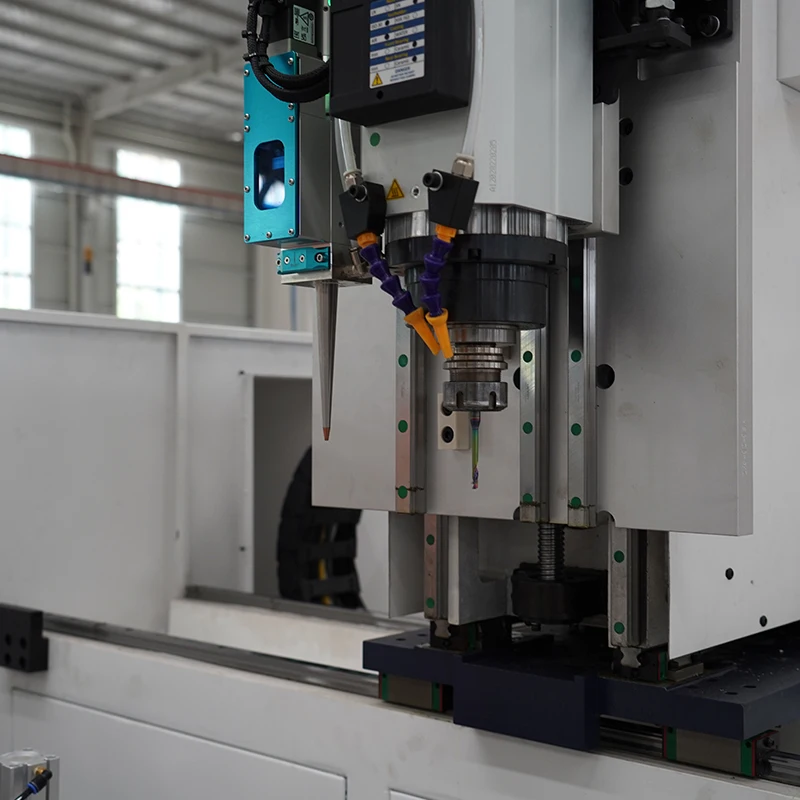

Intelligent laser drilling-milling machine center
Technical parameters | Configuration of main components | ||||||
Power | 380V/50HZ | Electrical element | Brand | Remark | |||
Consume | 17KW | Control system | PA | Germany | |||
Air Pressure | 0.5-0.8MPa | Servo motor | Mitsubishi | Japan | |||
Air consumption | 80L/min | Servo motor driver | Mitsubishi | Japan | |||
X-axis moving distance | 3000mm | Reduction gear | APEX | Taiwan | |||
Y-axis moving distance | 400mm | Push button switch | Muller | Germany | |||
Z-axis moving distance | 300mm | Travel switch | OMORON | Japan | |||
X-axis moving speed | Max.60m/min | Terminal block | WEIDMULLER | Germany | |||
Y-axis moving speed | Max.30m/min | Saw blade motor | GMT | China | |||
Z-axis moving speed | Max.15m/min | Cylinder | AIRTAK | Taiwan | |||
Three-axis positioning accuracy | ±0.02mm | Guide rail | HIWIN | Taiwan | |||
Three-axis repeatable positioning accuracy | ±0.01mm | Screw | PMI | Taiwan | |||
Max. Process for Profile (W x H x L) | 140 x 140 x 3000mm | Linear axis reducer | APEX | Taiwan | |||
Motorized spindle Consume | 9.5KW | Rack | APEX | Taiwan | |||
The quantity of the Millings tool in the library | 6PCS（Optional） | Ball screw | PMI | Taiwan | |||
Machine size (L x W x H) | 4300 x 2300 x 2500mm | Working tool | WEMARO | Germany | |||
Machine weight | 3000KG | X-axis reducer | APEX | Taiwan | |||
Note: In case of insufficient supply, other brands of products will be used as substitutes, but there will be no difference in quality and grade | |||||||

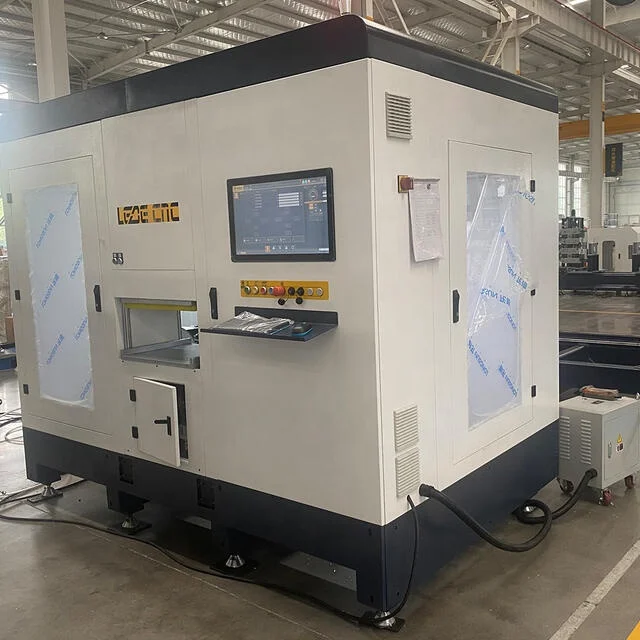

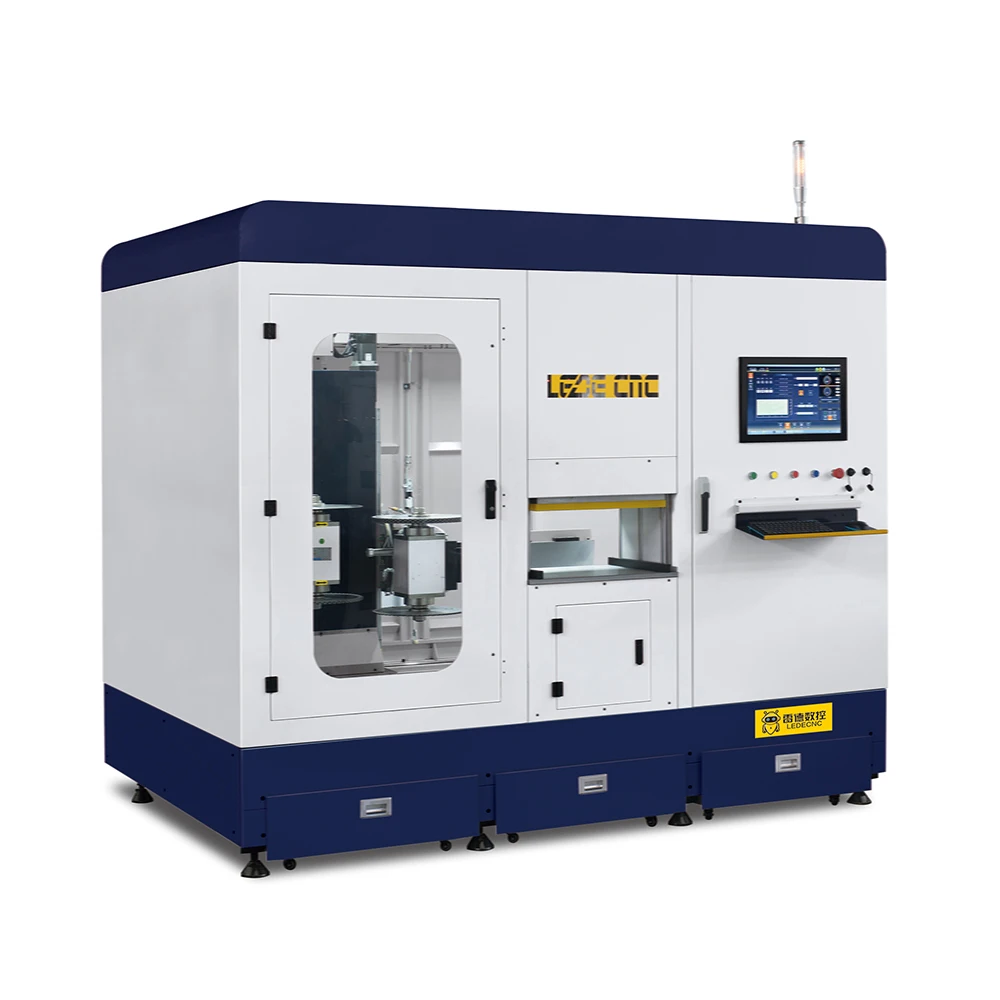

5 Axis End Milling Machine
Technical parameters | Configuration of main components | ||||||
Power | 380V/50HZ | Electrical element | Brand | Remark | |||
Consume | 12KW | Servo motor | Mitsubishi | Japan | |||
Air pressure | 0.5-0.8MPa | Servo motor driver | Mitsubishi | Japan | |||
Air consumption | 250L/min | Cylinder | AIRTAK | Taiwan | |||
Double-head motor spindle consume for cutting | 2 x 3.0KW | Solenoid valve | AIRTAK | Taiwan | |||
Motor speed | 3000r/min | Guide rail | HIWIN | Taiwan | |||
Double motor spindle shaft diameter | Φ30mm | Rack | APEX | Taiwan | |||
Main cutting feed servo motor consume | 1.5KW | Ball screw | PMI | Taiwan | |||
Main cutting (left and right X-axis) feed stroke | 1200mm | Push button switch | Muller | Germany | |||
Table inlet dimensions (width x depth) | 480 x 420mm | Note: In case of insufficient supply, other brands of products will be used as substitutes, but there will be no difference in quality and grade | |||||
Max.height of workpiece clamped (raw material) on workbench | 200mm | ||||||
Equipped tools | Φ350mm saw blade | ||||||
Quantity of tools | 4 groups | ||||||
Minimum blade thickness | 3.2mm blades (various thicknesses optional) | ||||||
Tool Y-axis (front and rear) stroke | 100mm | ||||||
Tool Z axis (up and down) stroke | 600mm | ||||||
Max.milling depth | 70mm | ||||||
Machine size (L x W x H) | 2500 x 1700 x 2200mm | ||||||
Machine weight | 2700KG | ||||||
About us
Shandong LEAD CNC Machinery Co., Ltd, established in 2007, which focused on the R&D, manufacturing and sales of intelligent system production lines for windows and doors. It is the first company in the industry to truly implement the intelligent factory for windows and doors. We helped many windows and doors factories to achieve qualitative changes - reducing management costs by 70%, reducing labor costs by 60%, improving production efficiency by more than 60%, and achieving a product qualification rate of 100%. We have more than 40 R&D employees,5 QC employees.All most of them have more than 5years exprience. So we can design the production line according to your requirements and guarantee the 100% qualifacation rate.
