Интеллектуальный противоударный барьер для парковки автомобиля, 1-6 м, барьеры безопасности дорожного движения с дистанционным управлением
36 183,98 ₽ - 38 376,94 ₽
Автоматический выдвижной гидравлический столбик с системой Барьера Безопасности по заводской цене для транспортных средств и контроля движения
- Категория: >>>
- Поставщик: Shenzhen Karsun Access Technology Co. Ltd.
Сохранить в закладки 1601234994087:
Описание и отзывы
Характеристики
Product Description

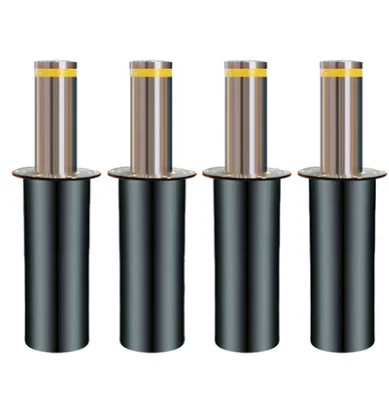

Automatic Rising Retractable Bollards Metal Barrier for Road Blocking
Karsun upgraded PLC controlled electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
Control System | electric-hydraulic operated | ||||
Item Name | Electric automatic bollard | ||||
Pillar Diameter | 219mm | ||||
Rising Height | 600mm | ||||
Housing Thickness | 6mm | ||||
Static pressure bearing capacity | 80 tons | ||||
Maximum carrying capacity | 150 tons | ||||
Limit mode | mechanical limit | ||||
Reflective efficiency | 70%, with reflective film | ||||
Emergency stop | Yes | ||||
Power supply | 220V | ||||
Customized size | Available | ||||
Working temperature | -35℃~+75℃ | ||||
Lifting speed | 1-4s | ||||
High Quality Electric-hydraulic operated retractable bollard for roadblock management.
Benefits + Advantages + Features
Immense Benefits
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities,pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
Automatic retractable or automatic telescoping bollards are used in high traffic areas. Where deploying and retracing automatic rising bollards is higher in frequency. Our bollards can raise or lower on command in 3 to 5 seconds.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities,pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
Automatic retractable or automatic telescoping bollards are used in high traffic areas. Where deploying and retracing automatic rising bollards is higher in frequency. Our bollards can raise or lower on command in 3 to 5 seconds.
The Automatic rising bollards we use are Pneumatic, Hydraulic, and Electronic Piston Drive Systems.
Each system has its own unique characteristics with how it moves the automatic bollards, and also difference in their efficiency and maintenance. Electronic Piston Drive Systems uses and electric motor to push the piston within the cylinder. These systems have the highest precision control, and are also the quietest of all the other systems. Pneumatic uses compressed air to move a
piston in a linear motion within the cylinder. The advantages of this system is its simplicity, accuracy, minimal maintenance, and the cost being less. Hydraulic systems use an in-compressible fluid being pushed by a pump within the cylinder. To give the automatic bollards their linear motion. The hydraulic system has the highest force output being almost 25 times greater force than
a pneumatic system.
Unique Advantage
How do Automatic Rising Bollard work?
The Raising or lowering of an automatic bollard can be initiated by a person stationed in a guard house. Also by someone placing the right code into a remotely mounted touch pad, or by a car occupant, pressing a remote transmitter. Also we have an unique signal emitter used in vehicles. Which allows the automatic bollards to recognize the signal. To allow access into the location.
Each system has its own unique characteristics with how it moves the automatic bollards, and also difference in their efficiency and maintenance. Electronic Piston Drive Systems uses and electric motor to push the piston within the cylinder. These systems have the highest precision control, and are also the quietest of all the other systems. Pneumatic uses compressed air to move a
piston in a linear motion within the cylinder. The advantages of this system is its simplicity, accuracy, minimal maintenance, and the cost being less. Hydraulic systems use an in-compressible fluid being pushed by a pump within the cylinder. To give the automatic bollards their linear motion. The hydraulic system has the highest force output being almost 25 times greater force than
a pneumatic system.
Unique Advantage
How do Automatic Rising Bollard work?
The Raising or lowering of an automatic bollard can be initiated by a person stationed in a guard house. Also by someone placing the right code into a remotely mounted touch pad, or by a car occupant, pressing a remote transmitter. Also we have an unique signal emitter used in vehicles. Which allows the automatic bollards to recognize the signal. To allow access into the location.
Main Features：
Different thickness of steel is available (default 6 mm)
Different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Lowering down the bollard by handle valve, in case of power failure or fault of automatic system
Raising up the bollard by handle pump, in case of power failure or fault of automatic system
Housing with durable and stainless Galvanization
Optimization of frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability
With a reflective band and a low energy consumption LED light at night
Different thickness of steel is available (default 6 mm)
Different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Lowering down the bollard by handle valve, in case of power failure or fault of automatic system
Raising up the bollard by handle pump, in case of power failure or fault of automatic system
Housing with durable and stainless Galvanization
Optimization of frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability
With a reflective band and a low energy consumption LED light at night
Quality Compensation Policy
Here we guarantee all goods are brand new and perfect within the period of twelve calendar months from the date of shipment. We will repair or replace the defective goods free within the guarantee period if it is proved to be defective before delivery.
Application & Project
FAQ
Frequent Asked Questions and Answers:
Q1:Are you a real factory?
Yes, we are source turnstile factory in Shenzhen,China ,you will enjoy factory direct price and short delivery with us.
Q2: What are the considerations when selecting a pedestrian gate?
What is the entrance size the turnstile gate to be installed ? indoor or outdoor?Environmental conditions of use
(Provide photos of the construction site, and we can provide reasonable road gate scheme drawings)
Specific entrance control requirement or workflow plan?
What kind of recognition modes do you plan to adopt?
Q3: Whats a speed gate?
Security speed gates are an essential component of commercial，industrial and restricted-access facilities. It is a highly intelligent pedestrian access control management equipment, which can fully detect the passing of the human body, so it is safe, reliable, fast, and efficient.
Q5: How can I get a list of Karsun turnstiles gates?
Leave message here and we will get back to you within 10mins
Q6: Be Karsun partners,What can I get?
1.Factory Price Direct Prce rate
2.OEM/ODM order are acceptable
3.Fast Delivery (Samples 3-7 days, bulk order enjoys priority production)
Q7: How to get sample？
Inquiry us with your specific project requirement and we will give your special discount on sample order.
Q8: How will you arrange shipment?
By air or by sea,you are welcome to use your own forward agent ,we will assist for goods loading.
Q9: What payment method we support?
1. Alibaba Trade Assurance Order, T/T Transfer, Western Union, MoneyGram, Credit Card, L/C
2. Standard products: 30% deposit, 70% balance payment before shipment.
3. Customized products: 50% deposit, 50% balance payment before shipment.
4. Contract amount more than USD$15000: 50% deposit, 50% balance payment before shipment.
What is the entrance size the turnstile gate to be installed ? indoor or outdoor?Environmental conditions of use
(Provide photos of the construction site, and we can provide reasonable road gate scheme drawings)
Specific entrance control requirement or workflow plan?
What kind of recognition modes do you plan to adopt?
Q3: Whats a speed gate?
Security speed gates are an essential component of commercial，industrial and restricted-access facilities. It is a highly intelligent pedestrian access control management equipment, which can fully detect the passing of the human body, so it is safe, reliable, fast, and efficient.
Q5: How can I get a list of Karsun turnstiles gates?
Leave message here and we will get back to you within 10mins
Q6: Be Karsun partners,What can I get?
1.Factory Price Direct Prce rate
2.OEM/ODM order are acceptable
3.Fast Delivery (Samples 3-7 days, bulk order enjoys priority production)
Q7: How to get sample？
Inquiry us with your specific project requirement and we will give your special discount on sample order.
Q8: How will you arrange shipment?
By air or by sea,you are welcome to use your own forward agent ,we will assist for goods loading.
Q9: What payment method we support?
1. Alibaba Trade Assurance Order, T/T Transfer, Western Union, MoneyGram, Credit Card, L/C
2. Standard products: 30% deposit, 70% balance payment before shipment.
3. Customized products: 50% deposit, 50% balance payment before shipment.
4. Contract amount more than USD$15000: 50% deposit, 50% balance payment before shipment.
Q10 What was the function of pedestrian turnstile gate?
Pedestrian gate provide convenient, fast, and secure access. When a passenger approaches the speed gate the doors open.The doors close again immediately once he passed through, preventing unauthorized passage or tailgating.
Похожие товары
Security barrier retractable crash-rated security bollards for driveway vehicle access control
263 046,52 ₽ - 274 011,36 ₽
Автоматический подъем автомобиля, телескопический барьер для контроля доступа к транспортным средствам, китайский производитель, для контроля толпы
36 183,98 ₽ - 38 925,19 ₽

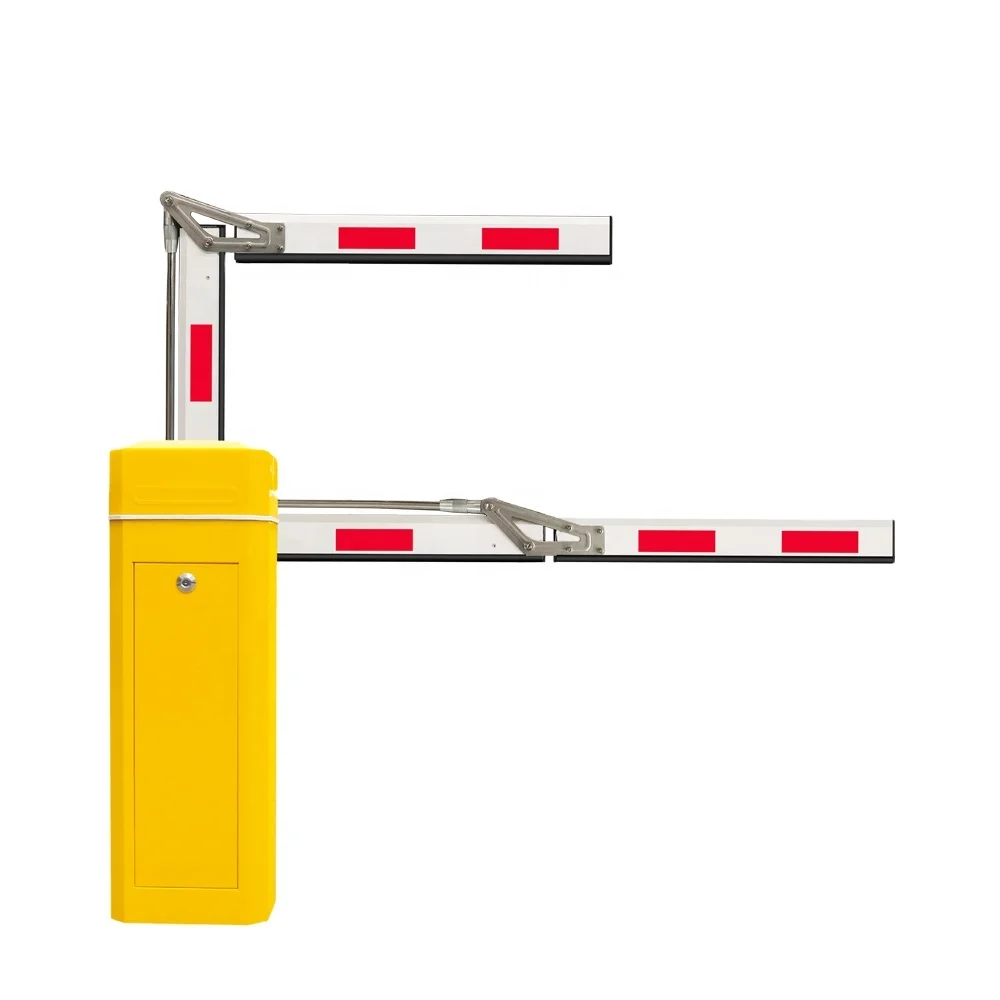

Шлагбаум для парковки
