Wind hybrid solar power generator system 5kw: 3kw wind + 2kw solar or 2kw wind
+ 3kw solar
5kw wind solar hybrid 48v off grid system price as below:
Fd4-3kw wind turbine: US$750.00/set
3kw 9m guy wire tower with accessory: US$390.00/set
265w 36vdc poly solar panel with normal ground frame: US$0.4/W. 8 pcs: US$848.00
5KW wind solar hybrid controller with dump load: US$330.00/SET
5kw pure sine wave inverter single phase: US$400.00/set
Recommend 8 pcs 12v 200ah GEL maintenance free battery. US$190.00 per piece. Total US$1520.00. You can buy
it from local market.
Pls confirm the distance from wind turbine to the controller. Then we will check cable size and cost accordingly.
You can take whole system from us, also you can take any part of the system from us.
1. Wind solar hybrid system assembly
Off grid system:
Wind turbine generator with tower/mono solar panel + hybrid controller with dump load + battery group
+ inverter
(grid power, diesel power as backup power for whole system)
On grid system:
Wind turbine generator with tower/mono solar panel + hybrid PWM on grid controller with dump load +
grid tie inverter
2. 1kw 2kw 3kw wind solar hybrid system
| Parts Name | Model | 1K | 2K | 3K |
| Wind generator | Wind power Rated Power | 500W | 1000W | 2000W |
| Max Power | 800W | 1500W | 3200W | |
| Blades Rotor Diameter | 2.5m ( 8.2 ft.) | 2.8m ( 9.18 ft.) | 3.2m(10.50ft) | |
| Blade Quantity &Material | 3 Pcs / FRP | 3 Pcs / FRP | 3 Pcs / FRP | |
| Rated Rotate Speed | 500(r/min) | 400(r/min) | 350(r/min) | |
| Start Torque | 0.34(N.M) | 0.4(N.M) | 0.8(N.M) | |
| Generator Type | PMG AC Direct Drive | PMG AC Direct Drive | PMG AC Direct Drive | |
| Generator Material | Aluminium body+copper wire+Nd-Fe-B | Aluminium body+Copper wire+Nd-Fe-B | Aluminium body+copper wire+Nd-Fe-B | |
| Output Voltage | 24V | 48V | 48V | |
| Start Wind Speed | 3 m/s ( 6.72 mph) | 3 m/s ( 6.72 mph) | 3 m/s ( 6.72 mph) | |
| Rated Wind Speed | 8m/s ( 17.92mph) | 8m/s ( 17.92mph) | 8m/s ( 17.92mph) | |
| Working Wind Speed | 3-25m/s (6.72-56 mph) | 3-25m/s (6.72-56 mph) | 3-25m/s (6.72-56 mph) | |
| MAX.Design Wind Speed | 40m/s (89.6mph) | 40m/s (89.6mph) | 40m/s (89.6mph) | |
| Top Weight | 45kg | 55kg | 65kg | |
| Protection method | Tail vane Autofurling+PMW | Tail vane Autofurling+PMW | Tail vane Autofurling+PMW | |
| Wind Tower | Free folding tower | 6m | 6m | 6m |
| Tower Thickness | 4mm | 4mm | 4mm | |
| Tower top Diameter | 60mm | 76mm | 89mm | |
| Tower bottom Diameter | 180mm | 196mm | 250mm | |
| Solar panels | Total PV power | 400W | 1kW | 1kW |
| Each panels power | 200W | 250W | 250W | |
| Solar panels quantity | 2pcs | 4pcs | 4pcs | |
| Pv Type | Mono | Mono | Mono | |
| Connect method | 2pcs In parallel | 2pcs in series then 2groups In parallel | 2pcs in series then 2groups In parallel | |
| Effeciency | 12.45% | 12.45% | 12.45% | |
| Controller | Rated wind input power | 500W | 1kW | 2kW |
| Rated solar input power | 500W | 1kW | 1kW | |
| Battery voltage | 24VDC | 48VDC | 48VDC | |
| Invertor | Rated Output Capacity | 1KVA | 2KVA | 3KVA |
| Rated Battery Voltage | 24Vdc | 48Vdc | 48Vdc | |
| Rated Output Voltage | 110/120/220/230/240 VAC | 110/120/220/230/240 VAC | 110/120/220/230/240 VAC | |
| Output Frequency | 50/60 Hz±0.05Hz | 50/60 Hz±0.05Hz | 50/60 Hz±0.05Hz | |
| Invertor efficiency | Max 90% | Max 90% | Max 90% | |
| Output wave form | Pure sine wave | Pure sine wave | Pure sine wave | |
| Batteries | GEL Strorage battery | 12V150AH(4pcs) | 12V200AH(4pcs) | 12V200AH(4pcs) |
3. 5kw 8kw 10kw wind solar hybrid system normal spec:
| Parts Name | Model | 5K | 8kw | 10kw |
| Wind generator | Wind power Rated Power | 3KW | 5KW | 5KW |
| Max Power | 4KW | 7KW | 7KW | |
| Blades Rotor Diameter | 4M | 6M | 6M | |
| Blade Quantity &Material | 3 Pcs / FRP | 3 Pcs / FRP | 3 Pcs / FRP | |
| Rated Rotate Speed | 320(r/min) | 250(r/min) | 250(r/min) | |
| Start Torque | 1.5(N.M) | 4.5(N.M) | 4.5(N.M) | |
| Generator Type | PMG AC Direct Drive | PMG AC Direct Drive | PMG AC Direct Drive | |
| Generator Material | Aluminium body+copper wire+Nd-Fe-B | Iron cast body+Copper wire+Nd-Fe-B | Iron cast body+copper wire+Nd-Fe-B | |
| Output Voltage | 48V | 120V | 120V | |
| Start Wind Speed | 3 m/s ( 6.72 mph) | 3 m/s ( 6.72 mph) | 3 m/s ( 6.72 mph) | |
| Rated Wind Speed | 10m/s ( 17.92mph) | 10m/s ( 17.92mph) | 10m/s ( 17.92mph) | |
| Working Wind Speed | 3-25m/s (6.72-56 mph) | 3-25m/s (6.72-56 mph) | 3-25m/s (6.72-56 mph) | |
| MAX.Design Wind Speed | 40m/s (89.6mph) | 50m/s (89.6mph) | 50m/s (89.6mph) | |
| Top Weight | 100kg | 310kg | 310kg | |
| Protection method | YAW+ Auto furling+PMW | YAW+ Auto furling+PMW | YAW+ Auto furling+PMW | |
| Wind Tower | Free folding tower | 8m | 12m | 12m |
| Tower Thickness | 5mm | 5mm | 5mm | |
| Tower top Diameter | 89mm | 250mm | 250mm | |
| Tower MATERIAL | q235 | Q235 | q235 | |
| Solar panels | Total PV power | 2KW | 3KW | 5KW |
| Each panels power | 250 | 300W | 250W | |
| Solar panels quantity | 8pcs | 10 pcs | 10 pcs | |
| Pv Type | Mono | Mono | Mono | |
| Connect method | 4pcs In series | 10pcs in series | 10 pcs in series then 2 groups In parallel | |
| Effeciency | 17.2% | 16.7% | 17.2% | |
| Controller | Rated wind input power | 3kw | 5kw | 5kw |
| Rated solar input power | 2kw | 3kw | 5kw | |
| Battery voltage | 48VDC | 120VDC | 120VDC | |
| Invertor | Rated Output Capacity | 5KVA | 10KVA | 10KVA |
| Rated Battery Voltage | 48Vdc | 120Vdc | 120Vdc | |
| Rated Output Voltage | 110/120/220/230/240 VAC | 110/120/220/230/240 VAC | 110/120/220/230/240 VAC | |
| Output Frequency | 50/60 Hz±0.05Hz | 50/60 Hz±0.05Hz | 50/60 Hz±0.05Hz | |
| Invertor efficiency | Max 90% | Max 90% | Max 90% | |
| Output wave form | Pure sine wave | Pure sine wave | Pure sine wave | |
| Batteries | GEL Strorage battery | 12V200AH(4pcs) | 12V200AH(10pcs) | 12V200AH(10/20pcs) |
300w wind turbine + 200w solar panel;
500w wind turbine + 300w solar panel
500w wind turbine + 500w solar panel
1kw wind turbine + 500w solar panel/1kw solar panel
1.5kw wind turbine + 500w solar panel/1kw solar panel/1.5kw solar panel
2kw wind turbine + 500w solar panel/1kw solar panel/2kw solar panel
2.5kw wind turbine + 500w solar panel/1kw solar panel/1,5kw solar panel/2kw solar panel/2.5kw solar
panel/3kw solar panel
3kw wind turbine + 1kw solar panel/2kw solar panel/3kw solar panel/5kw solar panel
5kw wind turbine + 2kw solar panel/3kw solar panel/4kw solar panel/5kw solar panel/10kw solar panel
10kw wind turbine + 2kw, 3kw, 5kw, 10kw 20kw solar panel
15kw wind turbine + 5kw, 10kw, 15kw solar panel
20kw wind turbine + 5kw 10kw 15kw 20kw solar panel
Low average wind speed place, we will provide the system design plan accordingly.
We provide wind solar hybrid system design according to user daily/monthly power
comsumption, local average wind speed, monthly sunshinet day.
4. Wind turbine power range: 300w, 500w, 1kw, 1.5kw, 2kw, 2.5kw, 3kw, 5kw, 10kw,
20kw
wind turbine technical data and assembly
pls pay a visit to our home page: //www.huayaturbine.com
Low wind place, normal wind place, we recommend fixed pitch wind turbine;
Rich wind place, we recommend variable pitch wind turbine.
Blades and hub,permanent magnet generator and nacelle:
Blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery
Clamp hub, safety and reliable
Aluminum housing and nacelle
Rare earth material, high efficiency
low start up torque 0.7N.m.
Provide plate form test record for each set
We sell the pma seperately.
5. Mono Solar panel: 50w, 100w, 150w,200w, 250w, 300w 350w 500w-550w per piece

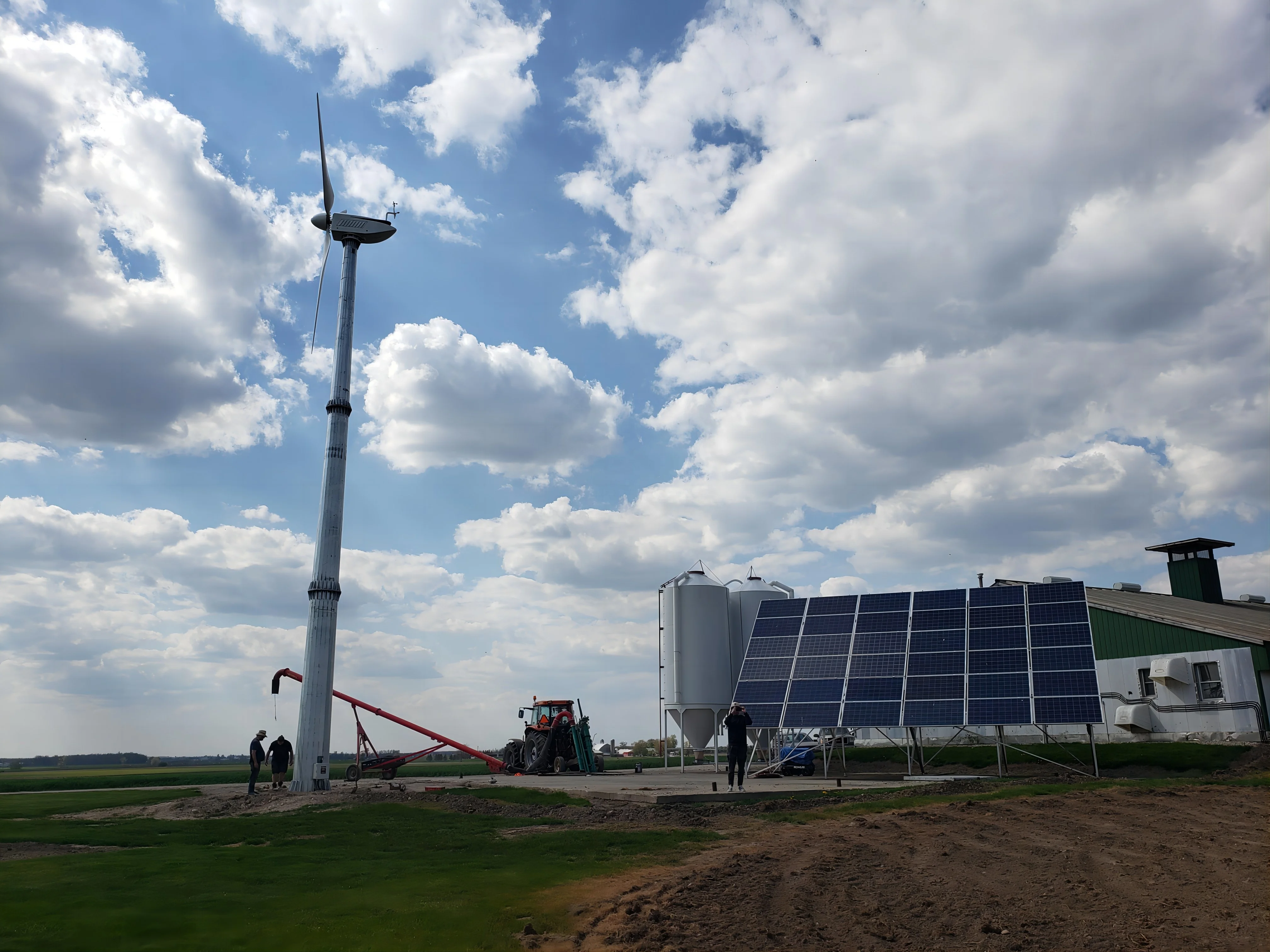

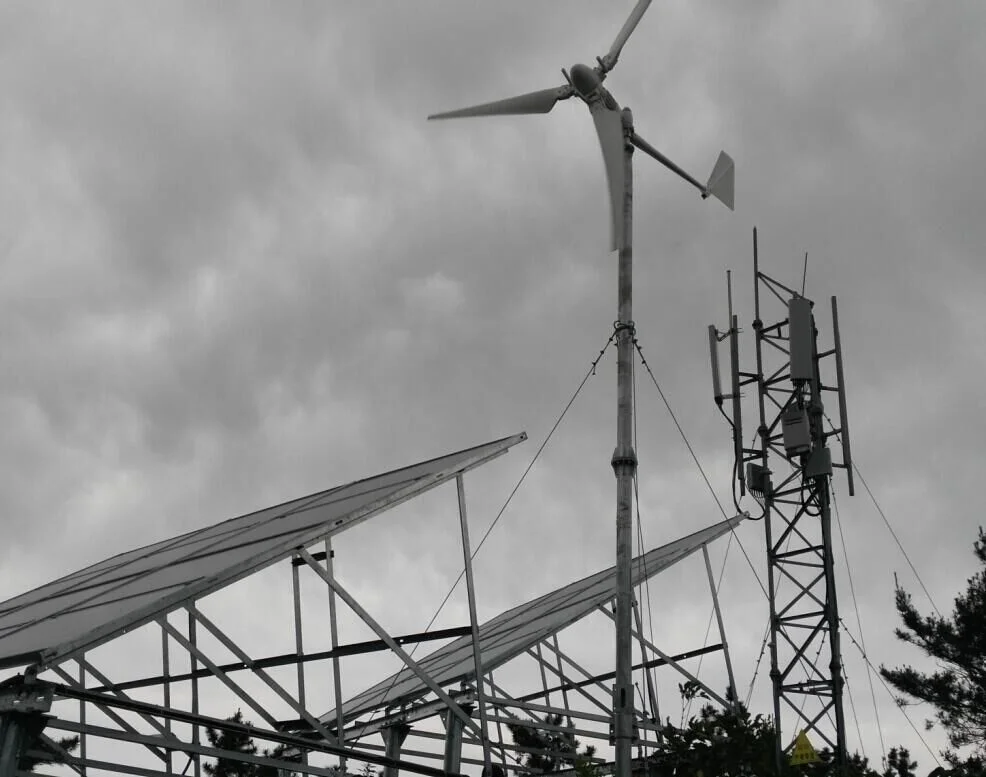

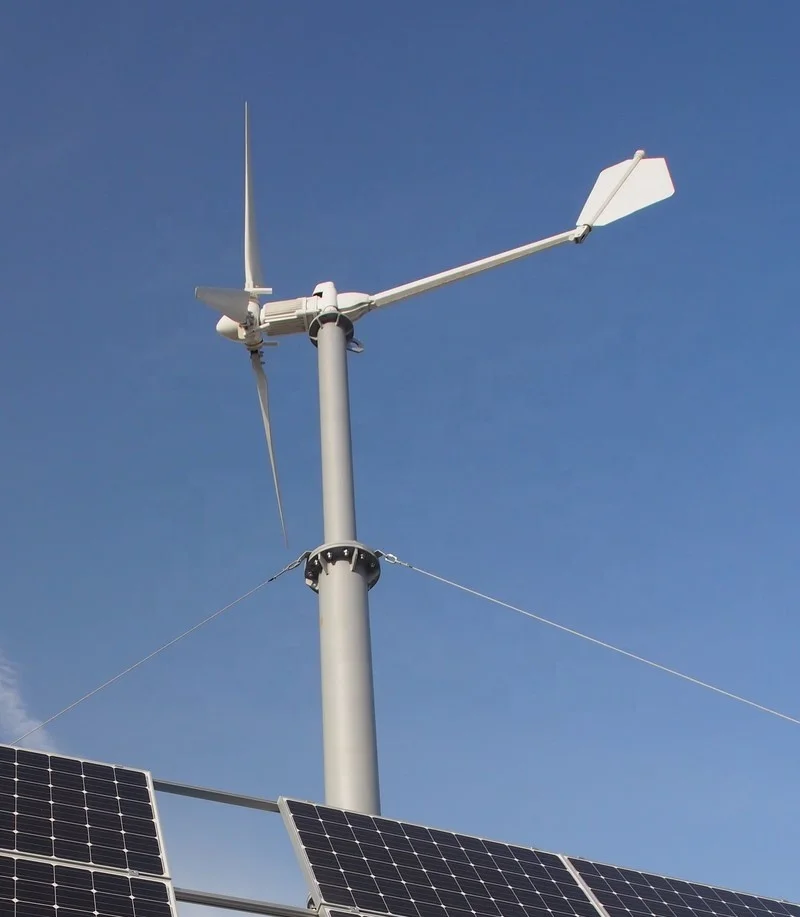

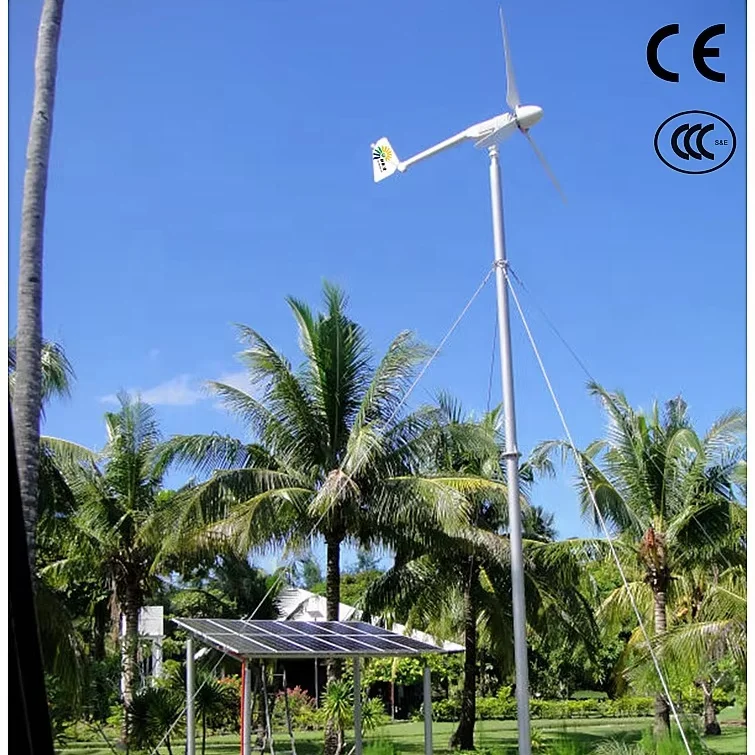

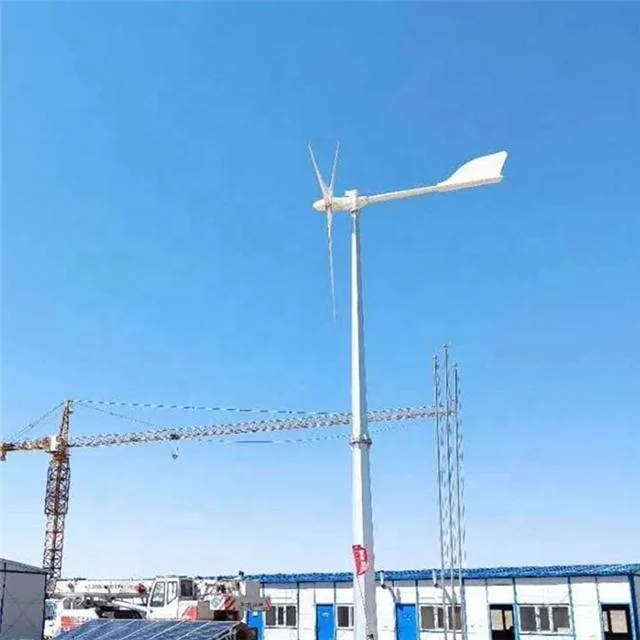

6. wind solar hybrid system application
home, street light, garden, signal station, , island...
10kw wind solar hybrid system
Wind solar hybrid system in Lebanon
Wind solar hybrid system in China
7.Tower for wind turbine:
Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
8. Matched controller
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phrase/ 3 phase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
Type | 2KW-24Vdc | 2KW-48Vdc | 2KW-96Vdc |
Wind turbine rated power | 2KW | 2KW | 2KW |
Wind turbine max. power | 4KW | 4KW | 4KW |
Solar panel | 600Wp | 600Wp | 600Wp |
Battery | 24Vdc | 48Vdc | 96Vdc |
Function | Rectifier,charge, control | ||
Display mode | LCD | ||
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | ||
PWM constant pressure voltage | >28Vdc | >56Vdc | >110Vdc |
3-phase load voltage of the wind turbine | 29±1Vdc | 58±1Vdc | 116±2Vdc |
Recovery charging voltage of the wind turbine | 27±1Vdc | 54±1Vdc | 108±2Vdc |
Solar stop charge voltage | 29±1Vdc | 58±1Vdc | 116±2Vdc |
Solar recovery charging voltage | <28Vdc | <56Vdc | <110Vdc |
Low-voltage of the battery | 20±1Vdc | 40±1Vdc | 80±2Vdc |
Self-provided connecting wire of the battery | >20mm² | >10mm² | >24mm² |
PWM fuse | 100A | 40A | 20A |
Solar fuse | 40A | 20A | 10A |
Charging fuse | 125A | 63A | 32A |
Work environment temperature | -30-60°C | ||
Relative humidity | <90% No condensation | ||
Noise (1m) | <40dB | ||
Degree of protection | IP20(Indoor) | ||
Cooling method | Forced air cooling | ||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | ||
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | ||
Size of the controller (mm) | 480*360*23 | 480*360*230 | 480*360*230 |
Weight of the controller | 23 Kg | 16 Kg | 16 Kg |
Size of the load (mm) | 490*460*310 | 490*460*310 | 490*460*310 |
Weight of the load | 15.5 Kg | 15.5 Kg | 15.5Kg |
9. Matched grid tie inverter 1.5k-15k, pure sine wave inverter single phase/3 phase
Inverter output voltage, frequency can be manufactured according to different countries request.
Packaging & Shipping
Wind turbine main body, blades, pma, tail, controller, inverter: plywood case
Tower: soft packages
Delivery by sea, by air or express.
FOB/C&F, CIF
500w-3kw wind turbine : 3-5 working days after payment
5kw-30kw wind turbine: 7-10 working days after payment
50kw-60kw 15-20 days after payment
Tower needs about 10 working days after payment
Our Services
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
Company Information
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine
manufactures in China. We keep improving and develop in the small wind turbine field. We are
not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and
designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
FAQ
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis
wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group
+ inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and
disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine
and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company
and manufacture, we know Chinese small wind turbine market well and can provide user more useful
advise.
Похожие товары
Домашняя мини-электрическая турбина солнечная ветровая гибридная система 3 кВт 5 энергия панель
Ветровая солнечная гибридная система 4 кВт небольшая ветровая турбина соединение литий-ионный аккумулятор
268 444,55 ₽ - 269 331,97 ₽
Ветряная турбина генератор 120 В 220 380 ч Тип 5 кВт 8 10 Вертикальная ось ветряная
Nuuko Energy 20 кВт вертикальный ветряной генератор для домашнего использования с 220 В 380 10 1000 Вт 5000 свинцово-кислотный аккумулятор
138 659,38 ₽ - 149 752,13 ₽
Ветряная мельница 20 кВт ветряная турбина с управлением шагом 10 30 горизонтальная сетчатая система привязки
332 671,58 ₽
FNEP ветровой горизонтальный турбинный генератор ветряная мельница
6 688,93 ₽ - 7 687,28 ₽
Qingdao GREEF 10 кВт безопасный устойчивый ветрогенератор для автономной системы
332 671,58 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Рекламный надувной самолет украшение для костюма самолета ходячие костюмы продажи
C100 % восковая ткань с принтом китайские поставщики поставляют настраиваемые печатные африканские восковые ткани
0,93-0,97 $
Прямые продажи с фабрики могут быть оптовые складные тележки для покупок Удобные и уличные продуктовые
8,39-9,89 $
Hantek щупы осциллографа автоматический Тестовый Кабель Ht30a Bnc к банану двойная Банановая головка многоцелевое автомобильное
3,10-3,44 $
Горячая распродажа ручная работа традиционная деревянная урна для домашних животных квадратная коробка золы собак и кошек персонализированная Лучшая цена
Промышленная серия CL Бесшумная цепь стальная зубчатая Фланцевая контактная звездочка соединяющая бесшумные цепи
1-1,50 $
Irdmco экологически чистый минималистичный прямоугольный деревянный ящик для хранения стеллаж поделок и детских игрушек Домашняя мебель гостиной
Технология сенсорных перчаток и аксессуары для детей от дождя холода M725132-334
1,07-1,40 $
