Product Pictures

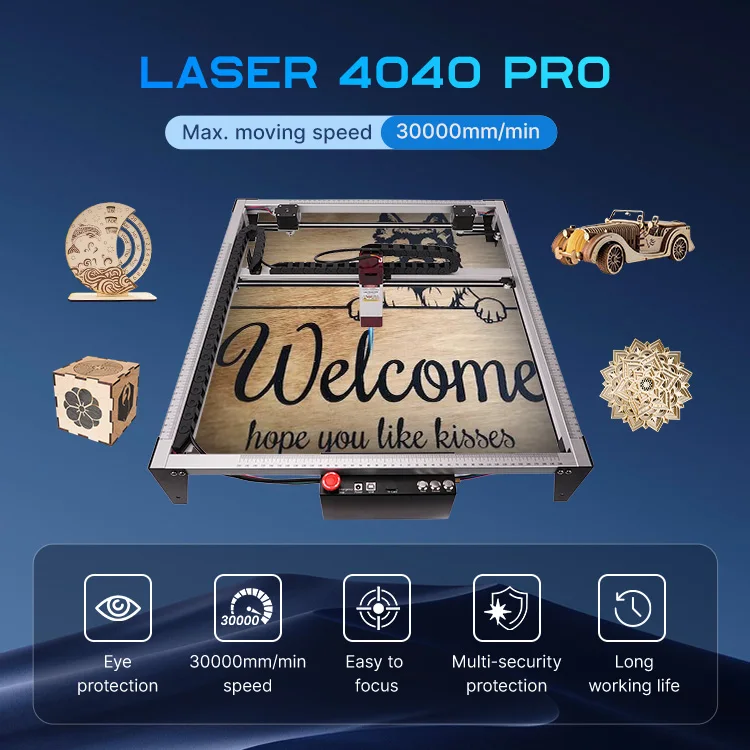

Lunyee 4040Pro Laser engraving machine with 32 bits control board
Advantage
*Model: 400*400mm Laser Engraver Machine
*Laser power: Output power 5.5W and 10W

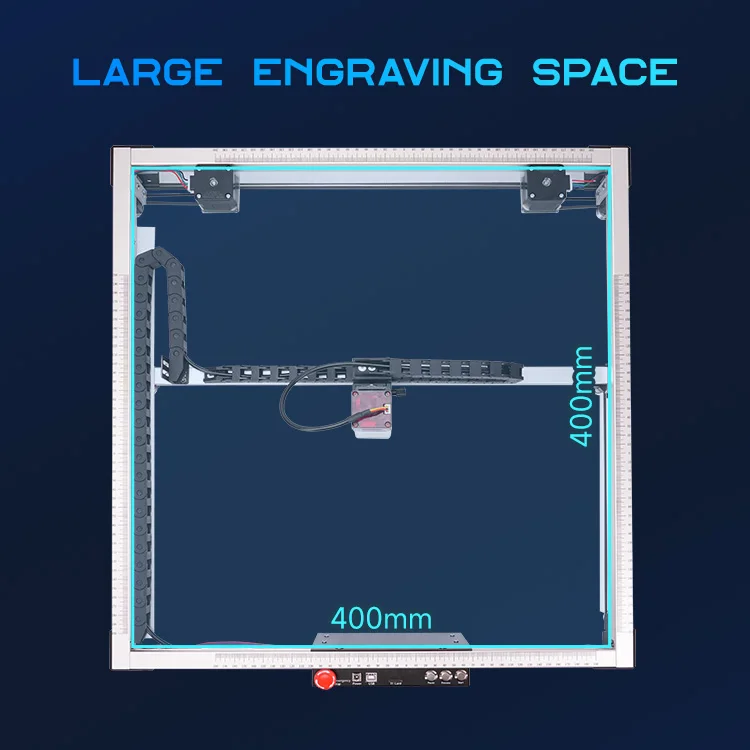

*Working area: 400*400mm MAX
* Laser power range could be S0 - S1000
Larger power adjustment range, freely adjust according to your needs： If you want the ax power, just set minS999,max1000
* The Maximum speed 60000mm/min
( If do not consider the laser carving result, the velocity of movement could be as high as 1000mm/s )
* Active Position Protection: It will be turned on with a strong alarm sound in these three cases
1. Machine was moved during working
2. USB cable disconnect
3. Power≥1，the laser turn on ＞ 5S still not start working.
* One motor Y axis
Single motor setting, one drive module corresponds to one motor, which can increase the current while reducing the weight of the machine body and improve the running speed of the machine
* Limit switch: XY axis limit switch
Protect the normal operation of the machine
* Exposure Duration Detection and Limitation
If laser engraver is under control without anybody notice, it will be turned on to make the machine stop working.
* X-axis adopts eccentric nut design
This machine uses eccentric nuts to avoid X-axis shaking, making the machine more stable
* Sliding module
* Transparent acrylic module
Adding a transparent acrylic module allows the machine to install lasers of any size, and the combination with a pair of sliding modules makes the whole structure more convenient
* Machine wire management
Make the machine cable clean and not entangled, more beautiful and convenient
* Offline
If connect offline and USB together, the machine will choose USB; only connect offline separate, the machine will work offline
* Semi-assembled delivery
*Laser power: Output power 5.5W and 10W
*Working area: 400*400mm MAX
* 2axis controller
32 bits motherboard with 32 Bits MCU ，It can process 32 instructions at a time, greatly increasing the file processing speed
32 bits motherboard with 32 Bits MCU ，It can process 32 instructions at a time, greatly increasing the file processing speed
* Laser power range could be S0 - S1000
Larger power adjustment range, freely adjust according to your needs： If you want the ax power, just set minS999,max1000
* The Maximum speed 60000mm/min
( If do not consider the laser carving result, the velocity of movement could be as high as 1000mm/s )
* Active Position Protection: It will be turned on with a strong alarm sound in these three cases
1. Machine was moved during working
2. USB cable disconnect
3. Power≥1，the laser turn on ＞ 5S still not start working.
* One motor Y axis
Single motor setting, one drive module corresponds to one motor, which can increase the current while reducing the weight of the machine body and improve the running speed of the machine
* Limit switch: XY axis limit switch
Protect the normal operation of the machine
* Exposure Duration Detection and Limitation
If laser engraver is under control without anybody notice, it will be turned on to make the machine stop working.
* X-axis adopts eccentric nut design
This machine uses eccentric nuts to avoid X-axis shaking, making the machine more stable
* Sliding module
This machine adds a slider on the X axis to install the laser and has better heat dissipation, which is helpful for the
adjustable focus laser to adjust the focus, and it is easier to replace the laser
adjustable focus laser to adjust the focus, and it is easier to replace the laser
* Transparent acrylic module
Adding a transparent acrylic module allows the machine to install lasers of any size, and the combination with a pair of sliding modules makes the whole structure more convenient
* Machine wire management
Make the machine cable clean and not entangled, more beautiful and convenient
* Offline
If connect offline and USB together, the machine will choose USB; only connect offline separate, the machine will work offline
* Semi-assembled delivery
Reduce assembly time and be more friendly to newcomers
Parameters
* Laser power: 40W (Actual optical power 5.5W) and 80W (Actual optical power 10w)
* Wave Length: 445 ± 5nm
* Input Format: NC, BMP, JPG, PNG, DXF, etc.
* Machine power: 12V 5A
* Carving Speed: 0-50000mm/min
* Software: MAC OS and Linux Working with LightBurn; Windows working with LaserGRBL
* Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, it's about 0.81um pixel precision )
* Wave Length: 445 ± 5nm
* Input Format: NC, BMP, JPG, PNG, DXF, etc.
* Machine power: 12V 5A
* Carving Speed: 0-50000mm/min
* Software: MAC OS and Linux Working with LightBurn; Windows working with LaserGRBL
* Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, it's about 0.81um pixel precision )
Laser Power | 5.5W | 10W | |
Actual output power | 5500MW | 10000MW | |
Laser wavelength | 450nm | ||
Spot type | Dotted | ||
Focus | within 5-10cm adjustable | within 3cm adjustable | |
Spot size | 0.15*0.01mm | 0.03*0.04mm | |
Drive mode | external ACC constant current drive | ||
Cooling method | Forced Air Cooling | ||
Operating voltage | 12V DC | ||
Power supply | 12V 5A | ||
Shell material | Aluminum, Surface Anodized | ||
Module material | Copper | ||
Life Tim | 20000hours | ||
Working temperature | -40-75Celsius | ||
Matters need attention
-Please wear goggles when operating the laser engraver. Wear safety goggles to avoid blindness.
-Please do not touch the laser emitter with your hand, or it may burn your hand.
-Please avoid strong impact on the machine.
-Children under 14 are not allowed to use this product and children over 14 need adult supervision.
-The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
-This product is not recommended for industrial cutting due to its high engraving speed.
-Please do not touch the laser emitter with your hand, or it may burn your hand.
-Please avoid strong impact on the machine.
-Children under 14 are not allowed to use this product and children over 14 need adult supervision.
-The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
-This product is not recommended for industrial cutting due to its high engraving speed.
Product Details
Laser and control board
5.5W/10W Laser head
* Laser Wavelength: 445nm±5 (blue viole)
* Optical Power Output：5.5W/10W
* Drive mode: External ACC constant current drive
* Cooling Method: Forced air cooling
* Operating Voltage: 12V/24V
* Shell Material: Aluminum,Surface Anodized
* Module Material: Copper
* Life Time:16000 hours
* Working Temperature:-40-75Celsius
* 12V for Laser engraving machine , 24V for 3D printer， if you don't know how to choose, please contact us !
* About laser wire: red "12V+" , Black "GND " , yellow "PWM" , When connection , please pay attention to that.
* Optical Power Output：5.5W/10W
* Drive mode: External ACC constant current drive
* Cooling Method: Forced air cooling
* Operating Voltage: 12V/24V
* Shell Material: Aluminum,Surface Anodized
* Module Material: Copper
* Life Time:16000 hours
* Working Temperature:-40-75Celsius
* 12V for Laser engraving machine , 24V for 3D printer， if you don't know how to choose, please contact us !
* About laser wire: red "12V+" , Black "GND " , yellow "PWM" , When connection , please pay attention to that.
Laser Module： 40W(Output power 5.5W)
* Plywood 2mm cut : 300mm/min , S1000 , 1 Pass
* Plywood 3mm cut : 250mm/min , S1000 , 1 Pass
* Plywood 4mm cut : 200mm/min , S1000 , 1 Pass
* Plywood 5mm cut : 100mm/min , S1000 , 1 Pass
* Plywood 5mm cut : 200mm/min , S1000 , 2 Pass
* MDF board 3mm cut : 100mm/min , S1000 , 1 Pass
* MDF board 3mm cut : 320mm/min , S1000 , 2 Pass
* Black acrylic plate 3mm : 100mm/min , S1000 , 1Pass
* Black acrylic plate 5mm : 100mm/min , S1000 , 3Pass
* Plywood 3mm cut : 250mm/min , S1000 , 1 Pass
* Plywood 4mm cut : 200mm/min , S1000 , 1 Pass
* Plywood 5mm cut : 100mm/min , S1000 , 1 Pass
* Plywood 5mm cut : 200mm/min , S1000 , 2 Pass
* MDF board 3mm cut : 100mm/min , S1000 , 1 Pass
* MDF board 3mm cut : 320mm/min , S1000 , 2 Pass
* Black acrylic plate 3mm : 100mm/min , S1000 , 1Pass
* Black acrylic plate 5mm : 100mm/min , S1000 , 3Pass
Laser Module： 80W(Output power 10W)
* Plywood 2mm cut : 500mm/min , S1000 , 1 Pass
* Plywood 3mm cut : 450mm/min , S1000 , 1 Pass
* Plywood 4mm cut : 400mm/min , S1000 , 1 Pass
* Plywood 5mm cut : 240mm/min , S1000 , 1 Pass
* Plywood 8mm cut : 120mm/min , S1000 , 1 Pass
* Plywood 10mm cut : 100mm/min , S1000 , 1 Pass
* MDF board 3mm cut : 180mm/min , S1000 , 1 Pass
* MDF board 3mm cut : 120mm/min , S1000 , 2 Pass
* Black acrylic plate 3mm : 120mm/min , S1000 , 1Pass
* Black acrylic plate 5mm : 120mm/min , S1000 , 2Pass
* Plywood 3mm cut : 450mm/min , S1000 , 1 Pass
* Plywood 4mm cut : 400mm/min , S1000 , 1 Pass
* Plywood 5mm cut : 240mm/min , S1000 , 1 Pass
* Plywood 8mm cut : 120mm/min , S1000 , 1 Pass
* Plywood 10mm cut : 100mm/min , S1000 , 1 Pass
* MDF board 3mm cut : 180mm/min , S1000 , 1 Pass
* MDF board 3mm cut : 120mm/min , S1000 , 2 Pass
* Black acrylic plate 3mm : 120mm/min , S1000 , 1Pass
* Black acrylic plate 5mm : 120mm/min , S1000 , 2Pass
Note:
* When use laser without air pump, please nozzle take off nozzle , then install on Magnetic shell
Packaging & Delivery
X-axis pre-installed, easy to use
Customized carton and foam protect safety
Product Effects
Your satisfaction is our relentless pursuit，start your DIY engraving adventure！
