Bluetimes flying 3w 5w 10w uv qr code date laser marking engraving coding machine
Products Description

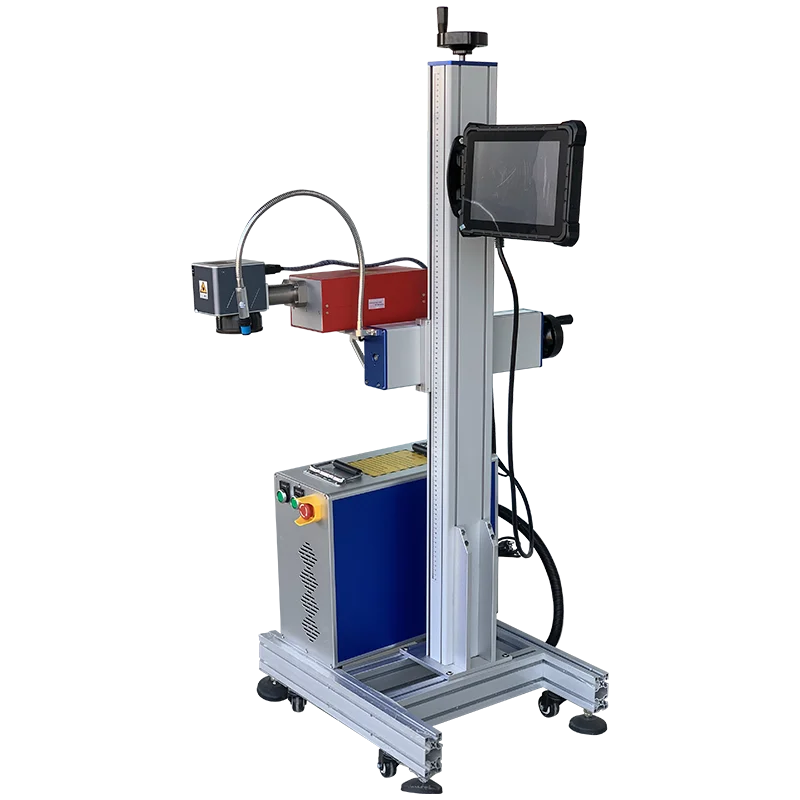

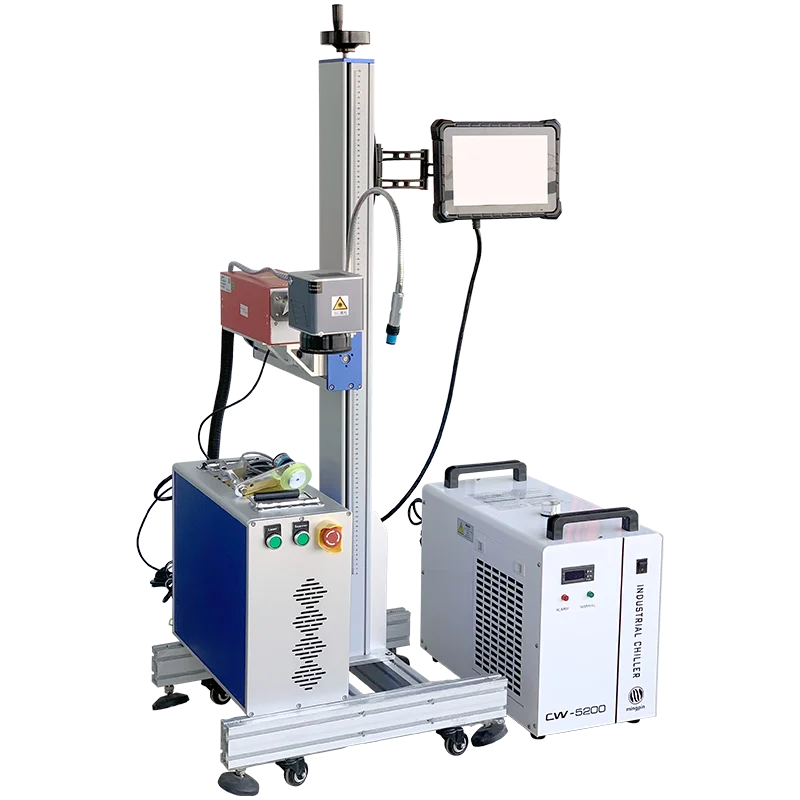

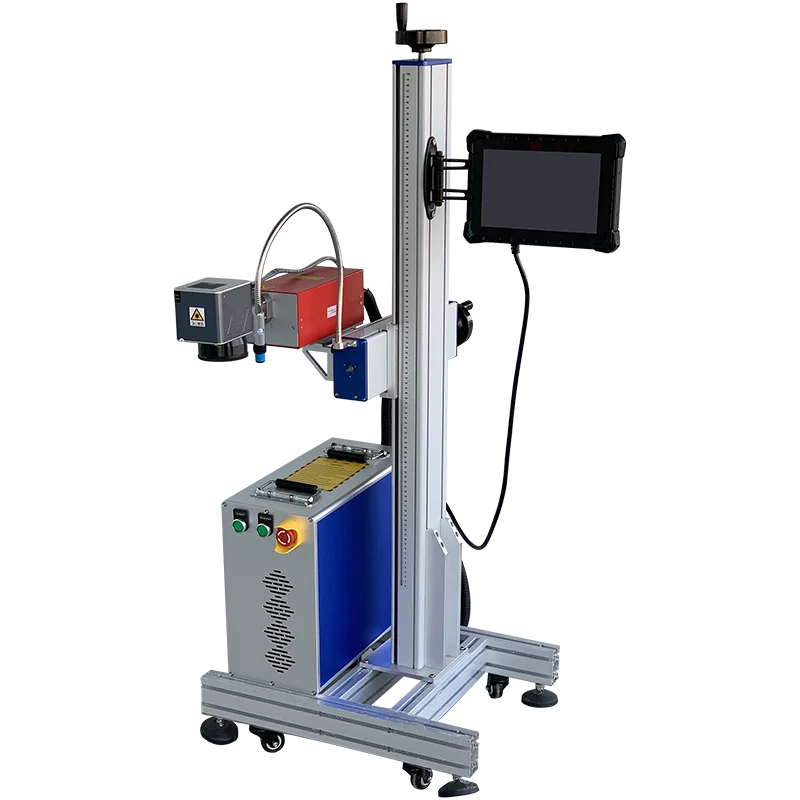

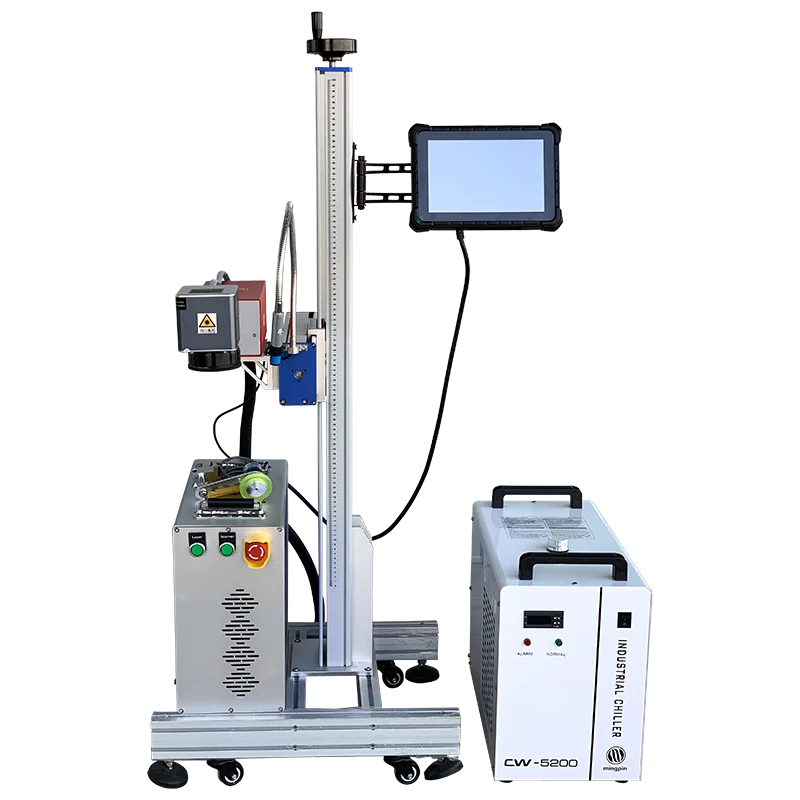

FLY UV LASER MARKING ENGRAVING MACHINE
Flying UV Marking Machine is especially suitable for users requiring mass production and marking in food packaging, cigarette code, wine industry, mineral water, daily cosmetics, wires and cables and various production lines. Using imported uv laser and customized marking conveyor belt can achieve the goal of rapid marking, and increase the processing capacity per unit time, improve the benefit conversion rate.
BLUETIMES FLM-Z3/5/10 UV Laser marking machine adopts the the most advanced solid-state fiber laser to create the super fine effect of marking. This model is compact structure, no pollution, no optical power coupling loss, water cooling, high efficiency and stability, its life is more than 100,000 hours. UV Laser engraver output power 3W/5W/10W. The software is easy to use and can work with any content such as graphic,charters,letters,barcode,qrcode etc.It can widely used in various metal and non-metallic surface to create the permanent mark.
Technical Parameters
PRODUCTS | FIBER LASER MARKING MACHINE | ||
APPLICATION | ELECTRONIC PRODUCTS, HARDWARE AND METAL, MOTORCYCLE ACCESSORIES, WIRES AND CABLES AND PIPES, FOOD AND BEVERAGE, DAILY CHEMICAL PRODUCTS AND OTHER INDUSTRIES | ||
MARKING MTERIAL | METAL,WOOD, PAPER, ACRYLIC,GLASS, EXTRUSION PLASTICS LIKE PVC, PE, PC, CPP, PA, PPO, ETC | ||
MACHINE FEATURES | LASER POWER | 3W 5W 10W (OPTIONAL) | |
LASER TYPE | UV LASER (RAYCUS/MAX/JPT) | ||
WAVELENGTH | 355NM | ||
MARKING SPEED | ≤7000MM/S | ||
CONTROL MAINBOARD | INDUSTRIAL GRADE HIGHLY INTEGRATED MOTHERBOARD | ||
Beam Quality | M2 < 1.4 | ||
COOLING SYSTEM | WATER COOLING | ||
MARKING SYSTEM | FLYING SYSTEM | ||
Marking Range | UP TO 300x300mm | ||
Operating System | LUNIX SYSTEM | ||
DATE PROTECT | IENSURE USER DATA NOT LOST IN CASE OF UNEXPECTED POWER FAILURE | ||
SUPPLY POWER | AC220V,50-60Hz | ||
Graphic Format Supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt.. | ||
ENVIRONMENTAL RESISTANCE | TEMPERATURE | -10ºC-45ºC (NO FREEZING) | |
HUMIDITY | 10%-85% (NO CONDENSATION) | ||
Power Consumption | ≤ 100W or ≤ 200W | ||
MARKING LINE TYPE | LATTICE, VECTOR | ||
MINIMUM LINE WIDTH | 0.01MM | ||
LENS PARAMETER | POSITIONING ACCURACY | 0.01MM | |
POSITIONING TYPE | Double Red Dot Pointer | ||
CHARACTER TYPE | SUPPORTED FONT TYPES | SINGLE LINE FONT / DOUBLE LINE FONT / DOT MATRIX FONT | |
GRAPHIC FILE FORMAT | PLT FORMAT VECTOR FILE INPUT/OUTPUT | ||
GRAPHIC ELEMENT | DOT, LINE, ARC TEXT, RECTANGLE, CIRCLE | ||
VARIABLE TEXT | SERIAL NUMBER, TIME, DATE, COUNTER, SHIFT | ||
BAR CODE | CODE39, CODE93, CODE128, EAN-13, ETC | ||
QR CODE | QRCODE, DATA MATRIX, ETC | ||
Product Details
Machine Details
● Pulsed output laser beam Coupled with 10x more focused beam diameter makes the UV marking machine extreme precision.
● UV source can use 100000 hours, That means it could operate for more than 10 years.
● Decades of years machine produce experience we have mastered the core technology of the fiber laser marking.
● Delicate marking. The quality of laser beam is superb, therefore it is very suitable for delicate marking.
● SINO-Galvo scan head and Singapore Wavelength F-theta Lens creates the ultra fine marking effect.
● Red point : Clear the working path when it working.
● UV source can use 100000 hours, That means it could operate for more than 10 years.
● Decades of years machine produce experience we have mastered the core technology of the fiber laser marking.
● Delicate marking. The quality of laser beam is superb, therefore it is very suitable for delicate marking.
● SINO-Galvo scan head and Singapore Wavelength F-theta Lens creates the ultra fine marking effect.
● Red point : Clear the working path when it working.
● Power Supply: Maintenance free auto protection for short circuit,overload, over voltage and over temperature.
FLYING FIBER LASER MARKING MACHINE PARTS
1.Flying UV Laser Marking Machine Equipped with original flying machine Design and graph will be converted into digital signals by laser marking control card transmitted into galvanometer scanning head
2.Galvanometer scanning head Higher scanning speed and marking accuracy
3.LCD control screen that can be moved on demand
4.Portable and mini type,easy carry The handle can adjust the angle of the lens up and down,the horizontal column can adjust the length of the lens before and after ,easy to use
5.Aluminum Worktable Can be equipped with fixed workbench/pipeline
6.Emergency stop,main power key switch ,laser switch
7.Column height can be adjusted freely according to requirements
8.Production Line with the radial sensor: the assembly belt roller rotates control by the motor and the marking starts when the sensor detect the work pieces.(Optional)
3.LCD control screen that can be moved on demand
4.Portable and mini type,easy carry The handle can adjust the angle of the lens up and down,the horizontal column can adjust the length of the lens before and after ,easy to use
5.Aluminum Worktable Can be equipped with fixed workbench/pipeline
6.Emergency stop,main power key switch ,laser switch
7.Column height can be adjusted freely according to requirements
8.Production Line with the radial sensor: the assembly belt roller rotates control by the motor and the marking starts when the sensor detect the work pieces.(Optional)
Advantages
1. Flying optical fiber marking machine can realize the marking work of large-scale production line. It adopts a special split structure. The laser head has the function of automatic induction. When the work piece passes through the laser head, it will automatically mark.
2. Optional high-quality conveyor belts can be selected for on-line flying optical fiber marking machine to meet the needs of various users.
2. Optional high-quality conveyor belts can be selected for on-line flying optical fiber marking machine to meet the needs of various users.
4. Convenient bracket can adjust the distance between upper and lower conveniently, meet the marking requirements of different work pieces, one machine is multi-purpose.
5. IndustrIal flying optical fiber marking machine adopts imported optical uv laser, which is of good quality and can be processed stably for 24 hours continuously.
6. High photoelectric conversion rate, zero consumables.
7. Simple operation, the operator can skillfully start in one day.
8. Flying UV Marker supports 2D coding and supports any computer operating system and languages
5. IndustrIal flying optical fiber marking machine adopts imported optical uv laser, which is of good quality and can be processed stably for 24 hours continuously.
6. High photoelectric conversion rate, zero consumables.
7. Simple operation, the operator can skillfully start in one day.
8. Flying UV Marker supports 2D coding and supports any computer operating system and languages
Product Applications
Key Specification of Industrial UV Laser Marking Machine with Conveyor
• Ideal for bulk production, it is hence a good etching / marking solution for the industrial field, rather than the personalized gift making.
It's good for almost all metals (rare or coated, i.e. brass, stainless steel, silver, aluminum, steel), epoxy resin, leather, PCB, PE, plastic, ceramic, plastic, acrylic, electroplating materials, rubber, and more.
Usage Scope
BLUETIMES flying UV laser marking machine with a conveyer belt is ideal for bulk etching jobs such as numbers, MFC date, and more for the trophy, part, phone, bearings, etc.
Usage Scope
BLUETIMES flying UV laser marking machine with a conveyer belt is ideal for bulk etching jobs such as numbers, MFC date, and more for the trophy, part, phone, bearings, etc.
Flying UV laser marking machine applicable industries
Flying UV laser marking machine is widely used for metal marking , stainless steel marking , nylon marking , ABS / PVC / PC, glass, and acrylic marking plastics marking , rubber marking , resin marking , ceramic marking , etc in food printing , soft-drink printing , cigarette code , wines industry ,mineral water , daily cosmetic , wires and cables and all kinds of production line
FLYING FIBER/CO2/UV LASER SOURCE OPTIONAL
Tell us your target marking materials, size, or any other requirements. Our professional team will recommend you the best marking program and prodive free marking samples. We can show you the whole marking process by live video, and we will serve for you until tally meet your desired satisfaction.
Packaging & Shipping
PACKING SHIPPING AND AFTER SALES SERVICE
After-sale Service:
● 24 months guarantee of the whole machine, we will provide replacement or repair service when you need it.
● Software is on update for free whole life.
● English manual and insturction video for machine using and maintaining will send to you with the machine.
● Our engineer offer technical support or training online for free.
● 7*24h online technical support via Skype,Email,WhatsApp,Phone,Team Viewer,even on weekend even on vacation.
● 24 months guarantee of the whole machine, we will provide replacement or repair service when you need it.
● Software is on update for free whole life.
● English manual and insturction video for machine using and maintaining will send to you with the machine.
● Our engineer offer technical support or training online for free.
● 7*24h online technical support via Skype,Email,WhatsApp,Phone,Team Viewer,even on weekend even on vacation.
PACKING:
We have 3 layers package.
1.For the outside, we adopt wood craft case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by thickening plastic bag forwaterproof.
3.For the inside layer, the machine is covered by thickening plastic bag forwaterproof.
SHIPPING:
According to your actual address, we can transport by sea, air, truck or railway. We can also send the machine to your DOOR according to your request.
Company Profile
SERVING THE LASER INDUSTRY
We garnered over 17 years of experience in the laser industry before launching BLUETIMES INTERNATIONAL Co.Ltd.out of YongLi Laser Technology Co.Ltd.
We believe in global customer service and technical support, so our skilled laser technicians and 30-year industry veterans are here to solve customer problems efficiently and effectively.
BLUETIMES brand has grown into the largest online seller of laser equipment on Alibaba.
Our mission:
We believe in global customer service and technical support, so our skilled laser technicians and 30-year industry veterans are here to solve customer problems efficiently and effectively.
BLUETIMES brand has grown into the largest online seller of laser equipment on Alibaba.
Our mission:
To make quality laser machines and spare parts accessible to all. we are committed to the development and manufacture of the Co2 Laser Machine Part (laser tube, laser power supply, laser optic lens, laser power meter, laser chiller machine and control system), Fiber Laser Machine Part (laser source, laser cutting head, laser nozzles, and ceramic holder, laser protective windows, laser chiller machine, and control system), and CNC laser machines (laser marking machines, laser engraving machines, laser cleaning machines, and laser welding machines). We are always providing customers with high-quality products, competitive prices, and excellent services.
No.1 Laser Supplier based on No1 Manufacture Factory
All BlueTimes International Laser Products Are Designed and Produced On-site Ensuring Transparency and Quality Control Throughout the Manufacturing Process. with In-house CNC Machining Capabilities and a Roster of Highly Skilled Engineers, Our Facility is Equipped to Produce Equipment of Remarkable Performance and Quality.
BlueTimes Laser Technology Has the Knowledge and Experience to Provide Expert Advice on Any Laser Application. Combined with Comprehensive After-sales Support BlueTimes Can Provide an Unrivaled Solution to Your Needs.
Solving the Most Difficult Manufacturing Challenges with Thought Leadership and Innovative Laser Systems Solutions. Our Experts Engage Customers on over 2,500 Projects Per Year.
Solving the Most Difficult Manufacturing Challenges with Thought Leadership and Innovative Laser Systems Solutions. Our Experts Engage Customers on over 2,500 Projects Per Year.
Certification is commitment to quality and safety
Product certification acts as an indicator of that product’s safety, reliability, and quality, Product certification is one of our best tools to tell the quality from the questionable, or reliable from the risky.
BLUETIMES International has obtained 50 patents, 6 software copyrights, and has successfully passed European CE certification, RoHS certification, FCC certification, REACH certification, MSDS certification, US Food and Drug Administration Certification, TUV Rheinland certification, Swiss SGS testing certification, and ISO9001 quality management system certification.
BLUETIMES International is a member of Alibaba Group’s TrustPass VIP member and Golden & Assessed Supplier. The business covers more than 70 cities in China, as well as nearly 80 countries and regions such as Southeast Asia, Europe, America, Oceania and Africa, and is highly recognized by domestic and global customers.
OUR EXHIBITION
222
2015-Serigrafia Sign Futuretextil , Sao Paulo, Brasil
2016-EXPO PUBLICITAS, Mexico City, Mexico
2017-LASER PHOTONICS, Munich, Germany
2017-Sign Africa Expo Durban, Cape Town, South Africa
2018-Digi Sign,Cairo Egypt
2018-Media Expo, Mumbai, India
2018-Print & Signage Expo, Berlin, Germany
2019-Media Expo Mumbai, India
2019-FESPA , Sao Paulo, Brasil
2019-ITMA , Bienvenido, Spain
2022-LASER World of PHOTONICS, Messe München, Germany
2016-EXPO PUBLICITAS, Mexico City, Mexico
2017-LASER PHOTONICS, Munich, Germany
2017-Sign Africa Expo Durban, Cape Town, South Africa
2018-Digi Sign,Cairo Egypt
2018-Media Expo, Mumbai, India
2018-Print & Signage Expo, Berlin, Germany
2019-Media Expo Mumbai, India
2019-FESPA , Sao Paulo, Brasil
2019-ITMA , Bienvenido, Spain
2022-LASER World of PHOTONICS, Messe München, Germany
2023-South China International Industry Fair,Shenzhen,China
2023-CHINA INTERNATIONAL INDUSTRY FAIR,Shanghai,China
2023-CHINA INTERNATIONAL INDUSTRY FAIR,Shanghai,China
FAQ
Q.What are the advantages of this machine?
1.Thickened cast aluminum support
2.Taiwan imports belt and past the friction test.
3.German designer specialized design.
4.Advanced control system.
Q:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 3-5working days if the goods are not in stock, it is according to quantity.
Q: Do you arrange the shipment for the machine?
A: Yes,sure.We will arrange shipment for you for FOB or CIF price,for EXW price,client need to arrange shipment by themselves or their agent.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don' t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user' S manual along with the machine.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
1.Thickened cast aluminum support
2.Taiwan imports belt and past the friction test.
3.German designer specialized design.
4.Advanced control system.
Q:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 3-5working days if the goods are not in stock, it is according to quantity.
Q: Do you arrange the shipment for the machine?
A: Yes,sure.We will arrange shipment for you for FOB or CIF price,for EXW price,client need to arrange shipment by themselves or their agent.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don' t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user' S manual along with the machine.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
