4 2 и 6 кВт Гибридный автономный инвертор Easun однофазный солнечный для склада MPPT 220 В двойной выход
- Категория: >>>
- Поставщик: Easun Power Technology Corp Limited
Сохранить в закладки 1601254905891:
Описание и отзывы
Характеристики

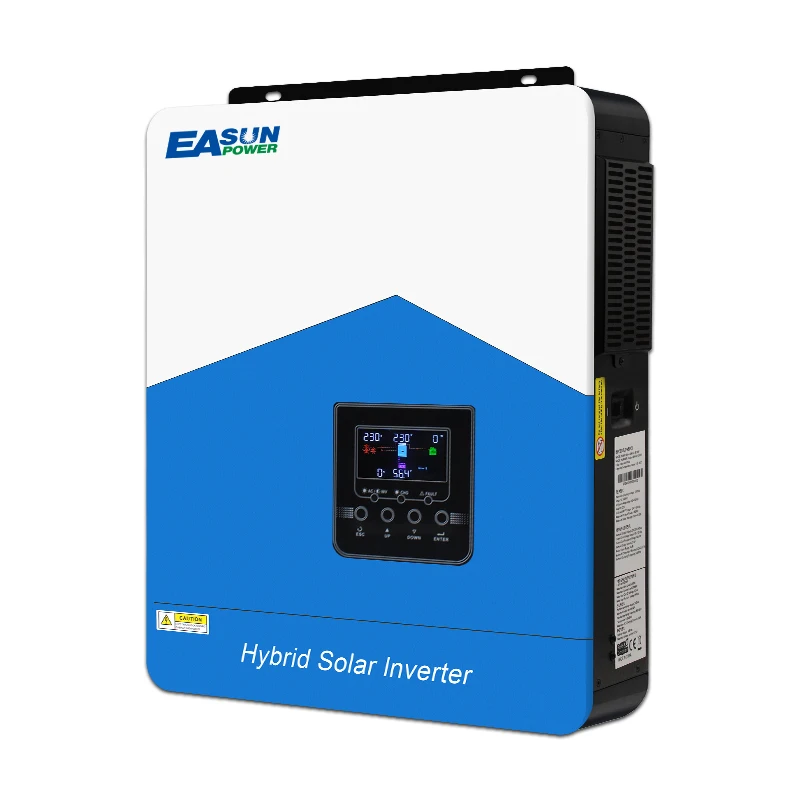

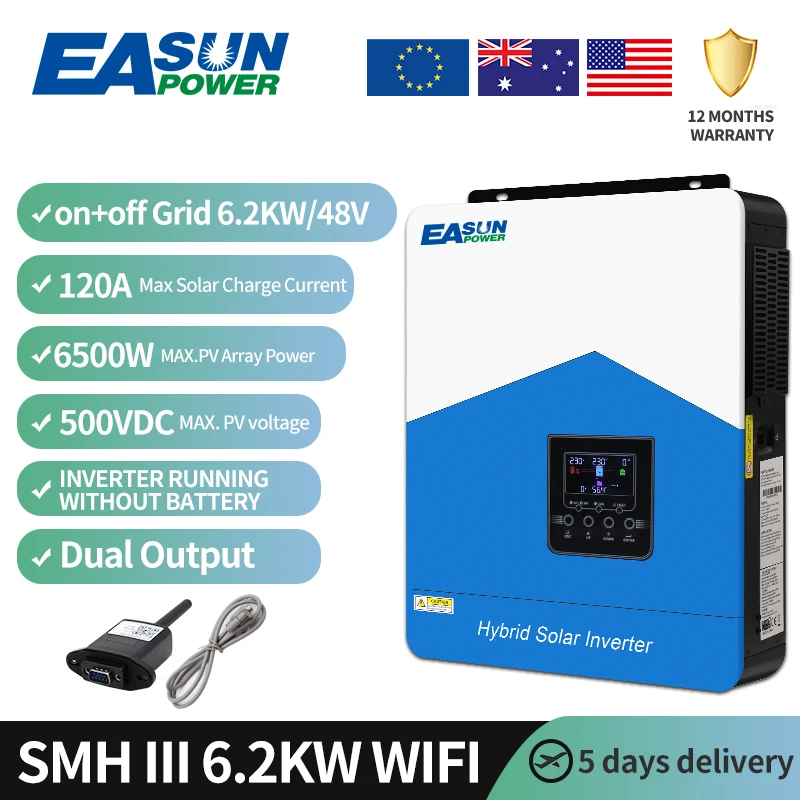

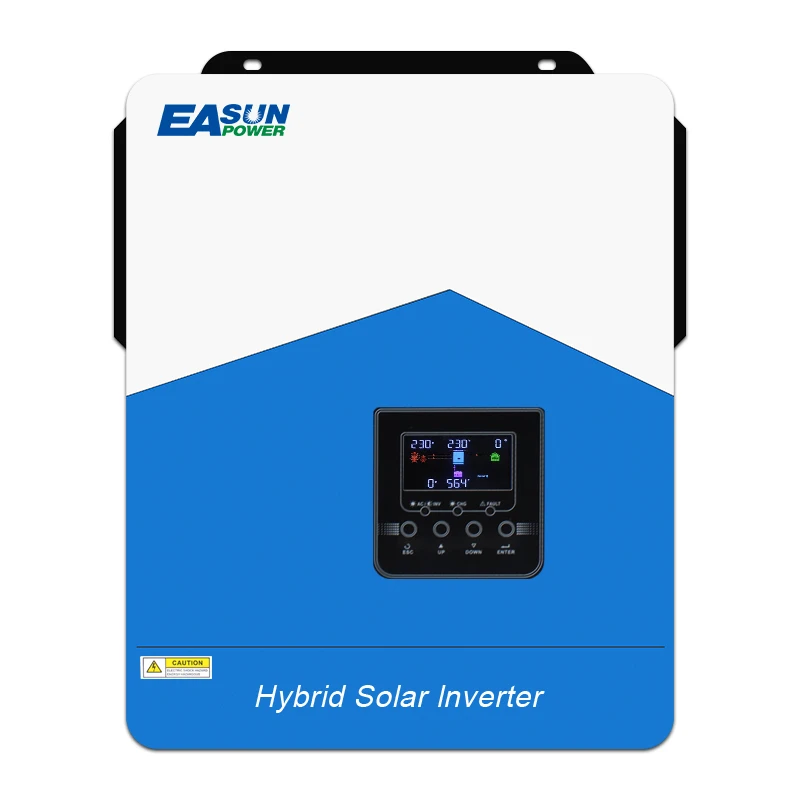

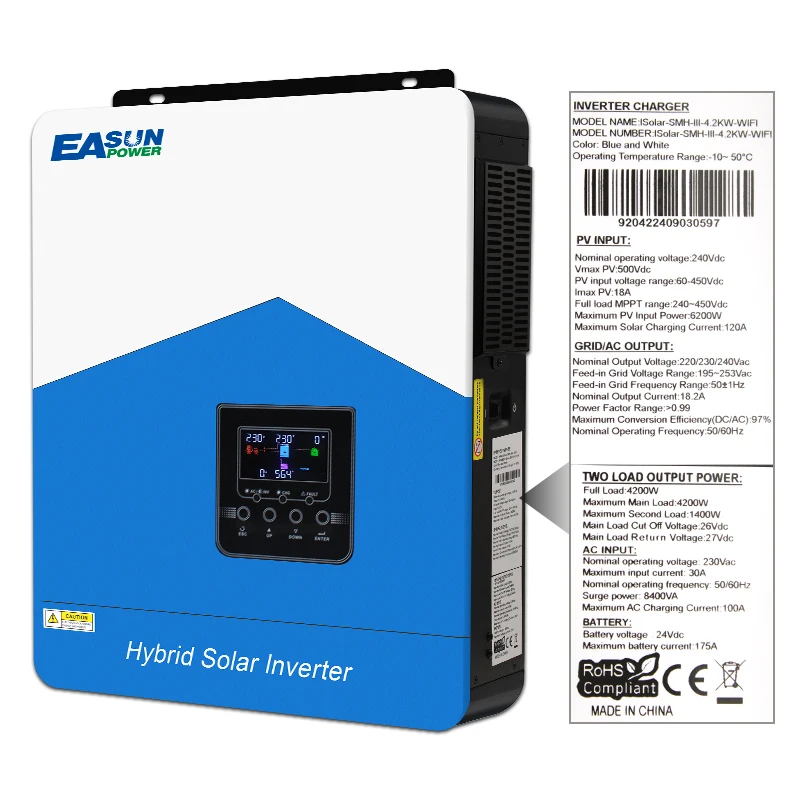

Easun Power 4.2 & 6.2KW hybrid off grid inverter Single Phase EU Warehouse factory price Solar Inverter MPPT dual output 220v inverter
Main Features:
1. Pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate
2. Optional input voltage range for home appliances and personal computers
3. Optional charging current based on applications
4. Configurable AC/Solar input priority via LCD setting
5. Solar charger and AC charger built inside, Compatible to grid power or generator power
6. Auto restart while AC is recovering, auto charge and switch, unattended operation
7 Smart battery charger and management for optimized battery performance
8. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption
9. All around protection functions: Overload or short circuit protection/high voltage/low battery voltage/high temperature,etc.
2. Optional input voltage range for home appliances and personal computers
3. Optional charging current based on applications
4. Configurable AC/Solar input priority via LCD setting
5. Solar charger and AC charger built inside, Compatible to grid power or generator power
6. Auto restart while AC is recovering, auto charge and switch, unattended operation
7 Smart battery charger and management for optimized battery performance
8. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption
9. All around protection functions: Overload or short circuit protection/high voltage/low battery voltage/high temperature,etc.
Specification
MODEL | ISolar-SMH-III-4.2KW-Wifi | |
Phase | 1-phase | |
Maximum PV lnput Power | 6200W | |
Rated Power | 4200W/4200VA | |
Maximum Solar Charging Current | 120A | |
GRID-TIE OPERATION | ||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
Start-up Voltage/lnitial Feeding Voltage | 60VDC/90VDC | |
MPPT Voltage Range | 60-450VDC | |
Maximum Input Current | 1/18A | |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Voltage Range | 195-253VAC | |
Nominal Output Current | 18.2A | |
Power Factor | >0.99 | |
Maximum Conversion Efficiency(DC/AC) | 98% | |
TWO LOAD OUTPUT POWER | ||
Full Load | 4200W | |
Maximum Main Load | 4200W | |
Maximum Second Load(battery mode) | 1400W | |
Maximum Load Cut Off Voltage | 26VDC | |
Maximum Load Return Voltage | 27VDC | |
OFF-GRID OPERATION | ||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
Acceptable lInput Voltage Range | 90-280VAC or 170-280VAC | |
Frequency Range | 59-61±1Hz | |
Nominal DC Voltage/Maximum DC Voltage | 24.7A | |
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
MPPT Voltage Range | 60-450VDC | |
Maximum Input Current | 1/18A | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Wave Form | Pure sine wave | |
Efficiency (DC to AC) | 94% | |
BATTERY&CHARGER | ||
Nominal DC Voltage | 24VDC | |
Maximum Solar Charging Current | 120A | |
Maximum Sotar+AC Charging Current | 120A | |
HYBRID OPERATION | ||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
Start-up Voltage/lnitial Feeding Voltage | 90VDC/120VDC | |
MPPT Voltage Range | 60-450VDC | |
Maximum lnput Current | 1/18A | |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Voltage Range | 195-253VAC | |
Nominal Output Current | 18.2A | |
AC INPUT | ||
AC Start-up VoltagelAuto Restart Voltage | 120-140VAC/180VAC | |
Acceptable lnput Voltage Range | 90-280VAC or 170-280VAC | |
MaximumAC Input Current | 24.7A | |
Maximum Charging Current | 100A | |
PHYSICAL | ||
Dimension ,H*W*D(mm) | 420*350*110 | |
Cartoon Dimension ,H*W*D(mm) | 500*415*180 | |
Net Weight (kgs) | 8 | |
Gross Weight(kgs) | 9 | |
INTERACE | ||
Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | |
Operating Temperature | -10℃～50℃ | |
STANDARD | ||
Compliance Safety | CE | |
Product Description
Company Profile
FAQ
Q1. May I take some samples to test before placing the order ?
Answer: Yes, customers need to pay for the sample and delivery cost.
Q2. What's your payment terms for sample?
Answer: You can pay via T/T or Trade Assurance.
Q3. How long can you offer the samples?
Answer: 1~3 days after the payment is confirmed.
Q4. What’s the delivery terms you can offer?
Answer: We can accept EXW, FOB, CFR, CIF,CIP,FCA,Express Delivery.
Q5. Do you have any certifications for your products?
Answer: We have ISO9001:2015, CE, RoHS certifications for all of our products.
Q6. How to order ?
Answer: Step 1, please tell us model name or link and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the scheduled time.
Q7. Is it OK to print my logo on product?
Answer: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8. What is your term of payment and delivery?
Answer: Our term of payment is by T/T,PayPal,Western Union,Cash,Escrow etc,30% in advance for deposit and balance payment before shipment;
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Transportation: DHL, UPS , EMS, FedEx, TNT, Air freight , Sea freight, Train way.
Q9. Why choose us ?
Answer: With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center.
Q2. What's your payment terms for sample?
Answer: You can pay via T/T or Trade Assurance.
Q3. How long can you offer the samples?
Answer: 1~3 days after the payment is confirmed.
Q4. What’s the delivery terms you can offer?
Answer: We can accept EXW, FOB, CFR, CIF,CIP,FCA,Express Delivery.
Q5. Do you have any certifications for your products?
Answer: We have ISO9001:2015, CE, RoHS certifications for all of our products.
Q6. How to order ?
Answer: Step 1, please tell us model name or link and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the scheduled time.
Q7. Is it OK to print my logo on product?
Answer: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8. What is your term of payment and delivery?
Answer: Our term of payment is by T/T,PayPal,Western Union,Cash,Escrow etc,30% in advance for deposit and balance payment before shipment;
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Transportation: DHL, UPS , EMS, FedEx, TNT, Air freight , Sea freight, Train way.
Q9. Why choose us ?
Answer: With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center.
Похожие товары

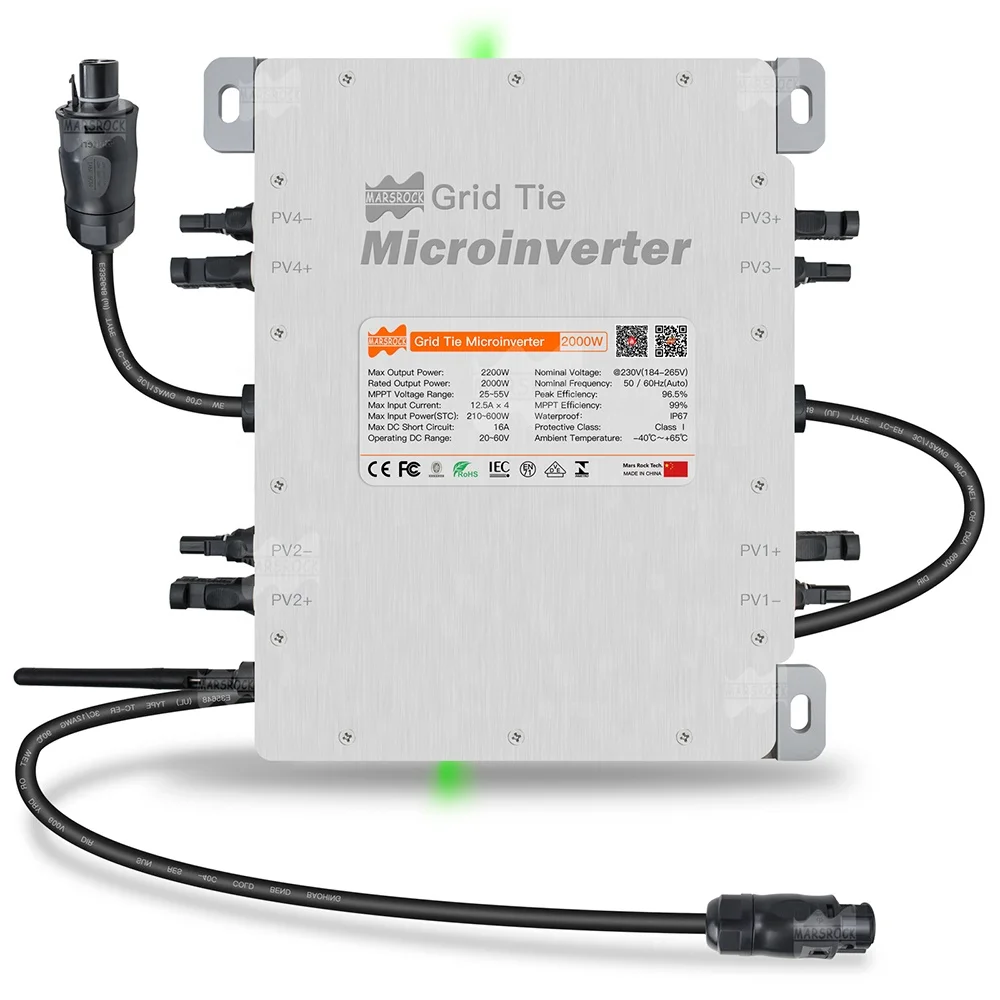

Интеллектуальный преобразователь Wi-Fi от 20-60VDC до 230VAC 2000 Вт MPPT IP67
Китайский завод прямой 500 Вт инвертор для энергосистемы 60 В Входное Напряжение Чистая Синусоидальная волна Nep солнечный
17 748,40 ₽ - 19 966,95 ₽

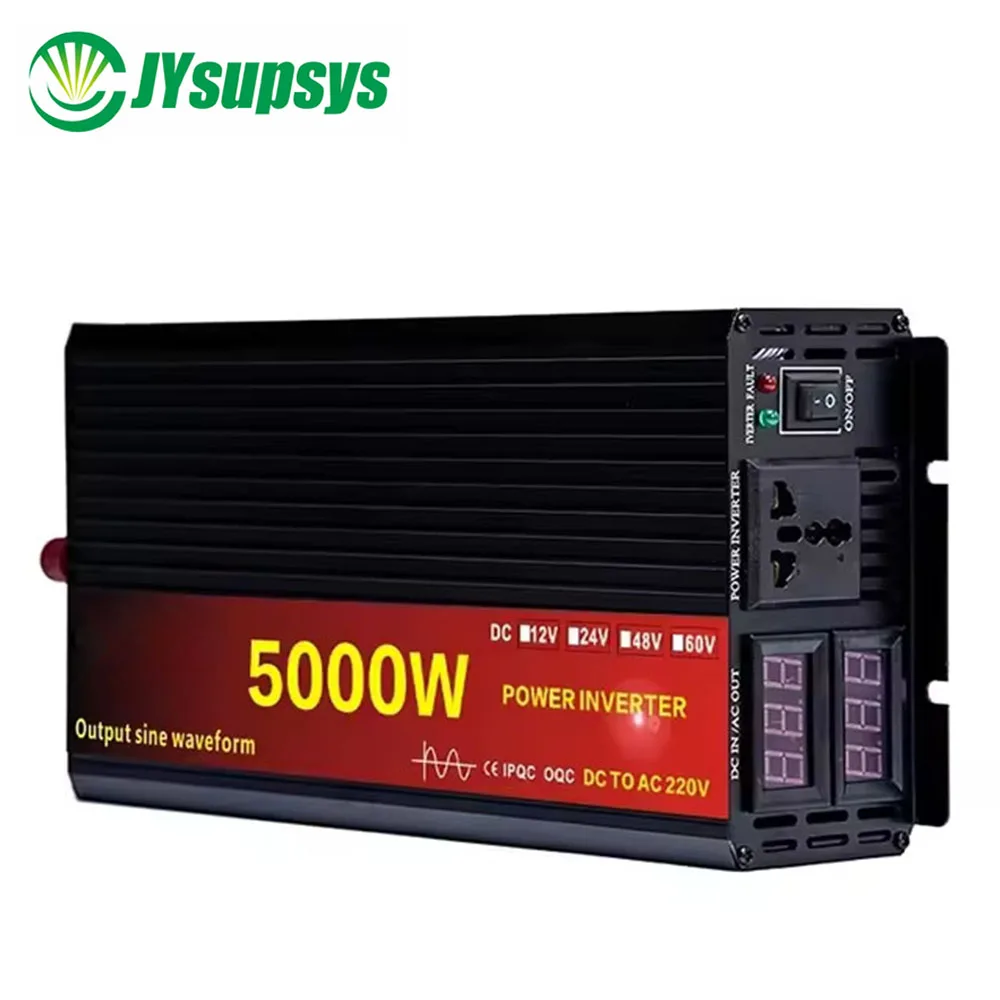

Непрерывная мощность 2500 Вт постоянного тока 12 В 24 в переменный ток 220 5000 чистый синусоидальный инвертор для дома
Встроенный в систему энергопотребления мощностью 3000 Вт Инвертор с контролем снаружи Красного hibrido высокой степенью frecuenc
29 950,43 ₽ - 32 168,98 ₽
Прямая с завода 24 В инвертируемый Гибридный инвертор сети инвертируемой солнечной батареей мощностью 5 кВт трехфазный по лучшей цене
70 771,75 ₽ - 78 647,60 ₽
Инвертор солнечной энергии немодулированного синусоидального сигнала мощностью 1 кВт 2 4 с поддержкой солнечного генератора 3 заряд батареи 24 В 60 А
14 420,58 ₽ - 16 639,13 ₽

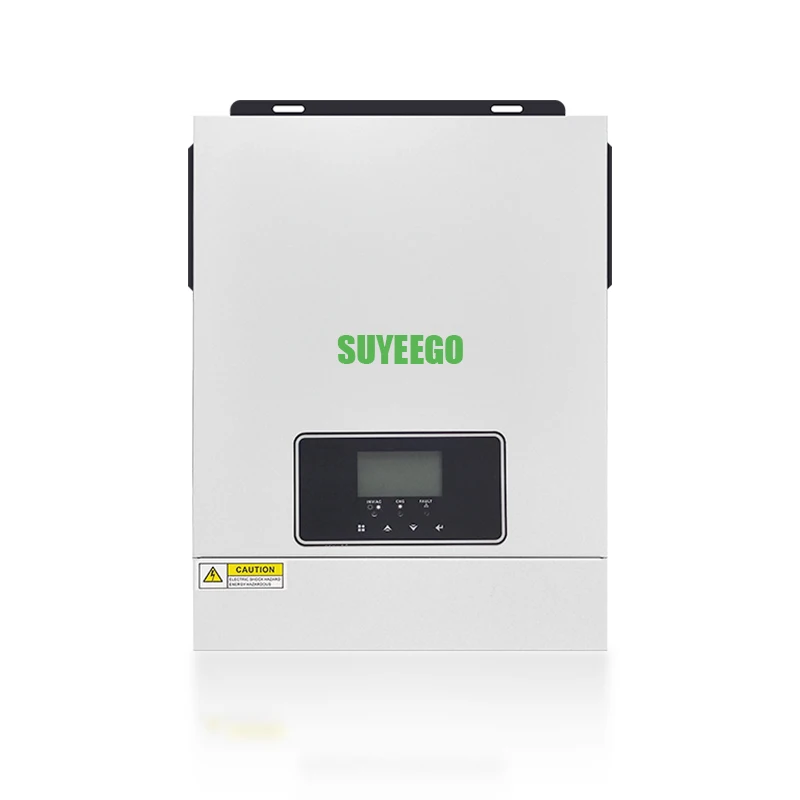

Новый дизайн солнечный инвертор SUYEEGO 12 В 220 1 6 кВт 2 кВА 24 3 для литиево-гелевой свинцово-кислотной батареи
