Product Description

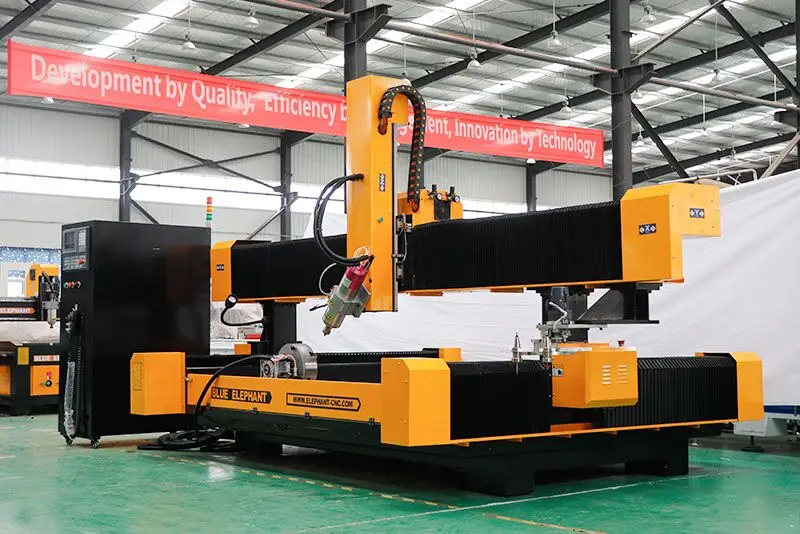

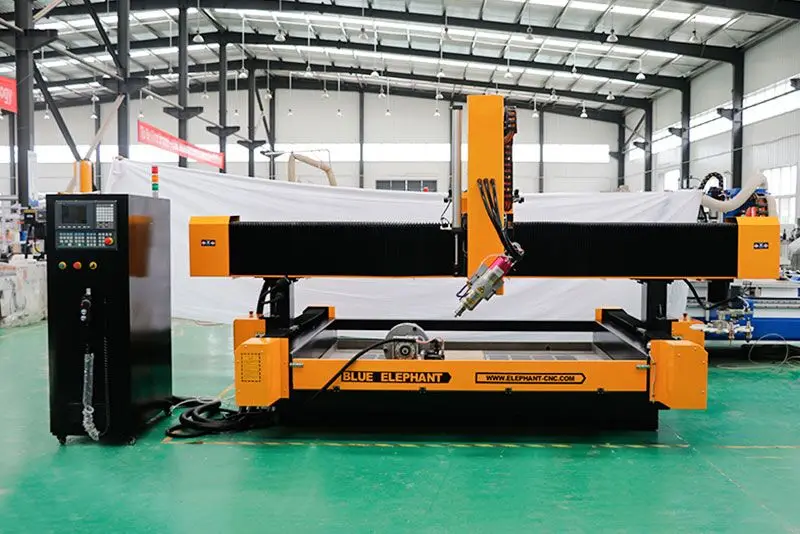

Blue Elephant CNC 2113 ATC 4 axis marble quartz stone carving machine stone bathtub carrying machine for 3D carving
Features:* Distinguished with 4*8 CNC Router Stone Machine, this kind of machine was designed with rotary device. And the diameter, length and position of rotary device can be customized according to your requirements.

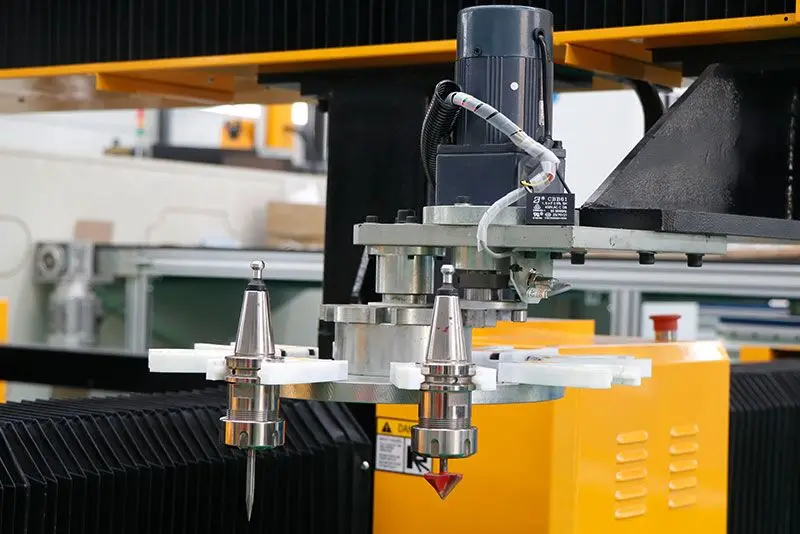

* Different knives can be installed in tool holder. In that case, the machine can change tools automatically in the engraving process. Besides, the working efficiency can be greatly promoted.
* Designed with Chang sheng ATC water cooling spindle, and the speed can be reached to 18000rpm for per minutes. and the spindle can swing 180 degrees.
* Please notice that all the specifications and working size can be designed with your requirements.
* Please notice that all the specifications and working size can be designed with your requirements.
Technical Parameters
Model | ELECNC-2113ATC-4 |
Color | According to your needs |
Working Voltage | 380V/3PH/50Hz(Can Be Customized to Meet Different Country’s Requirement) |
Control System | Taiwan SYNTEC 6MB control system with 1.8m control box |
Spindle | 5.5kw Chang sheng ATC water cooling spindle,18000rpm. The spindle can rotate 180,from -90 to 90 |
Inverter | 5.5kw Fuling inverter |
Drive Motors | 850w Japan YASKAWA servo motor and 1kw servo driver with 3 pieces Japan Shimpo Reducer |
Lubrication System | Auto Lubrication System |
Gantry Structure | Gantry Moving |
Table Surface | T-slot work table with water tank; Sink work table |
Transmission | Taiwan ABBA/ PMI/ HIWIN square linear guide,#30 Taiwan TBI ball screw for Z axis Helical rack gear transmission for X,Y axis |
Tool Sensor | Auto tool sensor calibration |
Water mist cooling system | Water mist cooling spray |
Structure | Heavy duty stone machine body |

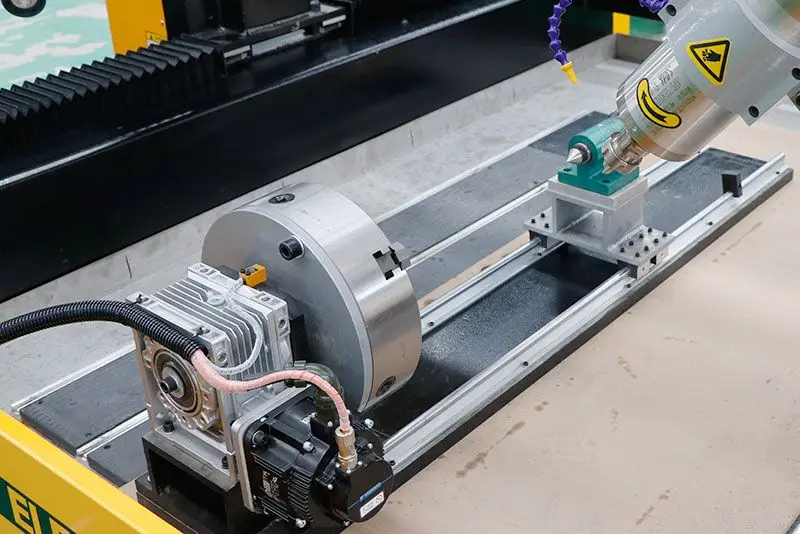

Features | Removable Rotary device with YASKAWA servo motor and driver: diameter 300mm,length 1300mm; |
Details Images

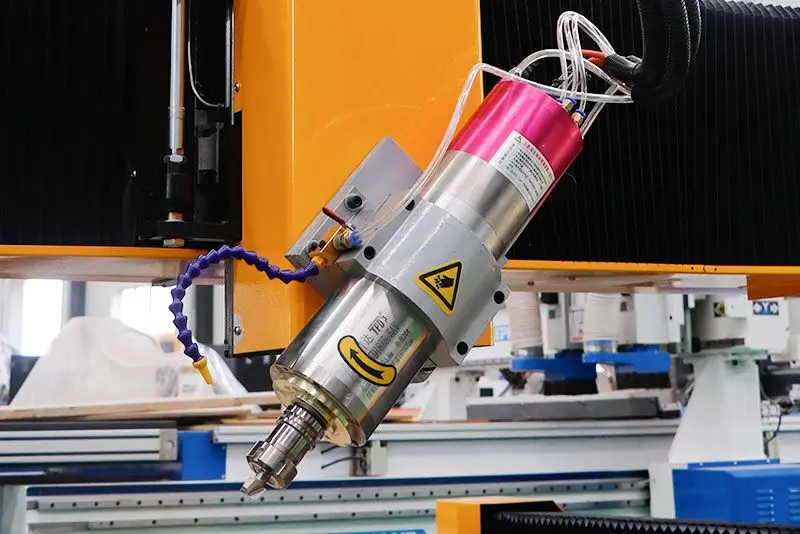

Water Cooling Spindle
This machine adopts water cooling spindle, which has the advantage of high efficiency,high speed, low noise.
Electronic Components
Using the standard components with CE
certification, such as Germany Schneider company.
certification, such as Germany Schneider company.
Guide Rail
Taiwan guide rail which ensure high weigh capacity, high precision, and stable performance.
40% customer other choice
Sample & Application
Customer feedback
Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Learn more about us, welcome to click https://blueelephant.en.alibaba.com
Learn more about us, welcome to click https://blueelephant.en.alibaba.com
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing&Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Exhibition
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2.Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
