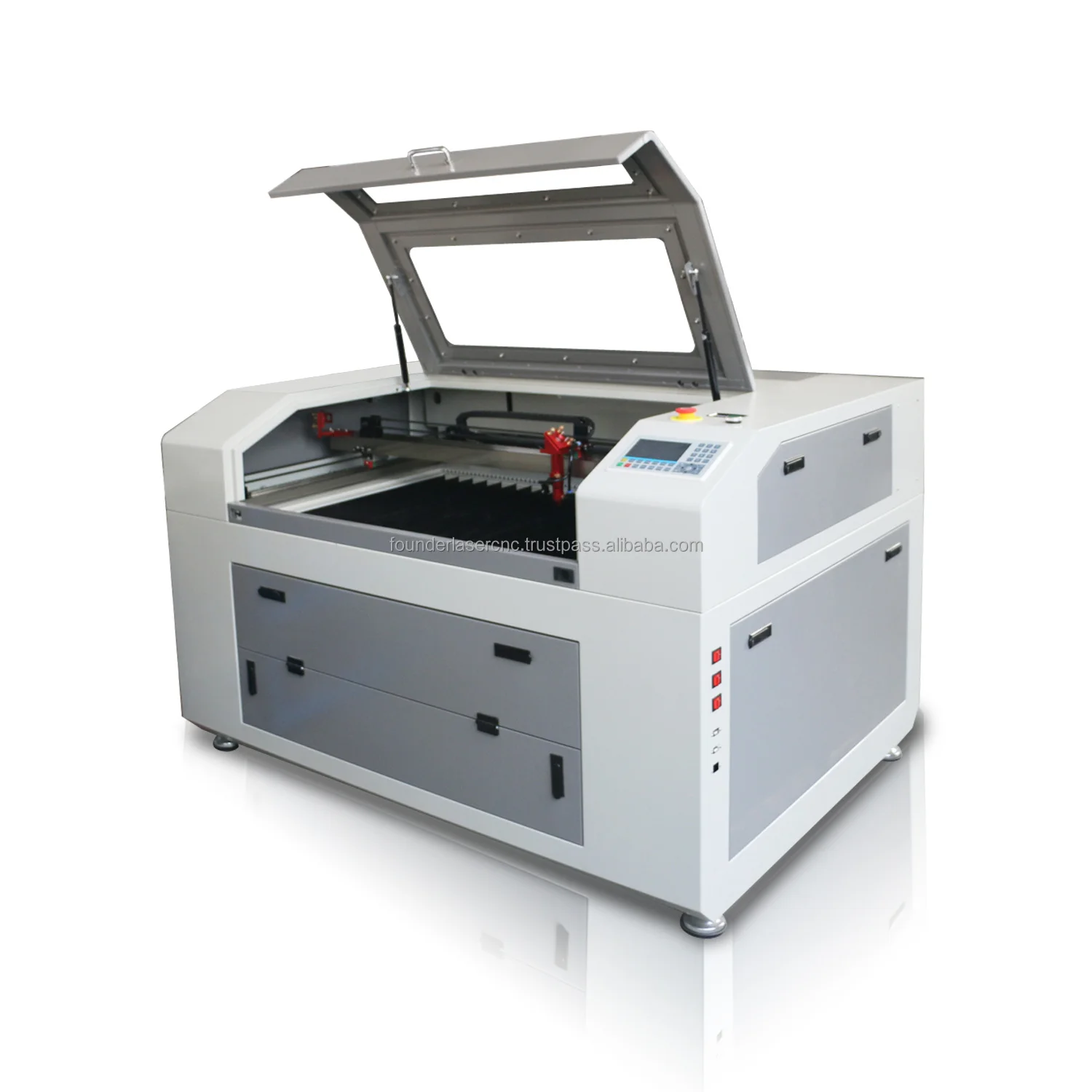

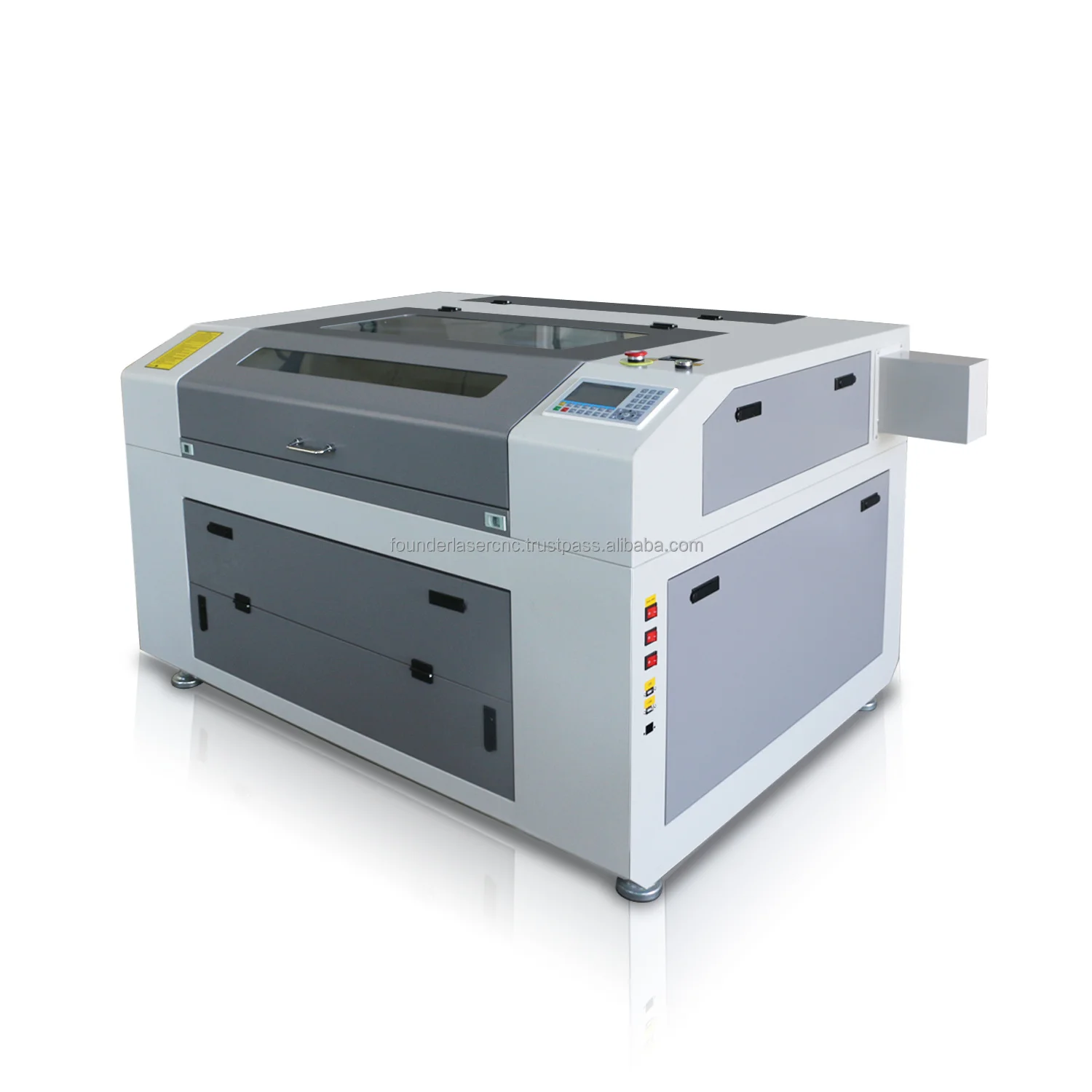

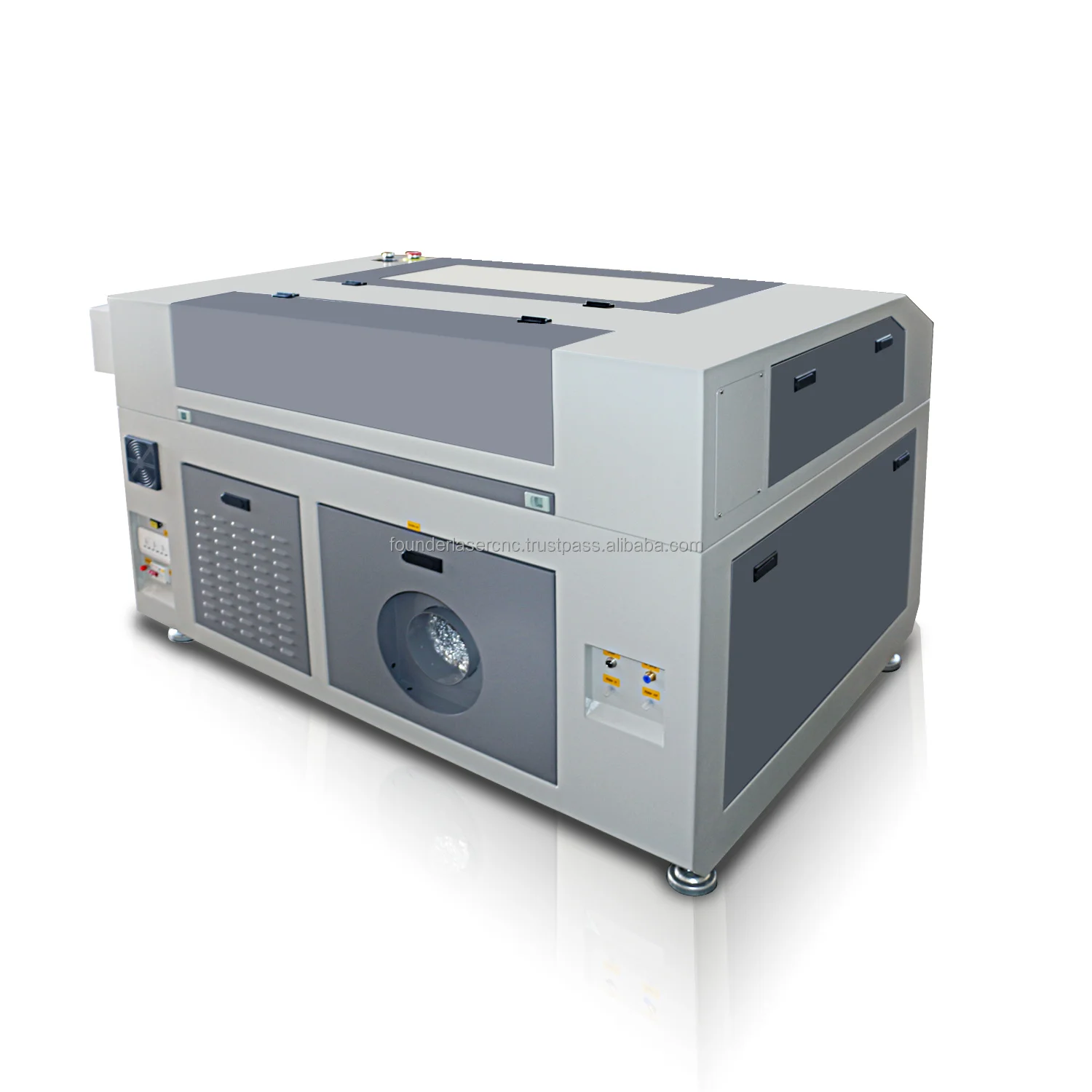

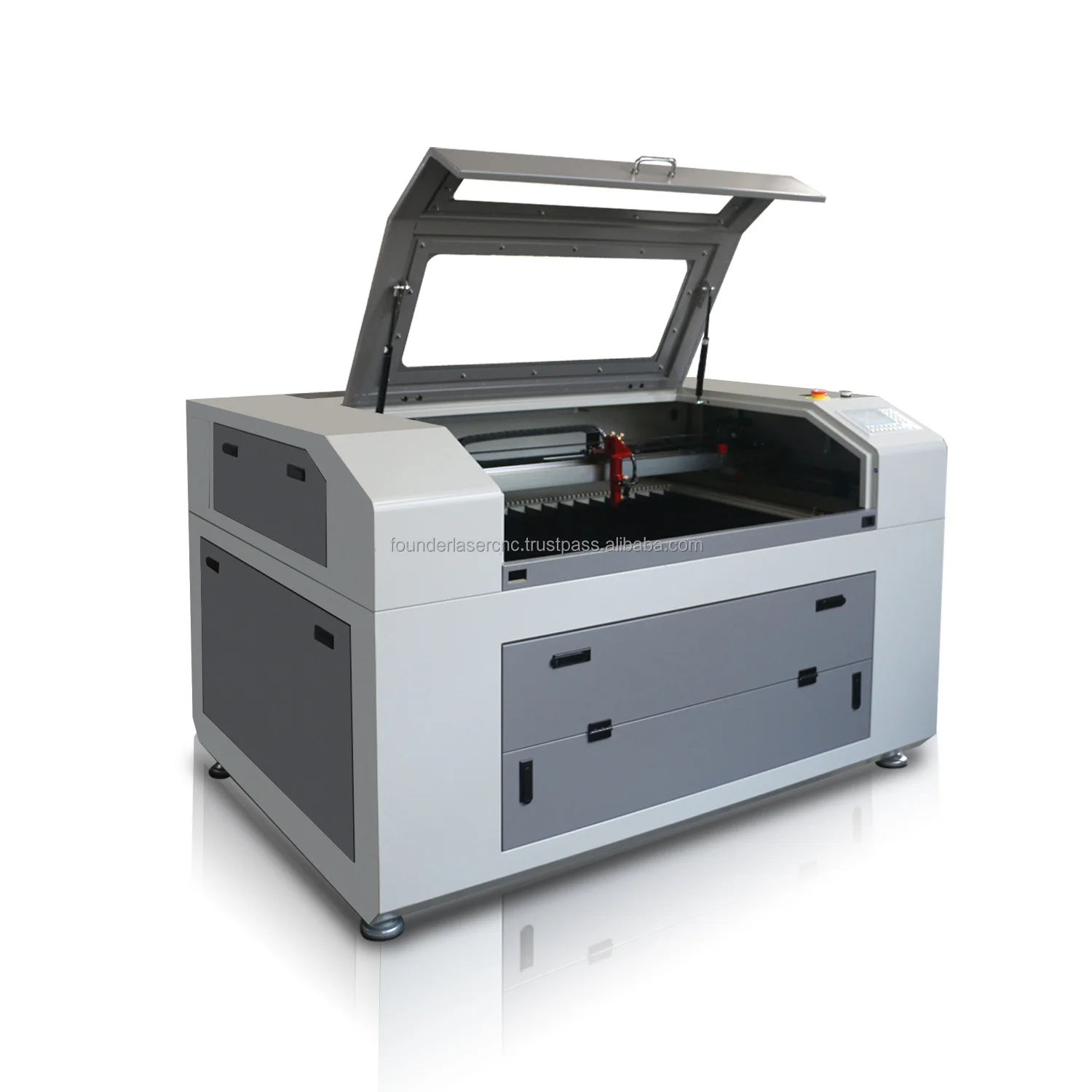

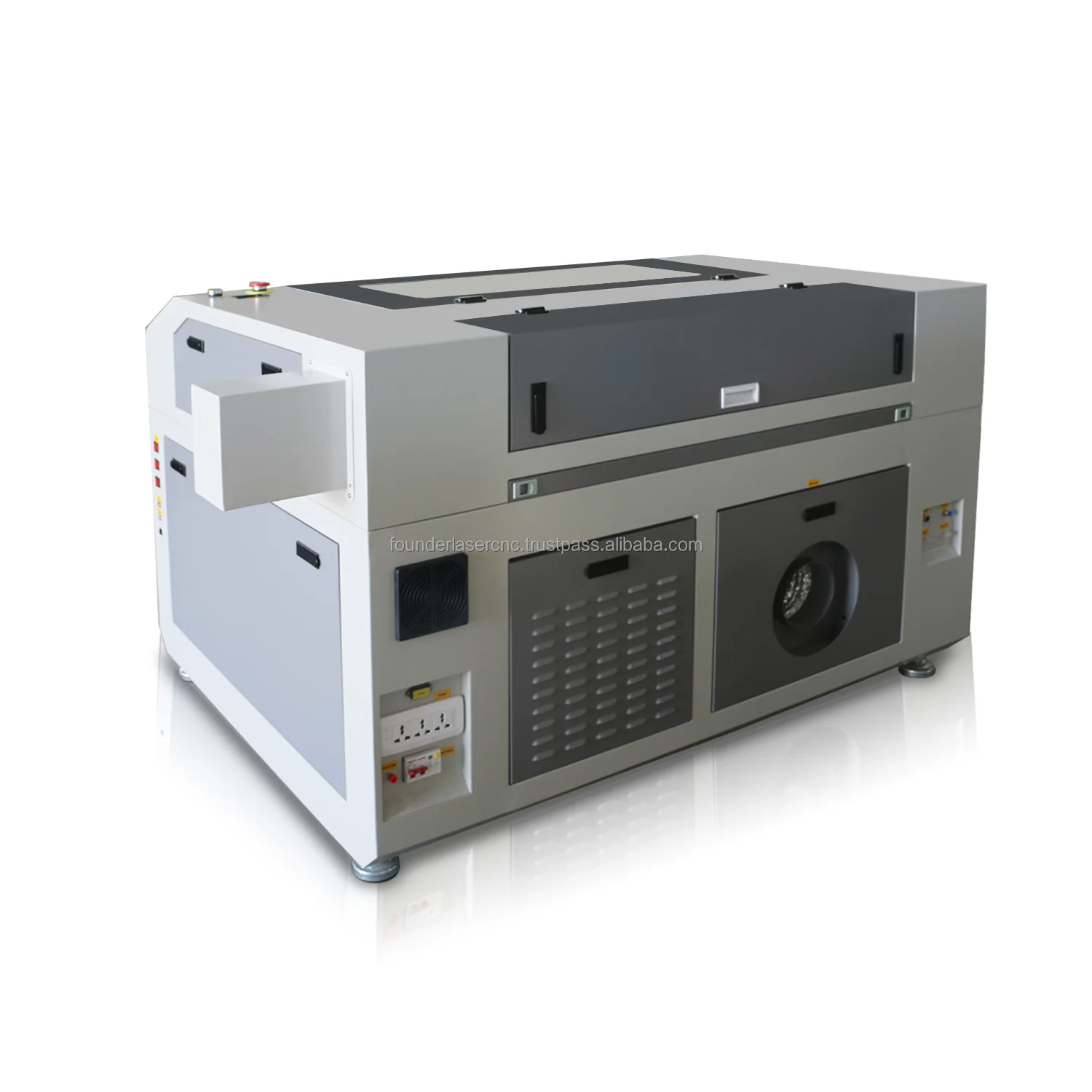

60W80W100W CO2 резак машина CO2 лазерный 6090 лазерный гравировальный станок лазерный станок для резки акрила
128 897,18 ₽ - 137 120,81 ₽
6090 60 Вт 80 100 130 wlaser резки co2 лазерная гравировальная машина с системой управления ruida
- Категория: >>>
- Поставщик: Founder Laser Technology Co. Ltd.
Сохранить в закладки 1601263183792:
Описание и отзывы
Характеристики
Machine Details
Machine instruction diagram：
Machine parameters： | ||
Machine model: | FDC-6090 | |
Laser power: | 60W/80W/100W/130W/150W/180W/200W/300W | |
Working range: | 600*900mm | |
Positioning accuracy: | ≦ 0.01mm | |
Maximum cutting depth: | 10/15/20/25mm (acrylic) | |
Total power: | < 1200W | |
Maximum lifting speed: | 0-1000mm/s | |
Working temperature: | 0℃ - 45℃ | |
Maximum cutting speed: | 0-600mm/s | |
Working humidity: | 5% - 95% (excluding condensed water) | |
Maximum formed character: letters: | 1.5 x 1.5mm | |
Power supply: | 220V±10% 50HZ or 110V±10% 60HZ | |
Same model machine
Machine details display:
Linear rail plotter
The plotter's X/Y axes all use high-quality linear guides to ensure that the movement paths of the X/Y axes do not deform after the machine has been working for a long time.
Aluminum industrial laser head, to prevent high temperature deformation, equipped with red light positioning, air cooling function.
The machine can be installed with single head, double head, CCD, automatic focus and other systems.
The machine can be equipped with a variety of laser tube types, such as: RECI, LA.SEA, CDWG, etc.
Reasonable wiring of electromechanical box
The machine uses the Ruida 6445 motherboard and operating system, and a large color screen operation panel, which is simple and easy to learn and understand. The reasonable wiring of the electromechanical box maximizes the performance of the machine system.
The machine uses a ball screw + belt lifting system, which can be raised or lowered up to 25cm.
Product packaging
Tools that come with the machine
Tool box, Air pump (model is subject to the actual product), Plastic smoke pipe, Aluminum foil smoke pipe, Water pipe, Air pipe, Clamp, Wrench, USB flash drive, Certificate, Warranty card, Test tape, Machine power cord, Focal length ruler, Lens removal tool, USB cable, Data cable, Water cooler signal cable, Ground wire, Water cooler (extra option), Fan (extra option).
Machine packaging site
After the machine test is completed, the machine is cleaned, and then the Y/Y axis of the machine is fixed (to prevent the Y\\Y axis from sliding during transportation), and then the tools that come with the machine are placed, and finally the moisture-proof and wear-proof packaging during transportation is carried out, and the outer box is sealed and loaded.
我们的机器将包装有多层木制品包装，以防止您在交货过程中受到任何损坏。
Company Profile
Liaocheng Founder Laser Technology Co., Ltd. was established in 2017 and is located in Liaocheng High-tech Zone. It covers an area of 3,000 square meters, has more than 80 employees, and has an annual output of more than 3,000 units.
Founder Laser's main products include: laser engraving machine series, laser cutting machine series,laser marking machine series, laser welding machine series, and optical fiber cutting machine series.
Founder Laser has its own registered trademark, and has won the titles of "China Famous Brand", "High-tech Enterprise Certificate", "Specialized and New" Small and Medium Enterprises in Shandong Province, and has passed the international FDA and CE certifications. Founder Laser insists on innovation, has 15 product design patents, seeks development through science and technology, and wins the market through service.
Founder Laser has a variety of series of products, and friends are welcome to inquire, visit and order!
Customer opinion
如果您已经是我们的客户之一并且非常了解我们，则可以忽略此部分。但是，如果您是我们的新手，这可能对您了解更多有关我们的信息很有用。
FAQ
1. How to operate the machine?
We will provide you with English manuals and videos at any time. We have an after-sales team for exhibition business.
2. When will the machine be shipped?
We ship according to the customer's order, the size of the machine, and whether the machine is customized.
3. Can the company visit online?
Our company is a physical company, and customers are welcome to visit the factory at any time, and video connection is also OK.
4. What should I do if this machine has problems during the warranty period?
If there is a problem with the machine, we will provide free parts during the warranty period of the machine. The freight needs to be borne by the customer. At the same time, we also provide free lifetime after-sales service.
5. Can the machine be customized according to my requirements?
Of course, we have a strong technical team and rich experience. Our goal is to satisfy you.
6. Can you help me arrange the shipment?
We can arrange sea or air transportation for customers. The transaction terms include FOB, CIF, EXW.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Contact information
Alice jiang
Tel/wechat/whatsapp: +86 17853870398
E-MAIL: yoyojiang96@gmail.com
Похожие товары
6090 60 Вт 80 Вт 100 Вт 130 Вт 150 Вт 9060 Co2 лазерная гравировка и резка для древесины с X и Y как линейная направляющая
218 200,32 ₽
CKD лазерная машина для оксида алюминия и нитрида керамики
5 263 123,20 ₽ - 5 482 420,00 ₽

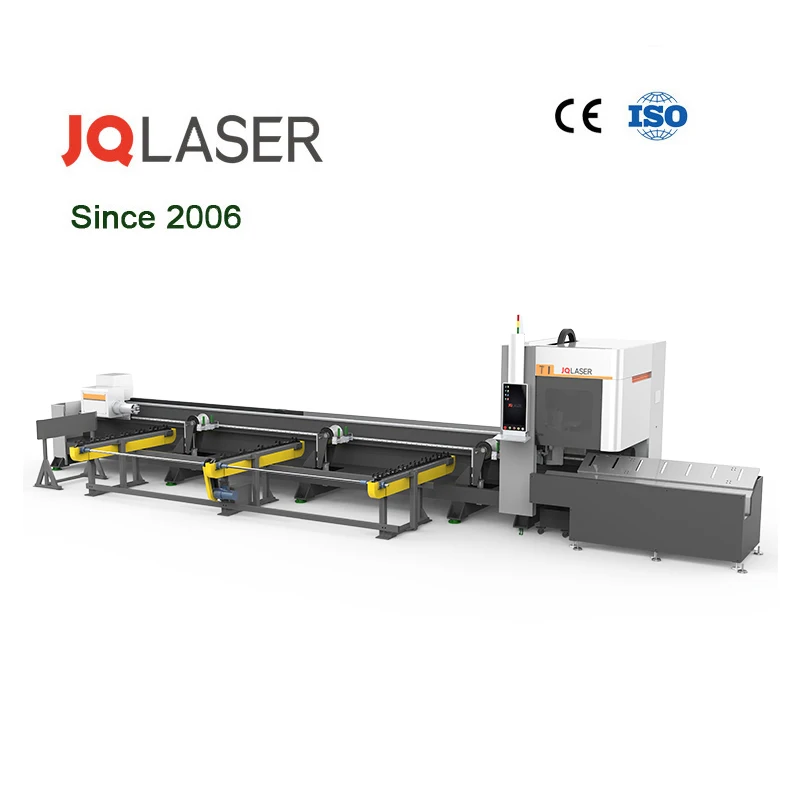

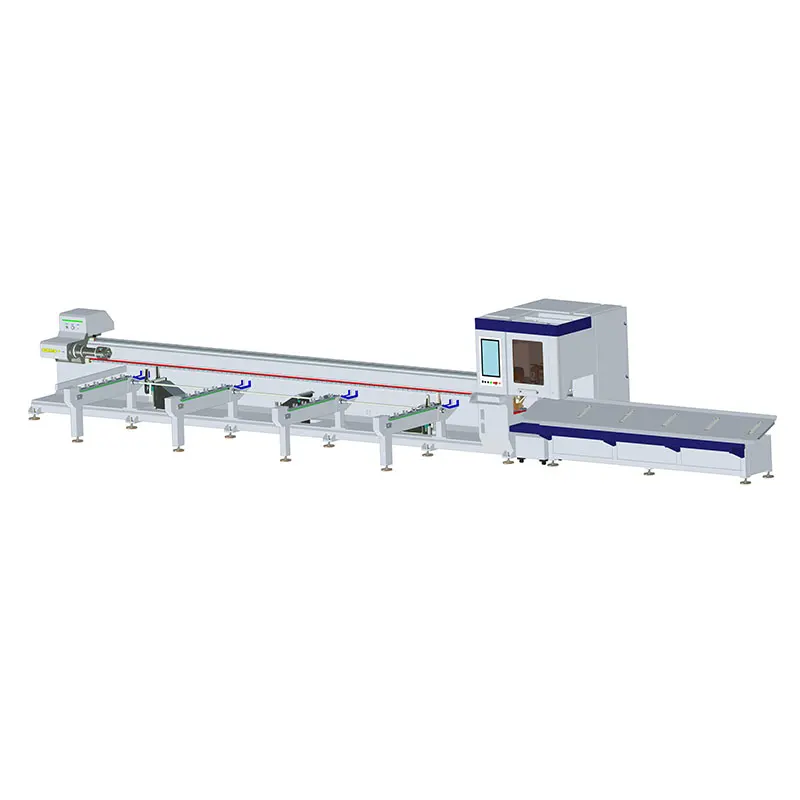

Лазерная полуавтоматическая лазерная трубка металлическая трубка лазерная резка машина
3 267 522,32 ₽ - 3 596 467,52 ₽
Высокоточный 3000 Вт Круглый ручной полуавтоматический станок для лазерной резки металлических труб из нержавеющей стали
3 289 452,00 ₽ - 3 300 416,84 ₽
Волоконно-лазерная машина для резки труб для металлических труб автоматическая лазерная резка коническая резка 3000 Вт 6000 Вт
5 482 420,00 ₽ - 5 811 365,20 ₽

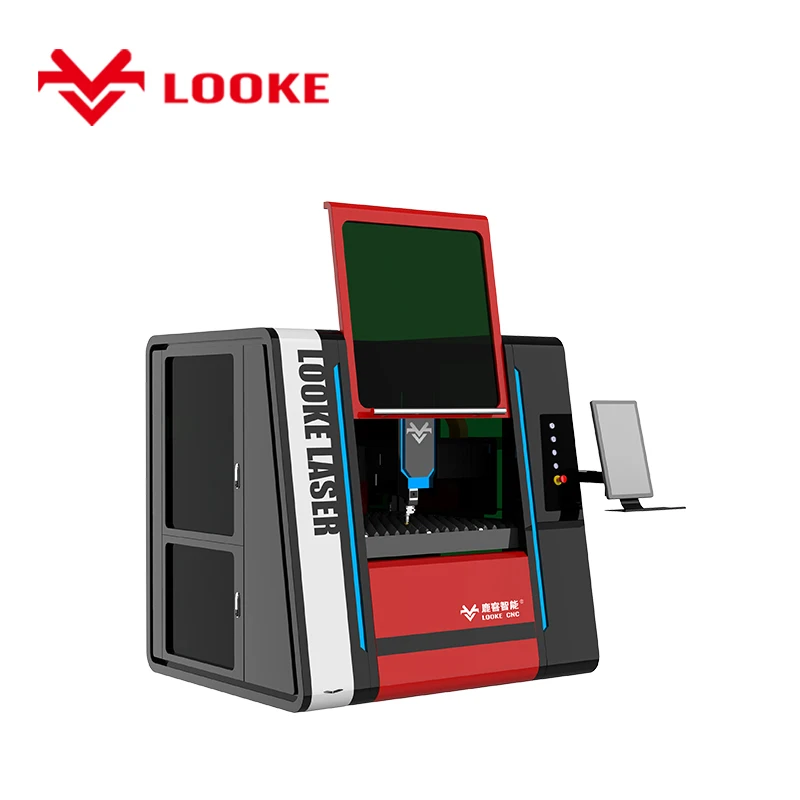

Маленькая пластинчатая металлическая фреза 1000 Вт 1500 Вт 2000 Вт 3000 Вт LOOKE-6060S прилагаемый волоконно-лазерный станок 600x600 мм шариковый винт передачи
1 139 246,88 ₽ - 1 205 035,92 ₽

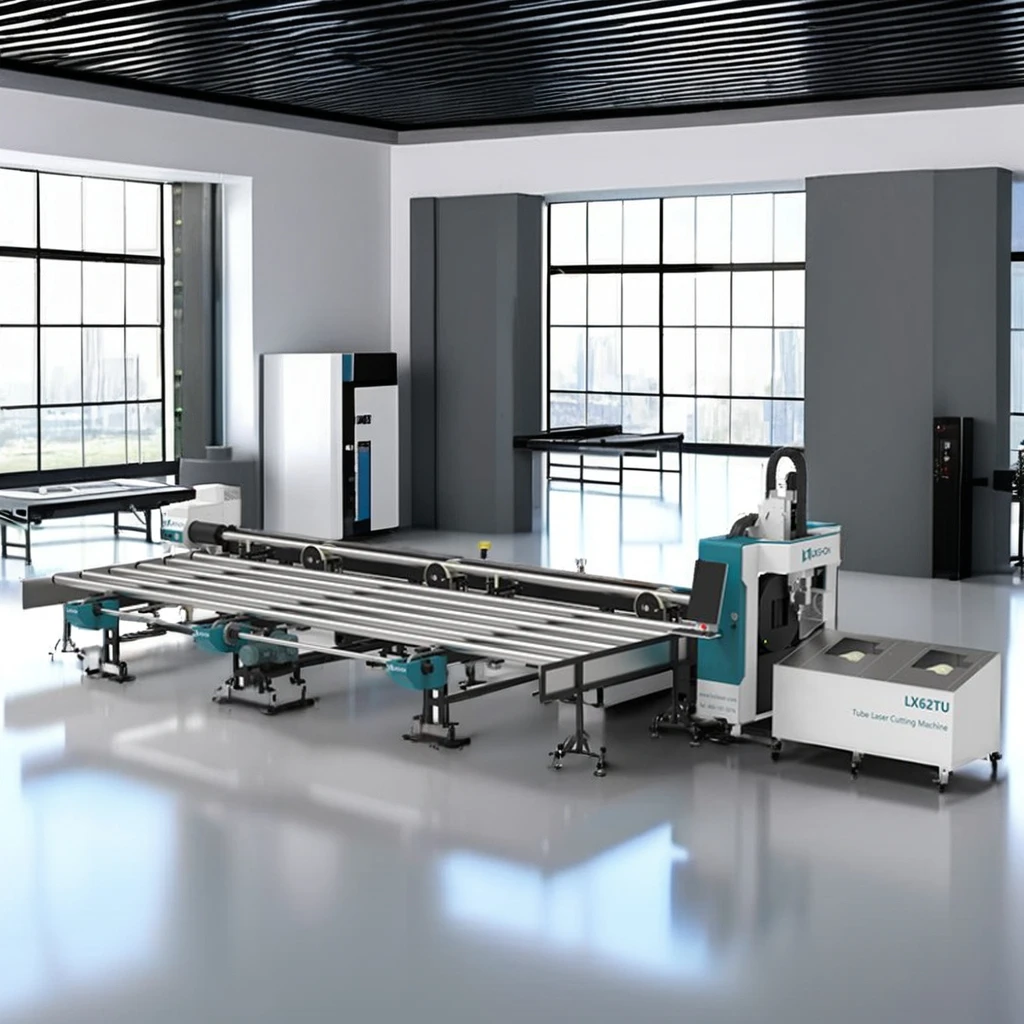

Высокоскоростные 3 кВт трубки лазерной резки вертикальные два патрона лазерная резка машины для ss алюминиевой трубы
