Блок питания для химических реакторов школьное оборудование учебное дидактическое теплообменных экспериментов
- Категория: >>>
- Поставщик: Jinan Should Shine Didactic Equipment Co. Ltd.
Сохранить в закладки 1601267313295:
Описание и отзывы
Характеристики
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Jinan Should Shine supply educational equipment, didactic equipment, vocational training equipment for university, college, engineer training centers. Jinan Should Shine design, develop, manufacture and supply after sales service for educational equipment for USA, Canada, U.K., Australia, New Zealand, and more than 80 countries in the world, with more than 10 years design, manufacture and export service, with 10 engineer design team, and 10 international sales team, supply professional technical consultant and professional after sales services.
With self owned brand: ShouldShine, JSS, SSEDU, gunt, and passed ISO9001 certificate since 2013. Jinan Should Shine is Alibaba verified supplier, past Intertek on site checking.
Jinan Should Shine has a wide range of products including 8 ranges: electrical training equipment, mechatronics training
equipment, fluid lab equipment, thermal training equipment, refrigeration training equipment, food machine trainer, PCB lab
equipment, mechanical training equipment.
With self owned brand: ShouldShine, JSS, SSEDU, gunt, and passed ISO9001 certificate since 2013. Jinan Should Shine is Alibaba verified supplier, past Intertek on site checking.
Jinan Should Shine has a wide range of products including 8 ranges: electrical training equipment, mechatronics training
equipment, fluid lab equipment, thermal training equipment, refrigeration training equipment, food machine trainer, PCB lab
equipment, mechanical training equipment.
Products Description
Supply Unit For Chemical Reactors School Equipment Teaching Didactic Equipment Heat Transfer Experiment Equipment
The reactor is the core element of a chemical production facility. In the reactor, the starting substances (reactants) react with each other to form a new substance (product). The reactor has to guarantee the conditions for an optimal reaction process. This primarily concerns the temperature in the reactor. Different types of reactors are used, depending on the requirements.
CE 310 serves as a supply unit for six different reactors. The reactor to be examined is mounted onto the supply unit and held by two pins in position.
For continuous operation of the reactors, two tanks for the reactants are arranged on the trainer. The supply unit and the reactor are hydraulically connected via hoses. The hoses are equipped with quick-release couplings for easy attachment. Two pumps convey the two reactants into the reactor. The retention time of the reactants in the reactor can be adjusted via the pump speed. In the reactor, the reactants react to form a product. An additional tank and an additional pump for the product is provided.
The supply unit is equipped with a heating water circuit with pump, tank and heater to control the temperature in the reactor. The cold water circuit can be fed from the WL 110.20 water chiller.
Conductivity and temperature in the reactor are measured with a combined sensor. The switch cabinet contains the necessary controls to start the stirrers in the different reactors.
The measured values are digitally displayed on the switch cabinet. At the same time, they can also be transmitted directly to a PC via USB where they can be analysed with the data acquisition software included in the scope of delivery.
Specification
supply unit for 6 different chemical reactor types
connection of the reactors via hoses with quick-release couplings
water circuit with tank, heater, temperature controller, pump and low water cut-off for heating and cooling (with WL 110.20 water chiller)
temperature control of the reactants and reactors
3 glass tanks for reactants and products
5 peristaltic pumps to deliver the reactants and products
2 combined sensors for measuring the conductivity and temperature
software for data acquisition via USB under Windows 10
Technical data
Peristaltic pump for reactants
max. flow rate: approx. 180mL/min
with hose 8,0x4,8mm
Peristaltic pump for products
max. flow rate: approx. 420mL/min
with hose 8,0x4,8mm
Water pump
max. flow rate: 10L/min
max. head: 30m
power consumption: 120W
Heater
power consumption: 1500W
Tanks
reactants: 2x 2,5L
product: 5L
heating water: 8L
Measuring ranges
conductivity: 2x 0…100mS/cm
temperature: 2x 0…55°C, 1x 0…60°C
flow rate: 1x 0…240L/min
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
UL/CSA optional
Dimensions and weight
LxWxH: 1170x670x690mm
Weight: approx. 82kg
Required for operation
water connection, drain / WL 110.20
Ethyl acetate, caustic soda (for saponification reaction)
PC with Windows recommended
CE 310 serves as a supply unit for six different reactors. The reactor to be examined is mounted onto the supply unit and held by two pins in position.
For continuous operation of the reactors, two tanks for the reactants are arranged on the trainer. The supply unit and the reactor are hydraulically connected via hoses. The hoses are equipped with quick-release couplings for easy attachment. Two pumps convey the two reactants into the reactor. The retention time of the reactants in the reactor can be adjusted via the pump speed. In the reactor, the reactants react to form a product. An additional tank and an additional pump for the product is provided.
The supply unit is equipped with a heating water circuit with pump, tank and heater to control the temperature in the reactor. The cold water circuit can be fed from the WL 110.20 water chiller.
Conductivity and temperature in the reactor are measured with a combined sensor. The switch cabinet contains the necessary controls to start the stirrers in the different reactors.
The measured values are digitally displayed on the switch cabinet. At the same time, they can also be transmitted directly to a PC via USB where they can be analysed with the data acquisition software included in the scope of delivery.
Specification
supply unit for 6 different chemical reactor types
connection of the reactors via hoses with quick-release couplings
water circuit with tank, heater, temperature controller, pump and low water cut-off for heating and cooling (with WL 110.20 water chiller)
temperature control of the reactants and reactors
3 glass tanks for reactants and products
5 peristaltic pumps to deliver the reactants and products
2 combined sensors for measuring the conductivity and temperature
software for data acquisition via USB under Windows 10
Technical data
Peristaltic pump for reactants
max. flow rate: approx. 180mL/min
with hose 8,0x4,8mm
Peristaltic pump for products
max. flow rate: approx. 420mL/min
with hose 8,0x4,8mm
Water pump
max. flow rate: 10L/min
max. head: 30m
power consumption: 120W
Heater
power consumption: 1500W
Tanks
reactants: 2x 2,5L
product: 5L
heating water: 8L
Measuring ranges
conductivity: 2x 0…100mS/cm
temperature: 2x 0…55°C, 1x 0…60°C
flow rate: 1x 0…240L/min
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
UL/CSA optional
Dimensions and weight
LxWxH: 1170x670x690mm
Weight: approx. 82kg
Required for operation
water connection, drain / WL 110.20
Ethyl acetate, caustic soda (for saponification reaction)
PC with Windows recommended
Похожие товары
Ручная сверлильная машина, печатная плата, экспериментальная техника, Образовательное школьное лабораторное оборудование
EVB11-система привода электромобиля, сборка и подключение, тренировочный стенд
Дидактические система обучения с YL-195 ручной Электрический миксер для теста управления тягой тренер оборудования и учебное оборудование
Гидравлическое пневматическое учебное оборудование, Университетская техническая Инженерная лаборатория, оборудование для профессионального образования

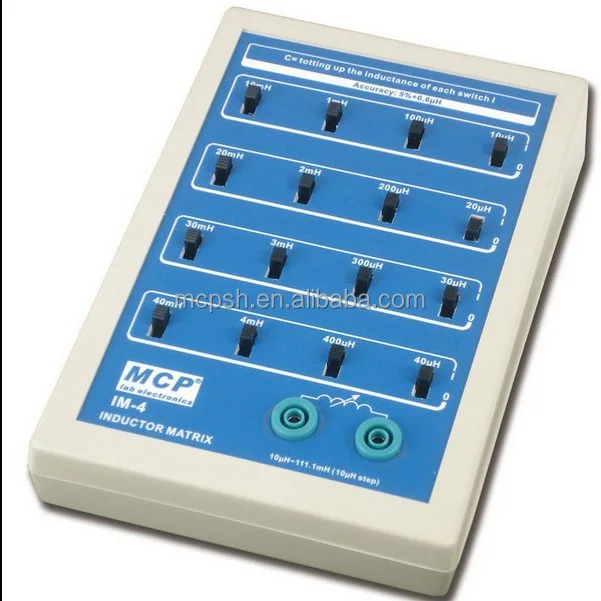

MCP IM-4 индуктор матрица коробка переменная индуктивность
3 281,81 ₽ - 6 563,61 ₽

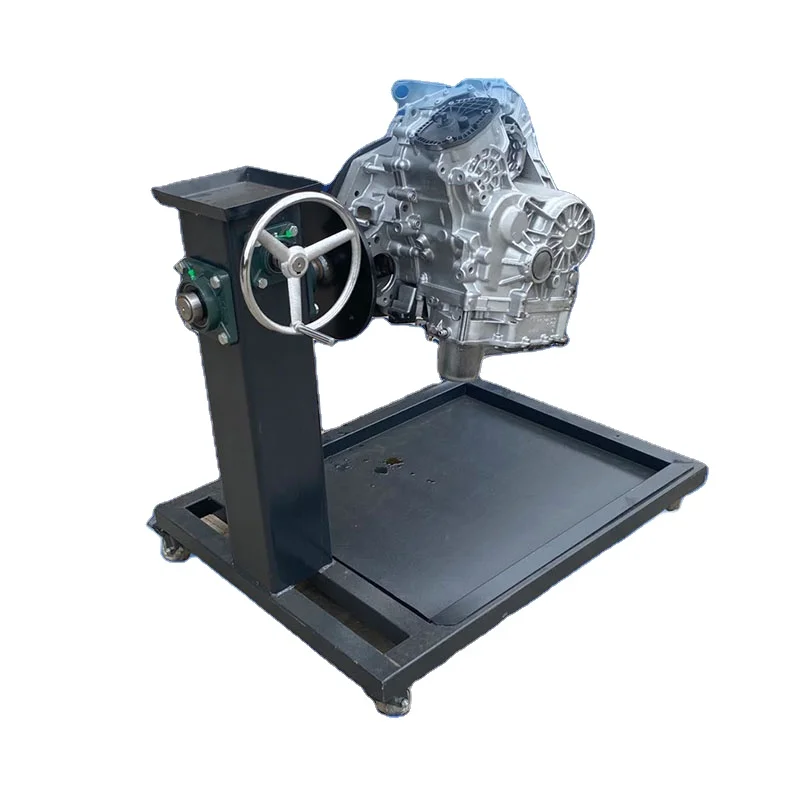

Платформа для автоматической трансмиссии Volkswagen dsg с двойным сцеплением, платформа для тренировки системы автомобильной трансмиссии
