Резиновый блок TPR TPE TPV ПВХ смеситель экструзионная машина пластиковый banbury экструдер производство
6 030 662,00 ₽
Новое 2024 оборудование для производства резины щетки стеклоочистителя
- Категория: >>>
- Поставщик: Zhangjiagang Sino-Tech Machinery Co. Ltd.
Сохранить в закладки 1601267479541:
Описание и отзывы
Характеристики
Product Description
SINOTECH sealing strip production line
Introduction of PVC profile production line:
1. Supply PVC rubber refrigerator door and window sealing strip production line equipment PE silicone PVC seal production and processing equipment manufacturers supply PE luggage strip extruder, luggage molding equipment, luggage cartoon production line luggage plastic line production equipment, luggage production equipment, luggage plastic cartilage production line Equipment, luggage plastic parts, molybdenum production equipment, plastic molding machine, production equipment, luggage edge of the strip equipment, luggage embedded equipment, the supply of PVC silicone PVC seal production and processing equipment.
2. The PVC profile extrusion line is equipped with conical single-screw extruder. The production line has many advantages: material thawing even, small shear rate, high output, long service life, etc. The production line includes extruder, calibrator unit, haul-off unit, double station winder or stacking unit, etc.
2. The PVC profile extrusion line is equipped with conical single-screw extruder. The production line has many advantages: material thawing even, small shear rate, high output, long service life, etc. The production line includes extruder, calibrator unit, haul-off unit, double station winder or stacking unit, etc.
Application:

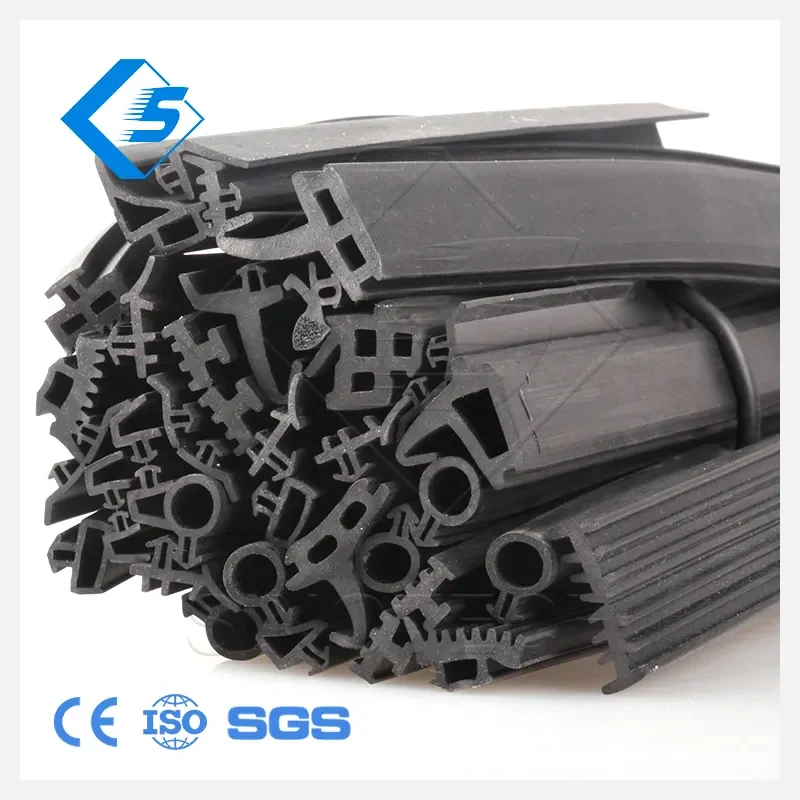

It is used for producing pvc sealing strip, the sealing strip is widely use in window and door profile, car industry. It is composed of feeding system,extruder,water cooling system,haul-off unit,winding machine or double roller,electric control system and coordinated with different specification of moulds.This line is advanced in design,high in output,good in plasticization and low in energy consumption.The finished product is widely used in cars, windows, refrigerators, etc.
Processing Flow:
Raw material → Single-screw extruder →Extrusion mould →Vacuum calibration table → Haul-off unit→ Automatic cutter→ Stacker →Finished product inspecting & packing
Features :
- PLC control system is available
- All electrical components adopts famous brand : OMRON, ABB, SIEMENS etc
- Over current protective of motor
- With online protection film wrapping device
Processing Flow:
Raw material → Single-screw extruder →Extrusion mould →Vacuum calibration table → Haul-off unit→ Automatic cutter→ Stacker →Finished product inspecting & packing
Features :
- PLC control system is available
- All electrical components adopts famous brand : OMRON, ABB, SIEMENS etc
- Over current protective of motor
- With online protection film wrapping device
Main Technical Parameter
SJ45/28 Single Screw Extruder | ||
Screw diameter | 45mm | |
L/D | 28:1 | |
Motor Power | 11Kw | |
Rotating speed of screw | 80r/min | |
Heating Power | 8Kw | |
Extrusion Capacity | 20 Kg/H | |
Center Height | 1000mm | |
Weight | 800Kg | |
Dimension | 2050*1200*1500mm | |
Extruder Speed Adjusting Way | Frequency Conversion | |
Barrel Temperature Adjusting Way | Heating： Cast Aluminum Heater | |
Production process
On-line hot stamping process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Hot stamping machine →Haul-off machine→ Cutting machine → Stacker(finished product)
Off-line transfer laminating process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Haul-off machine→ Cutting machine → Transfer table→Lamination machine → Stacker(finished product)
Waste plastic:Crushing machine→Milling machine
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Hot stamping machine →Haul-off machine→ Cutting machine → Stacker(finished product)
Off-line transfer laminating process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Haul-off machine→ Cutting machine → Transfer table→Lamination machine → Stacker(finished product)
Waste plastic:Crushing machine→Milling machine
Details
1 | Screw feeder | |
2 | YF series conical twin screw extruder | |
3 | Extrusion Mould | |
4 | vacuum forming table | |
5 | haul off | |
6 | auto cutting machine | |
7 | stacker | |
Supporting machine(optional) | ||
1 | High speed mixing machine | |
2 | Hot stamping machine(or Laminating machine) | |
3 | Crushing machine | |
4 | Milling machine | |
01

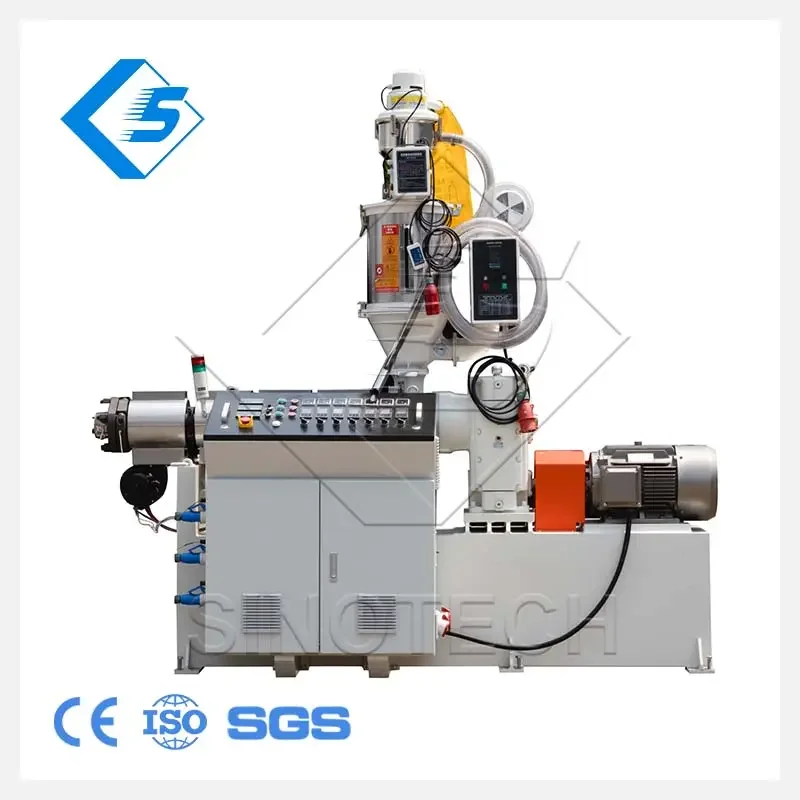

Single Screw Extruder
• World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
• Intelligent PLC controlling system with human-friendly interface.
02
Die head
• 3Cr13/3Cr17 material;
• Complete set include extrusion die head, calibrator and cooling tank;
• Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.
• 3Cr13/3Cr17 material;
• Complete set include extrusion die head, calibrator and cooling tank;
• Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.
03

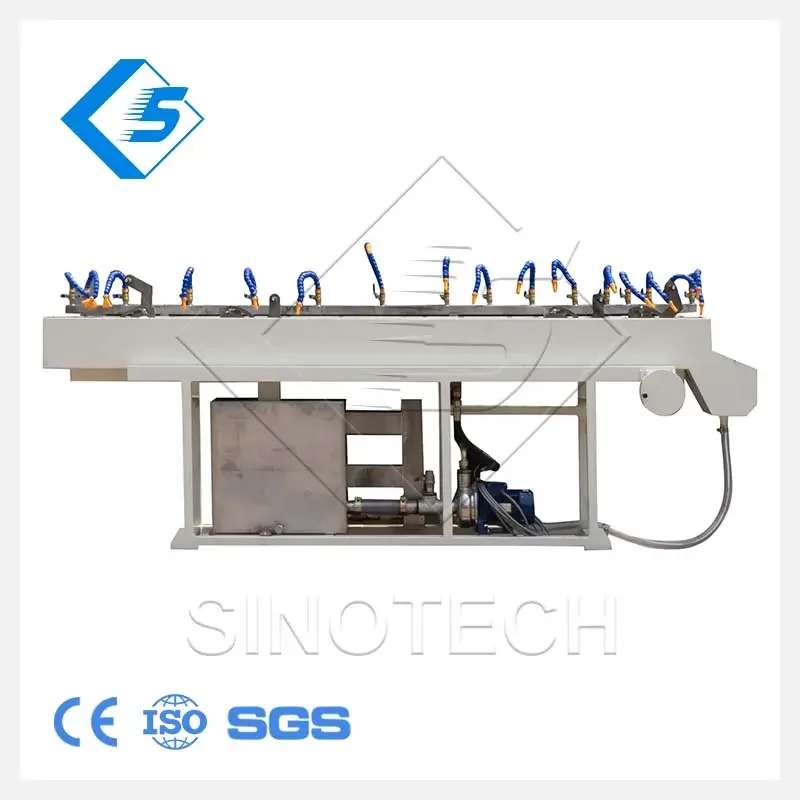

Vacuum Calibrating Table
• Include full set of vacuum and water pump;
• Length from 4m-11.5m;
• Independent operation panel for easy operation.
• Include full set of vacuum and water pump;
• Length from 4m-11.5m;
• Independent operation panel for easy operation.
04

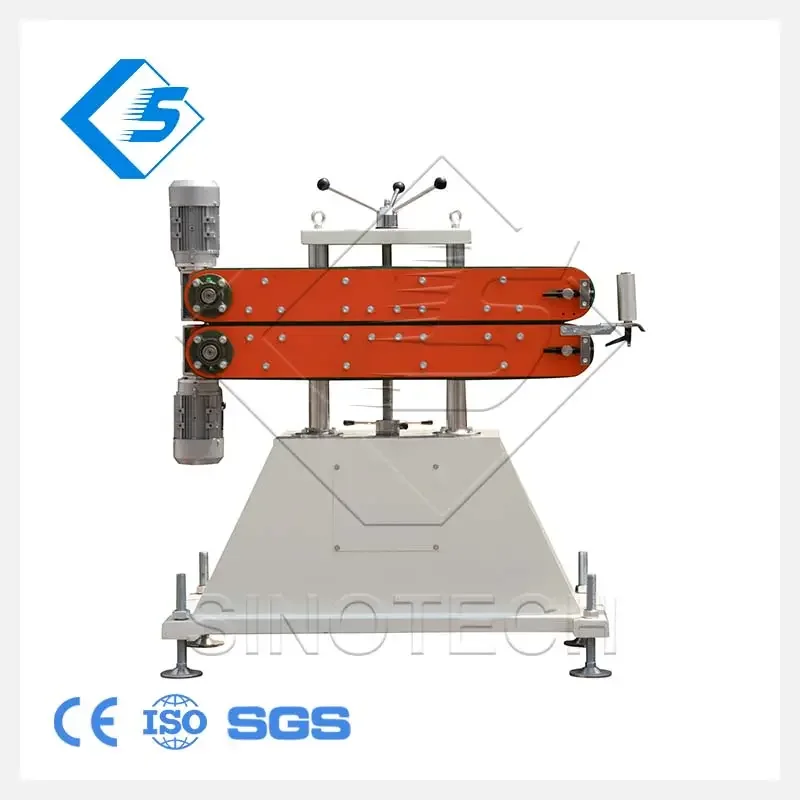

Belt Haul off
• Upper and lower caterpillar is driven separately and speed control by frequency inverter;
• Fast change type pads for easy operation;
• Install plate is adopts aluminum material;
• Compacting driving by pneumatic;
• Synchronous driving by air cylinder or servo motor control.
• Upper and lower caterpillar is driven separately and speed control by frequency inverter;
• Fast change type pads for easy operation;
• Install plate is adopts aluminum material;
• Compacting driving by pneumatic;
• Synchronous driving by air cylinder or servo motor control.
05

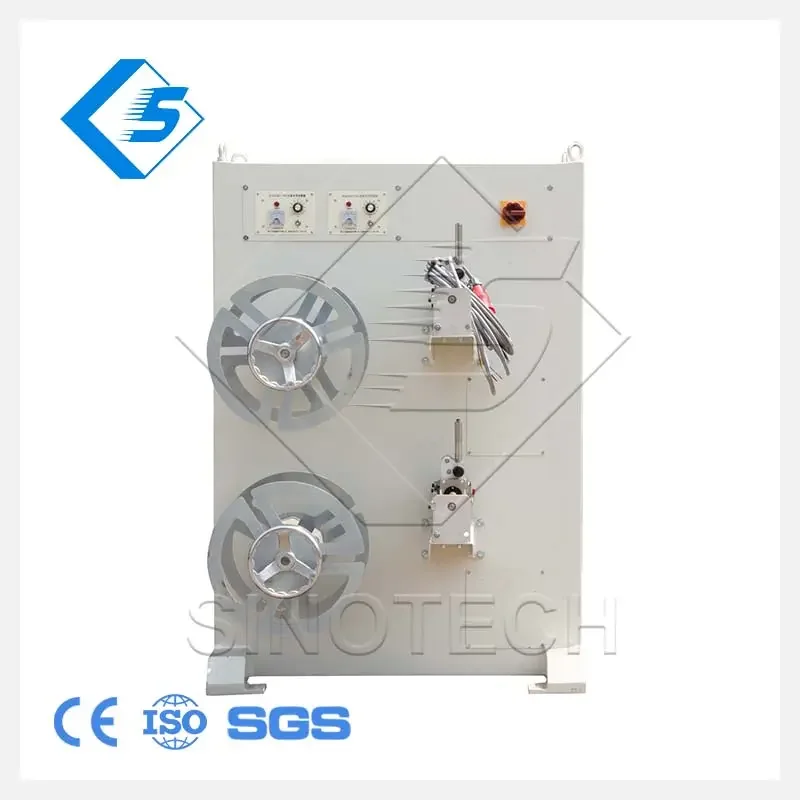

Double-Station Winder
The fully automatic double-station winding machine can wind and unload the products at the same time, reducing the waiting time in
the production process and greatly improving production efficiency and product quality.
The fully automatic double-station winding machine can wind and unload the products at the same time, reducing the waiting time in
the production process and greatly improving production efficiency and product quality.
Application
Company Profile
Why Choose Us
Packaging & Shipping
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
