Высокое качество карьер Вибрационный экран кормушка заводская цена на продажу
940 850,06 ₽
Дробилка с гравийной каменной Щековой дробилкой вибратор вибратором по лучшей цене
- Категория: >>>
- Поставщик: Henan Dourry Intelligence Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601268501319:
Описание и отзывы
Характеристики
Application Material
Electromagnetic vibratioing feeder can be widely used in metallurgy, coal, power, machinery, chemical industry, building materials, light industry and grain industry and mining enterprises.For example, from silo discharge, to belt conveyor, bucket elevator feeding, to crusher, ball mill feeding, in the packaging system to do quantitative feeding, in the batching system to do uniform and continuous batching.
characteristics
(1)The half-wave rectifier control circuit can steplessly adjust the feeding quantity in the rated output, and can be used in the automatic control production process to realize the production automation.
(2)The automatic amplitude stabilization control system can be provided according to the user's requirements, and the amplitude fluctuation of feeder is less than or equal to 3%. Intelligent feeding can be realized by matching the computer control box with high stability.
(3)The utility model has the advantages of simple structure, light weight, no need of lubrication and convenient maintenance.
(4)Because of the near resonance principle, the energy consumption is low. The material is slightly thrown in the trough, and the wear of the trough is small.
(1)The half-wave rectifier control circuit can steplessly adjust the feeding quantity in the rated output, and can be used in the automatic control production process to realize the production automation.
(2)The automatic amplitude stabilization control system can be provided according to the user's requirements, and the amplitude fluctuation of feeder is less than or equal to 3%. Intelligent feeding can be realized by matching the computer control box with high stability.
(3)The utility model has the advantages of simple structure, light weight, no need of lubrication and convenient maintenance.
(4)Because of the near resonance principle, the energy consumption is low. The material is slightly thrown in the trough, and the wear of the trough is small.
Product Paramenters
Model | Tank specification(mm) | Inclination (°) recommended (range) | Rod Length(mm) | Max feeding Size(mm) | Rotating speed(r/min) | Max throughput (t/h) | Power(kW) |
FD1036 | 1000X3600 | 8 (0-15) | 2X900 | 600 | 650-900 | 400 | 15 |
FD1245 | 1200X4500 | 2X900 | 700 | 600 | 22 | ||
FD1260 | 1200X6000 | 3X900 | 700 | 600 | 22 | ||
FD1560 | 1500x6000 | 3X900 | 900 | 1000 | 30 | ||
FD1860 | 1800X6000 | 3X900 | 1100 | 1300 | 37 | ||
FD2160 | 2100X6000 | 3X900 | 1300 | 1700 | 45 |

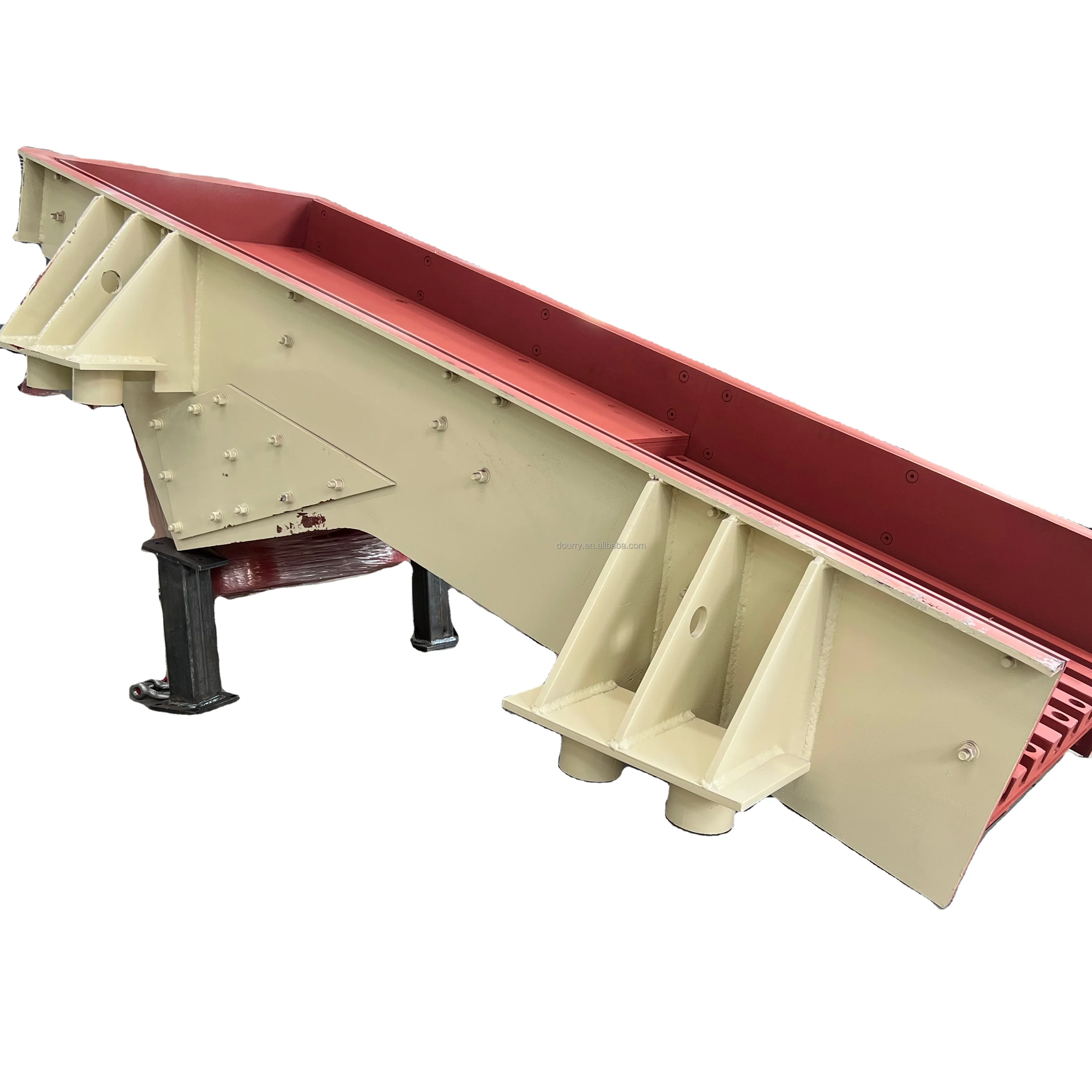

Structure Design
vibration structure
The vibration exciter is composed of two eccentric shafts with particular position. The large linear vibration force produced by motor and the rotation of two eccentric shafts vibrates the machine. The materials are sliding and thrown so that it could move on. When the materials pass the screen bars, the small ore falls through the clearance of screen bars.

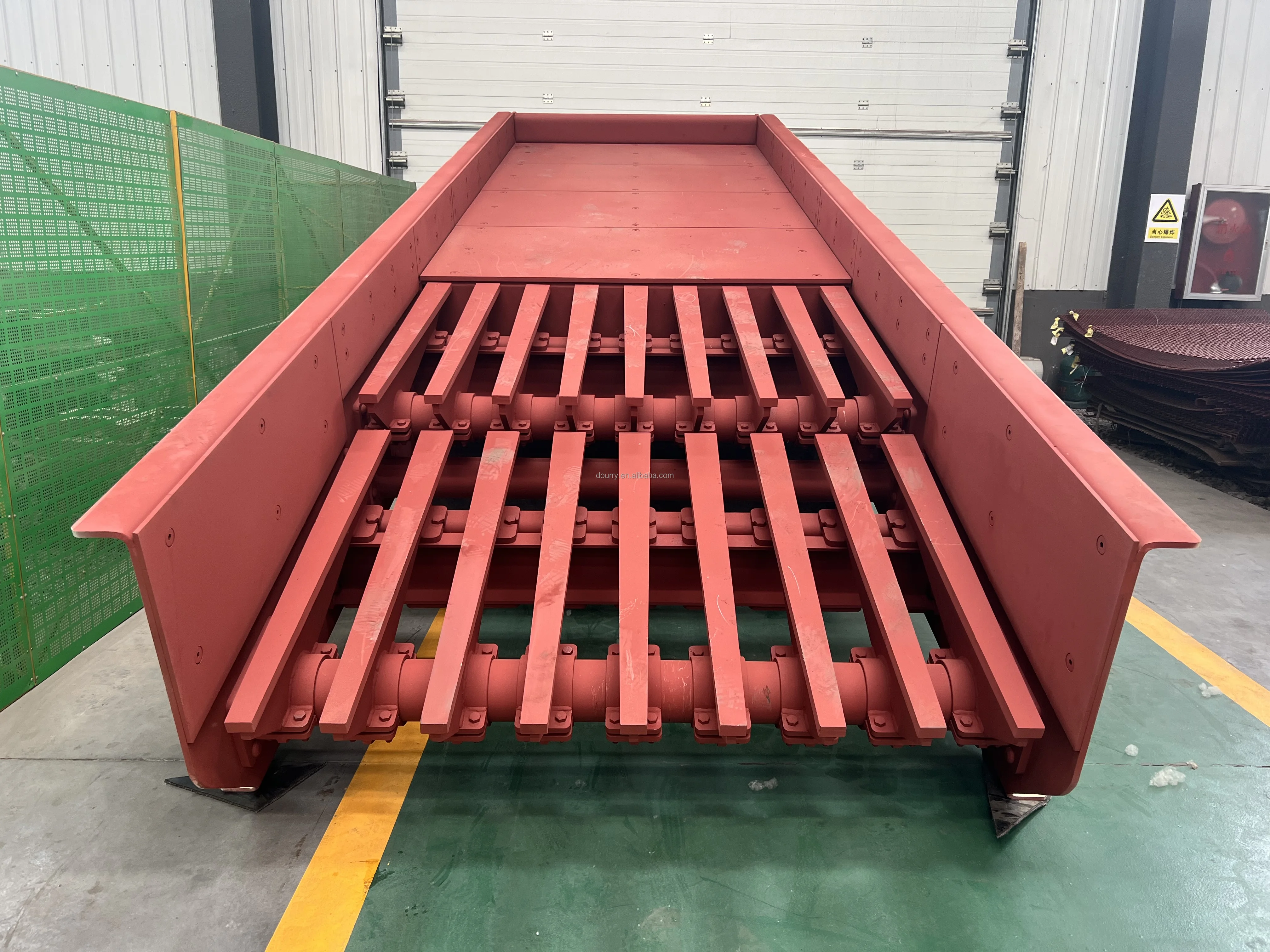

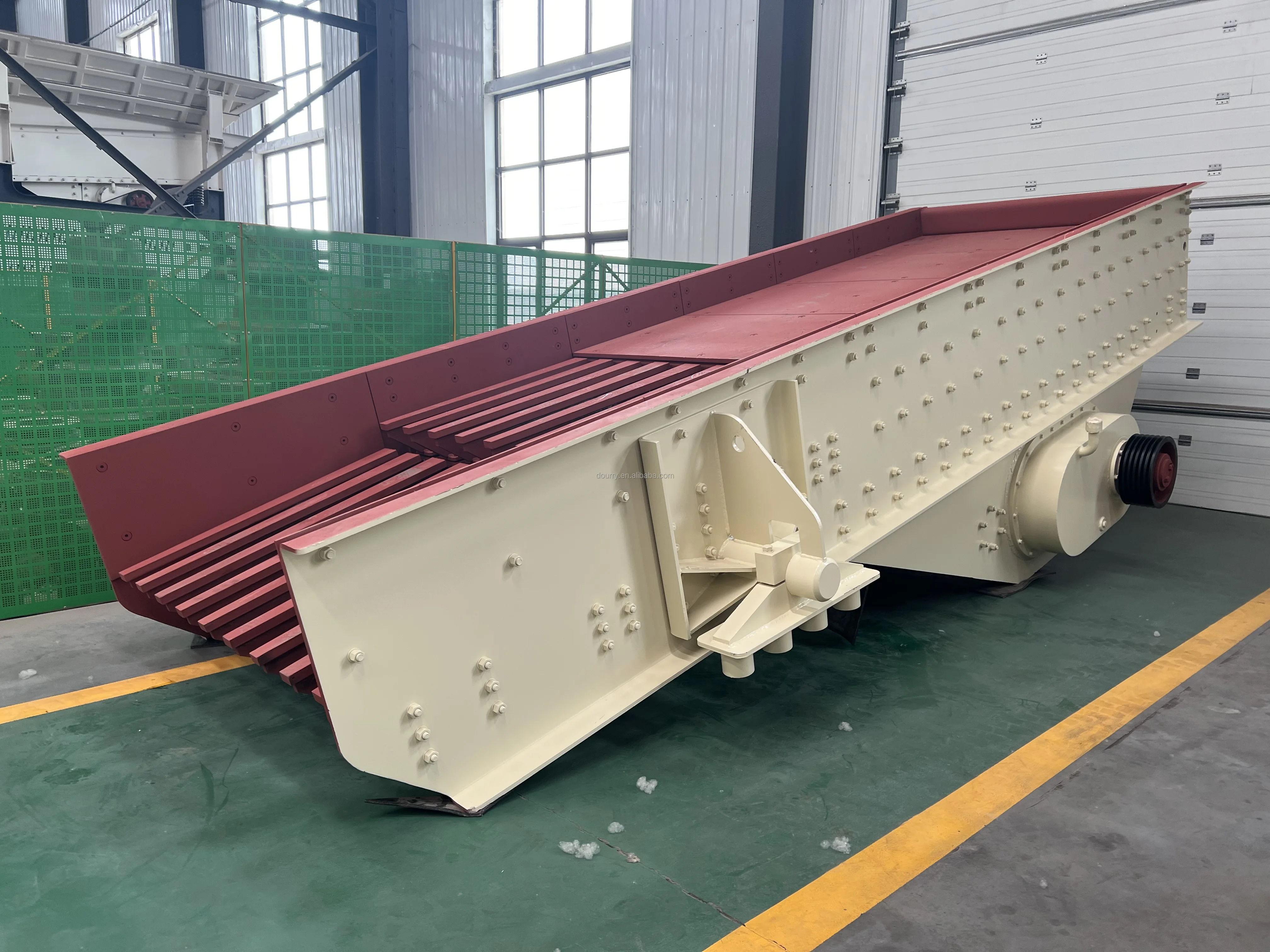

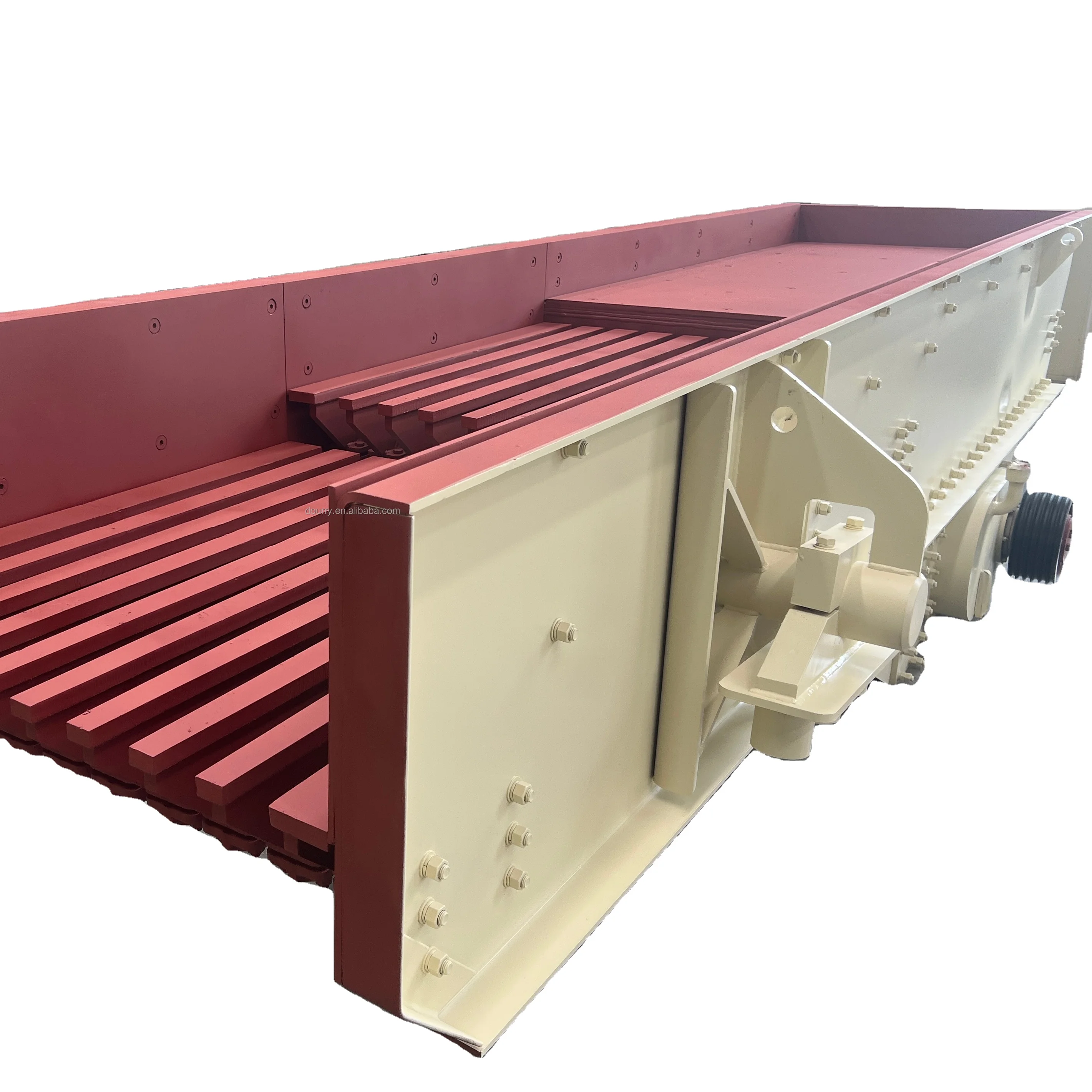

Details Images
Customer Site
Ghana stone production line
Production: 300t/h
Daily operation: 10
Daily operation: 10
Philippines sand and gravel production line
Production: 150t/h
Daily operation: 10 hours
Daily operation: 10 hours
China Linzhou stone crushing production line
Production: 200t/h
Daily operation: 16 hours
Daily operation: 16 hours
Customer Photos
Our Indian customer has coming to our factory have one whole visit, and make order from our side.
In your side, if you need stone cone crusher machine, freely contact us.
Welcome to our factory to visit!!!
Company Profile
HENAN DOURRY INTELLIGENCE EQUIPMENT CO., LTD.
Henan Dourry Intelligence Equipment Co., Ltd.the overall solution provider for new environmental protection equipment and complete intelligent mine crushing equipment production line, engaged in research and development for the machine, pre- sales service, after-sales service and import and export of crushing, sand making, shaping and screening series equipment.
Henan Dourry established in 2001, with 20 years’ experience in the mining crushing industry, we now have quality and mature production and processing technology, experienced technical research and development personnel, scientific and rigorous quality inspection, strict management system, and a serious and responsible after-sales service team. Gaining praise and trust from more and more customers. Over the years, the products have been exported to more than ten countries and regions such as the United States, Russia, South Korea, North Korea, the Philippines, Vietnam, Mexico, Guatemala, Bolivia, Libya, Ghana, Ethiopia, and Nigeria.
FAQ
Q1: Are you mining machinery manufacturer?
A: Yes, our company warmly welcome clients to visit our plant at any time. We can also provide samples test, mine design,
equipment manufacture, after-sale service, etc.
Q2: Which country have your products been exported?
A: We have been exported business for 10 years and we have lots of customers and agents in the world. such as MiddleEast. Malaysia. South Africa. Canada. America etc.
Q3: How to get the free solution and quotation ?
A: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours
Q4: How long about the delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q5: What payment terms do you provide?
A: Accepted Payment Type: T/T L/C, Western Union. Cash after sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery
Q6: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.
Q7: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need.We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.
Q7: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need.We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
