UBO, резьба по камню, фрезерный станок с ЧПУ, 2030 3d, 5-осевая станка с ЧПУ, Гранитная пила с поворотом на 87 градусов
1 750 185,01 ₽ - 2 625 332,21 ₽
UBO резьба по камню 3d 5 осевой станок с ЧПУ Гранитная пила поворотом на 87 градусов
- Категория: >>>
- Поставщик: Shandong Ubo CNC Machinery Co. Ltd.
Сохранить в закладки 1601269520027:
Описание и отзывы
Характеристики
Product Description

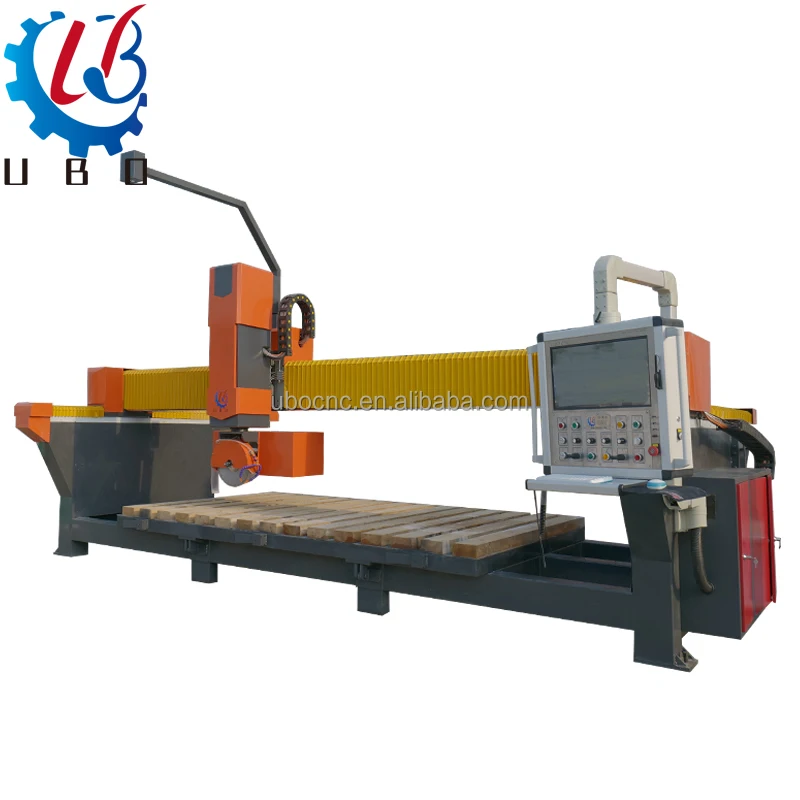

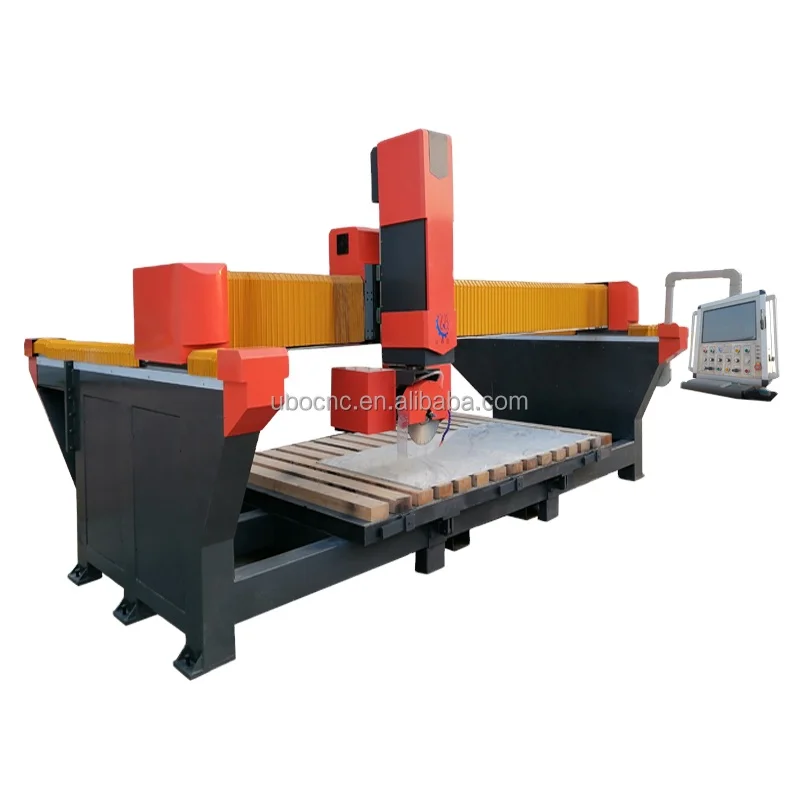

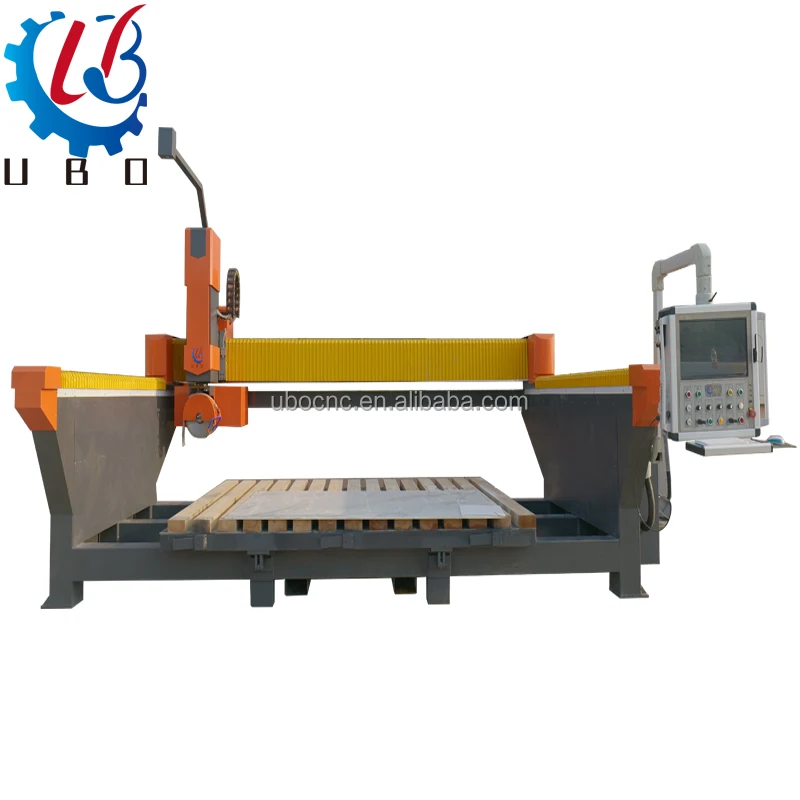

UBO 5axis cnc bridge cutting machine is new generation multi-function processing machine which is associated to be designed and manufactured between OMC and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge.
This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Specification
Model | US-B3020 |
Programming method 1 | CAD image input & Manual programming |
Control method | CNC |
Power | 7.5KW (optional 4KW / 11KW) |
Working voltage | 380V 3phase (customized) |
R.P.M | 6000r/min |
Blade size | 400mm |
X-axis working stroke | 3000mm |
Y-axis working stroke | 2000mm |
Z-axis working stroke | 400mm |
A-axis working stroke | 360° free rotation |
B-axis working stroke | 0-90° |
X/Y-axis cutting speed | 1-2000mm/min |
Z-axis cutting speed | 1-1000mm/min |
A cutting speed | 0-7r/min |
Cutting thickness | 100mm |
Processing precision | 0.2mm |
Working table size | 3000x2000mm |
Overall size | 5500x3120x3320mm |
Weight | 3200KG |
Feature Of Machine
1. Compact size without needing the ground base.
2. With advanced touch Touch operation CNC control system and all pattern operation, the machine can be operated without professional operators.
3. With powerful functions, the machine can work almost all the jobs of a small factory.
4. With less electricity and more efficiency, the cost is decreased much.
5. High quality accessories and electric parts are used to secure long service life and low cost.
6. intelligent processing cross-border protection, to prevent the mechanical impact due to excessive design documents processing.
7. Diversity control can separately control the processing speed, idling speed, cutting speed, greatly improving the quality of speed, greatly improving the quality of speed, greatly improving the quality of processed product and processing efficiency.
2. With advanced touch Touch operation CNC control system and all pattern operation, the machine can be operated without professional operators.
3. With powerful functions, the machine can work almost all the jobs of a small factory.
4. With less electricity and more efficiency, the cost is decreased much.
5. High quality accessories and electric parts are used to secure long service life and low cost.
6. intelligent processing cross-border protection, to prevent the mechanical impact due to excessive design documents processing.
7. Diversity control can separately control the processing speed, idling speed, cutting speed, greatly improving the quality of speed, greatly improving the quality of speed, greatly improving the quality of processed product and processing efficiency.
Main Parts
Self-developed friendly touch screen man-machine interface, convenient for manual direct input of instructions. With the use of wireless handwheel, the maneuverability is stronger. It can improve work efficiency and human-computer interaction is more comfortable.
The machine head can be tilted 45 degrees, which is more convenient for cutting arc angles.
The machine head can be rotated 360 degrees, making it easier to cut arcs and circles.
Dustproof and waterproof design, effectively reducing pollution in the workshop
Knives can be installed, which is convenient for edge grinding and polishing, truly achieving multiple functions in one machine.
The universal outlet pipe can be rotated in any angle and direction. Effectively cool tools and saw blades.

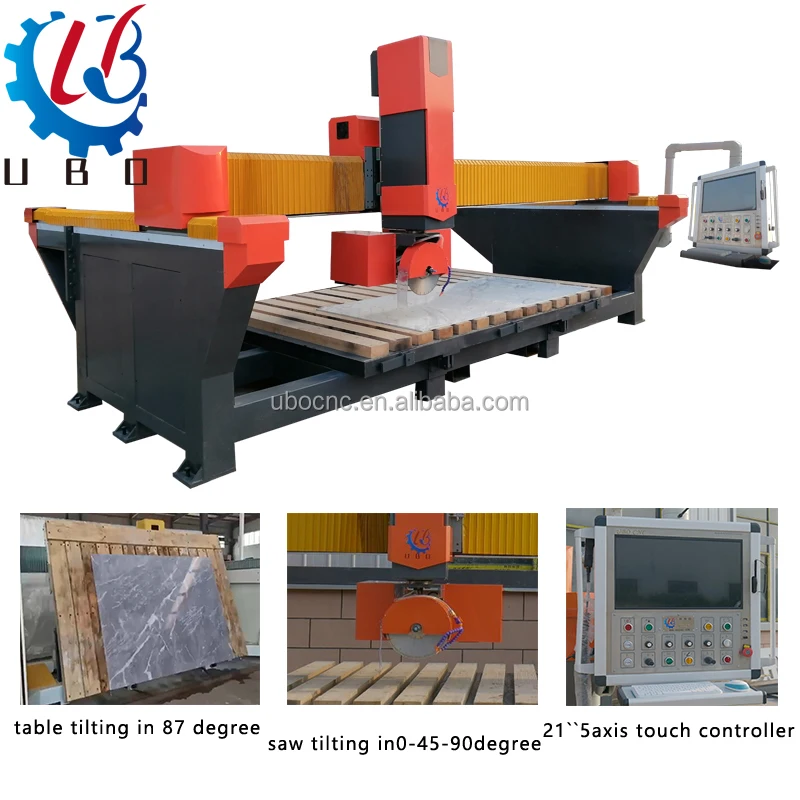

The tilting table top can be tilted up to 87 degrees, which is more convenient and fast for loading and unloading.
The dust-proof design of the guide rail rack effectively reduces dust pollution, improves the accuracy of operation, and can also increase the service life of the machine.
Pneumatic ball table and universal wheels can better help the plate move on the table, which not only saves effort, but also improves efficiency.
Powerful servo motor and high accuracy reducer
Auto oiling system
Powerful motor ,can improve the efficient
The red light positioning system makes it more convenient and intuitive to perceive the processing location and path.

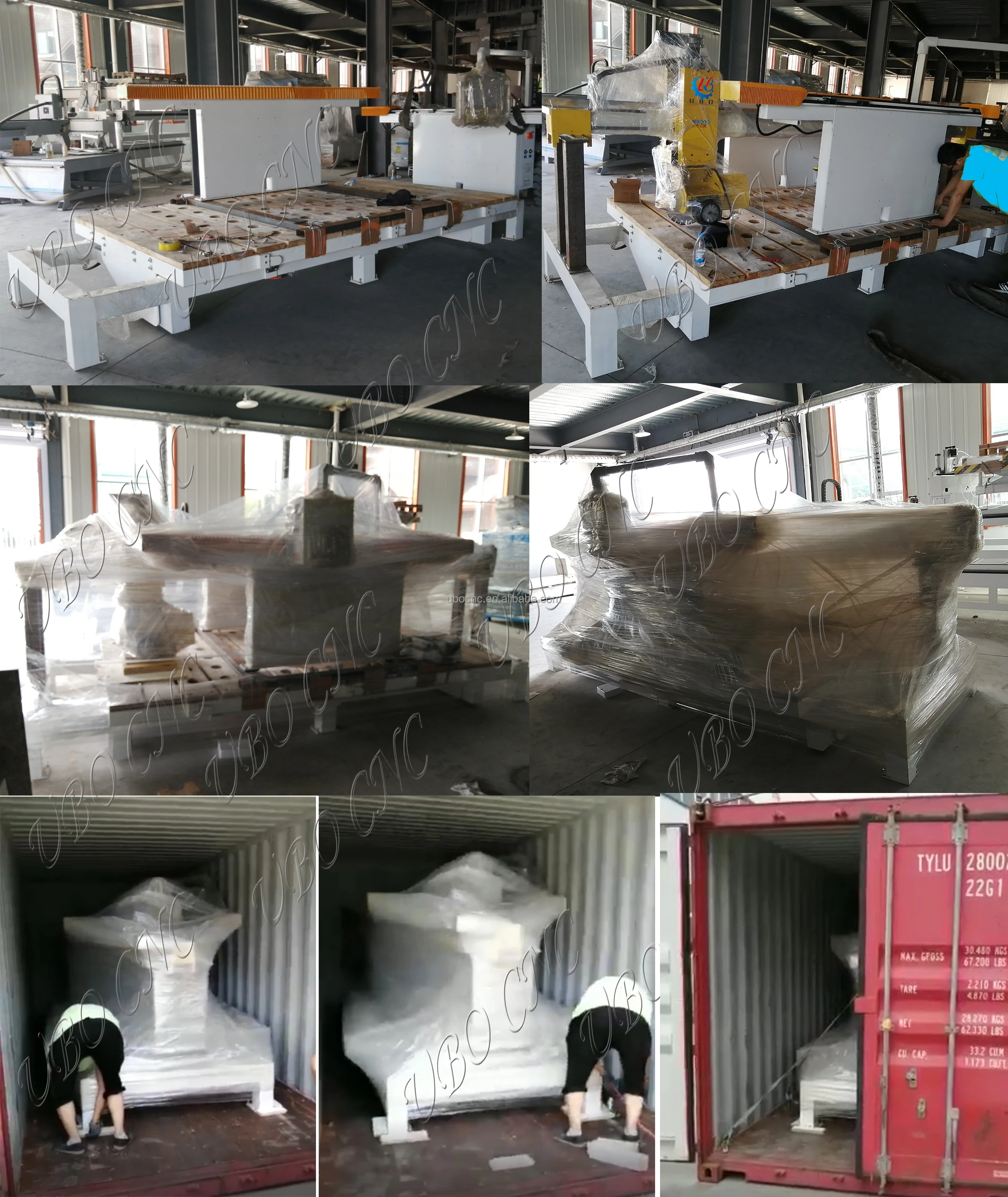

Packing & Delivery
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.

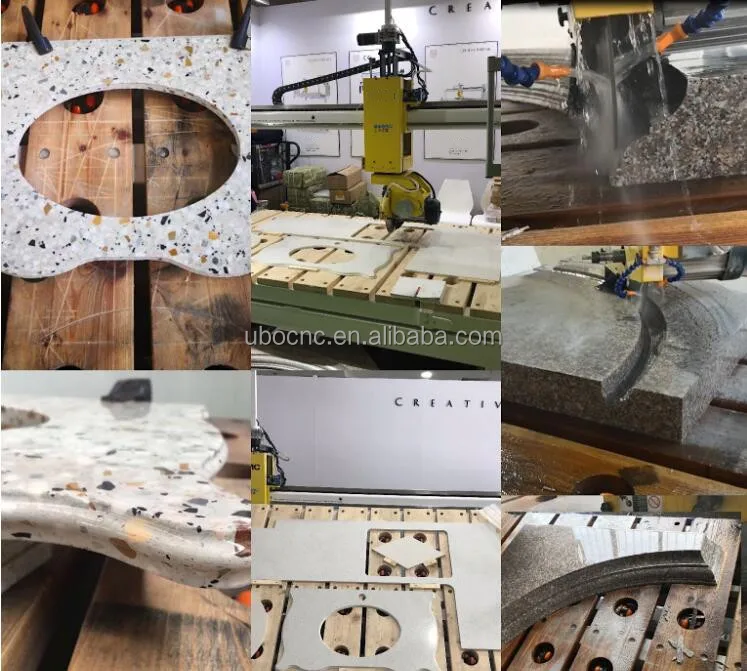

Samples
Application
Full automatic five axis infrared bridge cutting machine, multi language conversion, table processing by one machine, x-y-z-a-b five axis linkage, more widely used, simple operation and stronger practicability.
used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.
used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.
Service
1. service before sales: our sales will communicate with you to know your requirements about the cnc router specification and what kind of work you will do, then we will offer our best solution for you. So that it can confirm each customer get their real needed machine.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control, etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we will replace it for free.
8. service in long-term: we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years, please contact us freely.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control, etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we will replace it for free.
8. service in long-term: we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years, please contact us freely.
FAQ
Q1: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q2: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q3: How long is the delivery time?
Generally 15 ~ 25 working days.
Q4: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q6: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
Please tell us your cutting material and the working size.
Q2: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q3: How long is the delivery time?
Generally 15 ~ 25 working days.
Q4: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q6: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
