Machine Overview

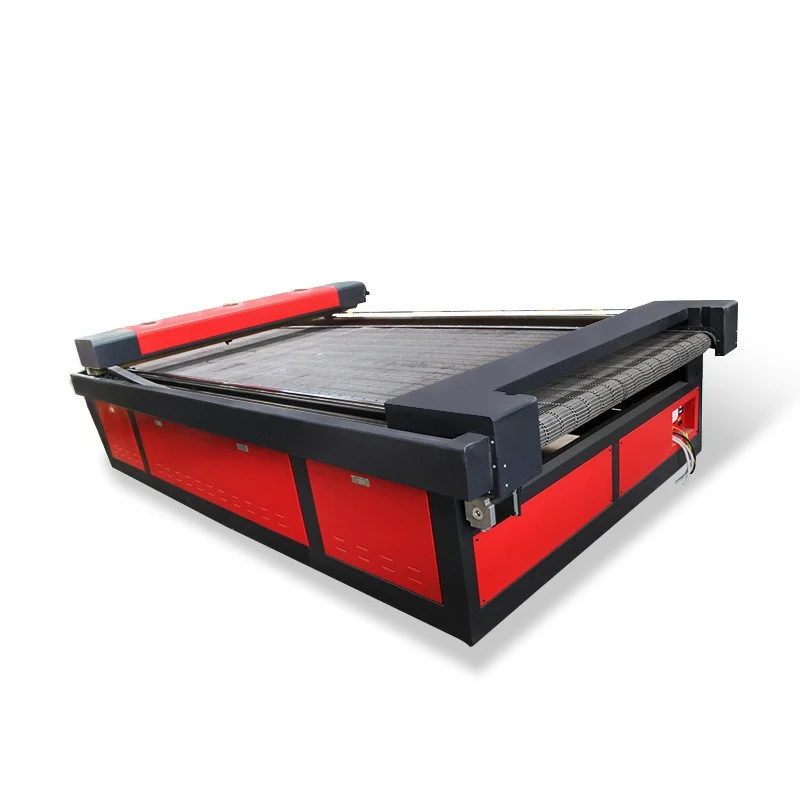

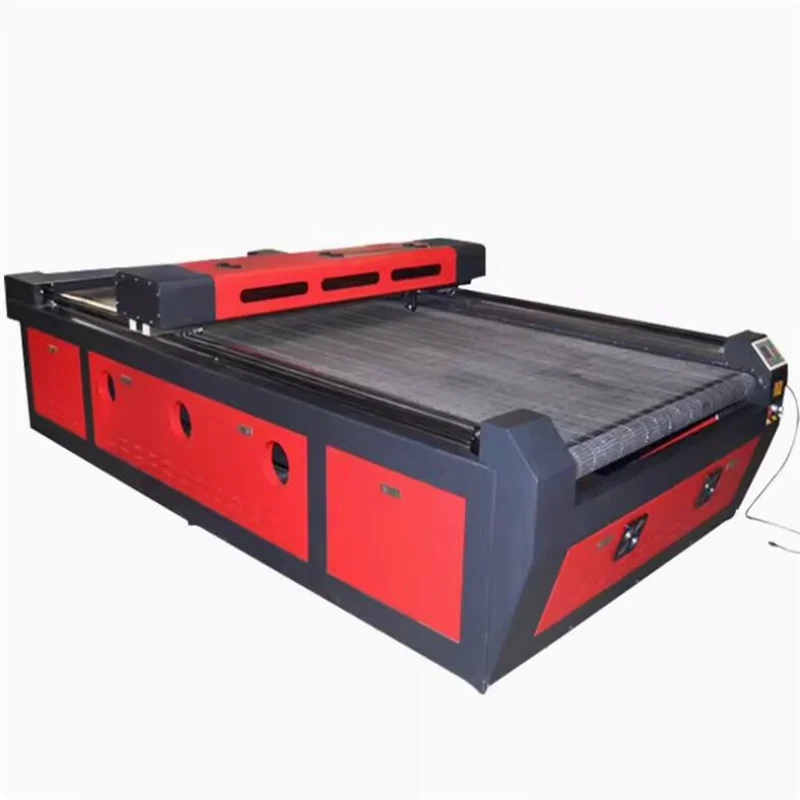

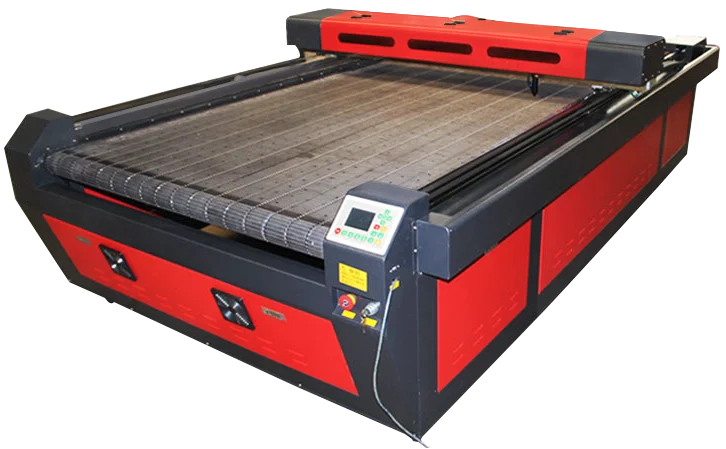

Auto-Feeding CO2 Laser Cutting & Engraving Machine
CO2 laser cutting Machine with automatic feeding table is capable of cutting soft materials in rolls, like knitted fabric, cloth, leather, paper, etc, the feeding system is stable and efficient, significantly saved your labor cost. Cloth and leather can be adsorbed on the table with powerful suction to ensure smooth cutting incision. And it is able to fit your mass processing work combined with double heads working.
Machine Parameters
Model | Automan Auto-Feeding CO2 Laser Cutting & Engraving machine |
Working size | 1300*2500mm / 1600*2500mm |
Machine table | Honey-comb table |
Roll material feeding method | Automatic feeding |
Laser tube | CO2 laser with 100W/130W/150W (lifespan: 10,000 hours) |
Laser wavelength | 10.6um |
Cooling mode | Industrial water cooling chiller |
Functions | Cutting & Engraving |
Cutting speed | 0-500mm/s |
Engraving speed | 0-1500mm/s |
Positioning accuracy | Within 0.01mm |
Resolution ratio | 1000 dpi |
Min. Shaped letter | 1*1mm |
Positioning mode | Red light pointer |
Software | RDWorks |
Control system | Ruida |
Motor | Stepper motor |
Working voltage | AC220-240V, 50-60Hz |
Details Images
Frame structure
Seamless steel welding through heat treatment and milling process, high rigidity,
anti-shocking, no deformation.
High-strength aluminum alloy cross beam, high rigidity, small resonance, smooth operation, fast speed.
anti-shocking, no deformation.
High-strength aluminum alloy cross beam, high rigidity, small resonance, smooth operation, fast speed.
Ruida Controller & RDWorks software
Ruida controller support over 12 languages.
Color screen + Keys.
Real-time display the working path on screen.
USB data transmission.
128M storage. Easy to operate.
Format support: BMP, PLT, DST, DXF.
Anti-static interference.
Break-point Recovery and restoring from power off.
Color screen + Keys.
Real-time display the working path on screen.
USB data transmission.
128M storage. Easy to operate.
Format support: BMP, PLT, DST, DXF.
Anti-static interference.
Break-point Recovery and restoring from power off.
Stepper motor
High torque, good stability, high precision, low failure rate, low noise, over current/ over voltage protection.
Transmission
Arc-gear synchronous 3M belt, made by Nylon and glass fiber, stable transmission, shock absorption, low noise, wear resistance.
Taiwan Linear guide rail and block, wear and shock resistance, stable running, high precision, long service time.
Taiwan Linear guide rail and block, wear and shock resistance, stable running, high precision, long service time.
Laser tube
Long lifetime to be 10000 hours.
The third generation laser tube.
Beam quality: >95% TEM00 mode.
Optical resonator advantage: enhance power.
Advanced radioactive materials coated lenses.
Alternative technique: metal-glass sintering.
The third generation laser tube.
Beam quality: >95% TEM00 mode.
Optical resonator advantage: enhance power.
Advanced radioactive materials coated lenses.
Alternative technique: metal-glass sintering.
Industrial water chiller
To cooling the laser tube efficiently.
0.3℃ precisely temperature control.
Multi-alarms function.
Machine with Water protection.
Compressor time-delay protection.
Compressor over-current protection.
0.3℃ precisely temperature control.
Multi-alarms function.
Machine with Water protection.
Compressor time-delay protection.
Compressor over-current protection.
Laser head
Red light pointer, accurate positioning.
Imported USA lens.
Equipped with a flame-retardant blowing device to ensure smooth cutting and avoid material burning.
Imported USA lens.
Equipped with a flame-retardant blowing device to ensure smooth cutting and avoid material burning.

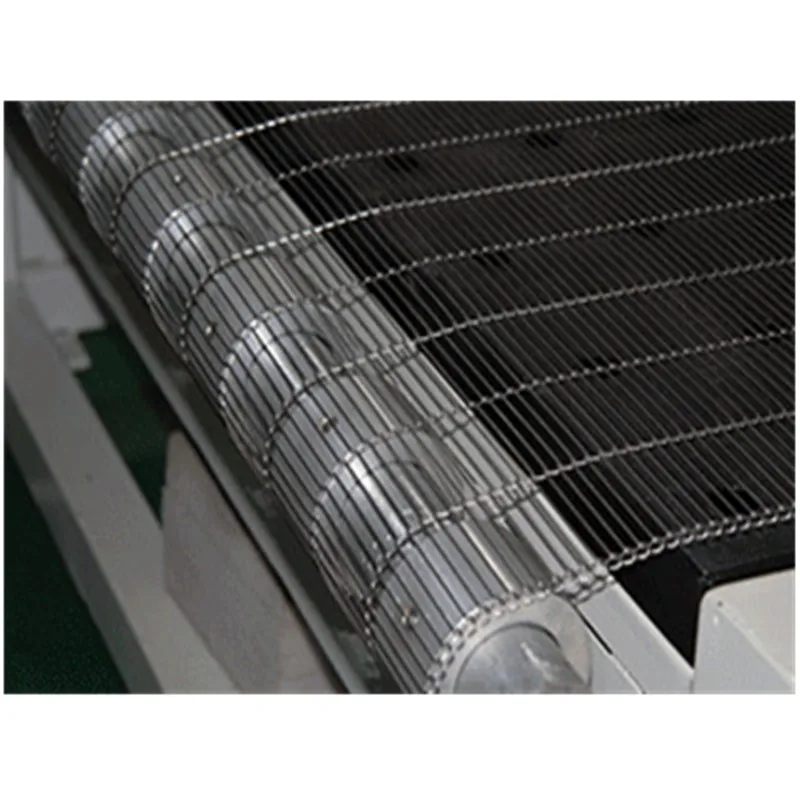

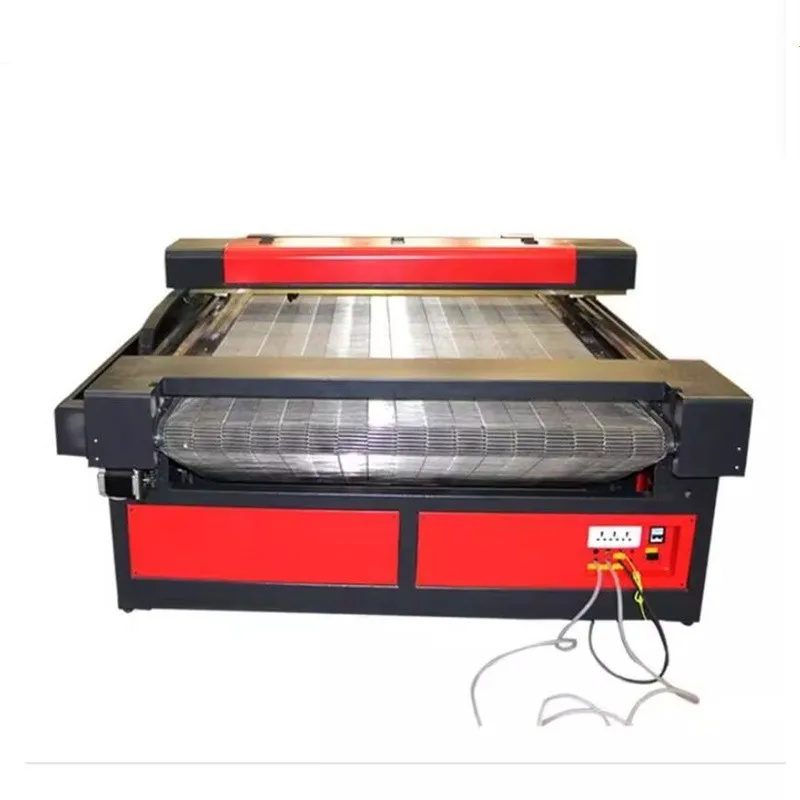

Auto-feeding table
Stable and efficient feeding system, specially designed for cutting soft materials in rolls, like knitted fabric, cloth, leather, paper.
Air compressor
Effectively reduce the cutting burrs.
Dissipate the heat from laser cutting process, avoid fire.
Increase the cutting thickness.
Dissipate the heat from laser cutting process, avoid fire.
Increase the cutting thickness.
Exhaust fan
Mounted to machine back through large diameter outlet, high efficiency.
Extract smoke fume out of machine.
Extract smoke fume out of machine.
Extra Optional Devices
Double heads design
Simultaneous working, together with auto feeding system, greatly improve production efficiency.
CCD camera positioning
Designed for shoe and garment industry.
Auto scan marking point.
Auto edge search, positioning and cutting.
Auto scan marking point.
Auto edge search, positioning and cutting.
Samples Show
Machine Producing Procedure
Recommend Machines
FAQ
1. How can you guarantee machine quality?
Our machines are certificated by CE.
We offer demo or sample cutting before order.
We support quality inspection from the 3rd party.
2. Does the machine can be customized following on my requirements?
Sure, we are able to provide you custom solutions. Let's make your work easy! .
3. What is the payment term?
We need 30% initial payment through T/T, Alibaba trade assurance, Paypal or Western Union, and balance before your machine delivery.
4. How long is the machine delivery?
We promise on-time delivery and your machine will be completed in 8-20 days. We will keep you updated in this period.
5. Can you arrange the shipment for me?
We can arrange the shipment for you by sea, air or train. Also provide door to door service.
6. What after-sales service do you offer?
We supply English manuals and videos.
Free online training through Whats App, Wechat, Skype, Team viewer, ANY DESK, Email, etc.
Overseas on-site training in your workshop.
Two years warranty for machine and parts.
Whole lifetime technical support.
Our machines are certificated by CE.
We offer demo or sample cutting before order.
We support quality inspection from the 3rd party.
2. Does the machine can be customized following on my requirements?
Sure, we are able to provide you custom solutions. Let's make your work easy! .
3. What is the payment term?
We need 30% initial payment through T/T, Alibaba trade assurance, Paypal or Western Union, and balance before your machine delivery.
4. How long is the machine delivery?
We promise on-time delivery and your machine will be completed in 8-20 days. We will keep you updated in this period.
5. Can you arrange the shipment for me?
We can arrange the shipment for you by sea, air or train. Also provide door to door service.
6. What after-sales service do you offer?
We supply English manuals and videos.
Free online training through Whats App, Wechat, Skype, Team viewer, ANY DESK, Email, etc.
Overseas on-site training in your workshop.
Two years warranty for machine and parts.
Whole lifetime technical support.
Похожие товары
CO2 лазерная резка и гравировальный станок для Nometal материалов
388 822,32 ₽
1610 СО2 лазерный резак/Yongli 150 ватт Лазерная резка/фанерная лазерная резка
172 809,92 ₽ - 280 816,12 ₽
Keyso Ki5 внутренняя 5 Вт УФ маркировочная машина форма для травления неправильной поверхности маркировка ручной работы тиснение разной глубины маркировка
288 700,58 ₽ - 373 377,44 ₽

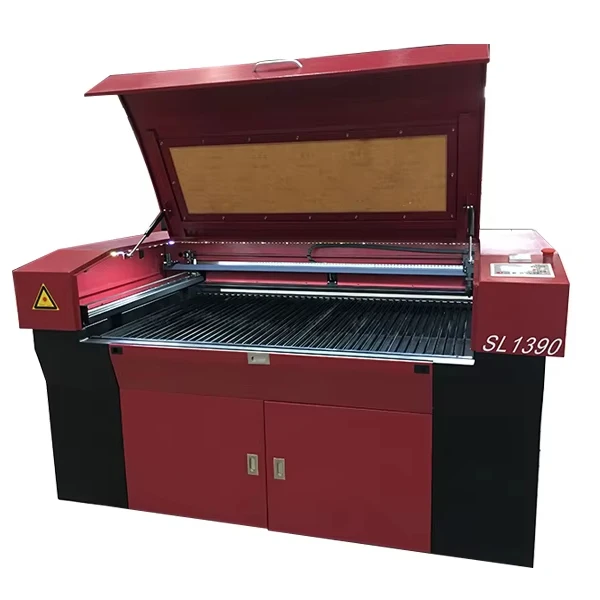

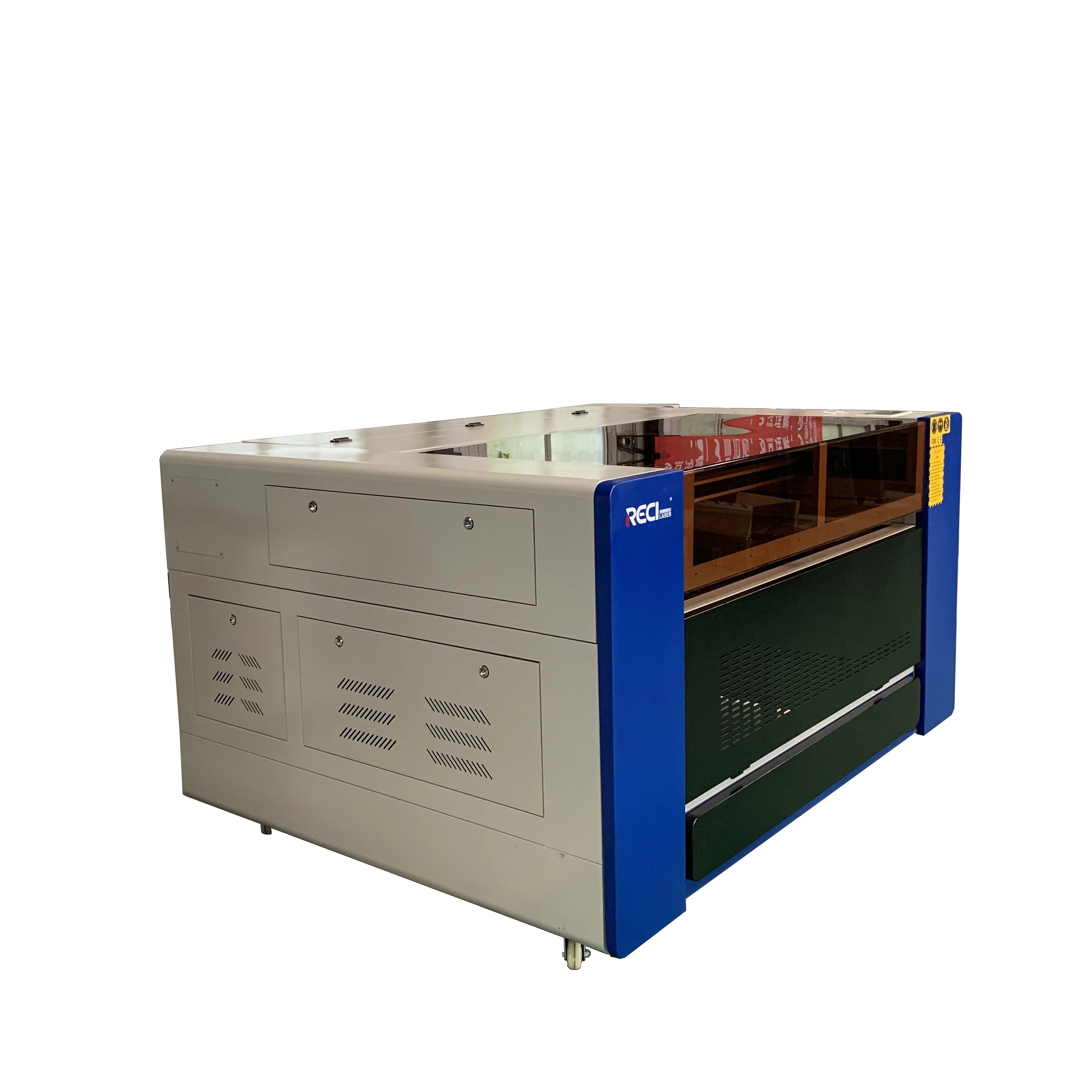

SUDA SL1390 высокое качество 1390 CO2 лазерная гравировальная машина для резки RECI CDWG лазерная трубка
