3500 Вт 5500 солнечные фотоэлектрические сети Гибридный солнечный инвертор с pwm 100a со слежением за максимальной точкой мощности блок управления установкой на солнечной батарее для бега без батареи системы энергии
24 548,26-27 150,15 ₽
Настраиваемый инвертор солнечной батареи 3500 Вт с контроллером 100A MPPT и технологией DSP для автономной системы
- Категория: >>>
- Поставщик: Shenzhen Scmk New Energy Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601271439967:
Описание и отзывы
Характеристики
Best selling 3500 watt off grid Solar Inverter with 100A MPPT supporting work without battery
Product Details
Best Selling 2023 3500W off grid Solar Inverter with MPPT controller and DSP technology For Home Appliance
1. Pure Sine wave solar inverter
2..Output power factor 1
3. High PV output voltage range 120-450V
4. Battery equalization function to optimize battery performance and extend life-cycle
5. Built-in anti-dust kit for harsh environment
6. Supporting working without battery.
Technical Specification
Model | SC-VM II PLUS 3.5KW-24V | VM II Plus 5.5KW-48V | ||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||
Input | ||||
Voltage | 230VAC | |||
Voltage Range | 170-280VAC for Personal Computer 90-280VAC for Home Appliances | |||
Frequency Range | 60/50Hz (Auto sensing) | |||
AC Voltage Regulation (Bat Mode) | 230VAC ± 5% | |||
Surge Power | 6000VA | 10000VA | ||
Efficiency (peak) | 90%-93% | |||
Transfer Time | 10ms for Personal Computer; 20ms for Home Appliances | |||
Waveform | Pure sine wave | |||
Battery | ||||
Battery voltage | 24VDC | 48VDC | ||
Floating Charging Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Solar Charger & AC Charger | ||||
Solar Charger Type | MPPT | |||
Max PV Array Open Circuit Voltage | 500VDC | 500VDC | ||
Max PV Array Open Circuit Power | 5000W | 5000W | ||
MPPT Range @Operating Voltage | 120-450VDC | 120-450VDC | ||
Maximum Solar Charge Current | 100A | 100A | ||
Maximum AC Charge Current | 100A | 100A | ||
Maximum Charge Current | 100A | 100A | ||
Physical | ||||
Dimension (L*W*H) mm | 100*300*400mm | |||
Net Weight (kgs) | 10 kg | 10.5 kg | ||
Communication Interface | USB / RS232 | |||
Environment | ||||
Humidity | 5%-95% Relative Humidity (Non-condensing) | |||
Operation Temperature | -10℃ to 50℃ | |||
Storage Temperature | -15℃ to 60℃ | |||
Details Images

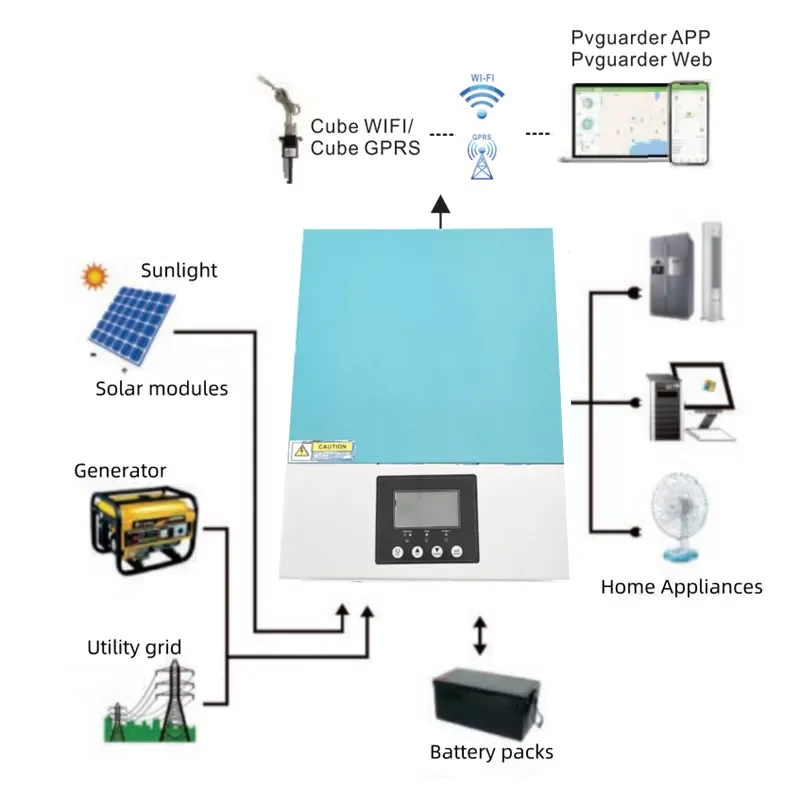

Installation Instructions
Company Profile
Shenzhen SCMK New Energy Co., Ltd(aabr SCMK) is a high-tech enterprise focus on the R&D, production and sales of UPS systems andPhotovoltaic inverters. the products of SCMK range from backup, on-line 450VA to 30000VA high-power and machine series, power UPS, power inverters, communication UPS, communication inverters, iron lithium battery UPS, photovoltaic inverters, etc.
SCMK relying on the strong supply chain and manufacturing capability of our parent company Zhengxin electronics, which have over 10 years of industrial experiences in power electronics field. the company has passed ISO9001 and ISO14001. and the products obtain CE, RoHS, CQC energy, National 3A credit system and many other industrial certification.up to know our goods exported all over the world
SCMK relying on the strong supply chain and manufacturing capability of our parent company Zhengxin electronics, which have over 10 years of industrial experiences in power electronics field. the company has passed ISO9001 and ISO14001. and the products obtain CE, RoHS, CQC energy, National 3A credit system and many other industrial certification.up to know our goods exported all over the world
Product packaging
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1pc in a high quality Carton box, enough time for Aging test to ensure good quality.
Our Service
Pre-Sales Service
* Salesmen with 2 months of product training.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
After-Sales Service
* Warranty:1 years
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
FAQ
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
