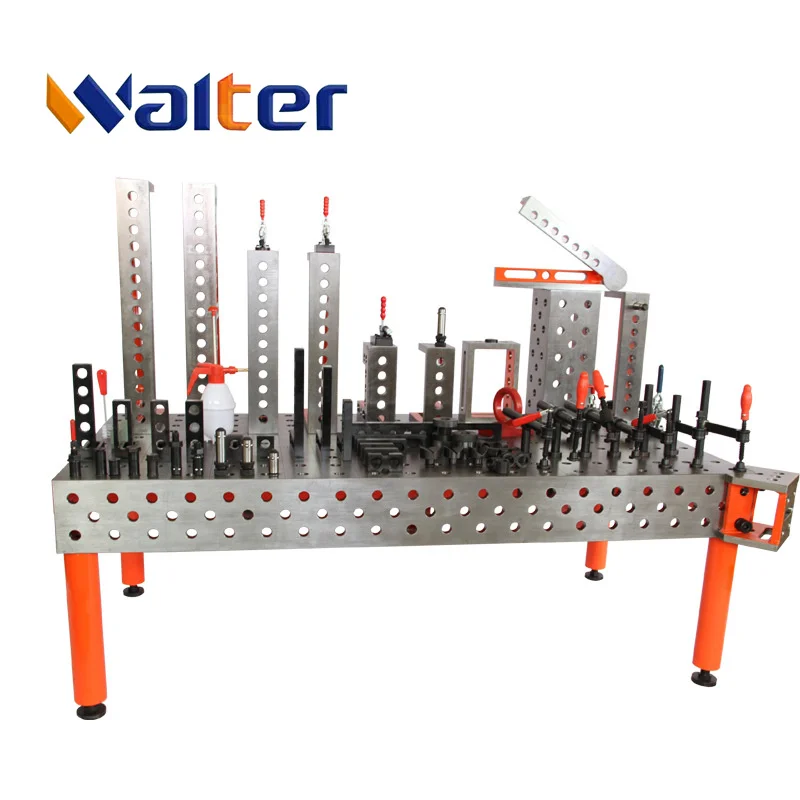

Новый высококачественный паяльная станция из нержавеющей стали 3d сварочный стол D16/D28 3D сварочный стол
97 205,58 ₽ - 162 009,30 ₽
Портативное сварочное устройство мощностью 30 300 кг поворотный сварочный стол для трубы с патрубком 7 дюймов
- Категория: >>>
- Поставщик: Botou Tianjian Measuring Tool Co. Ltd.
Сохранить в закладки 1601271646576:
Описание и отзывы
Характеристики

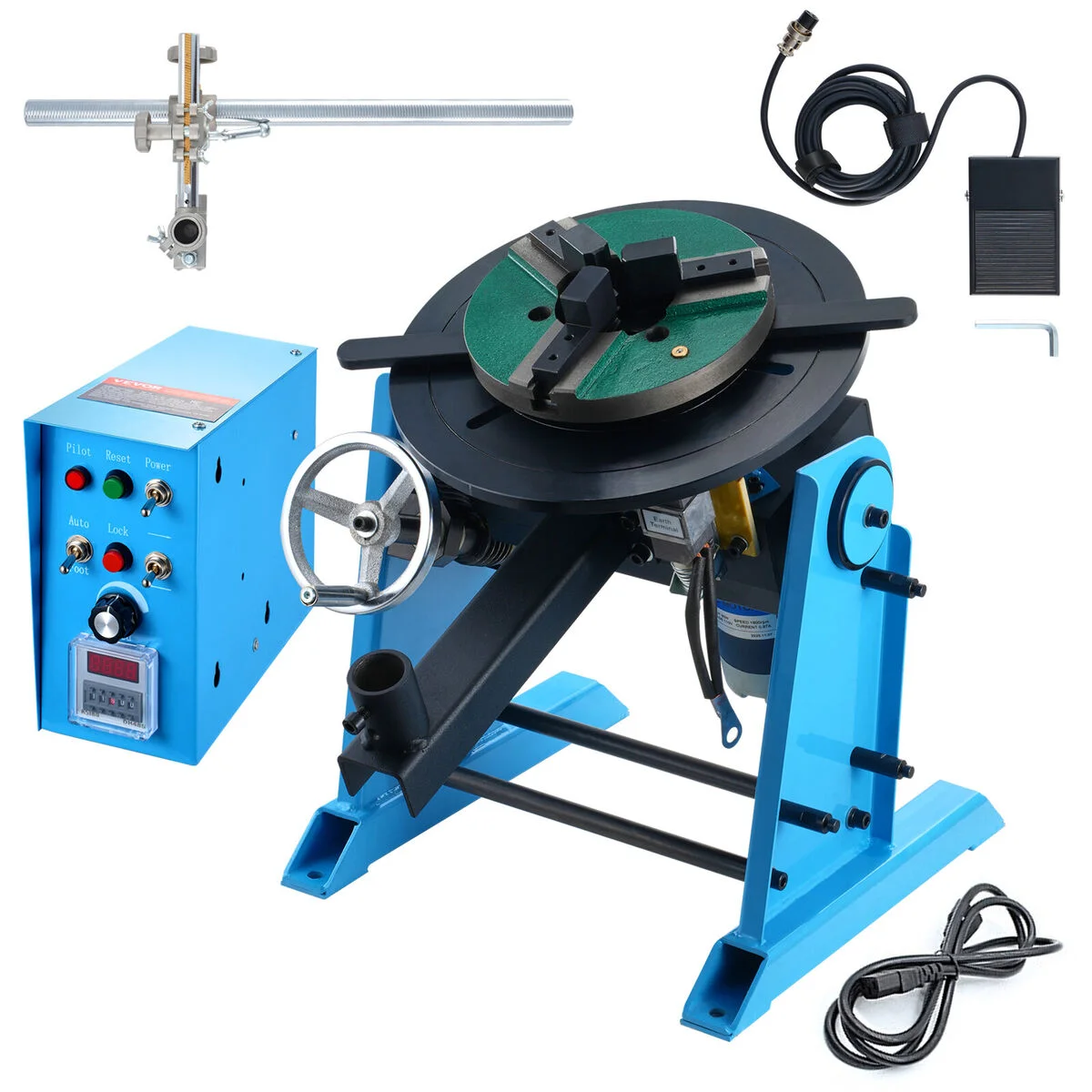

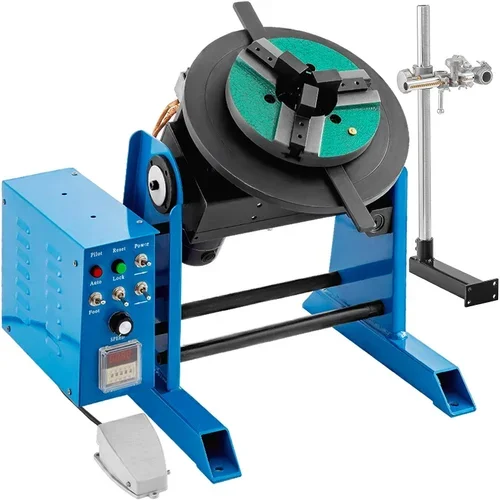

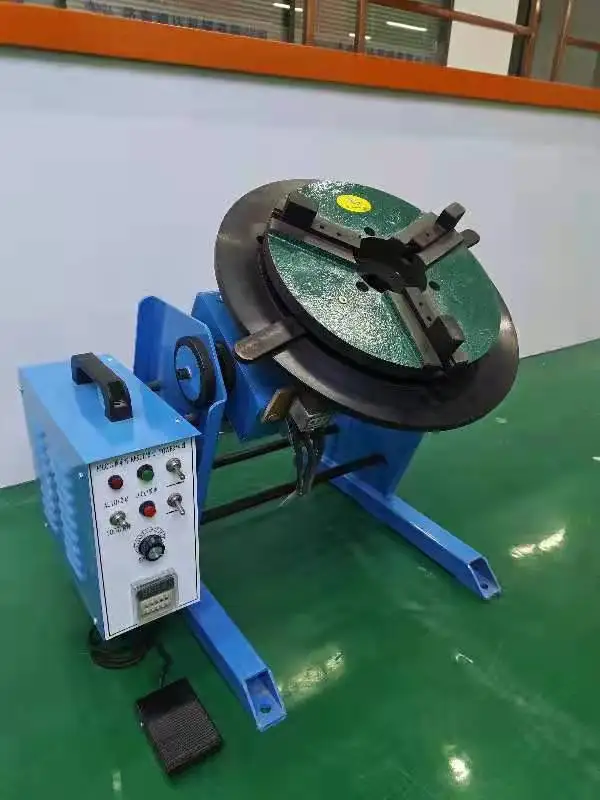

Welding positioner
This welding positioner, also called welding positioning equipment, is mainly used for some special structures, construction machines, small round worpieces, and more. Its working table is driven by the turning device with 6 T-style slots to ensure workpieces are strictly fixed on the working table.
Its turning device is mainly composed of a motor, a speed reducer, and a swing set. And its overturning device mainly consists of an electric motor, cycloidal gear speed reducer, worm wheel speed reducer, and semicircular gear.
We can design and produce welding positioners in accordance with the specific requirements of our clients.
Product Paramenters
No | Model | HD-30 | HD-50 | HD-100 | HD-200 | HD-300 |
1 | Power input | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz |
2 | Horizontal loading capacity | 30kg | 50kg | 100kg | 100kg | 300kg |
3 | Vertical loading capacity | 15kg | 25kg | 50kg | 50kg | 150kg |
4 | Working table diameter | 310mm | 310mm | 400mm | 400mm | 500mm |
5 | Working table height | 380mm | 380mm | 520mm | 520mm | 650mm |
6 | Working table tilting angle | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 |
7 | Working table rotation speed | 1-15 rpm | 0.5-7rpm | 0.5-7rpm | 0.5-7rpm | 0.2-2.5rpm |
8 | Rotation motor | 80w | 120w | 120w | 120w | 200w |
9 | Net weight | 35kg | 35kg | 70kg | 78kg | 102kg |
For more solutions,please contact us.
Products Description
Welding positioner | welding equipment
The welding positioner is mainly composed of a workbench, a rotating device, a turning device, a conductive device, a frame, an electric control cabinet, etc.
Turning device | DC motor
The turning mechanism of the positioner is driven by a well-known brand DC motor, which is infinitely adjustable and has stable output

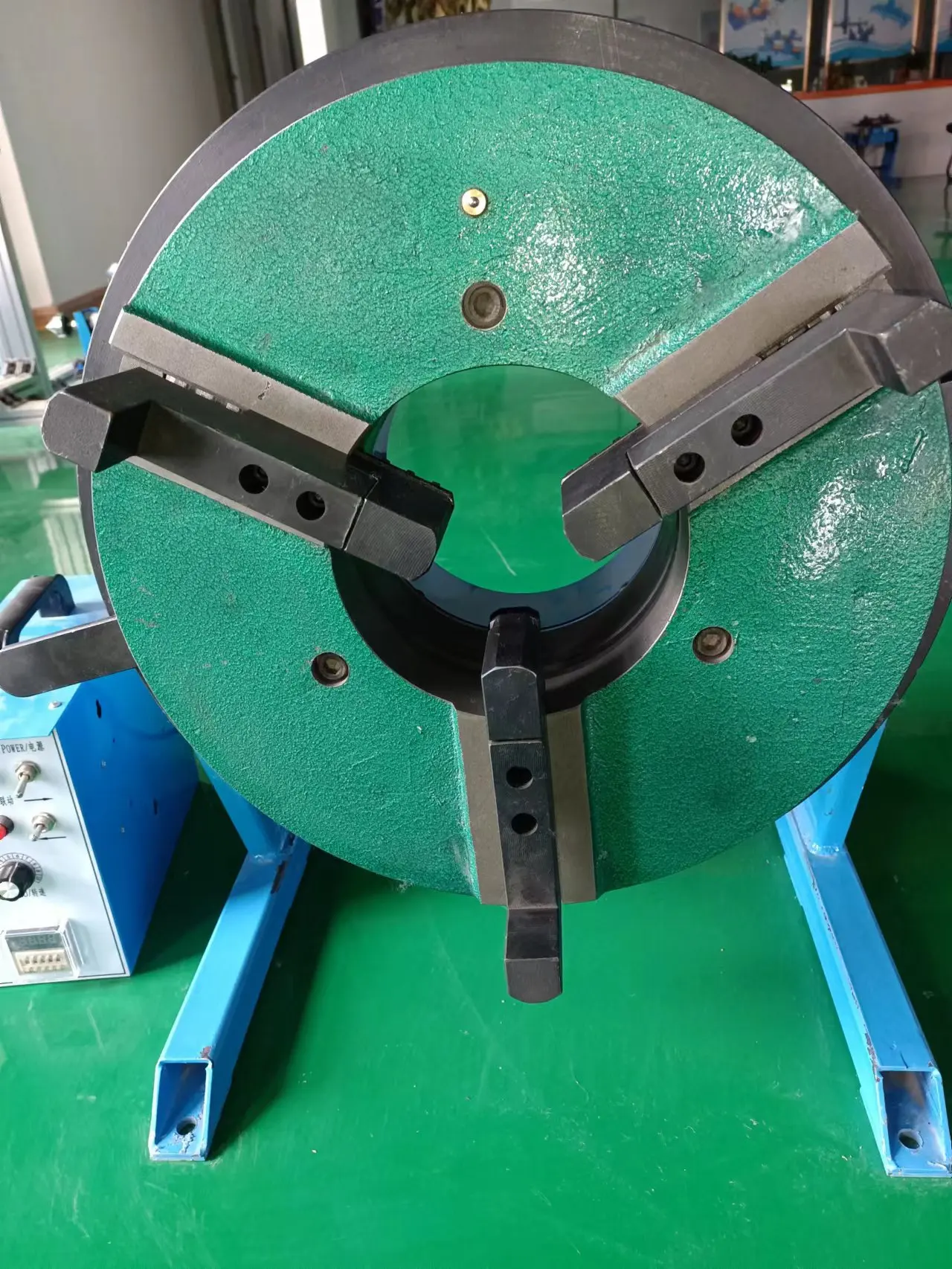

Center through hole | concentric rotation
It allows the workpiece to pass through the chuck with a through hole, clamping the weld closer to the weld, ensuring the weld rotates concentrically

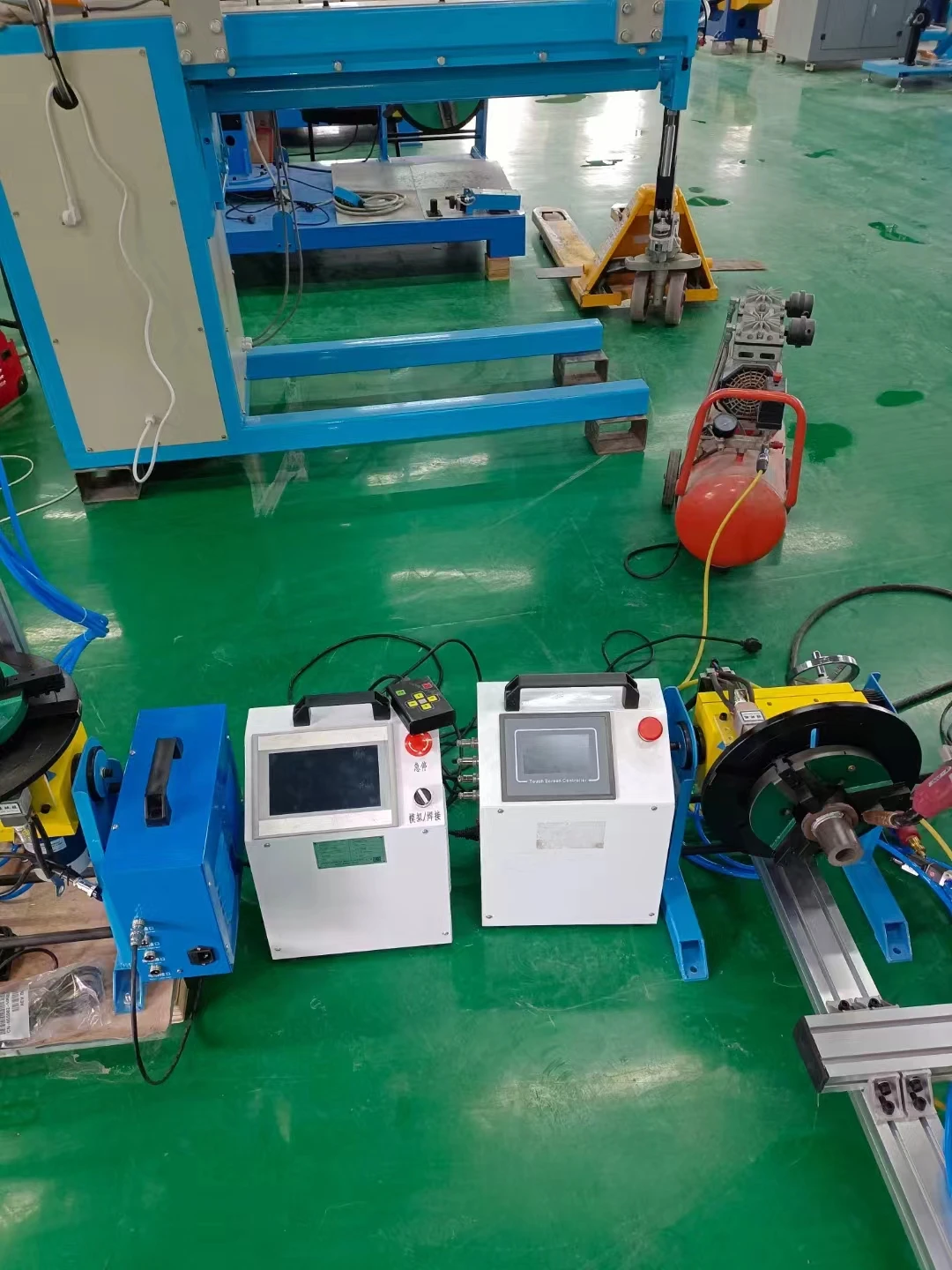

Customer project and product photos
What is a welding positioner?
The welding positioner is a kind of position changing machine that can turn the weldment and turn it over so that the weld seam on the weldment is always in the easy welding position. Reasonable use of welding positioners can improve welding efficiency, improve welding quality, and reduce the labor intensity of welders. At the same time, it is also important to process equipment indispensable to realize the mechanization and automation of the welding process. The welding positioner can be used in conjunction with a welding robot or a welding manipulator to form an automated welding center.
Our Advantages
The advantages of the welding positioning machine:
2. The welding chuck has high precision, large through hole, accurate repeated positioning, ultra-thin thickness, easy installation, and fast clamping
3. Semicircular gears are installed at both ends of the output shaft of the flip device, and 90° rotation is adjustable
4. One end of the conductive device is connected to the swing device, and the other end has a conductive shaft, which is connected to the workbench, so that the welding current can be directly transmitted through the workbench.
5. The body is thickened and the box-shaped frame has strong bearing capacity. And Q235-A steel is used after annealing and finishing, which successfully avoids welding stress deformation.
Company Profile
About Botou Tianjian Measuring Tools Co., Ltd.
It is a company that produces and processes casting tools, measuring tools and other products. It has a complete and scientific quality management system. The integrity, strength and product quality of Botou Tianjian Measuring Tools Co., Ltd. have been recognized by the industry. Friends from all walks of life are welcome to visit, provide guidance and negotiate business.
Our company's main products include: cast iron platforms, marking platforms, 3D /2D welding tables, welding positioner, T-slot assembly platforms, boring and milling machine tool tables, three-coordinate platforms, test platforms, magnesium-aluminum lightweight flat rulers, cast iron flat flat rulers, Bridge-type flat ruler, square ruler, right-angle ruler, special angle ruler for machine tools, inspection square box, scribing square box, magnetic square box, magnetic V-shaped frame, deflection checker, gear runout checker, high-precision deflection checker, New deflection checker, machine tool inspection rod, machine tool adjustment pad, machine tool anti-vibration pad, step pad, contour pad, cast iron shaped iron, steel V-shaped frame, cast iron bent plate, chrome-plated jack, granite flat plate , flat ruler, square ruler, square box, parallel gauge, granite machine tool guide rail, T-slot workbench, three coordinate measuring machine components, granite adjustable pillar, profile block, profile frame, granite watch base, etc. Measuring tools, and various non-standard measuring tools can also be customized (the user needs to attach drawings).
Certifications
Packing and Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging sevices will be provided.
FAQ
Q1. Are you manufacturer or trade company ?
A:We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
A:We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
A:Sure, welcome you at any time !
Q3. How can we get the quotation ?
A:Please let us know the size, weight of the welded parts
A:Please let us know the size, weight of the welded parts
Q4. How can I start the order?
A:You could place the order directly on alibaba or we can send you the proforma invoice with our bank details. After we received the down payment, we will start the production.
A:You could place the order directly on alibaba or we can send you the proforma invoice with our bank details. After we received the down payment, we will start the production.
Q5. Lead time:
A:The order lead time is need 15-25 days after receiving deposit.
A:The order lead time is need 15-25 days after receiving deposit.
Q6. Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
Похожие товары

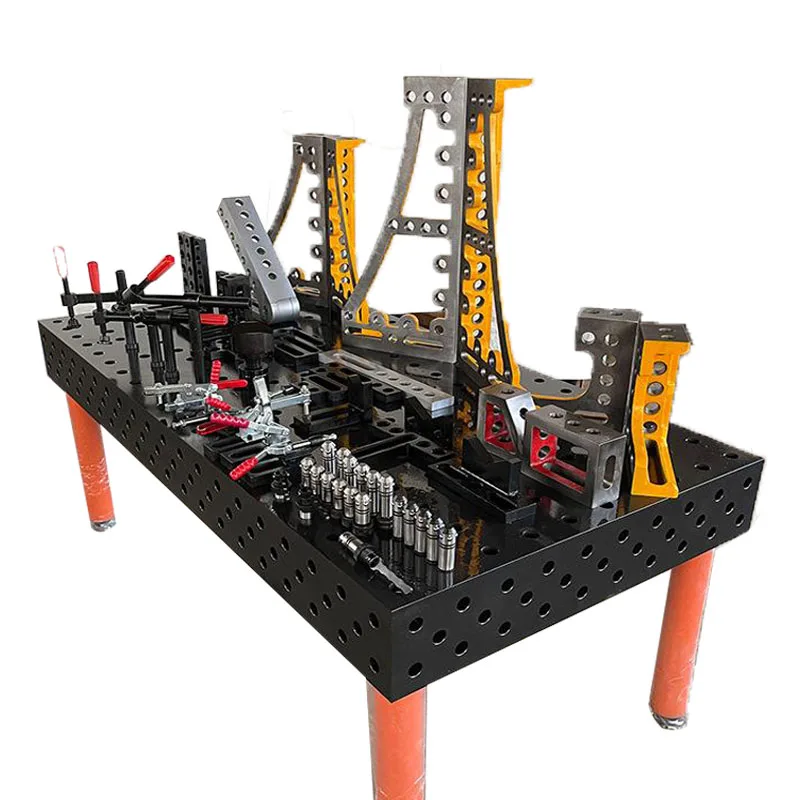

Высококачественный стальной 3D сварочный стол 28D Serie
387 634,26 ₽ - 417 875,99 ₽

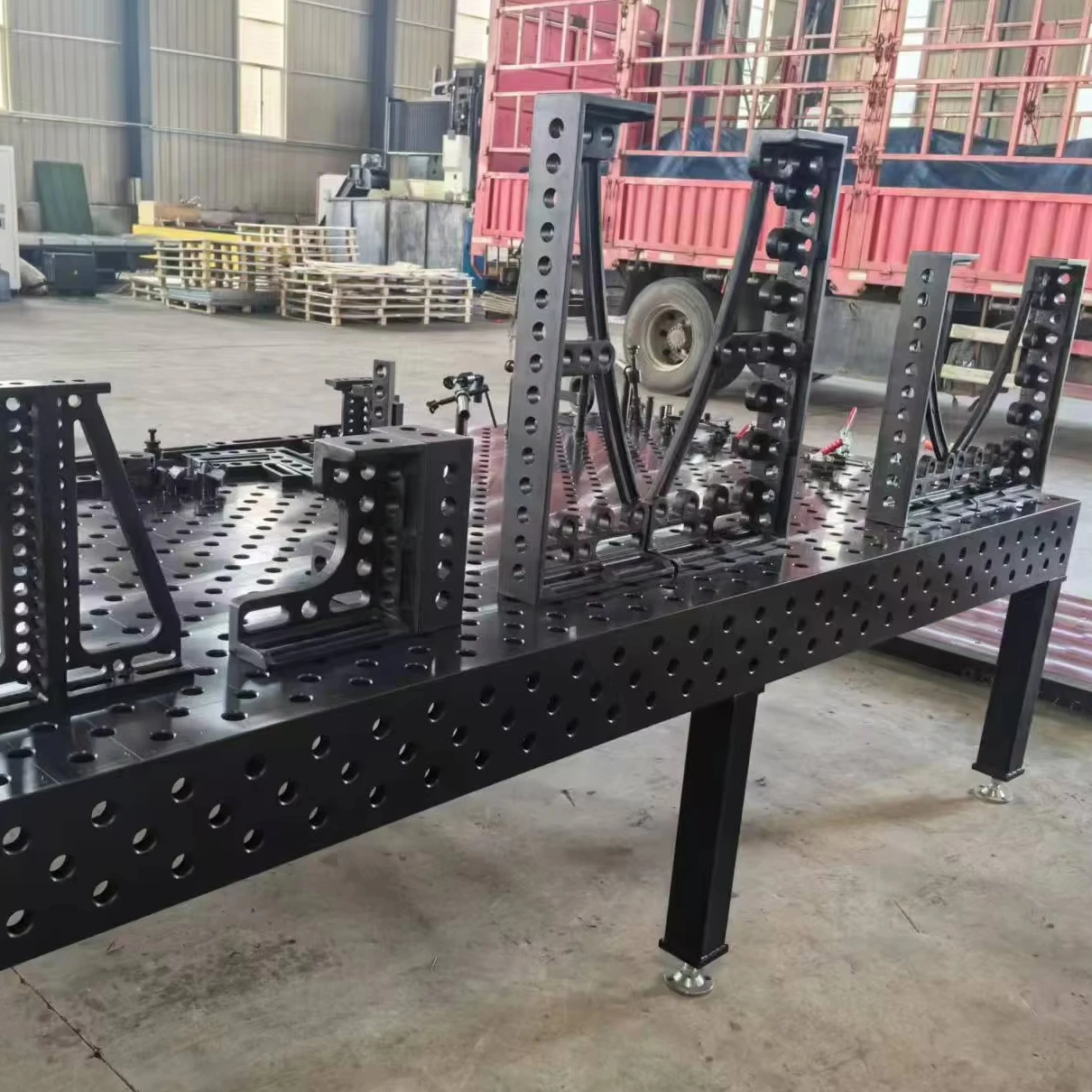

Сварочный стол серии 3d D28 & D16, используемый для мотоцикла, сварочные приспособления и приспособления, столы в Китае
81 004,65 ₽ - 97 205,58 ₽

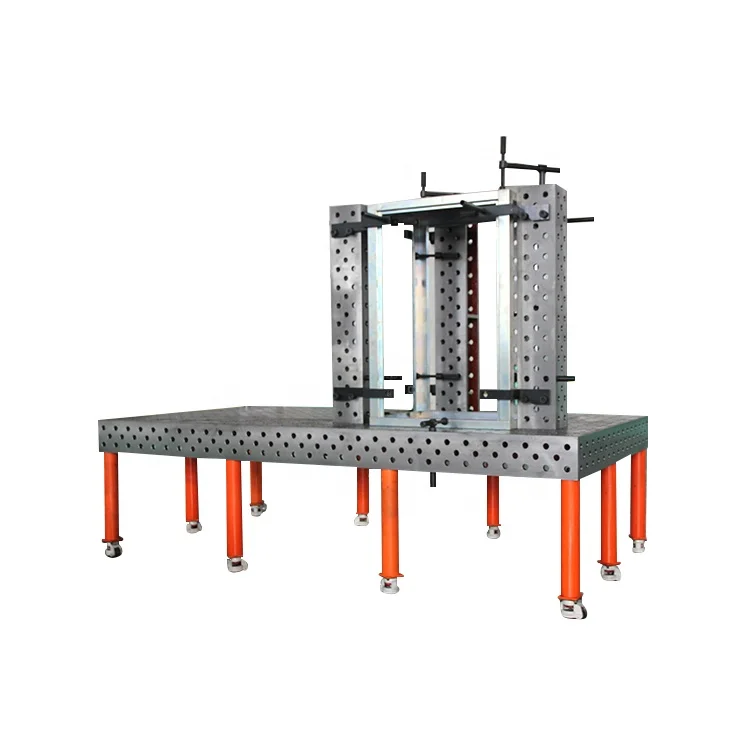

Не легко деформируется Поворотная прецизионная Сварка 3D стол чугунные сварочные столы
140 408,06 ₽ - 162 657,34 ₽
Вращающаяся Гибкая сварочная платформа и сварочное приспособление из Китая

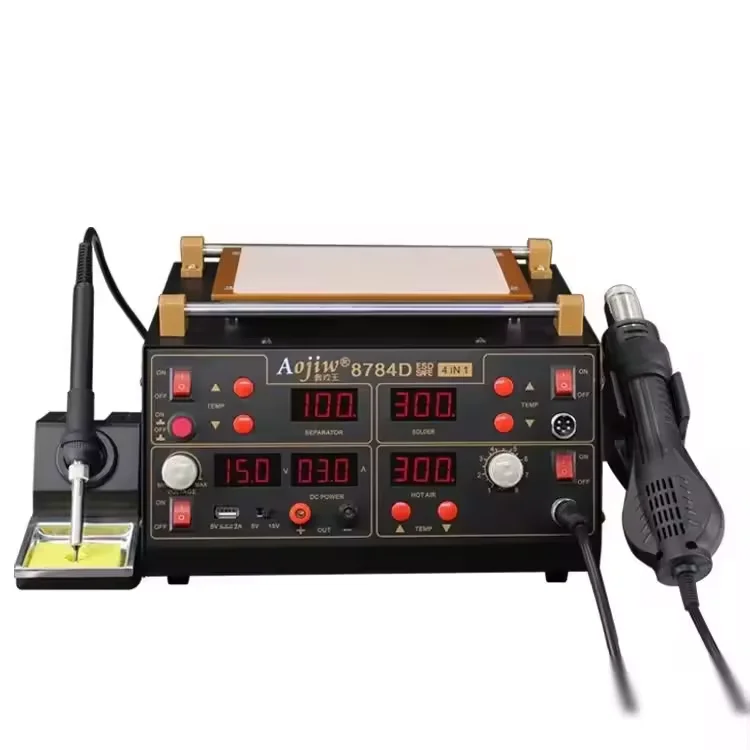

4-в-1 высококачественный 8784D сварочный стол для разборки горячего воздуха 3A DC силовой разделитель экрана мобильного телефона ремонт и ремонт стола
9 180,53 ₽ - 9 720,56 ₽

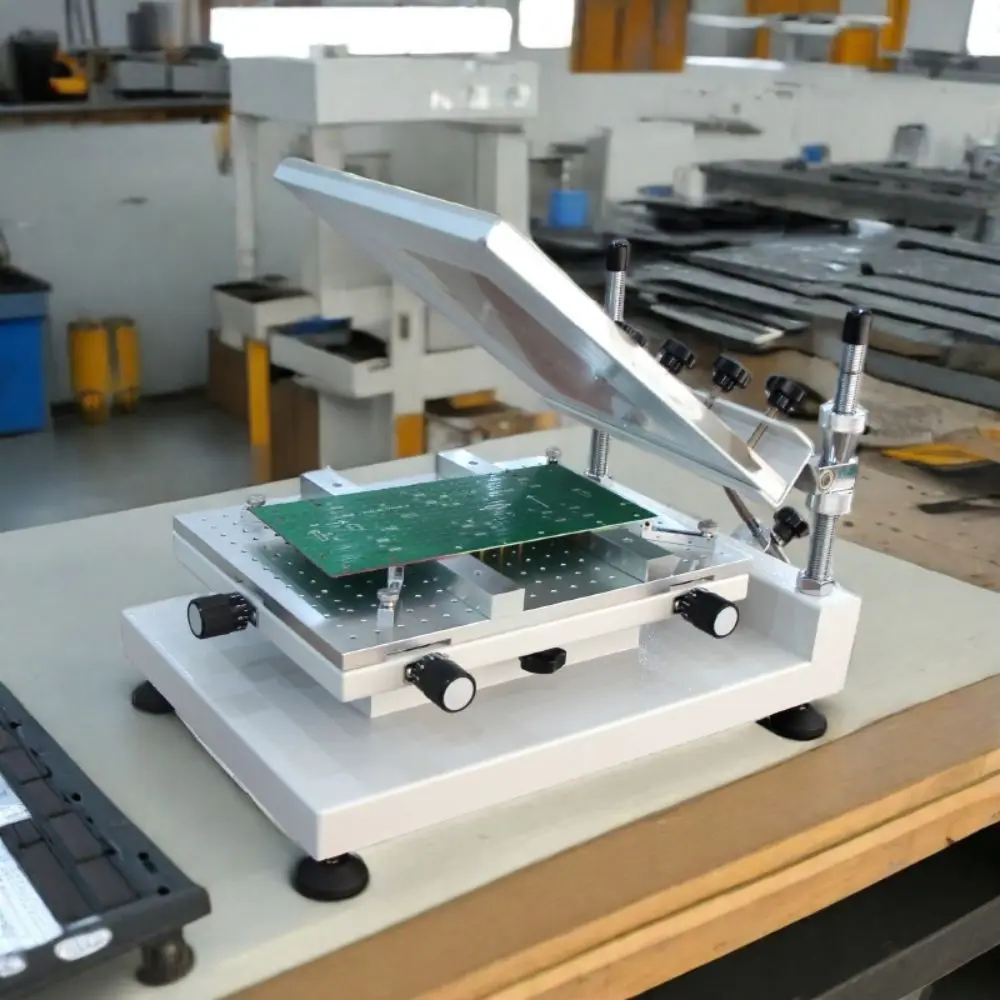

ZB3040H ручной регулируемый Высокоточный Трафаретный принтер Smt паяльная паста принтер 300*400 мм верстак для производства печатных плат
