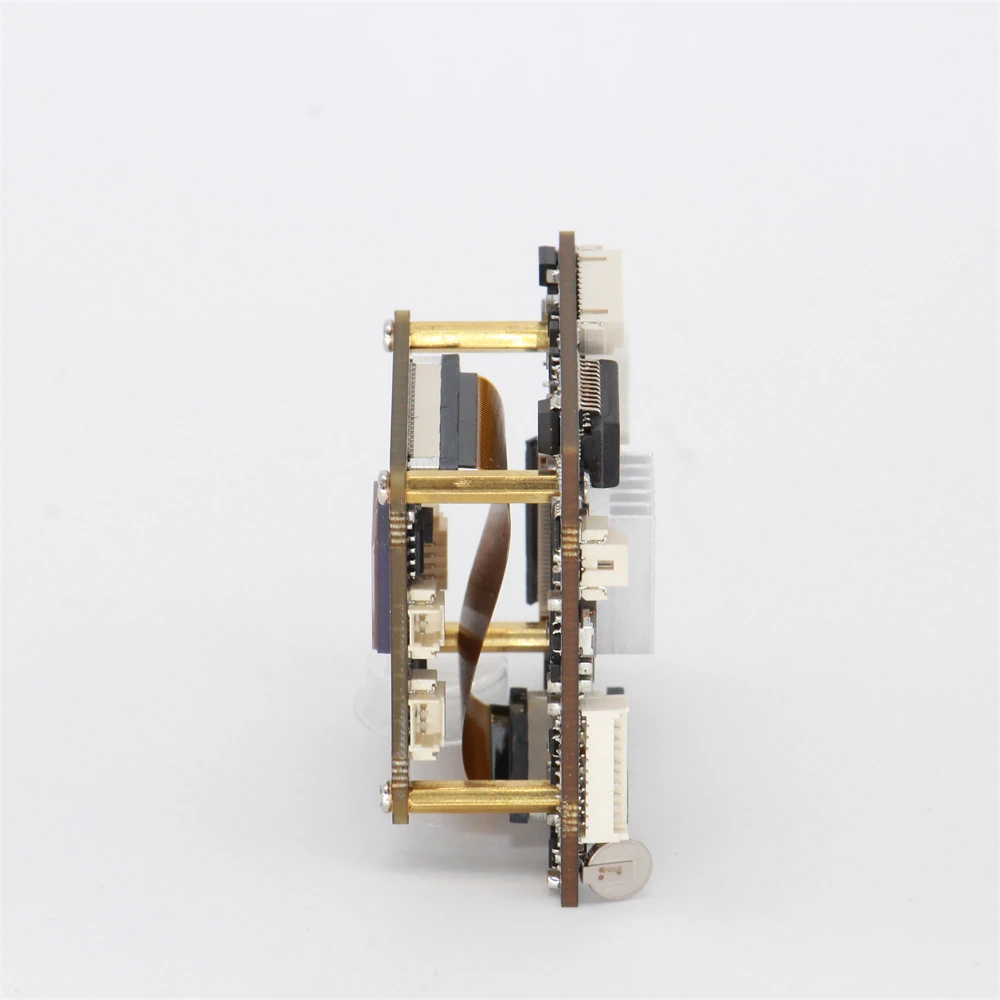

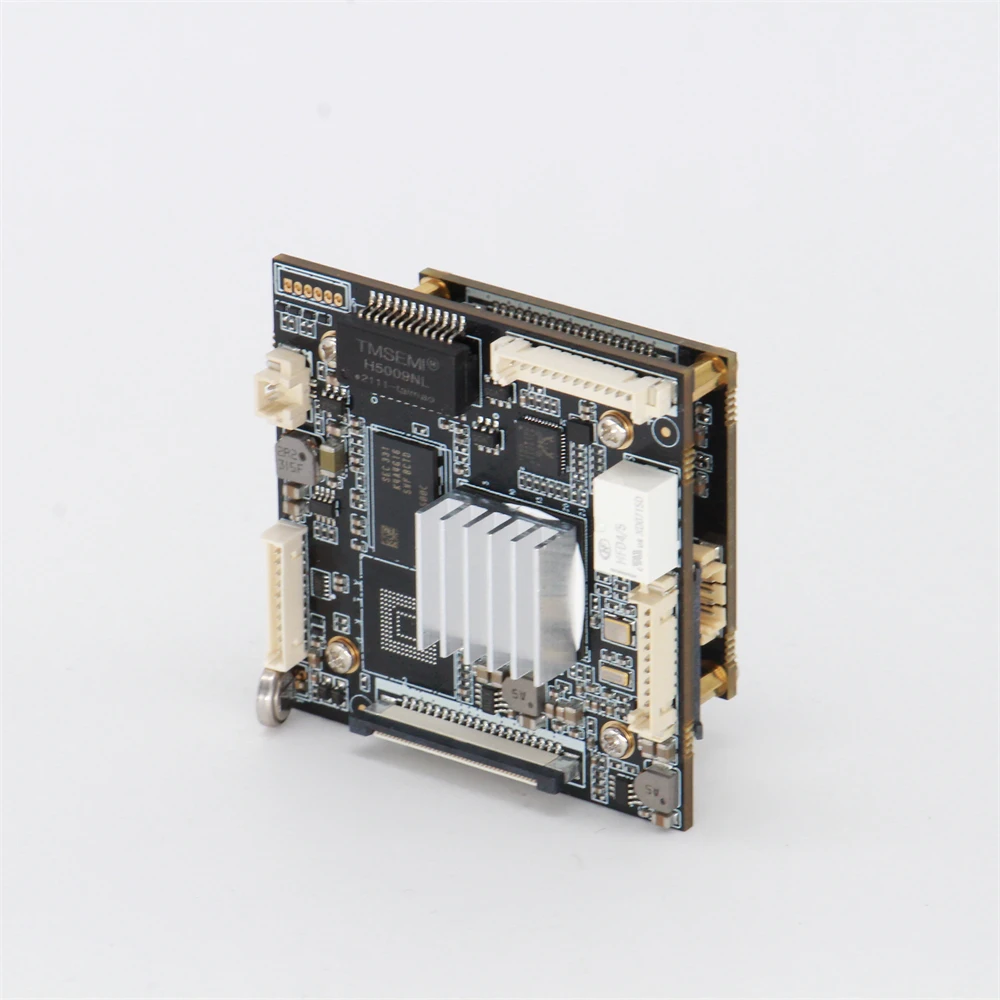

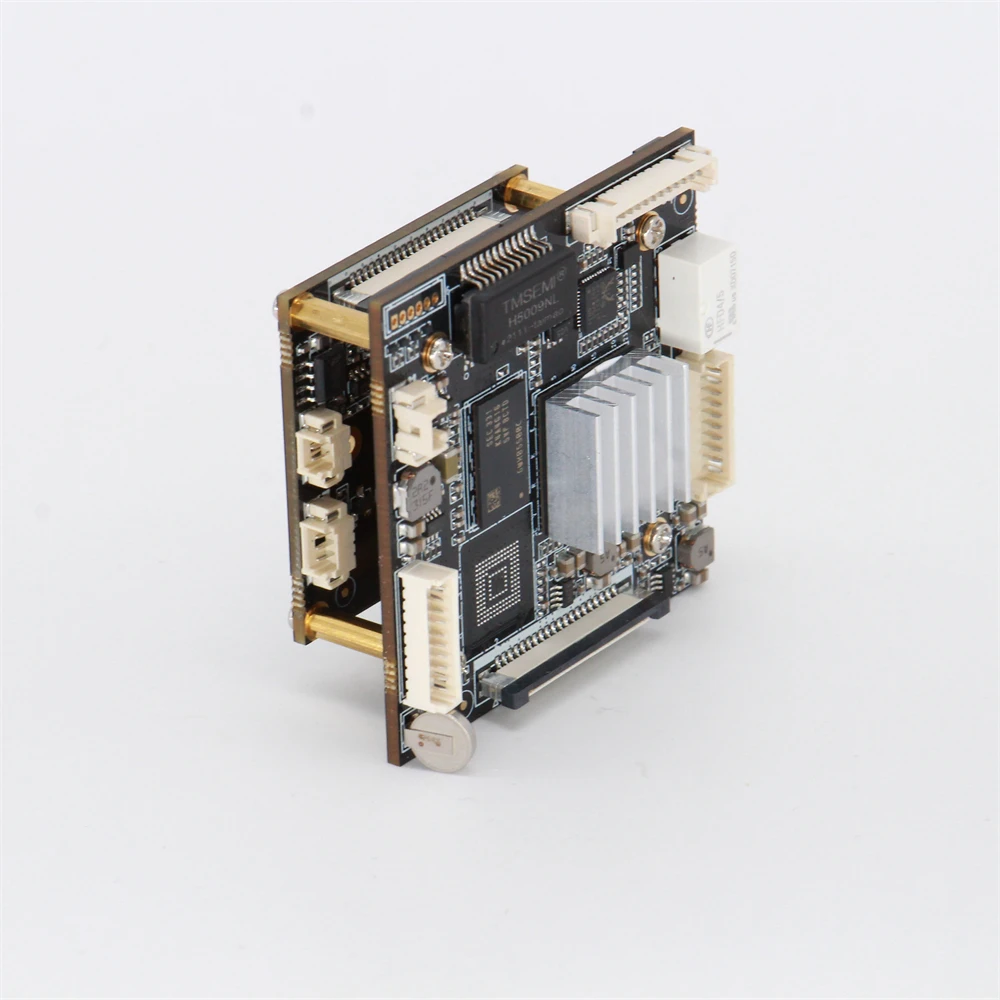

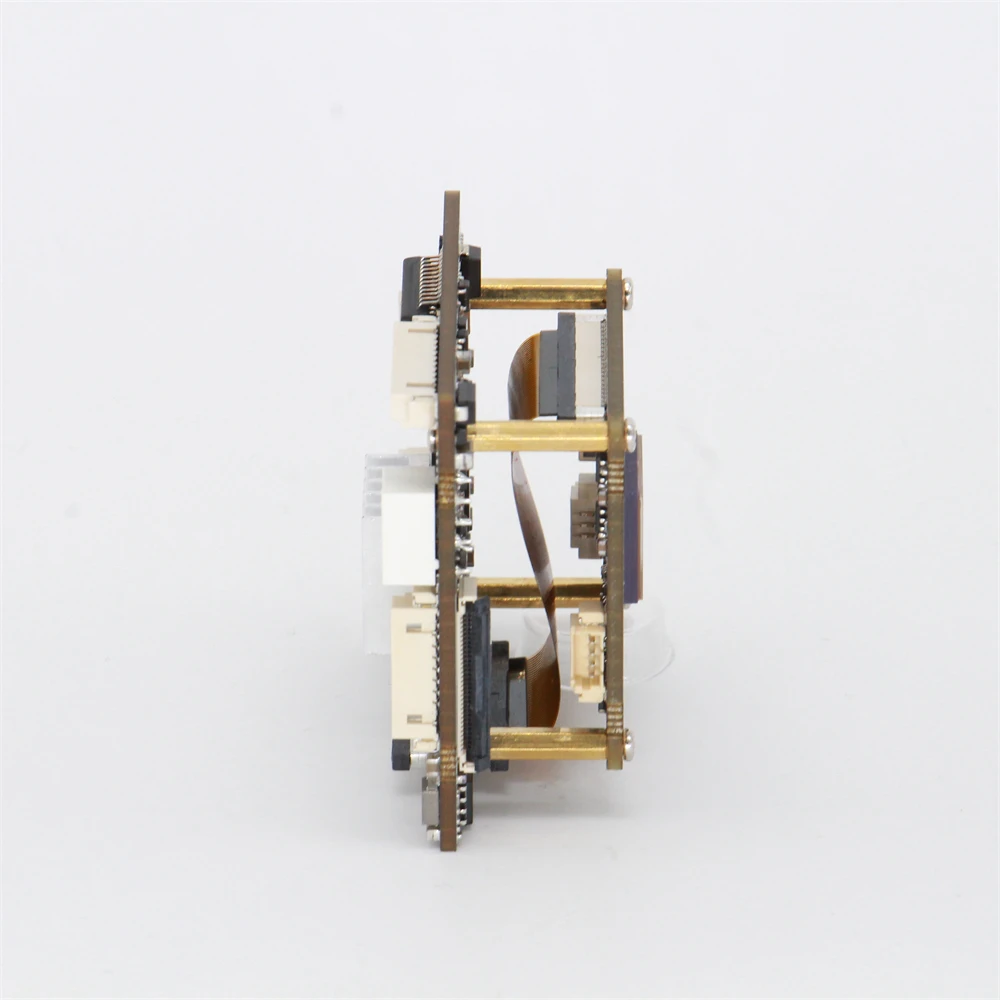

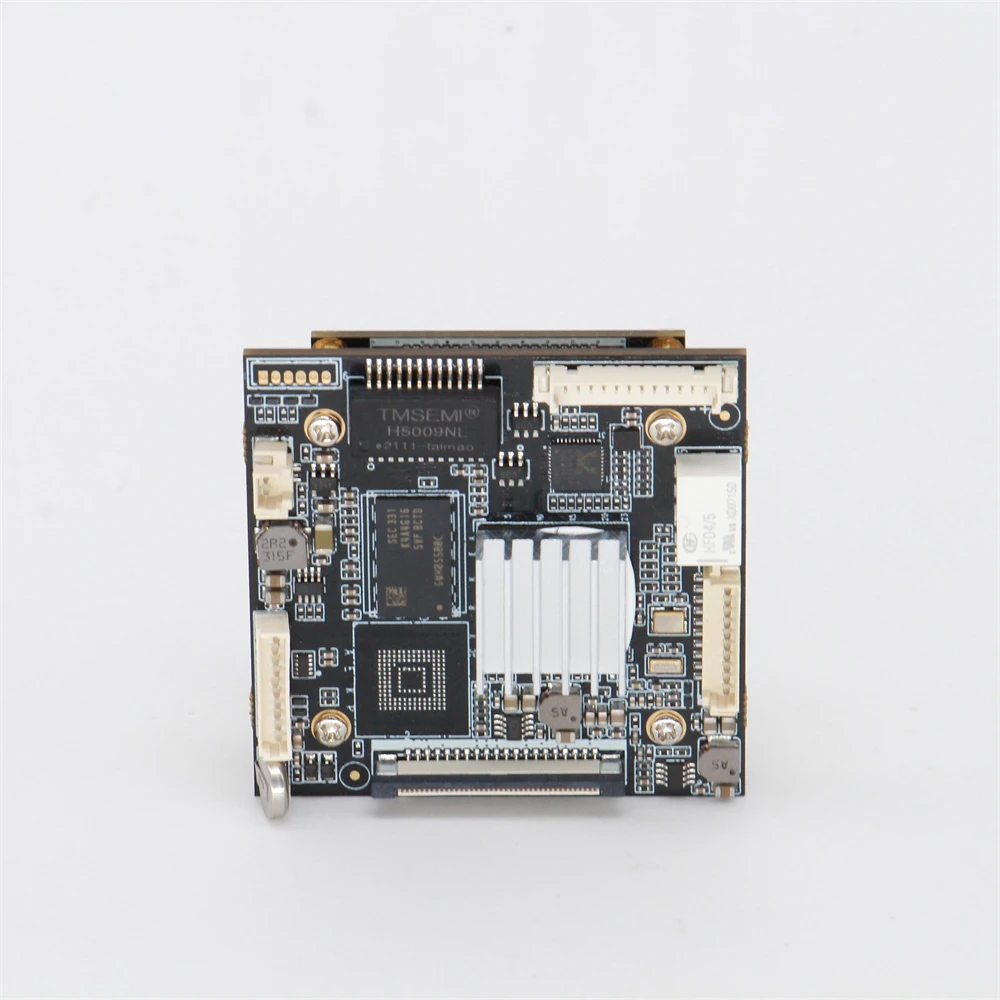

IP Camera Module
STARVIS 2 H.265 Starlight IP Camera Module IMX6755MP 30fps
Ai ISP Double IP Camera Board Support TF+WiFi
Model: SIP-K675D5B
Product Description
- Highlights
> IMX675+Hi3516DV500
> 1/2.8"SONY CMOS, 5.0mp 30fps
> H.265+/H.265/H.264/MJPEG
> Support ISP image enhancement
> DWDR,3DNR,Lens Correction,WB
> ONVIF,API,SDK,GB28181,CGI,RTSP
> Supports three streams and multiple resolutions
> Support for SMART LEDs
> Adjustable shutter, image, menu, etc.
> Support audio, USB,UART,Reset.
> Support RS485,Auto IRIS Lens
> Support character overlay
> Support Google Chrome
> Mobile phone monitoring(optional);
> 2.7-13.5mm/6-22mm/5-50mm electric zoom lens (optional)
> Support custom development
Model | SIP-K675D5B |
Camera Type | H.265 5.0mp Starlight IP Camera Module |
Camera | |
Image Sensor | 1/2.8" SONY IMX675 CMOS Sensor STARVIS 2 |
Effective Pixels | 2592 (H) × 1944 (V) approx. 5.04 M pixels |
DSP | Hi3516DV500 Dual-core ARM Cortex A55@850MHz 2.0Tops |
Min. Illumination | Color: 0.01LuxF1.2(AGC ON), B/W: 0Lux(IR ON) |
S/N Ratio | ≥50dB(AGC OFF) |
Lens Mount | Cs Mount Or M12 Mount(Optional) |
Ir-Cut | Support |
Day/Night | Color/B&W/Auto |
Smart IR/white light | Support |
Light mode | Low Level/High Level/PWM |
WDR | ≥80dB WDR |
3DNR | Support |
Tonal | Available to set |
Brightness | Available to set |
Sharpness | Available to set |
Contrast | Available to set |
Saturation | Available to set |
Gamma | Available to set |
BLC | Available to set |
Mirror image | Open/Close |
Flip | Open/Close |
HLC | Open/Close |
Video Format | PAL/NTSC |
Lens Correction | Open/Close |
Dehaze | Open/Close |
Exposure Strategy | Highlight Priority/Low Light Priority/Auto |
Exposure Mode | Auto / Manual |
AutoExposure Time | Auto / Manual(1/12s-1/8000s) |
Slow Shutter | Open/Close |
Gain Mode | Auto / Manual |
White Balance Mode | Auto/Manual/White Balance Scene Adjustable/White Balance Style Adjustable |
OSD Settings | Code stream information/display week/display time/channel title/watermark overlay |
OSD Display | Color/size/position adjustable |
Video/Audio | |
Video Coding | H.265/H.264 |
Encoding Scheme | Baseline/Main Profile/High Profile |
Resolution | Main stream: 2592X1944,2560X1920,2160X1620,1920X1080(1-30fps) |
Sub Stream/Three Streams:D1, VGA, (1-30fps) | |
Frame Rate | 1-30fps |
Bit Rate | 32Kbps-16Mbps |
Bitrate Type | Support VBR/CBR |
Audio Compression | G.711U/ G.711A/G.726/AAC |
Audio Input Mode | Mic In/Line In |
Audio Input Gain | Available To Set |
Audio Output Gain | Available To Set |
Echo | Open/Close |
Network | |
Data Storage | Video Record, Picture Format |
Trigger | Manual, automatic (motion detection, alarm, time) |
Alarm Data Transmission | Websocket, FTP, Browser |
Network Protocol | HTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SSL/TLS,UPNP,PPPOE,etc. |
Transfer Protocol | ONVIF/GB28181/SDK/CGI/WEBRTC |
Number Of Client Visits | Support 8 Users Login At The Same Time |
Browser | IE/Edge/Chrome/Firefox |
Network Lost Recording | Supports |
Motion Detection | Supports 4 Area |
Hide Detect | Supports 4 Area |
Interface | |
Network Interface | 10M/100M Adaptive Ethernet Port |
Audio Input | 1Ch Audio Input |
Audio Output | 1Ch Audio Output |
USB interface | 1 USB2.0 interface (5V power supply), support extended 4G/WiFi function |
Uart port | 1Ch |
Reset interface | Support |
RS485 | 1Ch |
Auto IRIS Lens | Support |
Smart Phone | iPhone,iPad, Android |
Motorized Zoom Lens | Support 2.7-13.5mm/6-22mm/5-50mm Motorized Zoom Lens |
TF storage function | Maximum Support 512G |
Wifi | Support 802.11bgn |
4G Function | Support 4G Cat.1, rate up to 10Mbps |
POE | IEEE802.3af/at |
Smart function | Support humanoid detection/area intrusion/flame detection/electric vehicle detection/license plate detection |
Function customization | Support function customization development, platform protocol docking, algorithm customization transplantation, hardware and software development |
General | |
Power Supply | DC12V1A |
Power Consumption | <1.2W |
Working Environment | -20°C~+60°C , Less Than 90% Rh |
Product Size(L/W/H) | 38X38X30mm |
Net Weight | 0.1Kg |
Product Size(L/W/H) | 38X38X30mm |
Net Weight | 0.1Kg |
Custom Sensor Selection
In all fields, a high level of technology is required, requiring high resolution, and low power consumption. Our well-trained R&D team would provide satisfying camera modules pro type and great support according to your application, from design to manufacturing, we offer a one-stop service so u could focus on what you are good at.
In all fields, a high level of technology is required, requiring high resolution, and low power consumption. Our well-trained R&D team would provide satisfying camera modules pro type and great support according to your application, from design to manufacturing, we offer a one-stop service so u could focus on what you are good at.
Resolution | 2MP，4MP，5MP，8MP，12MP |
Sensor | GC2053，GC2063，IMX307，IMX327，GC4653，IMX335，IMX347，IMX385，IMX485，IMX412，IMX226，IMX178 |
Size | 1/1.2"，1/1.8"，1/2.3"，1/2.8"，1/2.9"，1/3" |
Frame Frequency | 20fps，25fps，30fps，50fps，60fps，90fps，120fps |
DSP model | GK7205V200，GK7205V300，GK7605V100，Hi3516CV500，Hi3516DV300，HI3516AV300，HI3519AV100，SD3403，SD3402，Hi3516CV300，Hi3516DV100，HI3516AV100，HI3519AV101 |
Lenses / Custom Filter/FoV Options
From the field of view, it could be divided into ordinary lenses (about 50 degrees to 70 degrees), wide-angle lenses,ultra-wide-angle lenses and fisheye lenses.
From the field of view, it could be divided into ordinary lenses (about 50 degrees to 70 degrees), wide-angle lenses,ultra-wide-angle lenses and fisheye lenses.
The field of view of the wide-angle lens is generally around 80°, which is mainly used for shooting general scenes. The ultra-wide-angle lens is used for shooting scenes such as landscapes, buildings, and group photos. The fisheye lens is an extreme wide-angle lens and the view angle even reaches 180°, the diameter of the lens is very short and protrudes outward, similar to the eyes of fish, and is widely used in the fields of scene monitoring, robot navigation and measurement.
According to your FOV request, flexibly match the most suitable lens, a wide selection of view angles such as :
Diagonal (°) | Vertical (°) | Horizontal (°) |
180 | 180 | 180 |
170 | 161.1 | 166 |
120.0 | 90 | 111.1 |
115.2 | 81.2 | 102 |
107.1 | 73.9 | 95.1 |
90.5 | 61.9 | 82.4 |
80.1 | 53.1 | 73.7 |
63.4 | 37.8 | 54.4 |
46.8 | 27 | 39.6 |
34.4 | 19.5 | 28.8 |
Related Products
Company Introduction
FAQ
1 years free repair and lifetime technical support provided after the shipment date.
> OEM and ODM Projects is welcome, and pls kindly send your logo, so we can discuss more deta.
Payment Terms
T/T, Paypal, Western Union, Alibaba payment
MOQ
Sample order is weclome!
OEM product logo MOQ 100pcs, OEM box design MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity to us.
> We will send a Proforma Invoice for PO the order.
> After you paid, we will start the production, and finish the order ASAP.
> When the goods are ready, generally we will send by express, like Fedex, DHL, UPS, TNT. and send the tracking number.
Technical Support
We have professional enginner team to support for you.
Packing&Shipping
Похожие товары
OEM завод 1MP ультра-тонкий 720P ноутбук мини интерфейсный модуль камеры
USB3.0 интерфейс 2MP 1080P модуль камеры с глобальной экспозицией полноцветный высокоскоростной модуль камеры сканирования захвата
H.265, модуль IP-камеры Starlight IMX385 + Hi3516DV500, 2 топа, 2 МП, 60 ФПС, Ai, двойная IP-камера, плата SIP-K385D5B
1080P модуль камеры USB3.0 Type-C AR0234 Глобальный затвор 120PFS UVC протокол, подключи и играй
8 100,47 ₽ - 8 316,48 ₽
Беспроводная камера ночного видения 1080P с приложением

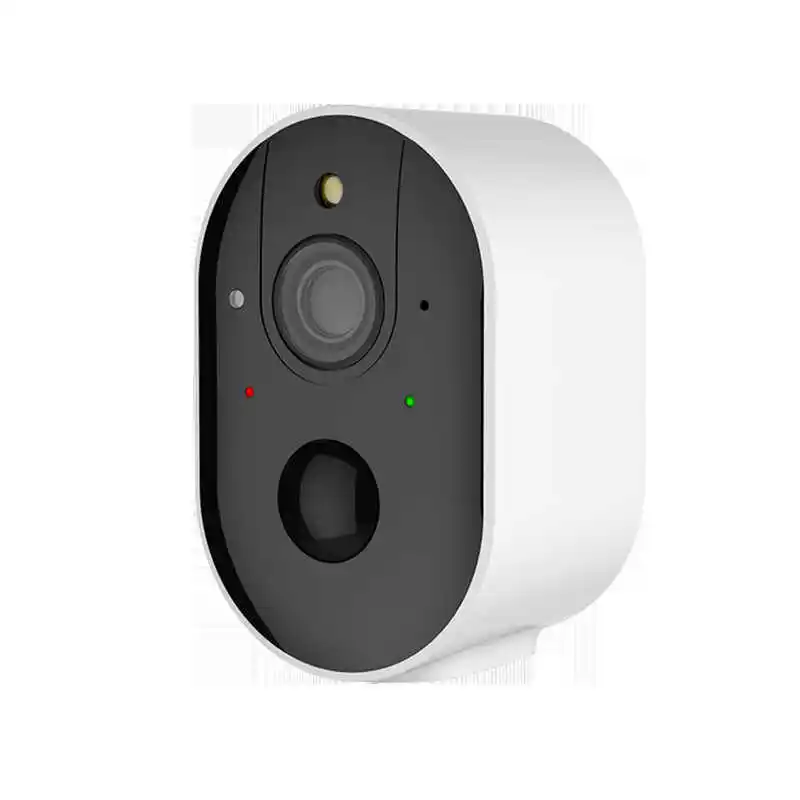

Наружная камера с питанием от батареи 3MP беспроводная камера видеонаблюдения с управлением Tuya
