WONDERY китайский производитель электрообогрев вилочный погрузчик тележка для быстрой закалки масла печь термообработки
- Категория: >>>
- Поставщик: Wuxi Wondery Industry Equipment Co. Ltd.
Сохранить в закладки 1601274528133:
Описание и отзывы
Характеристики

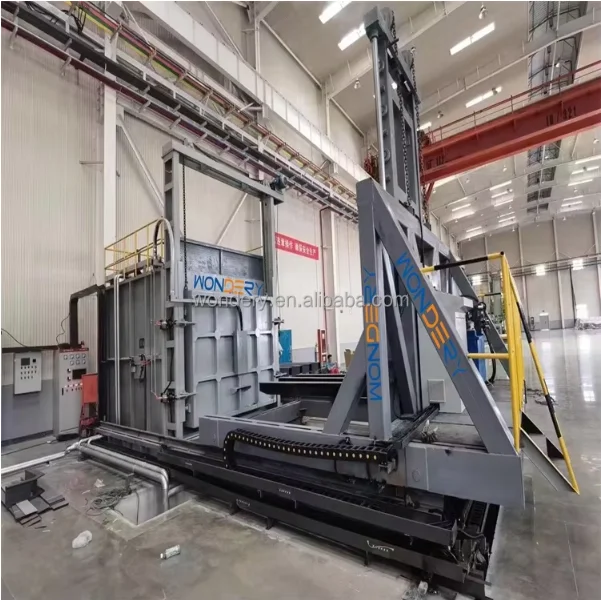

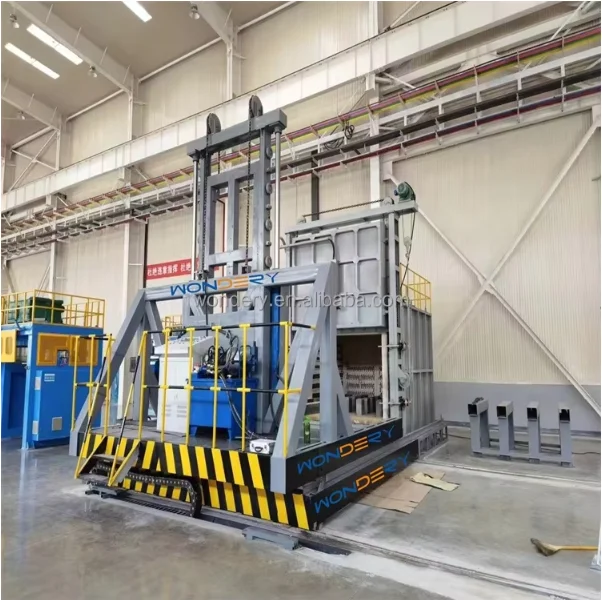

WONDERY China Manufacturer Electric Heating Forklift Type Bogie Fast Oil Quenching Heat Treatment Furnace
Product Application
The electric resistance forklift type trolley bogie hearth furnace is mainly used for fast quenching heat treatment of various steel workpieces.
fast quenching heat treatment furnace fast quenching heat treatment furnace fast quenching heat treatment furnace
Specifications For WONDERY China Manufacturer Electric Heating Forklift Type Bogie Fast Oil Quenching Heat Treatment Furnace | ||||
No. | Item | Technical Parameters | ||
1 | name | WONDERY China Manufacturer Electric Heating Forklift Type Bogie Fast Oil Quenching Heat Treatment Furnace | ||
2 | fuel | electric | ||
3 | Power supply | 380V 3phase 50HZ or customized | ||
4 | Rated temperature | 1150℃ (working temperature: 800-1100℃) | ||
5 | Control zone | 3 zones | ||
6 | Effective working size | 4000×1000×2400mm(L×W×H) | ||
7 | Heating element connection | Ｙ | ||
8 | Temperature uniformity | ±10℃ | ||
9 | temperature control accuracy | ±1.5℃ | ||
10 | Loading capacity | 15 tons | ||
Main Features
1) High Performance Bogie Hearth Electric Resistance Furnace For Annealing Treatment is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
2) Heating components: high temperature resistance alloy wires and strips.
3) Low noise, energy-friendliness, and stable performance.
4) Advanced CAD design.
5) Years of experiences in heat treatment process.
Detailed Images
Forklift Mechanism
The forklift adopts self-propelled structure. This structure has the advantages of large rotational torque, smooth running, small inertia and non-slip. There are double insurance limit switches at the two ends of forklift.
Push Rod Sealing Mechanism
Name: push rod sealing mechanism
Brand: domestic quality brand
Original: CHINA
The door and furnace door is tightly sealed together to prevent heat loss.
Electric Resistance
Material : 0Cr27AL7Mo2 (strip);
The resistance strips are produced through special molds, and are installed in the furnace wall by porcelain nails. And there is a
porcelain gasket between the fiber wall and the resistance strips to avoid short-circuit.
Control Cabinet
Name: GGD type electrical control cabinet
Brand: CHINT, SIEMENS, Schneider, Omron, etc.
Original: China, Germany, French, Japan, etc.
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
