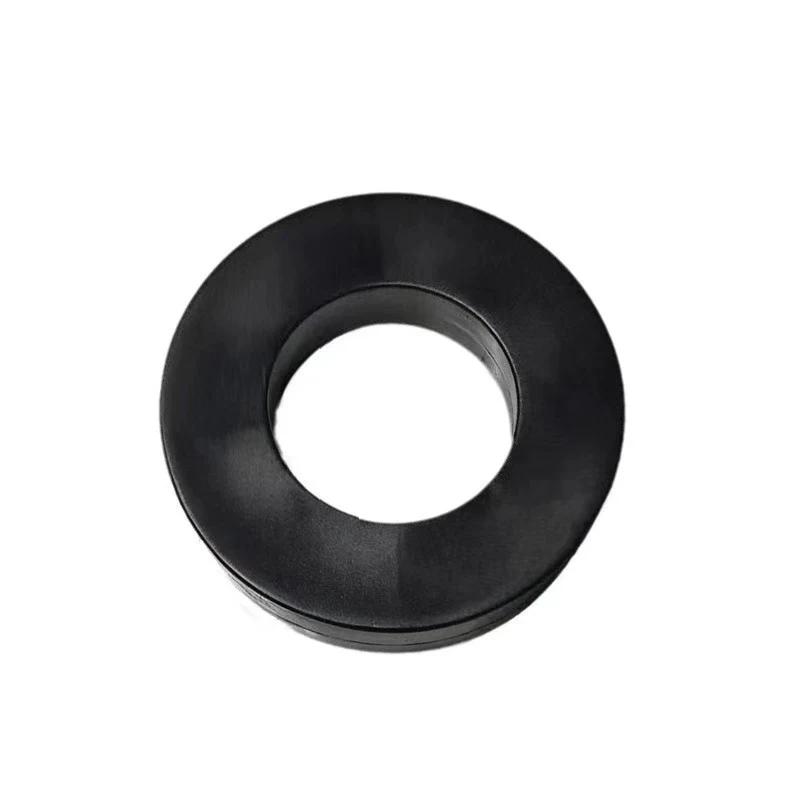

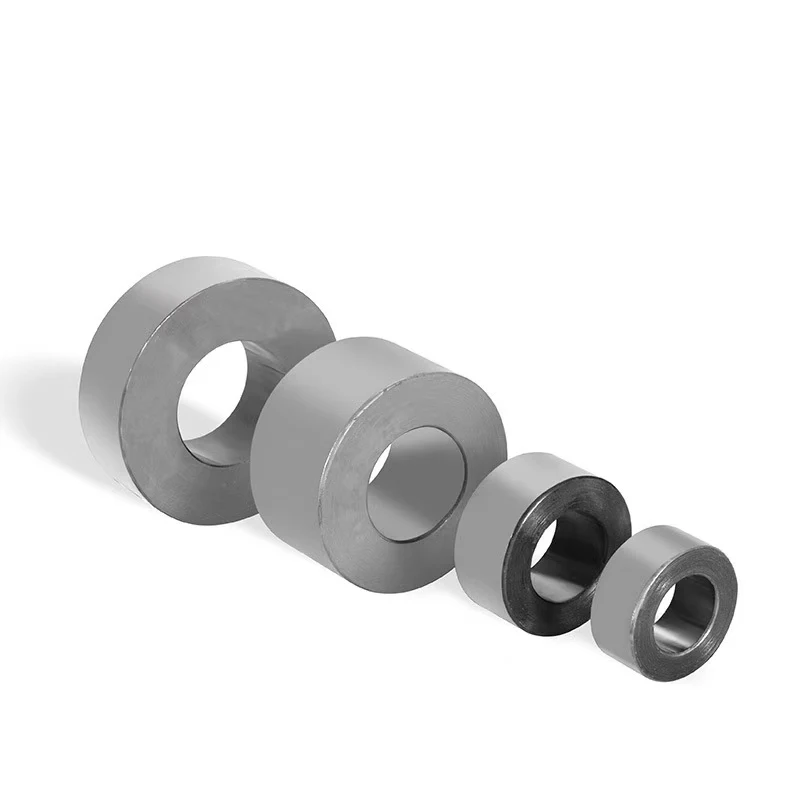

Горячая продажа M19 M36 Ei тороидальный листовой трансформатор Электрический Железный сердечник
- Категория: >>>
- Поставщик: Wuxi Eugenia Tech Co. Ltd.
Сохранить в закладки 1601274664653:
Описание и отзывы
Характеристики
Product Description
Silicon steel core is the most popular components as a inductive components for distribution transformers with a long history.It is so widely used and its manufacturing processing are mose deleloped to meet morden demand.Eugenia Tech have two factories where oil tranformer core and dry transformer cores are stacked manually and automatically.
Four main parts make up a dry-type transformer: the core, the coils, the terminals and the structural frame. The core’s job is to provide a path for the magnetic flux where the windings are linked, transferring energy from the primary winding to the secondary winding. When voltage is applied to the primary, current flows producing a magnetic field, or flux. Secondary voltage is induced due to the coupling of the secondary to the magnetic field.
Energy is required to magnetize the core. The amount of energy required depends on the composition of the core material, joints or air gaps within the core and the type of core construction. The four main types of core construction are wound cores, stamped aminations, butt-lapped cores and step-lapped miter cores.
In a 2D wound core, the core steel is produced by a specific machine at a time. In this arrangement, the grain orientation of the core steel lines up with the direction of the flux, which then flows parallel with the direction of the grain orientation.
Four main parts make up a dry-type transformer: the core, the coils, the terminals and the structural frame. The core’s job is to provide a path for the magnetic flux where the windings are linked, transferring energy from the primary winding to the secondary winding. When voltage is applied to the primary, current flows producing a magnetic field, or flux. Secondary voltage is induced due to the coupling of the secondary to the magnetic field.
Energy is required to magnetize the core. The amount of energy required depends on the composition of the core material, joints or air gaps within the core and the type of core construction. The four main types of core construction are wound cores, stamped aminations, butt-lapped cores and step-lapped miter cores.
Material Grade | 0.2mm | 0.23mm | 0.27mm | 0.30mm |
China Grade | B20R070,B20R075, B20R080 | 23R075,23R080, 23R085,23R090, 23P090,23P095, 23P100 | B27R085,B27R090, B27P090,B27P095, B27P100,B27P110, B27G120,B27G130 | B30P095,B30P100, B30P105,B30P110, B30G120,B30G130 |
Japan Grade | 23R075,23R080, 23R085,23R090, 23P090,23P095, 23P100 | 27R085,27R090, 27P090,27P095, 27P100,27P110, 27G120,27G130 | 30P095,30P100, 30P105,30P110, 30G120,30G130 | |
Korea Grade | 23PHD080,23PHD085, 23PHD090,23PH090, 23PH095,23PH100 | 27PHD085,27PHD090,27PH090,27PH095, 27PH100,27PG110, 27PG120,27PG130 | 30PH095,30PH100, 30PH105,30PH110, 30PG120,30PG130 |
Feature
*Brand: EUCORE
*Core Type:Single Phase,Three Phase,2D
*Manufacturing Capacity:40 Tons Per Day
*Product Capacity: 10KVA,15KVA,20KVA,25KVA,37.5KVA,50KVA,75KVA,100KVA,150KVA,250KVA,300KVA,500KVA,etc
*Application: Pole Transformer,Distribution Transformer,Dry Transformer
*Design: EU Standard Design Or Custom Design
Detailed Images

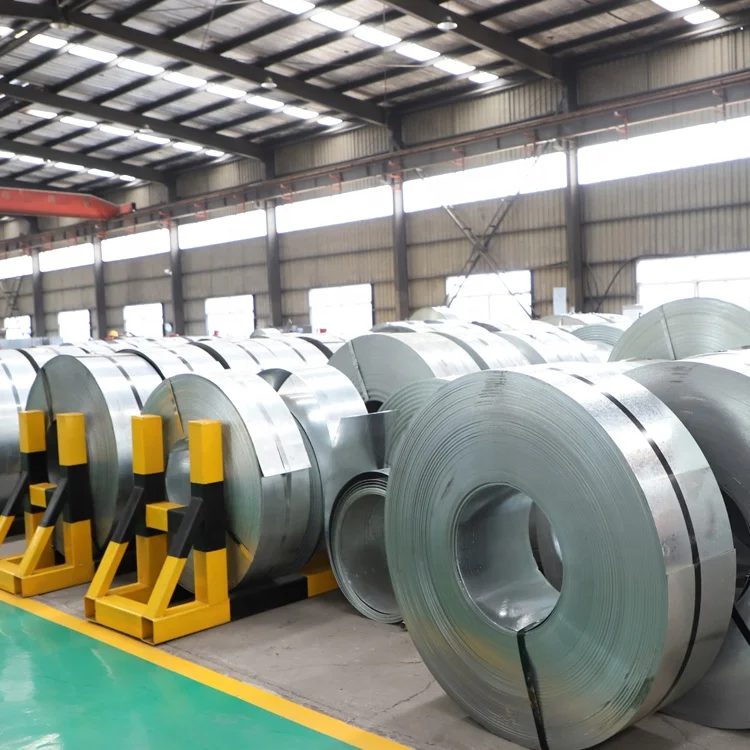

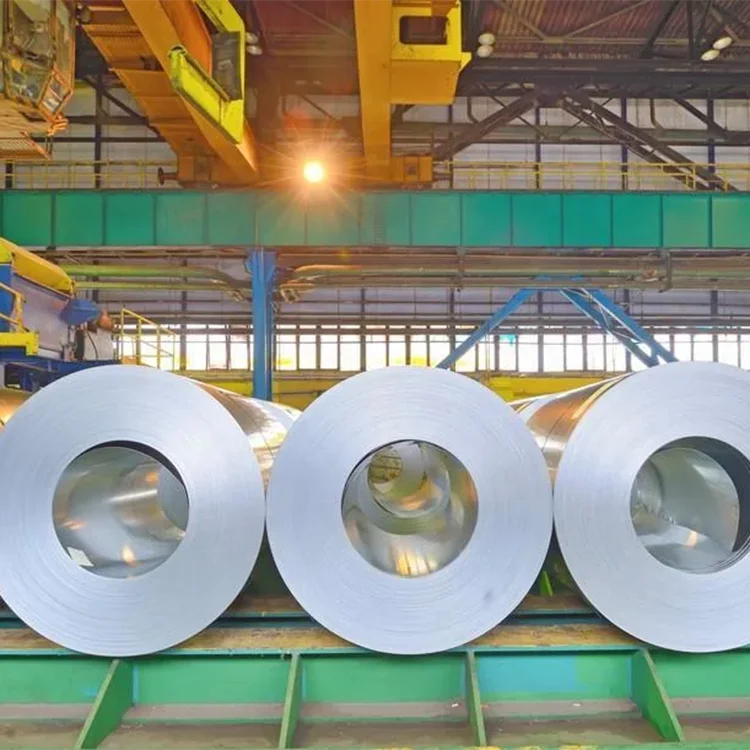

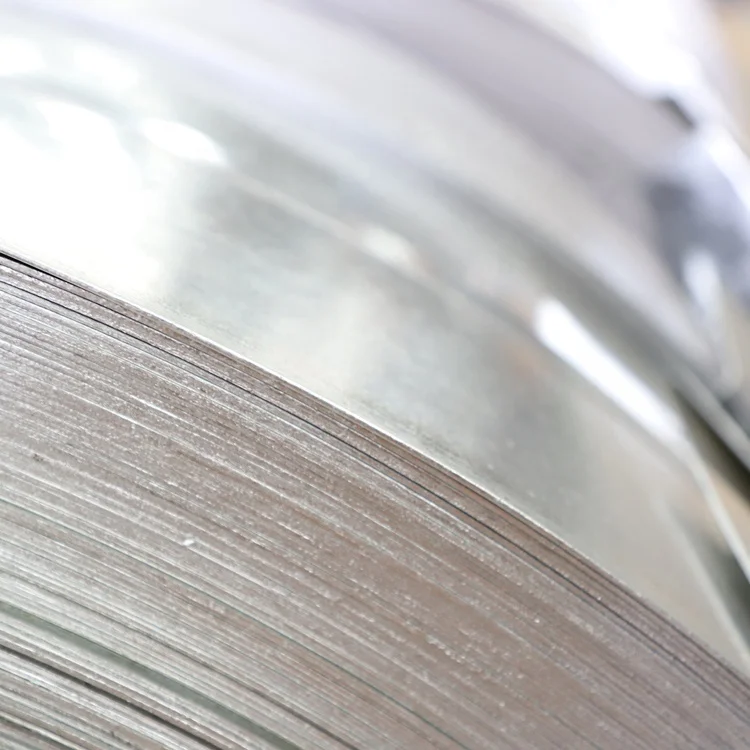

Slit
Slit
winding
Manufacture Specification
Processing Flow:
1.Slit Raw Material 2.90° Cut 3.Stack
4.Form 5. Anneal
Best Selling
Company Introduction
Nowdays electricity has been the most important form of power,however over 50% of the planet lacks complete electric
facilities.While some industrial countries like East Asia,North America and West Europe are working on a green energy
revolution,others are troubled by aging basic electric facilities,backward technology and lacking engineer team.
Eugenia Tech is committed to enable customer the abilities to produce distribution transformers and other related electric
products with anvanced processsing skills.Product design,raw material source ,machine source and on site technical support are its main buiness.
facilities.While some industrial countries like East Asia,North America and West Europe are working on a green energy
revolution,others are troubled by aging basic electric facilities,backward technology and lacking engineer team.
Eugenia Tech is committed to enable customer the abilities to produce distribution transformers and other related electric
products with anvanced processsing skills.Product design,raw material source ,machine source and on site technical support are its main buiness.
Our Services & Strength
Eugenia Tech provide customers with transformer drawings,cores,conductors,insulators,bushings and other accessories.Based on its experienced technical team and global cooperation projects,customers can rely on us to source all parts they need and technical supports on their domestic development requirments from their local grid companies.
FAQ
What Can Eugenia Tech Can Help You?
Q1: Do you support custom design?
A1: Yes,we can own technical team to help develop prototype according to customers' design.
Q2: Do you have a material specification sheet?
A2: Yes,you can contact our staff to get it.
Q3: Do you have a company brochure?
A3: Yes,we can send it to you by commercial email.
A3: Yes,we can send it to you by commercial email.
Q4: Do you have a customer in our local market.
A4: Probably yes,but our customers are not always open to share their information.
A4: Probably yes,but our customers are not always open to share their information.
Q5: Can I get a sample?
A5: Yes,but firstly we have to settle down technical details first.
A5: Yes,but firstly we have to settle down technical details first.
Q6: Do you have UL or Reach?
A6: It depends,we have UL for insulating material and ROHS for other products.
A6: It depends,we have UL for insulating material and ROHS for other products.
Q7: What is your MOQ?
A7: It depends. We prefer to find a afforable shipping solution according to samples' sizes and weight.
A7: It depends. We prefer to find a afforable shipping solution according to samples' sizes and weight.
Q8: Do you have aftersale service?
A8: Yes,our team have a face to face meeting with our customer almost every year.
A8: Yes,our team have a face to face meeting with our customer almost every year.
