Для системы газового огнетушителя FM200 автоматический переключатель обслуживания газа Smart
2 161,42-2 536,49 ₽

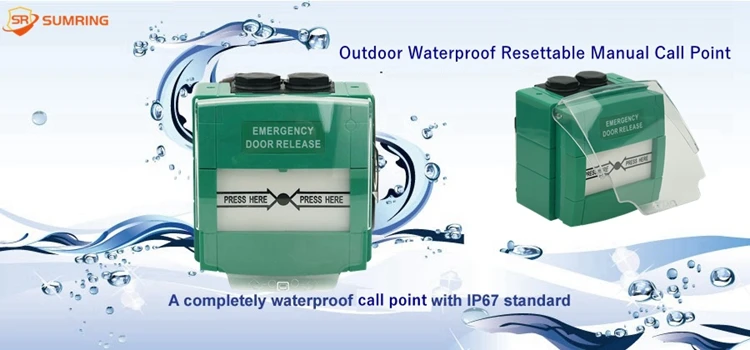

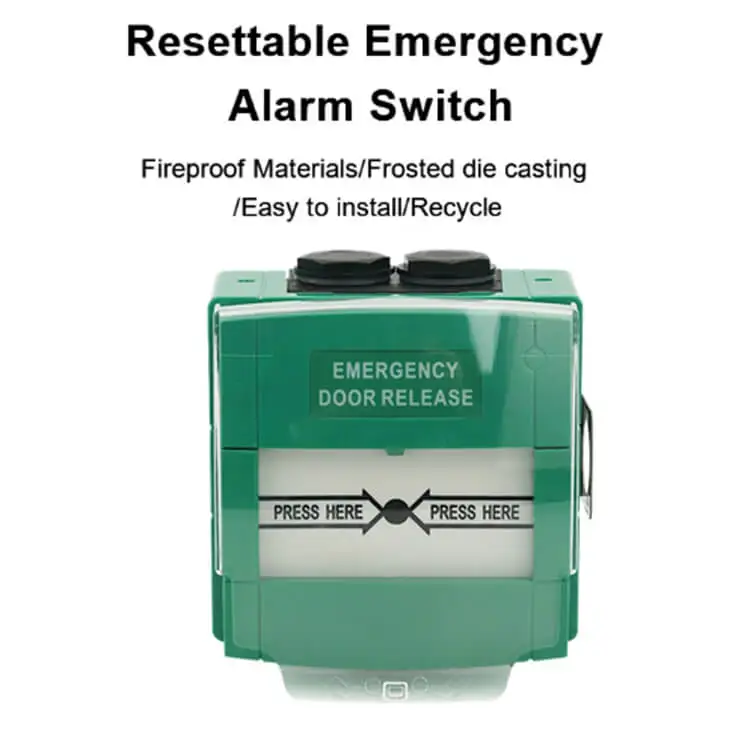

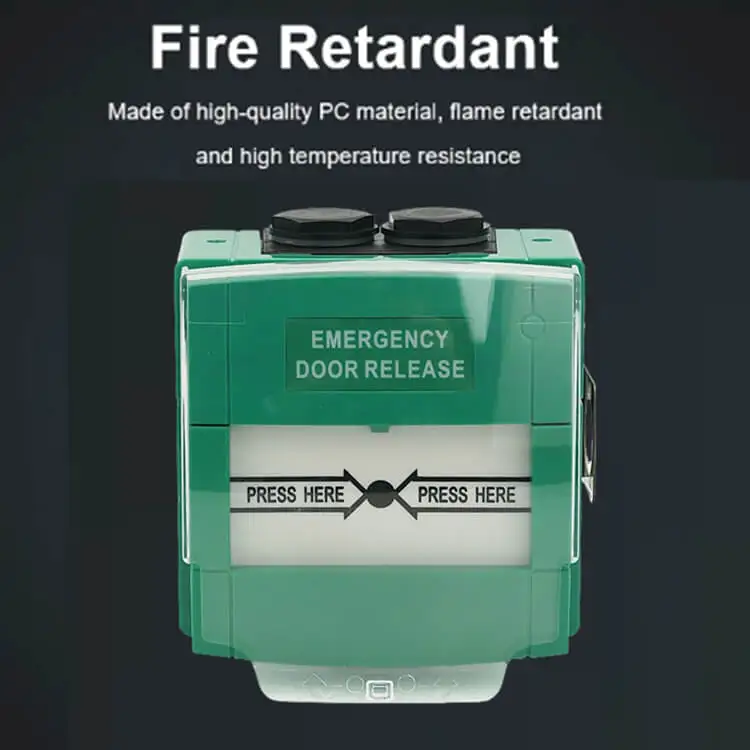

Водонепроницаемая ручная точка вызова
- Категория: >>>
- Поставщик: Shenzhen Sumring Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601274976351:
Описание и отзывы
Характеристики
Products Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | SUMRING |
Model Number | SR-A06 |
Product Name | Outdoor waterproof Resettable manual call point |
Current Ratings | 30V DC 2A Maximum |
IP rate | IP67 |
Weight | 0.35kg |
Operating temperature | -25℃ to 70℃ |
Colours available | Red, Green , White, Yellow, Blue |
Dimension | 97.5*70.5*93mm |
Usage | alarm |

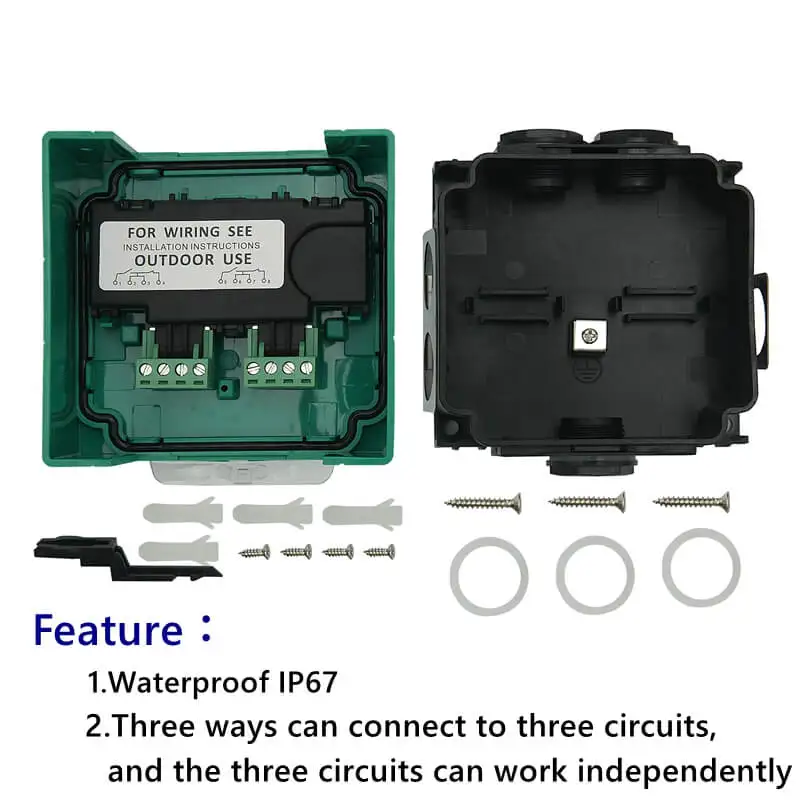

Installation
The integral back box has three 20mm
diameter threaded holes. Two hole stoppers are provided for use as required.The cable entry holes of the back box must not be subjected to stress by the cable or conduit. The use of sealant such as Loctite product5331 is recommended.
Wiring
Connection to the MCP is made via the 4 way terminal connector as shown overleaf
Each terminal will accommodate a conductor of 2.5mm2.
Earthing
An Earth Continuity Terminal is situated in the rear of the back box. This is designed to accommodate 2 conductors ofup to 2.5mm2. An earthing plate is provided tor continuity of metal conduits. This must be placed behind the back box prior to fixing the box to the wall.
Important Notes;-
Please do not over tighten fixing screws.
The use of lubricants, cleaning solvents or petroleum based products should be avoided. The O-ring should be replaced when refitting or replacing the Waterproof Cover.
The integral back box has three 20mm
diameter threaded holes. Two hole stoppers are provided for use as required.The cable entry holes of the back box must not be subjected to stress by the cable or conduit. The use of sealant such as Loctite product5331 is recommended.
Wiring
Connection to the MCP is made via the 4 way terminal connector as shown overleaf
Each terminal will accommodate a conductor of 2.5mm2.
Earthing
An Earth Continuity Terminal is situated in the rear of the back box. This is designed to accommodate 2 conductors ofup to 2.5mm2. An earthing plate is provided tor continuity of metal conduits. This must be placed behind the back box prior to fixing the box to the wall.
Important Notes;-
Please do not over tighten fixing screws.
The use of lubricants, cleaning solvents or petroleum based products should be avoided. The O-ring should be replaced when refitting or replacing the Waterproof Cover.
Recommend Products
About US
Shenzhen Sumring Technology Co., Ltd.
is a complete fire alarm solution factory with a history of more than 15 years. The products cover fire alarm controllers, smoke detectors, heat detectors, fire alarm bells, strobe sirens, manual alarms, Gas detectors, passive infrared detectors, etc. SUMRING owns the trademark "SUMRING" and the company implements ISO9001 standard management. After long-term development, we have many stable and trustworthy partners from all over the world.
VR
Exhibition
SUMRING is committed to design and Manufacture the best fire safety products to reduce the risk of fire, and support the world to be safer and more comfortable.We are grateful that our product has gained the love and trust of friends from all over the world, and we will move forward bravely. we hope to showcase our products to more friends at the exhibition next year!
Payment and delivery
Delivery Time | ||||||||
Sample order | 1-3 working days | |||||||
Bulk order | 25-35 working days | |||||||
Stock order | 7-10 working days | |||||||
FAQ
Q1: What is the MOQ?
A1: The MOQ is 100 pcs, it's no problem to arrange < 100 pcs for products in stock, do you like small order first to check the quality?
Q2: How can we guarantee quality?
A1:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q3: Could you send me products catalogs with more details?
A3: Please leave your email address and online contact information, we will send catalogues/datasheet/installation video to you.
Q4: Can I get a sample first?
A4:Sample order is welcome! we'll refund you the samples cost in your following mass order.
Q5: What norms your detector is compatible with?
A5: Our detector comply to EN54, EN14604, EN50291, EN50194, CE and ROHS.
Q6: Can you customize it？
A6:Yes, we support the customization, even if for smart order, we can help client to customize the logo, could you share your customization requirements on box\\product\\manual?
Q7: Do you have in stock some pieces?
A7:Our daily capacity is over 10K pcs, most of items have stock, which one do you want to check?
A1: The MOQ is 100 pcs, it's no problem to arrange < 100 pcs for products in stock, do you like small order first to check the quality?
Q2: How can we guarantee quality?
A1:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q3: Could you send me products catalogs with more details?
A3: Please leave your email address and online contact information, we will send catalogues/datasheet/installation video to you.
Q4: Can I get a sample first?
A4:Sample order is welcome! we'll refund you the samples cost in your following mass order.
Q5: What norms your detector is compatible with?
A5: Our detector comply to EN54, EN14604, EN50291, EN50194, CE and ROHS.
Q6: Can you customize it？
A6:Yes, we support the customization, even if for smart order, we can help client to customize the logo, could you share your customization requirements on box\\product\\manual?
Q7: Do you have in stock some pieces?
A7:Our daily capacity is over 10K pcs, most of items have stock, which one do you want to check?
